MAZDA MODEL CX-9 2011 Owners Manual (in English)

Black plate (91,1)
CAUTION
ØBe careful not to allow the rubber
ring shown in the figure to be
scratched or damaged.
ØIf the rubber ring detaches,
reattach it before inserting a new
battery.
Rubber ring
qService
If you have a problem with the advanced
keyless functions, consult an Authorized
Mazda Dealer.
If your advanced key is lost or stolen,
bring all remaining advanced keys to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen advanced key
inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Operation Using Advanced
Keyless Functions
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the advanced key is being
carried.
NOTE
When the battery power is low, or in places
where there are high-intensity radio waves or
noise, the operational range may become
narrower or the system may not operate.
Locking, unlocking the doors and the
liftgate
The operational range for locking/
unlocking the doors is an area of up to 80
cm (31 in) from the center of the front
door handles.
The operational range for locking/
unlocking the liftgate is an area of up to
80 cm (31 in) from the center of the
liftgate.
Exterior transmitter
Operational range
NOTE
The system may not operate if you are too
close to the windows, door handles, or liftgate.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-7
CX-9_8BH2-EA-10H_Edition3 Page91
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (92,1)
Starting the engine
The operational range for starting the
engine includes nearly the entire cabin
area except for the luggage compartment.
Interior transmitter
Operational range
NOTElThe luggage compartment is out of the
operational range, however, starting the
engine may be possible.
lThe engine may not start if the advanced
key is placed in the following areas:
lAround the dashboardlIn the storage compartments such as the
glove box
lStarting the engine may be possible even if
the advanced key is outside of the vehicle
and extremely close to a door and window,
however, always start the engine from the
driver's seat.
If the vehicle is started and driven away
while the advanced key is not in the vehicle,
the vehicle will not restart after it is turned
off and the ignition is switched off.
lIf the advanced key is detected within
operational range, the operation indicator
light on the transmitter flashes
momentarily.
qLocking, Unlocking with Request
Switch
All doors and the liftgate can be locked/
unlocked by pressing the request switch
on the front doors or the liftgate while the
advanced key is being carried.
Front doors
Request switch
Liftgate
Request switch
To lock
To lock the doors and the liftgate, press
the request switch. A beep sound will be
heard once and the hazard warning lights
will flash once.
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8BH2-EA-10H_Edition3 Page92
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (93,1)
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash once to
indicate that the doors and the liftgate are
locked.
(With theft-deterrent system)
The hazard warning lights flash when the theft
deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before the
theft-deterrent system is properly armed.
When the doors are locked by pressing the
request switch on the front doors while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate that
the system is armed.
Refer to the theft-deterrent system on page
3-61.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors and the liftgate, press
the request switch again within 3 seconds
and two more beep sounds will be heard.NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that the doors and the liftgate are
unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the theft
deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
When the doors are unlocked by pressing the
request switch on the front doors while the
theft-deterrent system is turned off, the hazard
warning lights will flash twice to indicate that
the system is turned off.
Refer to the theft-deterrent system on page
3-61.
Front passenger door/liftgate request
switch
To unlock the doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
NOTE
lThe request switch on the driver's door can
be used to close the power windows and the
moonroof.Refer to Opening/Closing the
Power Windows on page 3-44.Refer to
Opening/Closing the Sunroof on page 3-51.
lConfirm that all doors and the liftgate are
securely locked.
lAll doors and the liftgate cannot be locked
when any door or the liftgate is open.
lA beep sound is heard for confirmation
when the doors and the liftgate are locked/
unlocked using the request switch. If you
prefer, the beep sound can be turned off
(page 10-8).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
CX-9_8BH2-EA-10H_Edition3 Page93
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (94,1)
lThe setting can be changed so that the
doors and the liftgate are locked
automatically without pressing the request
switch (page 10-8).
(Auto-lock function)
A beep sound is heard when all doors and
the liftgate are closed while the advanced
key is being carried. All doors and the
liftgate are locked automatically after about
3 seconds when the advanced key is out of
the operational range. Also, the hazard
warning lights flash once. (Even if the
driver is in the operational range, all doors
and the liftgate are locked automatically
after about 30 seconds.)
If you are out of the operational range
before the doors and the liftgate are
completely closed or another advanced key
is left in the vehicle, the auto-lock function
will not work. Always make sure that all
doors and the liftgate are closed and locked
before leaving the vehicle.
l(Auto re-lock function)
After unlocking doors and the liftgate by
pressing the request switch, all doors and
the liftgate will automatically lock if any of
the following operations are not performed
within about 30 seconds. If your vehicle has
a theft-deterrent system, the hazard
warning lights will flash for confirmation.
lA door or the liftgate is opened.lThe auxiliary key is inserted into the
ignition switch.
lThe start knob is pushed.
qStarting the Engine
Ignition switch positions
As there is no traditional key, some of the
ignition switch functions are different.
Start knob
The engraved mark (LOCK) indicated in
the illustration may differ from that
indicated on the actual vehicle (it may
read OFF).
OFF/LOCK―Knob Released
The power supply to electrical devices is
turned off.
OFF/LOCK―Knob Depressed
The ignition can be switched to ACC
when the KEY indicator light (green)
illuminates in the instrument cluster.
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8BH2-EA-10H_Edition3 Page94
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (95,1)
WARNING
Before leaving the driver's seat, always
switch the ignition to OFF/LOCK, set the
parking brake and make sure the shift
lever is in P:
It is important to switch the ignition
to OFF/LOCK even if you are not
removing the key from the ignition or
leaving the vehicle. Leaving the key
in other positions will disable some of
the vehicle security systems and run
the battery down.
Leaving the driver's seat without
switching the ignition to OFF/LOCK,
setting the parking brake and
shifting the shift lever to P is
dangerous. Unexpected vehicle
movement could occur. This could
cause an accident.
NOTE
lIf turning the ignition switch is difficult,
jiggle the steering wheel from side to side.
lThe ignition cannot be switched from ACC
to OFF/LOCK when the shift lever is not in
P.
ACC (Accessory)
In this position, some electrical
accessories will operate.
NOTE
The Advanced Keyless Entry System does not
function in the ACC position, and the doors
will not lock/unlock using the transmitter or
request switches even if the advanced key is
carried away from the vehicle.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-44).NOTE
When the ignition is switched ON, the sound of
the fuel pump motor operating near the fuel
tank can be heard. This does not indicate an
abnormality.
START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-44).
Starting the engine
NOTE
lEngine-starting is controlled by the spark
ignition system.
This system meets all Canadian
Interference-Causing Equipment Standard
requirements regulating the impulse
electrical field strength of radio noise.
lThe advanced key must be carried because
the advanced key carries an immobilizer
chip that must communicate with the engine
controls at short range.
lWhen starting the engine, be sure the start
knob is securely attached before trying to
operate it. If the knob becomes detached
from the ignition switch, re-attach it by
pushing it on to the ignition switch.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
CX-9_8BH2-EA-10H_Edition3 Page95
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (96,1)
1. Make sure the advanced key is being
carried.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Depress the brake pedal.
5. Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
The starter will not operate if the shift lever is
not in P or N.
6. Push the start knob slowly all the way
in.
7. Verify that the KEY indicator light
(green) illuminates in the instrument
cluster. The KEY warning light (red)
means you cannot continue to start the
engine using the Advanced Keyless
System. You may have to use the
auxiliary key instead (page 3-20).
NOTE
In the following cases, the KEY warning light
(red) illuminates and the engine will not start.
lThe advanced key battery is dead.lThe advanced key is out of operational
range.
lThe advanced key is placed in areas where
it is difficult for the system to detect the
signal (page 3-7).
lA key from another manufacturer similar to
the advanced key is in the operational
range.
8. Switch the ignition to ACC while
pushing the start knob in.
9. Switch the ignition from ACC to
START and hold (up to 10 seconds at a
time) until the engine starts.
CAUTION
Do not try the starter for more than
10 seconds at a time. If the engine
stalls or fails to start, wait 10 seconds
before trying again. Otherwise, you
may damage the starter and drain
the battery.
10. After starting the engine, let it idle for
about 10 seconds.
3-12
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8BH2-EA-10H_Edition3 Page96
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (97,1)
NOTElIn extremely cold weather or after the
vehicle has not been driven in several days,
let the engine warm up without operating
the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
Turning the engine off
1. Move the shift lever to the P position.
2. Switch the ignition from ON to ACC.
NOTE
When the engine is turned off and the ignition
is switched from ACC to OFF/LOCK, the KEY
indicator light (green) flashes in the instrument
cluster for about 30 seconds if the battery
power of the advanced key is low. Replace the
battery with a new one.
Refer to Battery Replacement (page 3-7).
3. Push in the start knob from the ACC
position and turn it to the OFF/LOCK.
CAUTION
When leaving the vehicle, make sure
the ignition is switched to OFF/LOCK.
NOTE
lWhen switching the ignition to OFF/LOCK,
the ignition switch has to be pushed in from
the ACC position and turned. Without being
pushed in, the ignition switch stops at the
ACC position and the vehicle battery may
be discharged if the ignition switch is left in
the ACC position. When leaving the vehicle,
make sure the ignition is switched to OFF/
LOCK.
lIf the vehicle is left with the ignition not
switched to OFF/LOCK, a beep sound is
heard and the indicator light flashes to
notify the driver.
Refer to Warning Beep (page 3-18).
Operation Using Advanced
Key Functions
qKeyless Entry System
This system uses the more traditional
keyless entry buttons to remotely lock and
unlock the doors and the liftgate, and
opens the power windows and the
moonroof.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
auxiliary key is in the ignition switch.
lWith the start knob installed in the OFF/
LOCK position, the system is fully
operational. If the ignition is not switched
off or the start knob is pushed in, the system
does not operate.
lAll doors and the liftgate cannot be locked
by pressing the lock button while any door
or the liftgate is open. The hazard warning
lights will also not flash.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
CX-9_8BH2-EA-10H_Edition3 Page97
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (98,1)

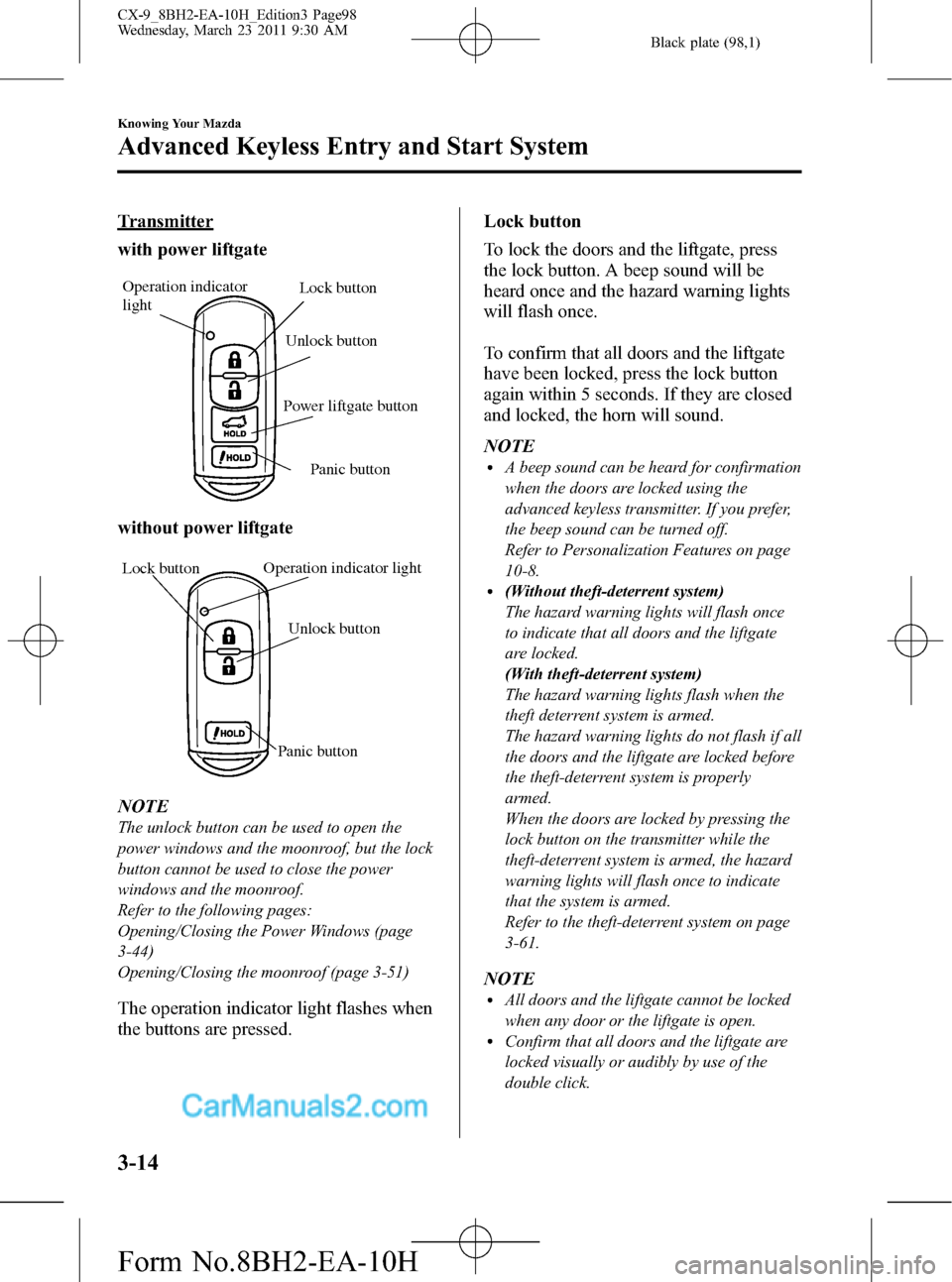

Transmitter
with power liftgate
Lock button
Unlock button
Power liftgate button
Operation indicator
light
Panic button
without power liftgate
Lock button
Unlock buttonOperation indicator light
Panic button
NOTE
The unlock button can be used to open the
power windows and the moonroof, but the lock
button cannot be used to close the power
windows and the moonroof.
Refer to the following pages:
Opening/Closing the Power Windows (page
3-44)
Opening/Closing the moonroof (page 3-51)
The operation indicator light flashes when
the buttons are pressed.Lock button
To lock the doors and the liftgate, press
the lock button. A beep sound will be
heard once and the hazard warning lights
will flash once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.
NOTE
lA beep sound can be heard for confirmation
when the doors are locked using the
advanced keyless transmitter. If you prefer,
the beep sound can be turned off.
Refer to Personalization Features on page
10-8.
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before
the theft-deterrent system is properly
armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to the theft-deterrent system on page
3-61.
NOTElAll doors and the liftgate cannot be locked
when any door or the liftgate is open.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8BH2-EA-10H_Edition3 Page98
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (99,1)
Unlock button
To unlock the driver's door, press the
unlock button. A beep will be heard twice
and the hazard warning lights will flash
twice.
To unlock all doors and the liftgate, press
the unlock button again within 3 seconds
and two more beep sounds will be heard.
NOTE
lA beep sound can be heard for confirmation
when the doors are unlocked using the
advanced keyless transmitter. If you prefer,
the beep sound can be turned off.
Refer to Personalization Features on page
10-8.
l(Without theft-deterrent system)
The hazard warning lights will flash twice
to indicate that all doors and the liftgate
are unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is turned off.
The hazard warning lights do not flash
unless the theft deterrent system has been
properly turned off.
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the system is turned off.
Refer to the theft-deterrent system on page
3-61.
NOTE
(Auto re-lock function)
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if any
of the following operations are not performed
within about 30 seconds. If your vehicle has a
theft-deterrent system, the hazard warning
lights will flash for confirmation.
lA door or the liftgate is opened.lThe auxiliary key is inserted into the
ignition switch.
lThe start knob is pressed.
Power liftgate button
If your Mazda has a power liftgate (page
3-35), the transmitter can open/close the
liftgate.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
(Turning off the alarm)
The alarm stops by pressing any button on
the transmitter.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-15
CX-9_8BH2-EA-10H_Edition3 Page99
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (100,1)
Declaration of Conformity
Keyless entry system
3-16
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8BH2-EA-10H_Edition3 Page100
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H
