MAZDA MODEL CX-9 2011 Owners Manual (in English)

Black plate (111,1)
qDeclaration of Conformity
Keyless entry system
Knowing Your Mazda
Doors and Locks
3-27
CX-9_8BH2-EA-10H_Edition3 Page111
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (112,1)

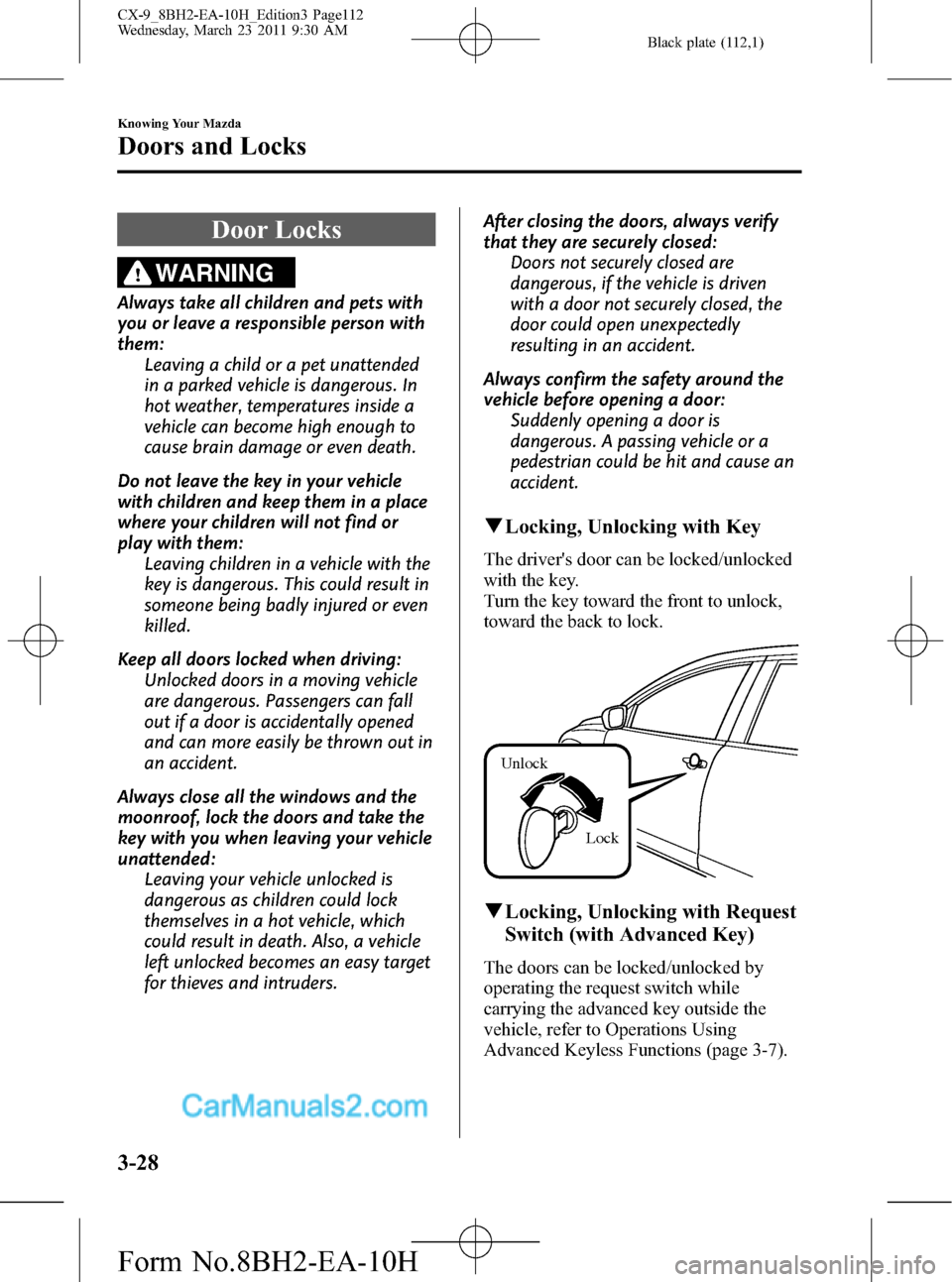

Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows and the
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.After closing the doors, always verify
that they are securely closed:
Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident.
Always confirm the safety around the
vehicle before opening a door:
Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
3-28
Knowing Your Mazda
Doors and Locks
CX-9_8BH2-EA-10H_Edition3 Page112
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (113,1)
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-22).
qLocking, Unlocking with Door-
Lock Knob
To lock any door from the inside, press
the door-lock knob.
To unlock, pull it outward.
This does not operate the other door
locks.
Lock
Unlock
To lock any door with the door-lock knob
from the outside, press the door-lock knob
to the lock position and close the door.
This does not operate the other door
locks.
Door-lock knob
NOTElWhen locking the doors this way, be careful
not to leave the key inside the vehicle.
l(With advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside.
l(With retractable type key)
The driver's door cannot be locked using
the door-lock knob from the outside if the
key is in the ignition switch.
qPower Door Locks
Vehicle lock-out prevention
(With advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. All doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
Knowing Your Mazda
Doors and Locks
3-29
CX-9_8BH2-EA-10H_Edition3 Page113
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (114,1)
(With retractable type key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
Locking, unlocking with key
All doors and the liftgate lock
automatically when the driver's door is
locked with the key.
All doors and the liftgate unlock when the
driver's door is unlocked and the key is
held in the unlock position for one second
or longer.
Unlock
Lock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors and the liftgate. To unlock only the
driver's door, insert the key into the driver's
door lock and turn the key briefly to the unlock
position and then immediately return it to the
center position.
Locking, unlocking with door-lock
switch
All doors and the liftgate lock
automatically when lock side is pressed.
They all unlock when unlock side is
pressed.
Lock
Unlock
Locking, unlocking with request switch
(with advanced key)
All doors and the liftgate can be locked/
unlocked by operating the request switch
on the front doors and the liftgate while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Locking, unlocking with transmitter
(with advanced key)
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-13).
Locking, unlocking with transmitter
(with retractable type key)
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-22).
3-30
Knowing Your Mazda
Doors and Locks
CX-9_8BH2-EA-10H_Edition3 Page114
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (115,1)
Auto lock/unlock function
WARNING
Do not pull the inner handle on a front
door:
Pulling an inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if a front door accidentally
opens, which could result in death or
serious injury.
lWhen the vehicle speed exceeds 20
km/h (12 mph), all doors and the
liftgate lock automatically.
lWhen the ignition is switched off, all
doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can set to lock
or unlock automatically by selecting any
one of the functions from the following
table and using the driver's door-lock
switch on the interior to perform the
setting change as indicated in the
procedure which follows.Settings can be changed using the
following operation.
Function
numberFunction
1The auto door-lock function is
disabled.
2All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
3All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors and the liftgate unlock
when the ignition is switched from ON
to ACC or Off.
4When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
5When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
When the shift lever is shifted to park
(P) while the ignition is switched ON,
all the doors and the liftgate unlock
automatically.
1. Stop the vehicle and close all the doors.
2. Switch the ignition ON.
3. Press and hold the lock side of the
driver's door-lock switch within 10
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
4. Referring to the auto lock/unlock
function setting table, determine the
function number for the desired setting
and press the unlock side of the driver's
door-lock switch only in the amount of
the selected function number (Ex. If
you select function 2, press the unlock
side of the switch only 2 times).
Knowing Your Mazda
Doors and Locks
3-31
CX-9_8BH2-EA-10H_Edition3 Page115
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (116,1)
NOTE
There are only a total of five auto lock/unlock
settings available. Be sure to press the unlock
side of the driver's door-lock switch the correct
number of times according to the selected
function number. If the switch is mistakenly
pressed six times, the procedure will be
invalidated. If this occurs, start the procedure
from the beginning.
5. Three seconds after the function setting
has been changed, a beep sound will
beep in the amount of the selected
function number.
NOTE
lThe doors cannot be locked or unlocked
while the setting function is being
performed.
lThe procedure can be cancelled by pressing
the lock side of the driver's door-lock
switch.
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
Lock
Unlock
3-32
Knowing Your Mazda
Doors and Locks
CX-9_8BH2-EA-10H_Edition3 Page116
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (117,1)
Liftgate
WARNING
Never allow a person to ride in the
luggage compartment:
Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
CAUTION
Be careful not to apply excessive force
to the damper stay on the liftgate
such as by putting your hand on the
stay. Otherwise, the damper stay
may bend and affect the liftgate
operation.
Damper stay
qLocking, Unlocking with Request
Switch (with Advanced Key)
The liftgate can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-22).
Knowing Your Mazda
Doors and Locks
3-33
CX-9_8BH2-EA-10H_Edition3 Page117
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (118,1)
qLocking, Unlocking with Door-
Lock Switch
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-29).
qOpening and Closing the Liftgate
Manually opening the liftgate
WARNING
Always fully open the liftgate when
opening it:
Raising the liftgate only partially is
dangerous as it could drop
unexpectedly resulting in injury.
Pull up on the handle.
NOTE
If the vehicle battery is dead or there is a
malfunction in the electrical system and the
liftgate cannot be unlocked, perform the
following procedure as an emergency measure
to unlock it:
1. Remove the cap on the interior surface of
the liftgate with a flathead screwdriver.
Cap
3-34
Knowing Your Mazda
Doors and Locks
CX-9_8BH2-EA-10H_Edition3 Page118
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (119,1)
2.(With power liftgate)
Push the liftgate while pressing the lever
down.
(Without power liftgate)
Turn the lever to the right to unlock the
liftgate
With power liftgateLever
Lever
Without power liftgate
After performing this emergency measure,
have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Manually closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
qPower Liftgateí
The power liftgate opens/closes
electrically by operating switches in the
vehicle or the buttons on the keyless entry
system transmitter.
Refer to Keyless Entry System on page
3-13.
WARNING
Be sure to watch the power liftgate as
it opens or closes, and make sure that
it closes completely:
Opening or closing the power liftgate
while not watching it move is
dangerous. Because of unseen
obstacles and the jam-safe feature, a
liftgate may not close completely
and, if left unnoticed, could result in
serious injury or death if an occupant
were to fall out of the vehicle.
Always be sure that the area around
the liftgate is clear before activating
it.
Always confirm the safety of the area
around the power liftgate before
operating it electrically.
Not checking the area around the
liftgate for people before operating it
using the power liftgate switch or the
button on the keyless entry system is
dangerous. A person could become
caught between the liftgate and an
obstruction while it is opening
electrically or between the liftgate
and vehicle while it is closing
electrically, resulting in an accident
and serious injury.
Always be sure the power liftgate
completely closes before shifting into
gear and driving the vehicle:
Shifting out of Park (P) while the
liftgate is moving is dangerous. The
liftgate will not close completely and
this could result in serious injury or
death if an occupant were to fall out
of the vehicle. Occupants in the
vehicle will also not have full
protection in a collision.
Knowing Your Mazda
Doors and Locks
3-35íSome models. CX-9_8BH2-EA-10H_Edition3 Page119
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (120,1)
Never allow children to operate the
power liftgate system:
Allowing children to operate the
power liftgate switch and the keyless
entry system is dangerous. Children
are not aware of the dangers of
people getting fingers and hands
caught in a moving liftgate. If
someone's neck, head or hands get
caught in a closing door, it could
result in death or serious injury.
CAUTION
ØWhen closing the power liftgate,
make sure there are no foreign
objects around the striker. If
foreign objects are obstructing the
striker, the liftgate may not close
properly.
Striker
ØDo not install accessories to the
power liftgate other than specified
accessories. Otherwise, it cannot
be opened/closed automatically
and could result in a malfunction.
ØBe careful when switching the
power liftgate from electrical to
manual operation. The power
liftgate may open/close
unexpectedly depending on its
position which could result in
injury.NOTE
lDo not apply unnecessary force to the
power liftgate when it is opening/closing
electrically. Unnecessary force on the
liftgate may cause it to reverse direction of
movement automatically. Also, it could
result in a malfunction.
lThe power liftgate may not open/close
electrically if the vehicle is parked on an
incline, or there is strong wind, or the
liftgate is laden with snow.
lThe power liftgate will not operate unless it
is unlocked. The power liftgate does not
operate unless it is unlocked using the
power door lock function.
Refer to the Power Door Locks on page
3-29.
lIf a power liftgate system fuse has blown,
the liftgate cannot be opened using the
power liftgate switch or the outer handle
(liftgate). Use the emergency lever to open
the liftgate.
lFully close the power liftgate before
disconnecting the vehicle battery. If the
battery is disconnected with the liftgate
open, it cannot be opened or closed
automatically after the battery is
reconnected.
lTo restore the power liftgate functions,
perform the following:
1 Park on level ground.
2 Fully close the liftgate manually.
3 Unlock the liftgate and all the doors.
4 Press the power liftgate switch or the
power liftgate button on the keyless entry
system transmitter to fully open the
liftgate.
5 Press the power liftgate switch or the
power liftgate button on the keyless entry
system transmitter again to fully close
the liftgate.
3-36
Knowing Your Mazda
Doors and Locks
CX-9_8BH2-EA-10H_Edition3 Page120
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H
