MAZDA MODEL CX-9 2011 Owners Manual (in English)

Black plate (431,1)
Rear View Monitorí
The rear view monitor is a visual assist system when reversing the vehicle that provides
images from the rear of the vehicle.
WARNING
The rear view monitor is only a visual assist device when reversing the vehicle. The
images on the screen may be different from the actual conditions. Always drive
carefully confirming the safety of the rear and the surrounding conditions by looking
directly with your eyes. Reversing the vehicle by only looking at the screen may cause
an accident or a collision with an object.
CAUTION
ØDo not use the rear view monitor under the following conditions: Using the rear
view monitor under the following conditions is dangerous and could result in
injury or vehicle damage or both.
ØIcy or snow-covered roads.
ØTire chains or a temporary spare tire is installed.
ØThe liftgate is not fully closed.
ØThe vehicle is on a road incline.
ØWhen the display is cold, images may course across the monitor or the screen and
may be dimmer than usual, which could cause difficulty in confirming the
surrounding conditions of the vehicle. Always drive carefully confirming the safety
of the rear and the surrounding conditions by looking directly with your eyes.
ØDo not apply excessive force to the camera. The camera position and angle may
deviate.
ØDo not disassemble, modify, or remove it as it may no longer be waterproof.
ØThe camera cover is made of plastic. Do not apply degreasing agents, organic
solvents, wax, or glass coating agents to the camera cover. If any are spilled on
the cover, wipe off with a soft cloth immediately.
ØDo not rub the cover excessively, or polish it using an abrasive compound or a
hard brush. The cover may be damaged affecting the image.
Interior Comfort
Rear View Monitor
6-177íSome models. CX-9_8BH2-EA-10H_Edition3 Page431
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (432,1)
NOTElIf water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it cannot be
wiped off, use a mild detergent.
lIf the camera temperature changes rapidly, such as by pouring hot water on it under cold
temperature conditions, the rear view monitor may not operate correctly.
lWhen replacing the tires, consult an Authorized Mazda Dealer. Replacing the tires could result in
deviation of the guide lines which appear on the display.
lIf the vehicle's front, side, or rear has been involved in a collision, the alignment of the rear view
parking camera (location, installation angle) may have deviated. Always consult an Authorized
Mazda Dealer to have the vehicle inspected.
(Navigation system)
lThe screen may not change to the camera image while the navigation system is being activated
immediately after the vehicle battery has been connected. If this occurs, activate the rear-view
monitor camera again soon after the navigation system.
qRear View Parking Camera Location
Rear View Parking Camera
qSwitching to the Rear View Monitor Display
Shift the shift lever to R with the ignition switched ON to switch the display to the rear
view monitor display.
NOTE
When the shift lever is shifted from R to another shift lever position, the screen returns to the previous
display.
6-178
Interior Comfort
Rear View Monitor
CX-9_8BH2-EA-10H_Edition3 Page432
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (433,1)

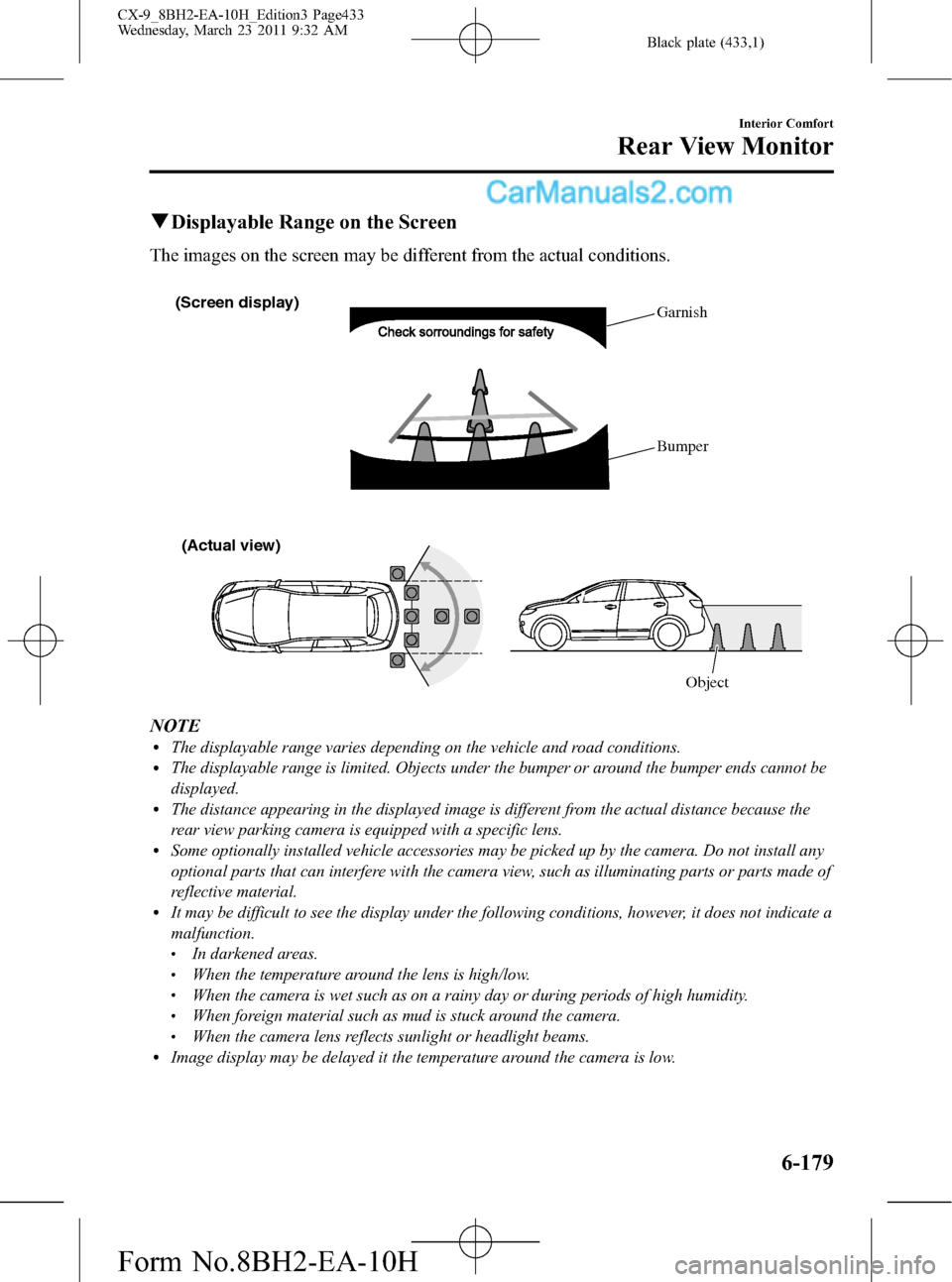

qDisplayable Range on the Screen
The images on the screen may be different from the actual conditions.
(Screen display)
(Actual view)
Object Garnish
Bumper
NOTElThe displayable range varies depending on the vehicle and road conditions.lThe displayable range is limited. Objects under the bumper or around the bumper ends cannot be
displayed.
lThe distance appearing in the displayed image is different from the actual distance because the
rear view parking camera is equipped with a specific lens.
lSome optionally installed vehicle accessories may be picked up by the camera. Do not install any
optional parts that can interfere with the camera view, such as illuminating parts or parts made of
reflective material.
lIt may be difficult to see the display under the following conditions, however, it does not indicate a
malfunction.
lIn darkened areas.lWhen the temperature around the lens is high/low.lWhen the camera is wet such as on a rainy day or during periods of high humidity.lWhen foreign material such as mud is stuck around the camera.lWhen the camera lens reflects sunlight or headlight beams.lImage display may be delayed it the temperature around the camera is low.
Interior Comfort
Rear View Monitor
6-179
CX-9_8BH2-EA-10H_Edition3 Page433
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (434,1)
qViewing the Display
Guide lines which indicate the width of
the vehicle (green) are displayed on the
screen as a reference to the approximate
width of the vehicle in comparison to the
width of the parking space you are about
to back into.
Use this display view for parking your
vehicle in a parking space or garage.
Garnish
Bumperab
a) Vehicle width guide lines (green)
Guide lines serve as a reference to the
approximate width of the vehicle.
b) Distance guide lines
These guide lines indicate the
approximate distance to a point
measured from the vehicle's rear (from
the end of the bumper).
The red and yellow lines indicate the
points about 50 cm (red) and 1 meter
(yellow) from the rear bumper (at the
center point of each of the lines).
CAUTION
The guide lines on the screen are
fixed lines. They are not synced to the
driver's turning of the steering wheel.
Always be careful and check the area
to the vehicle's rear and the
surrounding area directly with your
eyes while backing up.
6-180
Interior Comfort
Rear View Monitor
CX-9_8BH2-EA-10H_Edition3 Page434
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (435,1)
qRear View Monitor Operation
The operation of the rear view monitor when reversing the vehicle varies depending on the
traffic, road, and vehicle conditions. The amount of steering and the timing also varies
depending on conditions, so confirm the surrounding conditions directly with your eyes
and steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images (mirror
images).
1. Shift the shift lever to R to switch the display to the rear view monitor display.
2. Confirming the surrounding conditions, reverse the vehicle.
(Screen display)
(Actual view)
3. After your vehicle begins entering the parking space, continue backing up slowly so that
the distance between the vehicle width lines and the sides of the parking space on the
left and right are roughly equal.
4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to
the left and right sides of the parking space.
Interior Comfort
Rear View Monitor
6-181
CX-9_8BH2-EA-10H_Edition3 Page435
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (436,1)
5. Once they are parallel, straighten the wheels and back your vehicle slowly into the
parking space. Continue checking the vehicle's surroundings and then stop the vehicle in
the best possible position. (If the parking space has division lines, check whether the
vehicle width guide lines are parallel to them.)
(Screen display)
(Actual view)
6. When the shift lever is shifted from R to another shift lever position, the screen returns
to the previous display.
6-182
Interior Comfort
Rear View Monitor
CX-9_8BH2-EA-10H_Edition3 Page436
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (437,1)
NOTE
Because there may be a difference between the displayed image, such as indicated below, and the
actual conditions when parking, always verify the safety at the rear of the vehicle and the
surrounding area directly with your eyes.
lIn the image of the parking space (or garage) displayed below, even though the back end and
distance guide lines appear parallel in the monitor, they may not actually be parallel on the
ground.
lWhen parking in a space with a division line on only one side of the parking space, the division
line and the vehicle width guide line may appear parallel on the monitor, but they may not
actually be parallel on the ground.
Interior Comfort
Rear View Monitor
6-183
CX-9_8BH2-EA-10H_Edition3 Page437
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (438,1)
qVariance Between Actual Road Conditions and Displayed Image
Some variance occurs between the actual road and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may
cause a variance in distance perspective.
When the vehicle is tilted due to the weight of passengers and load
When the vehicle rear is lowered, the object displayed on the screen appears farther than
the actual distance.
VarianceObject
6-184
Interior Comfort
Rear View Monitor
CX-9_8BH2-EA-10H_Edition3 Page438
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (439,1)
When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.
Appears
farther than
actual
distanceAppears
closer than
actual
distance
Object at actual
position Object at actual position
Object on screen
A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object.Object on screen
Interior Comfort
Rear View Monitor
6-185
CX-9_8BH2-EA-10H_Edition3 Page439
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (440,1)
Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.
A A
C B
CB
(Actual distance) B>C=A Sensed distance on screen A>B>C(Screen display)
(Actual condition)
qImage Quality Adjustment
Image quality adjustment can be done
while the shift lever is in reverse (R) and
the rear view monitor is displayed. For
detailed information, refer to the audio
section or the screen adjustment related
information in the
“NAVIGATION SYSTEM Owner's
Manual”.
While the shift lever is in reverse (R),
always check the vehicle's surroundings
adequately before performing the image
quality adjustment.
6-186
Interior Comfort
Rear View Monitor
CX-9_8BH2-EA-10H_Edition3 Page440
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H
