Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qOverhead Console
This console box is designed to store
accessories.
Push and release to open.
Interior Comfort
Interior Equipment
6-197
CX-9_8BH2-EA-10H_Edition3 Page451
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (452,1)
qCoin Box
To open, press the release catch down and
pull the lid downward.
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock
Unlock
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
qCenter Console
To open, push the button.
qArmrest Boxí
To open, pull the release catch.
qCargo Securing Loops
WARNING
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
6-198
Interior Comfort
íSome models.
Interior Equipment
CX-9_8BH2-EA-10H_Edition3 Page452
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (453,1)
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
qCargo Sub-Compartment
Center cargo sub-compartment
1. Lift the trunk board.
2. Secure the trunk board using the straps
on the third-row seatbacks.
Side cargo sub-compartment
Open the cover
Some models.
qShopping Bag Hook
The shopping bag hook can be used for
hanging shopping bags.
CAUTION
Do not hang excessive weight on the
shopping bag hook as it could be
damaged.
Interior Comfort
Interior Equipment
6-199
CX-9_8BH2-EA-10H_Edition3 Page453
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (454,1)
Shopping bag hook
(tensile strength:3 kg
(6.6 lb))
qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
qLuggage Compartment
Golf bags can be carried in the luggage
compartment.
To carry two golf bags, use the following
procedure:
1. Put one golf bag in the luggage
compartment with its top pointing to
the left.
2. Put the other golf bag on top of the first
bag with its top pointing to the right.
NOTElSome golf bags cannot fit depending on
their size.
lGolf bags up to nine inches in diameter can
be carried.
6-200
Interior Comfort
Interior Equipment
CX-9_8BH2-EA-10H_Edition3 Page454
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (455,1)
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition must be switched to ACC or
ON.
Center/Rear
The accessory sockets can be used
regardless of whether the ignition is on or
off.
Center
Rear
Interior Comfort
Interior Equipment
6-201
CX-9_8BH2-EA-10H_Edition3 Page455
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (456,1)
CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
ØNoise may occur on the audio
playback depending on the device
connected to the accessory socket.
ØDepending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Power Outletí
The power outlet is positioned as shown
in the figure.
For more details, refer to
“Auxiliary terminals and power outlet”
(page 6-110).
6-202
Interior Comfort
íSome models.
Interior Equipment
CX-9_8BH2-EA-10H_Edition3 Page456
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (457,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-8
Overheating ................................................................................. 7-16
Overheating ............................................................................. 7-16
Emergency Starting .................................................................... 7-18
Jump-Starting .......................................................................... 7-18
Push-Starting ........................................................................... 7-20
Emergency Towing ..................................................................... 7-21
Towing Description ................................................................. 7-21
Tiedown Hooks ....................................................................... 7-22
Recreational Towing ............................................................... 7-24
7-1
CX-9_8BH2-EA-10H_Edition3 Page457
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (458,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
CX-9_8BH2-EA-10H_Edition3 Page458
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (459,1)
Spare Tire and Tool Storage

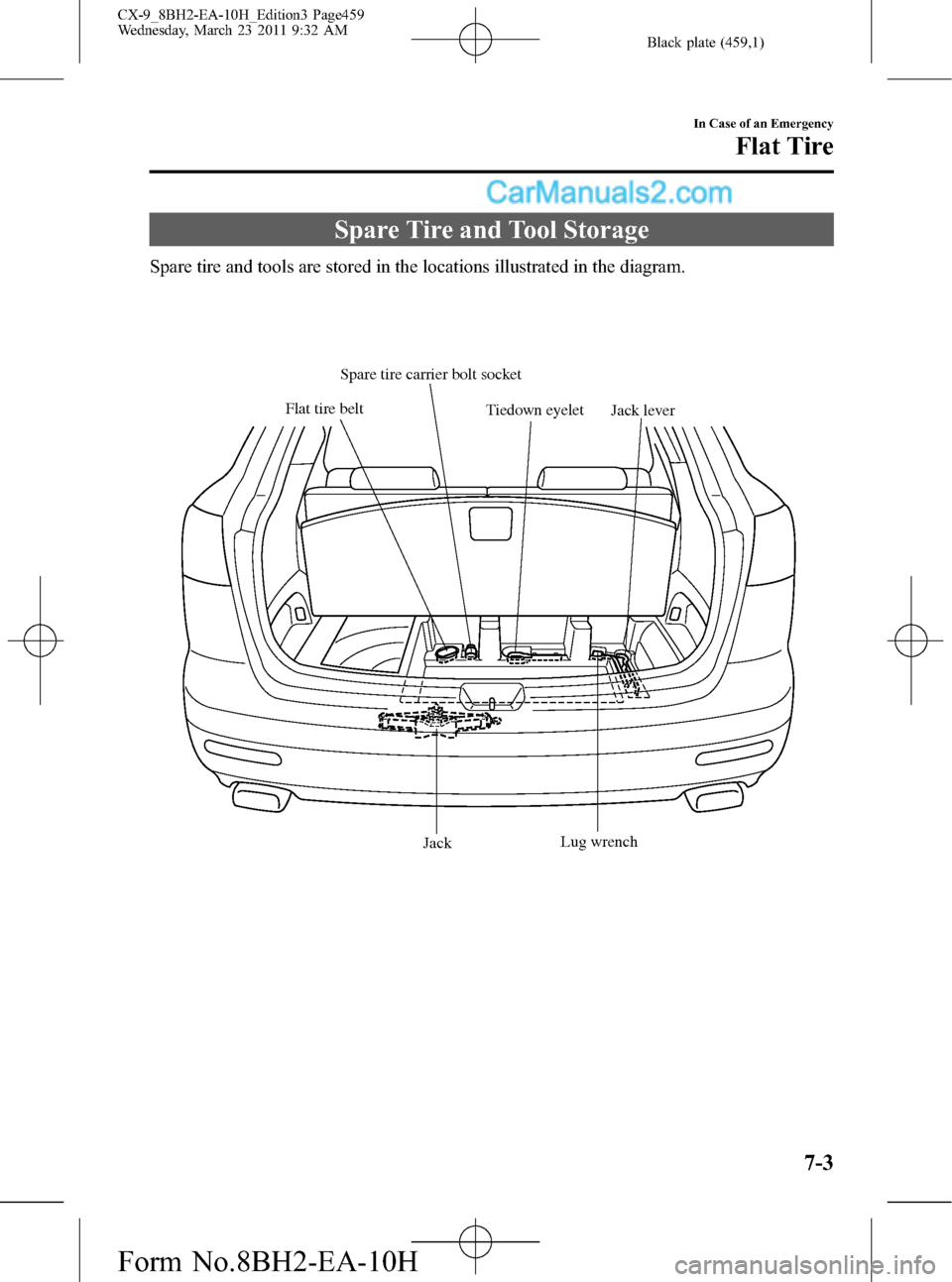

Spare tire and tools are stored in the locations illustrated in the diagram.
JackJack lever
Lug wrench Tiedown eyelet
Flat tire beltSpare tire carrier bolt socket
In Case of an Emergency
Flat Tire
7-3
CX-9_8BH2-EA-10H_Edition3 Page459
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (460,1)
qJack
To remove the jack
1. Open the cargo sub-compartment.
2. Remove the cover.
3. Turn the wing bolt and jack screw
counterclockwise.
Jack screw
Wing bolt
To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing right and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction
shown in the figure.
Jack screw
Wing bolt
3. Turn the wing bolt completely to
secure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
7-4
In Case of an Emergency
Flat Tire
CX-9_8BH2-EA-10H_Edition3 Page460
Wednesday, March 23 2011 9:32 AM
