MAZDA MODEL CX-9 2012 Owners Manual (in English)

Black plate (241,1)
NOTElThe headlights, other exterior lights and dashboard illumination may not turn off immediately
even if the surrounding area becomes well-lit because the light sensor determines that it is
nighttime if the surrounding area is continuously dark for several minutes such as inside long
tunnels, traffic jams inside tunnels, or in indoor parking lots.
In this case, the light turns off if the light switch is turned to the OFF position.
lThe dashboard illumination can be adjusted by rotating the knob in the instrument cluster. Also,
the day/night mode can be changed by pressing the knob. To adjust the brightness of the
dashboard illumination: Refer to Dashboard Illumination on page 5-42.
lThe sensitivity of the AUTO lights may be changed by an Authorized Mazda Dealer.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights have xenon fusion bulbs that produce a bright white
beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs yourself
Replacing the xenon fusion bulbs yourself is dangerous. Because the xenon fusion
bulbs require high voltage, you could receive an electric shock if the bulbs are
handled incorrectly. Consult an Authorized Mazda Dealer when the replacement is
necessary.
NOTE
If the headlights flicker, or the brightness weakens, the bulb-life may be depleted and a replacement is
necessary. Consult an Authorized Mazda Dealer.
qLights-On Reminderí
If lights are on and the ignition is
switched to ACC or the ignition is
switched off, or the key is removed from
the ignition switch, a continuous beep
sound will be heard when the driver's
door is opened.
NOTE
l(With advanced key)
When the advanced keyless function is used
and the ignition is switched to ACC, the
“Start Knob Not in Lock Warning Beep”
(page 3-18) overrides the lights-on
reminder.
lWhen the ignition is switched to ACC or the
ignition is switched off, the“Ignition Key
Reminder”(page 5-3) overrides the lights-
on reminder.
qHeadlight High-Low Beam
Press the lever forward to turn on the high
beams.
Pull the lever back to its original position
for the low beams.
Driving Your Mazda
Switches and Controls
5-63íSome models. CX-9_8CA8-EA-11G_Edition1 Page241
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (242,1)
Type A
High beam
Low beam
Type B
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
towards you (the headlight switch does
not need to be on). The lever will return to
the normal position when released.
Type A
OFF
Flashing
Type B
OFF
Flashing
5-64
Driving Your Mazda
Switches and Controls
CX-9_8CA8-EA-11G_Edition1 Page242
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (243,1)
qHeadlight Levelingí
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
The headlight leveling switch is used to
adjust the angle of the headlights
manually.
Select the proper headlight angle from the following
chart.
Front seat Rear seat
LoadSwitch
Position
Driver
PassengerSecond-
rowThird-
row
×――――0
××―― ―0
××―×―1
××××―1
××××× 2
×―――×3
×: Yes
―:No
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition is
switched ON.NOTE
The Daytime Running Lights turn off when the
parking brake is applied.
Driving Your Mazda
Switches and Controls
5-65íSome models. CX-9_8CA8-EA-11G_Edition1 Page243
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (244,1)
Turn and Lane-Change
Signals
Turn Signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
(Type A)
Right turn
Left turn Right lane change
Left lane changeOFF
(Type B)
Right turn
Left turn Right lane change
Left lane changeOFF
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without flashing
or if it flashes abnormally, one of the turn
signal bulbs may be burned out.
5-66
Driving Your Mazda
Switches and Controls
CX-9_8CA8-EA-11G_Edition1 Page244
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (245,1)
Fog Lightsí
Use this switch to turn on the fog lights.
The fog lights will help you to see as well
as be seen under foggy conditions or at
night.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position before turning on the fog lights.
Type A
Fog light switch
Type B
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
(Type A)/
(Type B) position.NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will turn on when
the headlights, the exterior lights and
dashboard illumination turn automatically.
Driving Your Mazda
Switches and Controls
5-67íSome models. CX-9_8CA8-EA-11G_Edition1 Page245
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (246,1)
Windshield Wipers and
Washer
The ignition must be switched ON.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions:
Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid.NOTE
Because heavy ice and snow can jam the wiper
blades, the wiper motor is protected from
motor breakdown, overheating and possible
fire by a circuit breaker. This mechanism will
automatically stop operation of the blades, but
only for about 5 minutes.
If this happens, turn off the wiper switch and
park off the right-of-way, and remove the snow
and ice.
After 5 minutes, turn on the switch and the
blades should operate normally. If they do not
resume functioning, consult an Authorized
Mazda Dealer as soon as possible. Drive to
the side of the road and park off the right-of-
way. Wait until the weather clears before trying
to drive with the wipers inoperative.
qWindshield Wipers
Turn the wipers on by pressing the lever
up or down.
With INT position
5-68
Driving Your Mazda
Switches and Controls
CX-9_8CA8-EA-11G_Edition1 Page246
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (247,1)
Switch Position
Wiper operation
No.Type
AType
B
Single wipe cycle (mist)
Intermittent
Low speed
High speed
With AUTO position
Switch Position
Wiper operation
No.Type
AType
B
Single wipe cycle (mist)
Auto control
Low speed
High speed
Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.Type A
INT ring
Type B
INT ring
AUTO (Auto-wiper control)
When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wipers on or off automatically
(off―intermittent―low speed―high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch downward for higher
sensitivity (faster response) or rotate it
upward for less sensitivity (slower
response).
Driving Your Mazda
Switches and Controls
5-69
CX-9_8CA8-EA-11G_Edition1 Page247
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

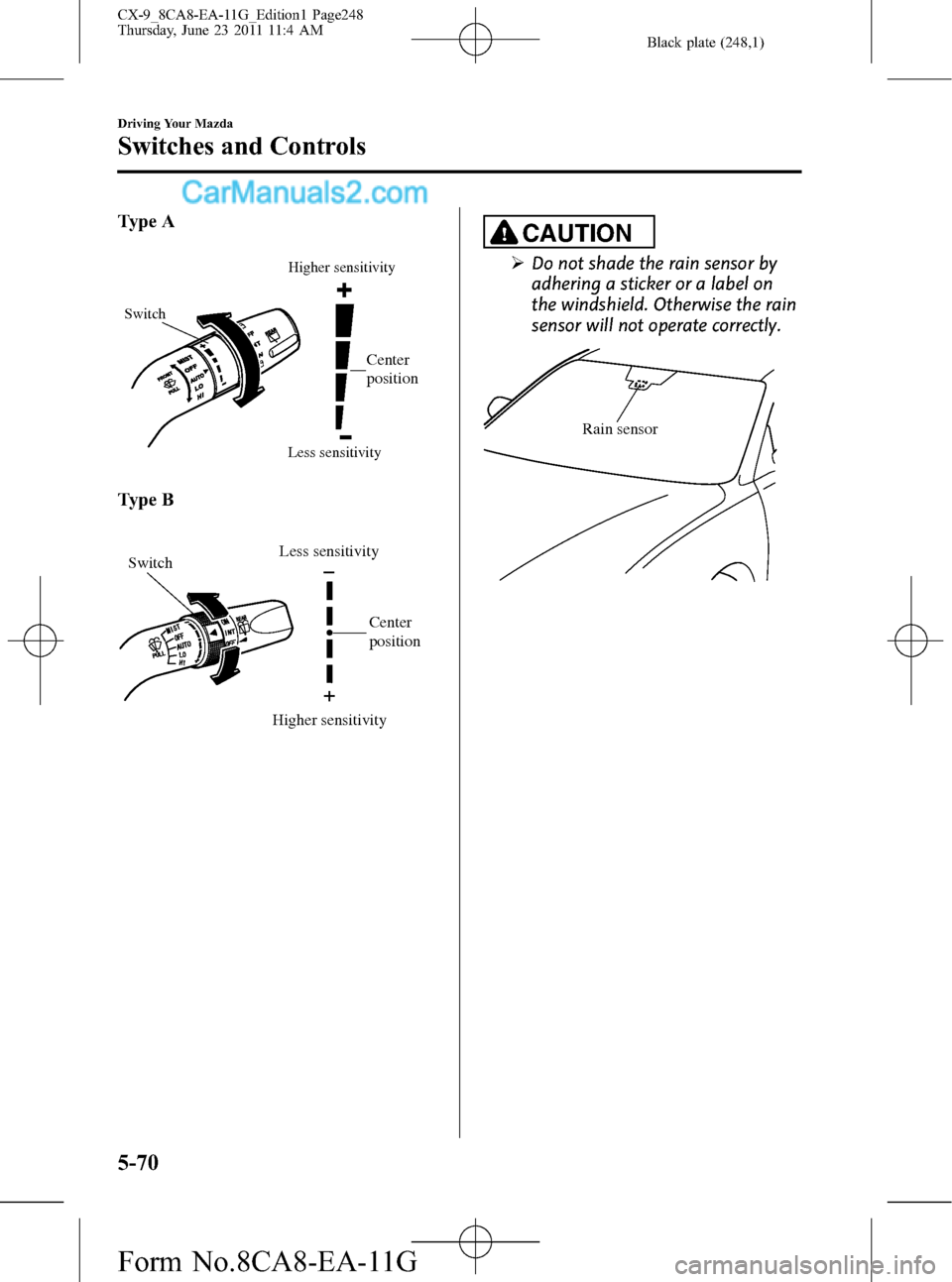

Black plate (248,1)
Type A
Higher sensitivity
Less sensitivity
Switch
Center
position
Type B
Center
position
Higher sensitivityLess sensitivity
Switch
CAUTION
ØDo not shade the rain sensor by
adhering a sticker or a label on
the windshield. Otherwise the rain
sensor will not operate correctly.
Rain sensor
5-70
Driving Your Mazda
Switches and Controls
CX-9_8CA8-EA-11G_Edition1 Page248
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (249,1)
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely―this is
particularly important when
clearing ice and snow―when it is
most likely that the engine is left
running.NOTE
lSwitching the auto-wiper lever from the
OFF to the AUTO position while driving at
a vehicle speed of 4 km/h (2 mph) or higher
(or after driving the vehicle) activates the
windshield wipers once, after which they
operate according to the rainfall amount.
lThe auto-wiper control may not operate
when the rain sensor temperature is about
_
10 °C (14 °F) or lower, or about 85 °C
(185 °F) or higher.
lIf the windshield is coated with water
repellent, the rain sensor may not be able to
sense the amount of rainfall correctly and
auto-wiper control may not operate
properly.
lIf dirt or foreign matter (Such as ice or
matter containing salt water) adheres to the
windshield above the rain sensor or if the
windshield is iced, it could cause the wipers
to move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper control will
stop operation. In this case, set the wiper
lever to the low speed position or high
speed position for manual operation, or
remove the ice, dirt or foreign matter by
hand to restore the auto-wiper operation.
lIf the auto-wiper lever is left in the AUTO
position, the wipers could operate
automatically from the effect of strong light
sources, electromagnetic waves, or infrared
light because the rain sensor uses an
optical sensor. It is recommended that the
auto-wiper lever be switched to the OFF
position other than when driving the vehicle
under rainy conditions.
Driving Your Mazda
Switches and Controls
5-71
CX-9_8CA8-EA-11G_Edition1 Page249
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (250,1)
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
Washer OFF
NOTE
With the wiper lever in the OFF or intermittent
position/AUTO position, the wipers will
operate continuously until the lever is
released.
If the washer does not work, inspect the
fluid level (page 8-24). If it's normal,
consult an Authorized Mazda Dealer.
Rear Window Wiper and
Washer
The ignition must be switched ON.
qRear Window Wiper
Type A
Type B
Turn the wiper on by turning the rear
wiper/washer switch.
ON―Normal
INT―Intermittent
5-72
Driving Your Mazda
Switches and Controls
CX-9_8CA8-EA-11G_Edition1 Page250
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G
