MAZDA MODEL CX-9 2012 (in English) Owner's Manual

Black plate (21,1)
Second-Row Seats
WARNING
Do not stack cargo higher than the
seatbacks:
Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place by
attempting to slide the seat forward
and backward and rocking the
seatback:
Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Adjust the seat only when the vehicle is
stopped:
Adjusting the seat while the vehicle is
moving is dangerous. Sudden
braking or a collision could cause
serious injury.Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
CAUTION
Be careful not to place your hands
and fingers around moving parts of
the second-row seat when adjusting
the seat positions to prevent injury.
NOTE
The second-row seats cannot be removed.
Essential Safety Equipment
Seats
2-9
CX-9_8CA8-EA-11G_Edition1 Page21
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (22,1)
qSeat Slide
To move the seat forward or backward,
raise the bar and slide the seat to the
desired position and release the bar.
Make sure the bar returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from the seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Do not recline a second-row seatback
when the third row seat is occupied:
Reclining the second-row seatback
when the third-row seat is occupied
is dangerous.Because the clearance
in the third-row seat is limited,
occupants in the third-row seat could
be hurt seriously on a reclined
second-row seatback.
To change the seatback angle, lean
forward slightly while pulling the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
2-10
Essential Safety Equipment
Seats
CX-9_8CA8-EA-11G_Edition1 Page22
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (23,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qArmrest
The armrest can be used (no occupant in
the center seat) or placed upright.
qThird-Row Seat Access
After folding the second-row seat
seatback and sliding the seat forward, you
can access the third-row seat easily.
Entering/exiting the third-row seat area
Raise the lever on the side of the second-
row seat to fold the seatback forward and
slide the seat forward.
After entering/exiting the third-row
seat area
1. Return the second-row seatback to its
upright position and lock it after sliding
it backward. Make sure it is locked by
attempting to lightly move it forward
and backward.
2. Make sure that the center-rear seat belt
is routed properly (not under the head
restraint) and the seat belt guide is
snapped to the head restraint.
Essential Safety Equipment
Seats
2-11
CX-9_8CA8-EA-11G_Edition1 Page23
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (24,1)
CAUTION
ØWhen folding a seatback, always
hold onto the seatback with your
other hand while operating the
lever. If the seatback is not
supported, it will flip forward
suddenly and could cause injury.
ØAfter entering/exiting the third-
row seat area, return the seatback
to its upright position. Otherwise,
it could move unexpectedly and
cause injury.
qFolding the Second-Row Seats
To create a flat luggage compartment
space, fold the seatbacks forward.
Folding the seatbacks
1. Unfasten the lap portion of the center-
rear seat belt (page 2-31) and stow it
into the ceiling recess (page 2-31).
CAUTION
Always unfasten the lap portion of
the belt before folding the rear-left
seatback. Leaving the lap portion of
the belt fastened could cause
damage to the seat belt, buckle and
seatback.
2. Slide the seat all the way back toward
the rear of the vehicle.
3. Lower the head restraints all the way
down (page 2-15).
NOTE
If the second-row seats cannot be folded
because the head restraints for the second-row
seats contact the front seats, remove the head
restraints for the second-row seats.
4. Pull the lever and fold the seatback
forward.
CAUTION
When folding a seatback, always
hold onto the seatback with your
other hand while operating the lever.
If the seatback is not supported, it
will flip forward suddenly and could
cause injury.
NOTE
To create a flat luggage compartment space
from the rear of the vehicle to the back of the
front seats, fold the second-row and third-row
seats (page 2-14).
2-12
Essential Safety Equipment
Seats
CX-9_8CA8-EA-11G_Edition1 Page24
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

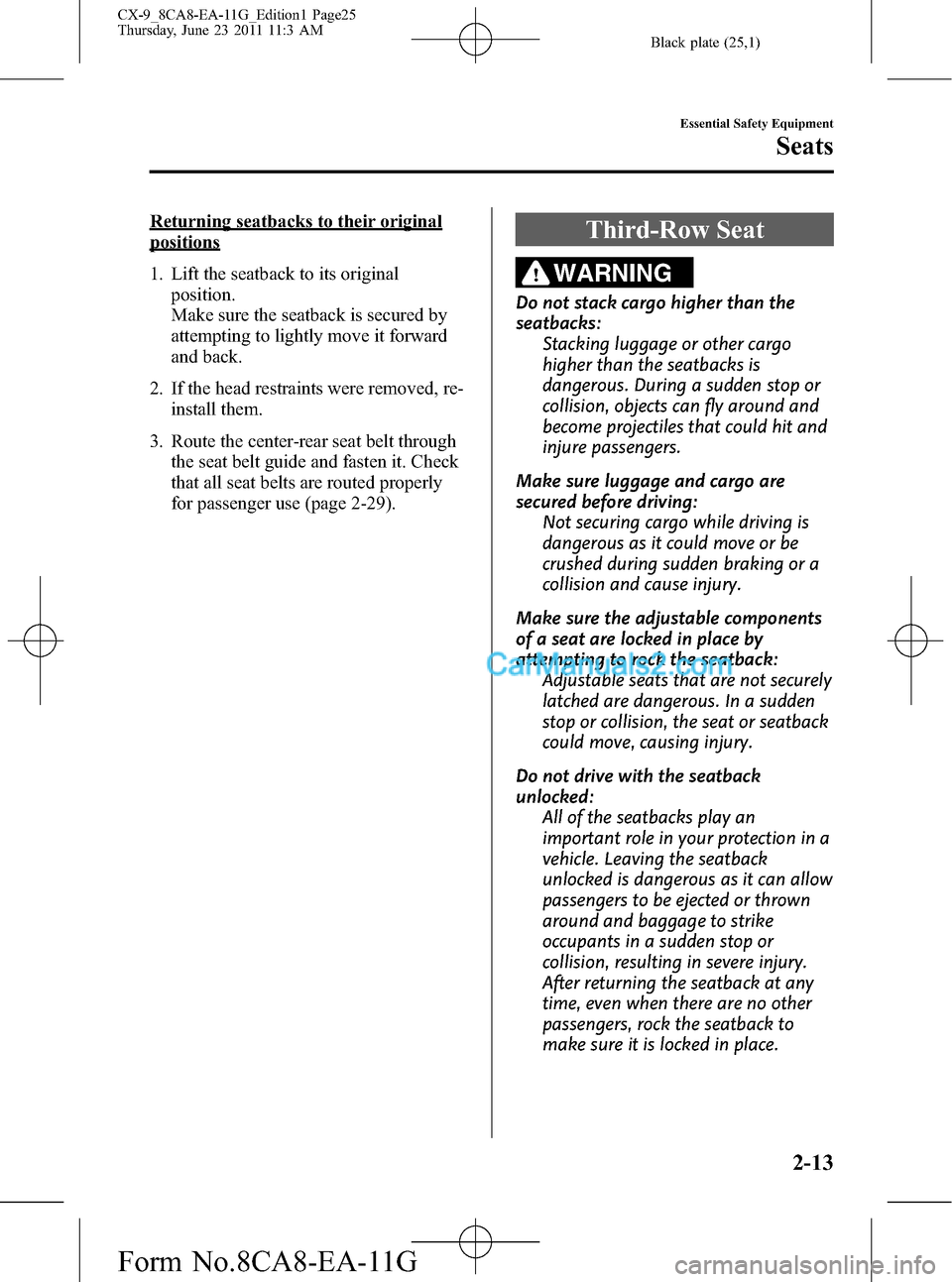

Black plate (25,1)
Returning seatbacks to their original
positions
1. Lift the seatback to its original
position.
Make sure the seatback is secured by
attempting to lightly move it forward
and back.
2. If the head restraints were removed, re-
install them.
3. Route the center-rear seat belt through
the seat belt guide and fasten it. Check
that all seat belts are routed properly
for passenger use (page 2-29).Third-Row Seat
WARNING
Do not stack cargo higher than the
seatbacks:
Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place by
attempting to rock the seatback:
Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After returning the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Essential Safety Equipment
Seats
2-13
CX-9_8CA8-EA-11G_Edition1 Page25
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (26,1)
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
NOTE
The third-row seat cannot be removed.
qSplit-Folding the Third-Row Seat
To create a flat luggage compartment
space, fold the seatbacks forward.
To fold third-row seat
1.(With foldable head restraints)
Fold the head restraint all the way
down.(page 2-15)
(Without foldable head restraints)
Lower the head restraints all the way
down (page 2-15).2. Pull the strap and fold the seatback
forward.
3. Fasten the strap to its original position.
NOTE
To create a flat luggage compartment space
from the rear of the vehicle to the back of the
front seats, fold the second-row and third-row
seats (page 2-12).
To return third-row seat to its original
position
1. Return the seatback to its original
position by pulling its strap.
Make sure the seatback is secured by
attempting to lightly move it forward
and back.
2-14
Essential Safety Equipment
Seats
CX-9_8CA8-EA-11G_Edition1 Page26
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (27,1)
2. Fasten the strap to its original position
between the seatback and folding
board.
Board
Strap
3.(With foldable head restraints)
Lift the head restraint upward to its
upright position.
Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
second-row center seat. The head
restraints are intended to help protect you
and the passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted. In addition, always raise the
head restraints mentioned below when
they are being used:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
(Head restraints which must be
raised for use)
ØSecond-row center head restraint
ØThird-row outboard head
restraints except for foldable head
restraints
qNormal Head Restraints
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
Essential Safety Equipment
Seats
2-15
CX-9_8CA8-EA-11G_Edition1 Page27
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (28,1)
Front outboard seat
Second-Row outboard seat/Third-Row
outboard seat
Second-Row center seat
Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, press the
uprights into the holes while pressing the
stop-catch.
WARNING
Always drive with the head restraints
set up when seats are being used and
make sure they are properly set up:
Driving with the head restraints not
set up is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
Active Head Restraints
The front seats are equipped with active
head restraints.
In a rear-end collision, the active head
restraints use the force applied by the
occupant on the seatback to
instantaneously move the head restraints
in the forward direction, reducing
excessive rearward tilting of the head and
reducing the load on the neck. The active
head restraints are also highly effective at
reducing whip-lash injuries which
commonly occur in rear-end collisions at
low to mid-range vehicle speeds.
2-16
Essential Safety Equipment
Seats
CX-9_8CA8-EA-11G_Edition1 Page28
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (29,1)
WARNING
ØAlways adjust the head restraints
properly as specified in this
section. Failure to do so can
reduce the effectiveness of the
active head restraint.
ØDo not attach any accessories such
as a TV screen to a front seatback
and/or a front head restraint. Also
do not place heavy items or thick
items, or both in the seatback
pocket. Doing so could reduce the
effectiveness of the active head
restraint in a rear-end collision.
NOTE
lThe active head restraints operate in a
rear-end collision. The head restraints
return to their original position after the
collision.
lThe method for adjusting the active head
restraints is the same as non-active head
restraint.
qFoldable Head Restraintsí
The third-row seats are equipped with
foldable head restraints.
NOTE
The foldable head restraints cannot be
adjusted or removed.
To fold the head restraint, pull the strap
and fold the head restraint downward. To
return the head restraint to its upright
position, lift it upward.
WARNING
Always drive with the head restraints in
their upright positions when the third-
row seats are occupied, and make sure
they are securely locked in place:
Driving with the head restraints
folded down is dangerous. With no
support behind your head, your neck
could be seriously injured in a
collision.
Essential Safety Equipment
Seats
2-17íSome models. CX-9_8CA8-EA-11G_Edition1 Page29
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (30,1)
Seat Warmerí
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch to illuminate
the indicator light while the ignition is
switched ON. The mode changes as
follow each time the seat warmer switch is
pressed.
OFF
High
Low
WARNING
ØBe careful when using the seat
warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.
ØInfants, small babies, elderly
people, and physically
challenged people
ØPeople with delicate skin
ØPeople who are excessively
fatigued
ØPeople who are intoxicated
ØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
ØDo not use the seat warmer with
anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.
ØDo not use the seat warmer even
when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.
ØDo not place heavy objects with
sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
2-18
Essential Safety Equipment
íSome models.
Seats
CX-9_8CA8-EA-11G_Edition1 Page30
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G
