Black plate (520,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
16 ABS (SOL) 30 A ABS
17 D/L 25 A Power door locks
18 ROOM 15 A Overhead light
19 OUTLET CTR 15 A Accessory socket (Center)
20 OUTLET RR 15 A Accessory socket (Rear)
21 AC PWR 15 A Moonroof
í, DC/AC inverterí
22 S.WARM 15 A Seat warmerí
23 A/C MAG 10 A Air conditioner
24 BOSE 25 A Audio system (Bose®Sound System-equipped model)í
25 FAN 230 AíCooling fan
40 Aí
26 ABS 50 A ABS
27 IG COIL 25 A Engine control system
28H/L L
*115 A Headlight (LH)
H/L LOW L*215 A Headlight low beam (LH)
29―*1――
H/L LOW R*215 A Headlight low beam (RH)
30―*1――
H/L HIGH*220 A Headlight high beam
31 HAZARD 15 A Hazard warning flashers, Turn signal lights
32
10 A Engine control system
33 HORN 15 A Horn
34 STOP 7.5 A Brake lights
35 EGI INJ 10 A Engine control system
36 ENG BAR 20 A Engine control system
37 ENG BAR 2 7.5 A Engine control system
*1 With xenon fusion headlights
*2 With halogen headlights
8-52
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8CM9-EA-12I_Edition1 Page520
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (521,1)
Relay box (Engine compartment)í
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 INJ 7.5 A Engine control system
2―― ―
3―― ―
Maintenance and Care
Owner Maintenance
8-53íSome models. CX-9_8CM9-EA-12I_Edition1 Page521
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (522,1)
Fuse block (Glove box)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 OUTLET FR 15 A Accessory socket (Front)
2 MIRROR 7.5 A Power control mirror
3 C/U-IG1 15 A For protection of various circuits
4 METER 10 A Instrument cluster
5 SAS 7.5 A ABS, Air bag
6 ENG. IGA 7.5 A Engine control system
7 STA 7.5 A Engine control system
8―― ―
9 A/C 7.5 A Air conditioner
10 R.WIPER 15 A Rear window wiper
11―― ―
12 P.LIFT GATE 20 A Power lift gate
í
13 SUNROOF 15 A Moonroofí
14 AUDIO 10 A Audio system
15 M.DEF 10 A Mirror defrosterí
16 P/W 25 A Power windows (Passenger-side)
17 TAIL 10 ATaillights, Parking lights, License plate lights, Side-marker
lights
18 ILLUMI 10 A Instrument panel illumination
8-54
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8CM9-EA-12I_Edition1 Page522
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (523,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
19 INJ 7.5 A Engine control system
20―― ―
21 OUTLET CTR――
22 OUTLET RR――
23 WIPER 30 A Windshield wiper and washer
24 P.WIND 30 A Power windows (Driver-side)
Maintenance and Care
Owner Maintenance
8-55
CX-9_8CM9-EA-12I_Edition1 Page523
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

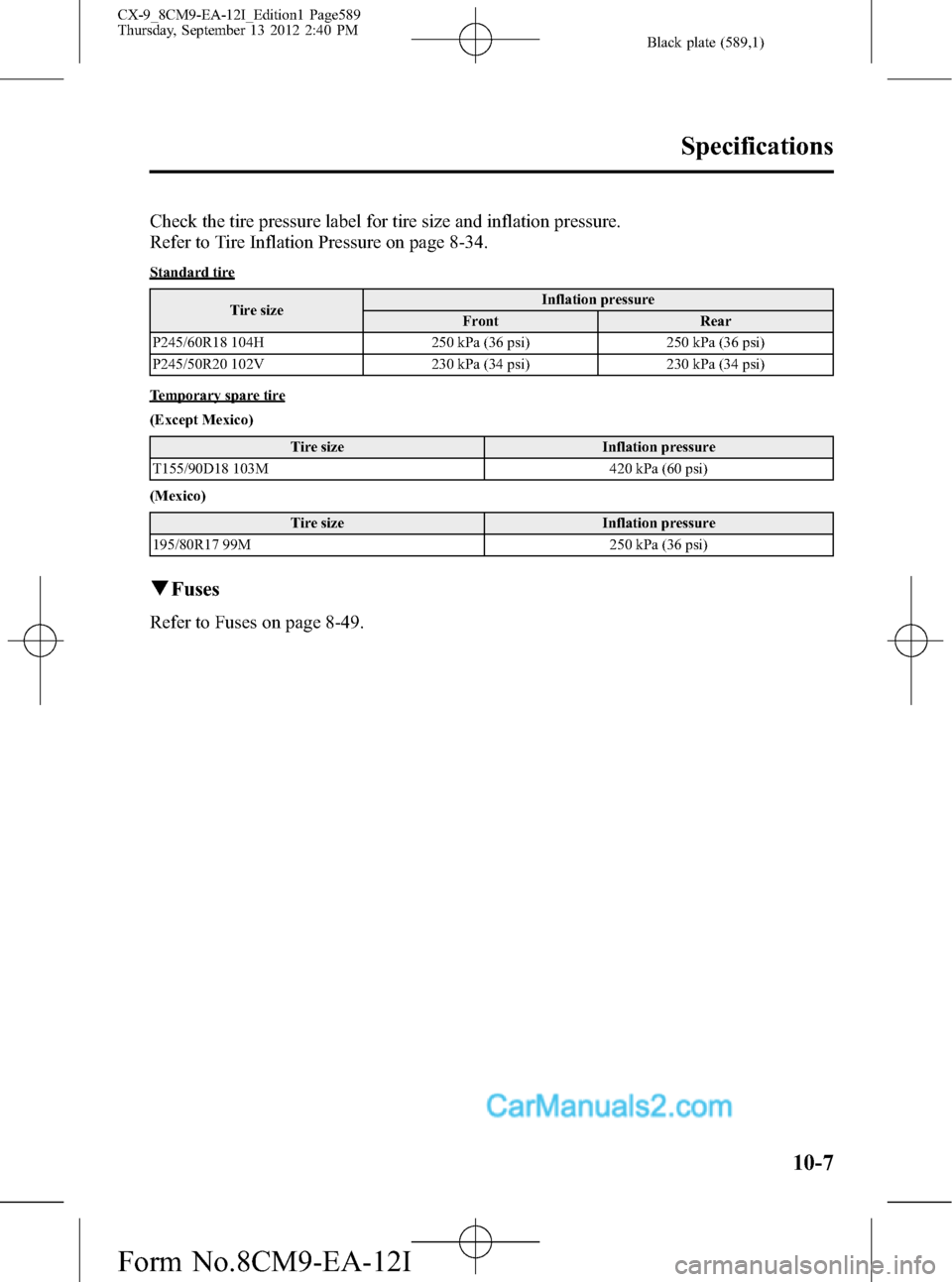

Black plate (589,1)
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-34.
Standard tire
Tire sizeInflation pressure
Front Rear
P245/60R18 104H 250 kPa (36 psi) 250 kPa (36 psi)
P245/50R20 102V 230 kPa (34 psi) 230 kPa (34 psi)
Temporary spare tire
(Except Mexico)
Tire size Inflation pressure
T155/90D18 103M 420 kPa (60 psi)
(Mexico)
Tire size Inflation pressure
195/80R17 99M 250 kPa (36 psi)
qFuses
Refer to Fuses on page 8-49.
Specifications
10-7
CX-9_8CM9-EA-12I_Edition1 Page589
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (594,1)
F
Flasher
Hazard warning .......................... 5-80
Headlights .................................. 5-65
Flat Tire ............................................... 7-3
Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-17
Fog Lights ......................................... 5-72
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-4
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-47
Gauge ......................................... 5-48
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-49
Panel description ........................ 8-51
Replacement ............................... 8-49
G
Glove Compartment ........................ 6-174
H
Hazard Warning Flasher .................... 5-80
Hazardous Driving .............................. 4-7
Headlights
Control ....................................... 5-65
Flashing ...................................... 5-69
High-low beam .......................... 5-68
Leveling ..................................... 5-70
On reminder ............................... 5-68
H
HomeLink Wireless Control
System .............................................. 5-81
Hood Release .................................... 3-49
Horn .................................................. 5-79
I
Ignition
Keys ........................................... 3-21
Switch .......................................... 5-2
Illuminated Entry System ............... 6-165
Immobilizer System
(with Advanced Key) ........................ 3-53
Immobilizer System
(without Advanced Key) ................... 3-57
Indicator Lights ................................. 5-49
BSM OFF ................................... 5-62
Cruise ......................................... 5-61
Headlight high-beam .................. 5-60
Security ...................................... 5-60
Shift position .............................. 5-60
TCS OFF .................................... 5-61
TCS/DSC/RSC ........................... 5-61
Turn-signal/hazard warning ....... 5-62
Information Display ........................ 6-167
Ambient temperature display .... 6-168
Climate control display ............ 6-168
Clock ........................................ 6-168
Information display functions ... 6-167
Trip computer ........................... 6-169
Instrument Cluster ............................. 5-45
Interior Care ...................................... 8-62
Interior Lights ................................. 6-165
J
Jump-Starting .................................... 7-18
11-4
