(Without power liftgate)
Lever
After performing this emergency measure,
have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Manually closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
qPower Liftgateí
The power liftgate opens/closes
electrically by operating switches in the
vehicle or the buttons on the keyless entry
system transmitter.
Refer to Keyless Entry System on page
3-13.
WARNING
Be sure to watch the power liftgate as
it opens or closes, and make sure that
it closes completely:
Opening or closing the power liftgate
while not watching it move is
dangerous. Because of unseen
obstacles and the jam-safe feature, a
liftgate may not close completely
and, if left unnoticed, could result in
serious injury or death if an occupant
were to fall out of the vehicle.
Always be sure that the area around
the liftgate is clear before activating
it.
Always confirm the safety of the area
around the power liftgate before
operating it electrically.
Not checking the area around the
liftgate for people before operating it
using the power liftgate switch or the
button on the keyless entry system is
dangerous. A person could become
caught between the liftgate and an
obstruction while it is opening
electrically or between the liftgate
and vehicle while it is closing
electrically, resulting in an accident
and serious injury.
Never allow children to operate the
power liftgate system:
Allowing children to operate the
power liftgate switch and the keyless
entry system is dangerous. Children
are not aware of the dangers of
people getting fingers and hands
caught in a moving liftgate. If
someone's neck, head or hands get
caught in a closing door, it could
result in death or serious injury.
Knowing Your Mazda
Doors and Locks
3-35íSome models. CX-9_8CM9-EA-12I_Edition1 Page121
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I

Black plate (131,1)
WARNING
Use the remote auto-window and the
auto-moonroof function only when you
can see the vehicle and it is in a secure
area:
Do not let children play with your
keys. If they open the window and
moonroof without your knowing, the
open windows and moonroof are an
even bigger invitation to a thief than
leaving the doors unlocked.
The windows and moonroof can be
opened for ventilating the cabin before
getting in the vehicle.
With unlock button (Keyless entry
system)
Press the unlock button on the transmitter
once, then press it again immediately and
hold.
After the doors and the liftgate are
unlocked, the two front windows and the
moonroof open while the unlock button is
pressed.
To stop the windows and the moonroof
while opening, release the button.
If the operation is performed from the
beginning again, the windows and the
moonroof open.
Advanced key
Lock button
Unlock button
Power liftgate button
Operation indicator
light
Panic button
Retractable type key
Lock button
Unlock button
Panic button
Operation
indicator light
NOTElThe unlock button does not operate unless
it is pressed twice sequentially.
lThe lock button cannot be used to close the
power windows and the moonroof.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key counterclockwise and
hold until the windows and the
moonroof are completely open. After
the doors and the liftgate are unlocked,
the windows and the moonroof fully
open automatically.
Open
Knowing Your Mazda
Doors and Locks
3-45
CX-9_8CM9-EA-12I_Edition1 Page131
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I

Black plate (135,1)
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening,
slide the hood latch lever, and lift the
hood.
3. Grasp the support rod in the padded
area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.
Pad
Clip Support rod
Knowing Your Mazda
Doors and Locks
3-49
CX-9_8CM9-EA-12I_Edition1 Page135
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I

Black plate (136,1)
qClosing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Lift the hood, grasp the padded area on
the support rod, and secure the support
rod in the clip. Verify that the support
rod is secured in the clip before closing
the hood.
Pad
Clip
Clip
3. Lower the hood slowly from a height
of about 20 cm (7.9 in) above its closed
position and then let it drop.
CAUTION
When closing the hood, do not push
it excessively such as by applying
your weight. Otherwise, the hood
could be deformed.
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Tilt switch Slide switch
WARNING
Do not let passengers stand up or
extend part of their body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a
person, especially a child, could be
caught in it as it closes, causing
serious injury or even death.
3-50
Knowing Your Mazda
íSome models.
Doors and Locks
CX-9_8CM9-EA-12I_Edition1 Page136
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I

Black plate (139,1)
Immobilizer System (with
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized advanced key, the
engine will not start, thereby helping to
prevent the theft of your vehicle.
If you have a problem with the
immobilizer system or the advanced key
(including auxiliary key), consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction.
Otherwise the signal from the
auxiliary key will not be received
correctly and the engine may not
start.
ØA key ring rests on the auxiliary
key grip.
ØMetal parts of other keys or metal
objects touch the auxiliary key
grip.
ØSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
Knowing Your Mazda
Security System
3-53
CX-9_8CM9-EA-12I_Edition1 Page139
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I

Black plate (140,1)
ØDevices for electronic purchases, or
security passage which touch or
come near the auxiliary key.
NOTE
lThe advanced keys (including auxiliary key)
carry a unique electronic code. For this
reason, and to assure your safety, obtaining
a replacement advanced key (including
auxiliary key) requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
lAlways keep a spare advanced key in case
one is lost. If an advanced key is lost,
consult an Authorized Mazda Dealer as
soon as possible.
lIf you lose an advanced key (including
auxiliary key), an Authorized Mazda Dealer
will reset the electronic codes of your
remaining advanced keys (including
auxiliary keys) and immobilizer system.
Bring all the remaining advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.
3-54
Knowing Your Mazda
Security System
CX-9_8CM9-EA-12I_Edition1 Page140
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I

Black plate (141,1)

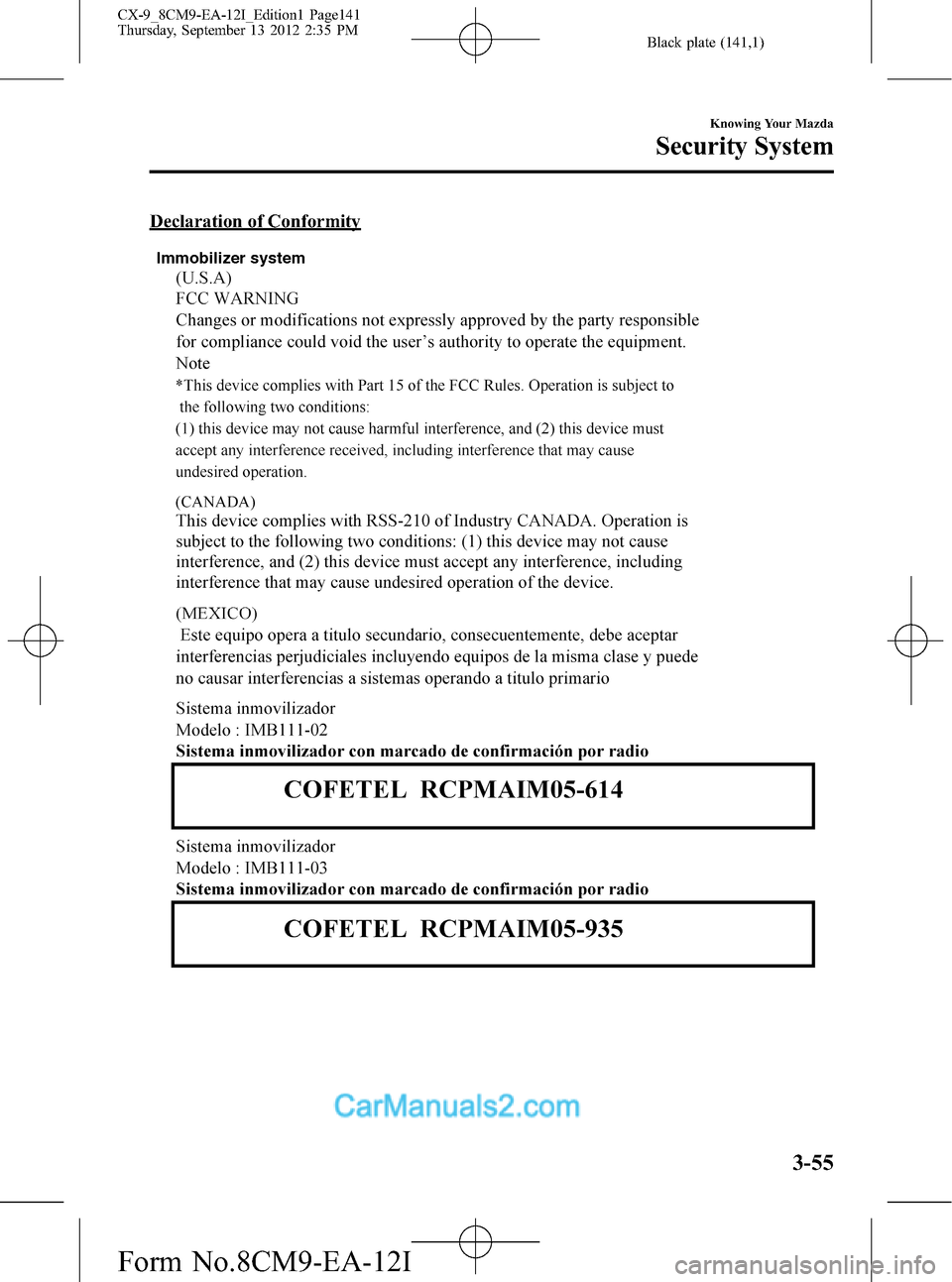

Declaration of Conformity
Immobilizer system
Knowing Your Mazda
Security System
3-55
CX-9_8CM9-EA-12I_Edition1 Page141
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I

Black plate (142,1)
qOperation
Arming
The system is armed when the ignition is
switched from ON to ACC or OFF. The
security indicator light in the instrument
cluster flashes every 2 seconds until the
system is disarmed.
Disarming
The system is disarmed when the ignition
is switched ON with the registered
advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine does not start with the
correct advanced key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.NOTE
lThe engine may not start and the security
indicator light may illuminate or flash if the
advanced key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard, or in the
glove box. Move the advanced key to
another place, switch the ignition off, and
then restart the engine.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone could
interfere with your immobilizer system. If
you are using the proper advanced key and
the engine fails to start, check the security
indicator light. If the indicator light is
flashing, switch the ignition to ACC or
switch the ignition off and wait for a while,
then restart the engine. If it does not start
after 3 or more tries, contact an Authorized
Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the
advanced key (including auxiliary key) are
needed. Bring all the advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer.
3-56
Knowing Your Mazda
Security System
CX-9_8CM9-EA-12I_Edition1 Page142
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I

Black plate (143,1)
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Immobilizer System
(without Advanced Key)
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
Knowing Your Mazda
Security System
3-57
CX-9_8CM9-EA-12I_Edition1 Page143
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I

Black plate (144,1)
CAUTION
When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not being
transmitted correctly.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the key grip.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key grip.
ØDevices for electronic purchases, or
security passage which touch or
come near the key.NOTE
lThe keys carry a unique electronic code.
For this reason, and to assure your safety,
obtaining a replacement key requires some
waiting time. They are only available
through an Authorized Mazda Dealer.
lAlways keep a spare key, in case one is lost.
If a key is lost, contact an Authorized
Mazda Dealer as soon as possible.
lIf you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.
3-58
Knowing Your Mazda
Security System
CX-9_8CM9-EA-12I_Edition1 Page144
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I
