qJack
To remove the jack
1. Open the cargo sub-compartment.
2. Remove the cover.
3. Turn the wing bolt and jack screw
counterclockwise.
Jack screw
Wing bolt
To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing right and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction
shown in the figure.
Jack screw
Wing bolt
3. Turn the wing bolt completely to
secure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
7-4
In Case of an Emergency
Flat Tire
CX-9_8CM9-EA-12I_Edition1 Page448
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (451,1)
NOTE
A flat tire which has been removed from the
vehicle for repair cannot be carried in the
spare tire carrier. Secure the flat tire with the
flat tire belt in the cargo sub-compartment
(page 7-12).
7. If the temporary spare tire is not
reinstalled in the spare tire carrier,
tighten the spare tire carrier bolt
completely to wind up the spare tire
carrier cable.
WARNING
Always tighten the spare tire carrier
bolt completely tight and make sure
the spare tire is locked in the highest
position:
A loose spare tire carrier bolt is
dangerous. The cable could be cut
causing the spare tire to fall off. This
could result in someone being
seriously injured or even killed. Use a
lug wrench to tighten the carrier bolt
and make sure to tighten it until a
click sound is heard.
To secure the spare tire
1. Place the tire with the outer side facing
upward, rotate the small lever on top of
the retaining plate and slide the
retaining plate through the center hole
of the tire.
Rotate the small lever into place.
Lever
NOTE
Secure the spare tire as shown below.
Spare tire
2. Raise the spare tire slowly in reverse
order of removal.
In Case of an Emergency
Flat Tire
7-7
CX-9_8CM9-EA-12I_Edition1 Page451
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (457,1)
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts
could loosen while driving and cause
the tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary.
4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf)108―147
(12―14, 80―108)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the
stud, which could cause the wheel to
slip off and cause an accident.
5. Open the cargo sub-compartment.
Refer to Cargo Sub-Compartment on
page 6-175.
6. Remove the cover.
In Case of an Emergency
Flat Tire
7-13
CX-9_8CM9-EA-12I_Edition1 Page457
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (458,1)

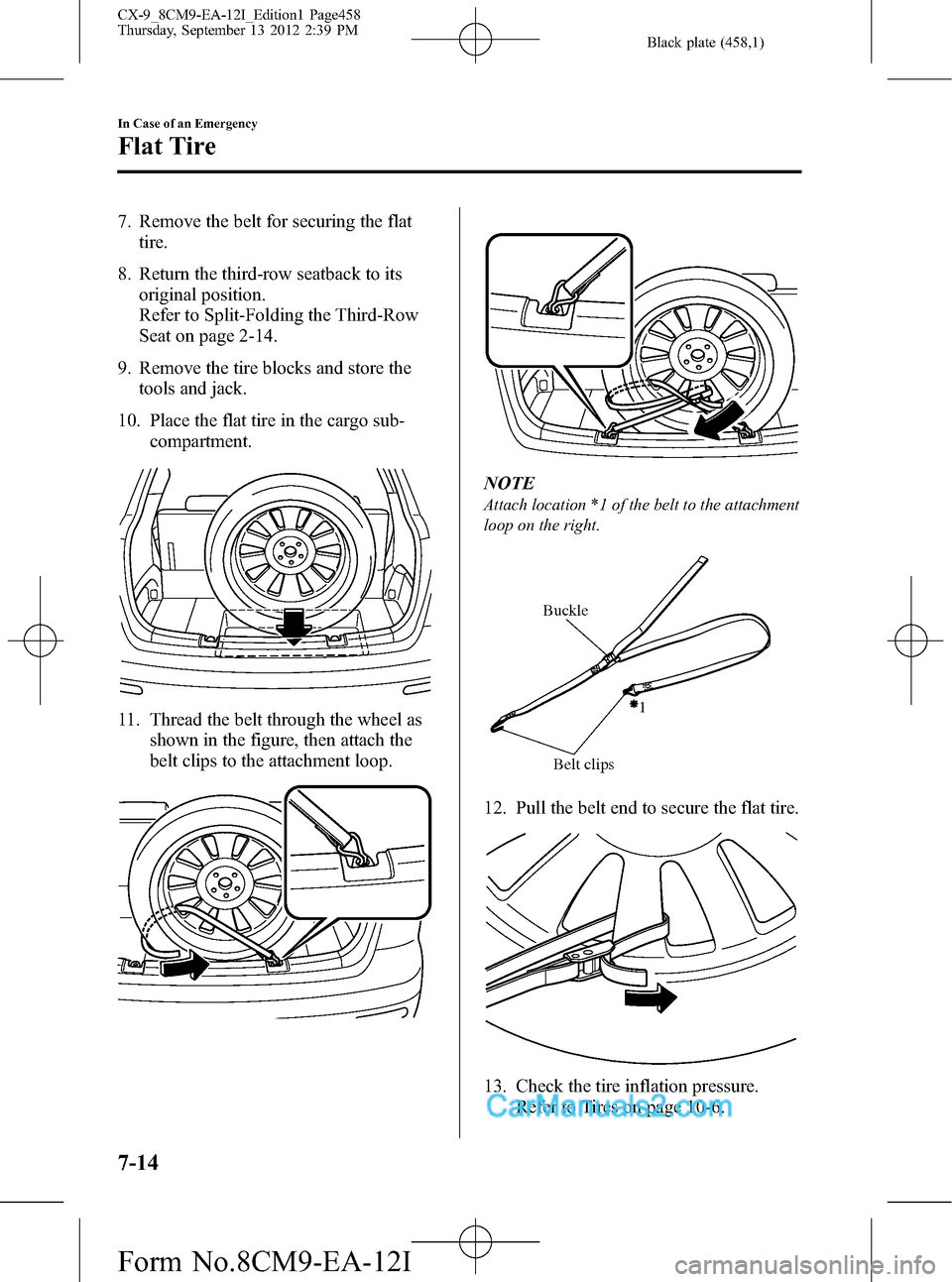

7. Remove the belt for securing the flat
tire.
8. Return the third-row seatback to its
original position.
Refer to Split-Folding the Third-Row
Seat on page 2-14.
9. Remove the tire blocks and store the
tools and jack.
10. Place the flat tire in the cargo sub-
compartment.
11. Thread the belt through the wheel as
shown in the figure, then attach the
belt clips to the attachment loop.
NOTE
Attach location *1 of the belt to the attachment
loop on the right.
Buckle
Belt clips1
12. Pull the belt end to secure the flat tire.
13. Check the tire inflation pressure.
Refer to Tires on page 10-6.
7-14
In Case of an Emergency
Flat Tire
CX-9_8CM9-EA-12I_Edition1 Page458
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (466,1)
WARNING
Always tow a AWD vehicle with all four
wheels off the ground:
Towing a AWD vehicle with either the
front or rear wheels on the ground is
dangerous as the drive train could be
damaged, or the vehicle could trail
away from the tow truck and cause
an accident. If the drive train has
been damaged, transport the vehicle
on a flat bed truck.
Tiedown Hooks
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hooks
1. Remove the tiedown eyelet and the lug
wrench from the luggage compartment
(page 7-3).
2.(Front)
Press the marking on the cap as shown
in the figure to remove the cap.
(Rear)
Wrap a flathead screwdriver or similar
tool with a soft cloth to prevent
damage to a painted bumper, and open
the cap located on the bumper.
Front
7-22
In Case of an Emergency
Emergency Towing
CX-9_8CM9-EA-12I_Edition1 Page466
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (467,1)
Rear
CAUTION
Do not use excessive force as it may
damage the cap or scratch the
painted bumper surface.
NOTE
Remove the cap completely and store it so as
not to lose it.
3. Securely install the tiedown eyelet
using the lug wrench.
Front
Lug wrench
Rear
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
Front
Tiedown eyelet
Rear
Tiedown eyelet
In Case of an Emergency
Emergency Towing
7-23
CX-9_8CM9-EA-12I_Edition1 Page467
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (468,1)
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-21) and
“Tiedown Hooks”(page 7-22) and
carefully follow the instructions.
7-24
In Case of an Emergency
Emergency Towing
CX-9_8CM9-EA-12I_Edition1 Page468
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (491,1)
Engine Coolant
qInspecting Coolant Level
WARNING
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become
very hot. You could be burned.
Carefully inspect the engine coolant
in the coolant reservoir, but do not
open it.
Switch the ignition to off and
make sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove either cooling
system cap when the engine and
radiator are hot:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
NOTE
Changing the coolant should be done by an
Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season―and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the F and L marks
on the coolant reservoir when the engine
is cool.
If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the coolant reservoir tank
cap after adding coolant.
Maintenance and Care
Owner Maintenance
8-23
CX-9_8CM9-EA-12I_Edition1 Page491
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (501,1)

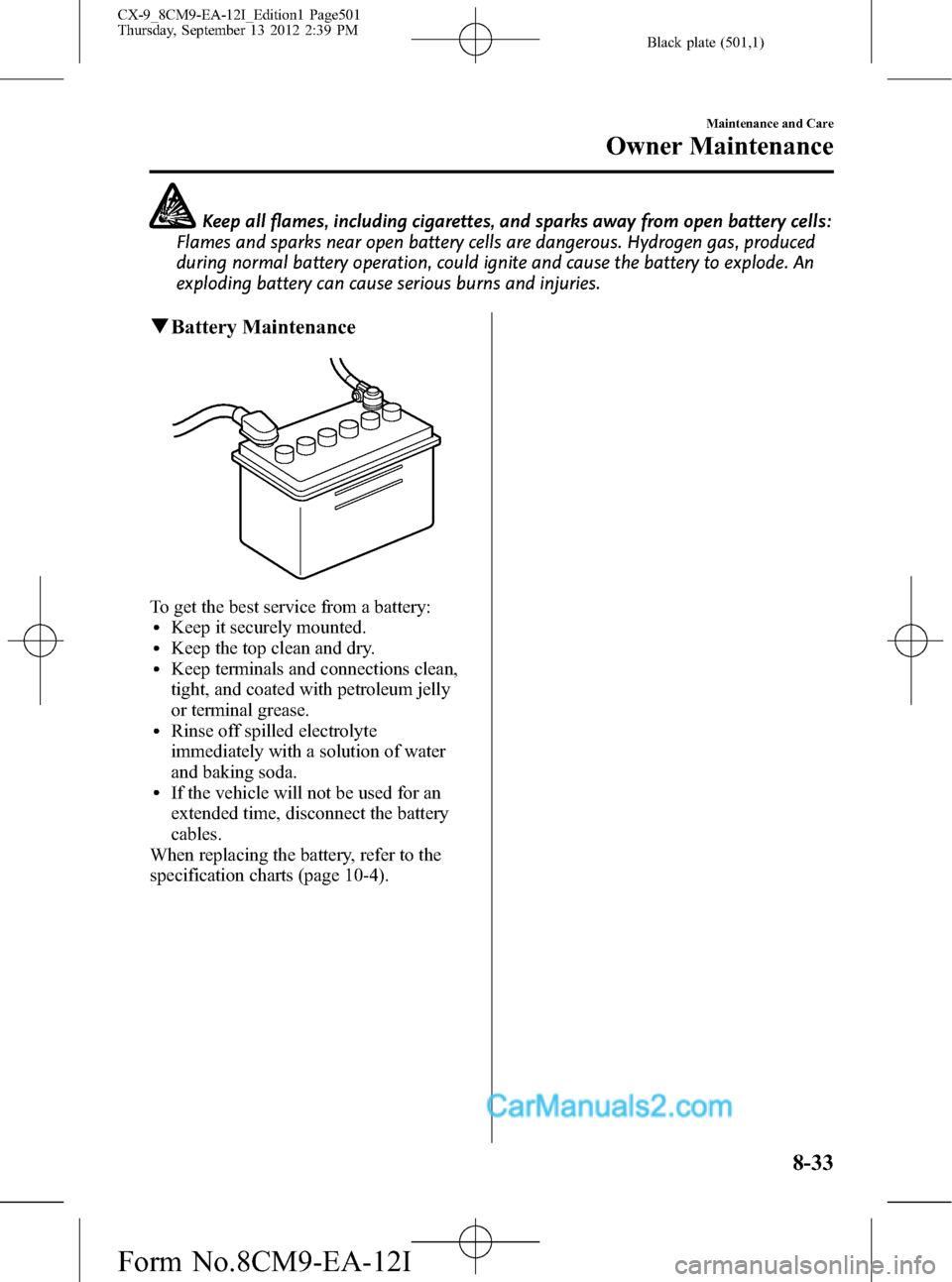

Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
qBattery Maintenance
To get the best service from a battery:lKeep it securely mounted.lKeep the top clean and dry.lKeep terminals and connections clean,
tight, and coated with petroleum jelly
or terminal grease.
lRinse off spilled electrolyte
immediately with a solution of water
and baking soda.
lIf the vehicle will not be used for an
extended time, disconnect the battery
cables.
When replacing the battery, refer to the
specification charts (page 10-4).
Maintenance and Care
Owner Maintenance
8-33
CX-9_8CM9-EA-12I_Edition1 Page501
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (518,1)
6. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the ROOM circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
7. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover or the
relay box cover.
Fuse block
Relay box
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that
it is securely installed.
8-50
Maintenance and Care
Owner Maintenance
CX-9_8CM9-EA-12I_Edition1 Page518
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I
