qLuggage Compartment
Golf bags can be carried in the luggage
compartment.
To carry two golf bags, use the following
procedure:
1. Put one golf bag in the luggage
compartment with its top pointing to
the left.
2. Put the other golf bag on top of the first
bag with its top pointing to the right.
NOTElSome golf bags cannot fit depending on
their size.
lGolf bags up to nine inches in diameter can
be carried.
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition must be switched to ACC or
ON.
Center/Rear
The accessory sockets can be used
regardless of whether the ignition is on or
off.
Center
Interior Comfort
Interior Equipment
6-177
CX-9_8CM9-EA-12I_Edition1 Page441
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (442,1)
RearCAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
ØNoise may occur on the audio
playback depending on the device
connected to the accessory socket.
ØDepending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
6-178
Interior Comfort
Interior Equipment
CX-9_8CM9-EA-12I_Edition1 Page442
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (443,1)

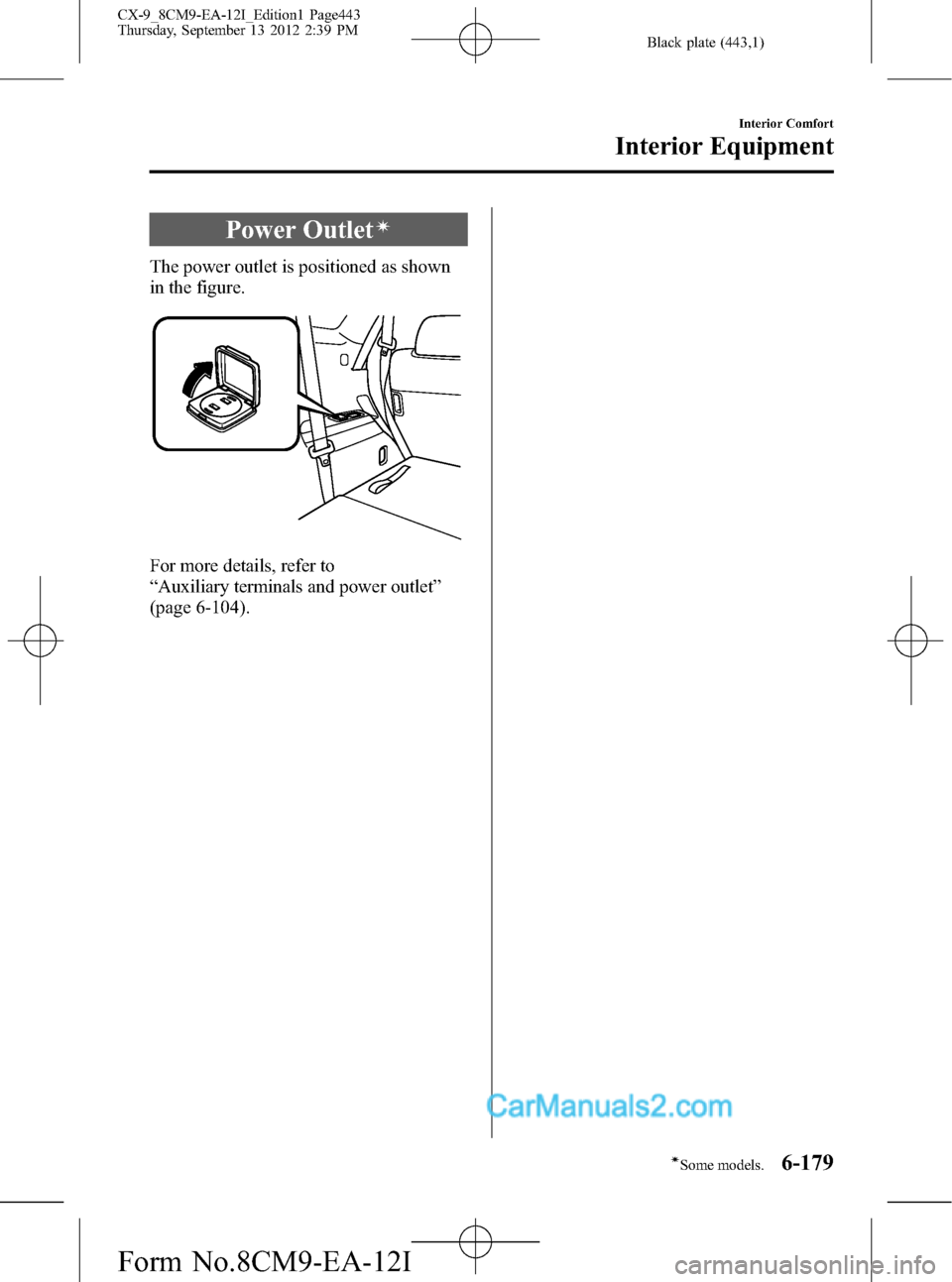

Power Outletí
The power outlet is positioned as shown
in the figure.
For more details, refer to
“Auxiliary terminals and power outlet”
(page 6-104).
Interior Comfort
Interior Equipment
6-179íSome models. CX-9_8CM9-EA-12I_Edition1 Page443
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (444,1)
6-180
CX-9_8CM9-EA-12I_Edition1 Page444
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (445,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-8
Overheating ................................................................................. 7-16
Overheating ............................................................................. 7-16
Emergency Starting .................................................................... 7-18
Jump-Starting .......................................................................... 7-18
Push-Starting ........................................................................... 7-20
Emergency Towing ..................................................................... 7-21
Towing Description ................................................................. 7-21
Tiedown Hooks ....................................................................... 7-22
Recreational Towing ............................................................... 7-24
7-1
CX-9_8CM9-EA-12I_Edition1 Page445
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (446,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
CX-9_8CM9-EA-12I_Edition1 Page446
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (447,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
JackJack lever
Lug wrench Tiedown eyelet
Flat tire beltSpare tire carrier bolt socket
In Case of an Emergency
Flat Tire
7-3
CX-9_8CM9-EA-12I_Edition1 Page447
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (448,1)
qJack
To remove the jack
1. Open the cargo sub-compartment.
2. Remove the cover.
3. Turn the wing bolt and jack screw
counterclockwise.
Jack screw
Wing bolt
To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing right and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction
shown in the figure.
Jack screw
Wing bolt
3. Turn the wing bolt completely to
secure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
7-4
In Case of an Emergency
Flat Tire
CX-9_8CM9-EA-12I_Edition1 Page448
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (449,1)
qSpare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
in place of the front wheels (driving
wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Especially on ice or snow.
Handling will be affected. You could
lose control of the vehicle and have
an accident. Move a regular tire to
the front wheel and install the
temporary spare tire to the rear.
CAUTION
ØWhen using the temporary spare
tire, driving stability may decrease
compared to when using only the
conventional tire. Drive carefully.
ØTo avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
ØDo not exceed 80 km/h (50
mph).
ØAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire, so the ground
clearance is reduced about
25 mm (1 in).
ØDo not use a tire chain on this
tire because it will not fit
properly.
ØDo not use your temporary
spare tire on any other vehicle;
it has been designed only for
your Mazda.
ØUse only one temporary spare
tire on your vehicle at the same
time.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-30).
To remove the spare tire
1. Have everyone get out of the vehicle
and away from the vehicle and traffic.
2. Open the cargo sub-compartment.
Refer to Cargo Sub-Compartment on
page 6-175.
In Case of an Emergency
Flat Tire
7-5
CX-9_8CM9-EA-12I_Edition1 Page449
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (450,1)
3. Remove the cover.
Cover
4. Attach the socket to the spare tire
carrier bolt, the jack lever to the socket,
and the lug wrench to the opposite end
of the jack lever.
Bolt Socket Lug wrench
Jack lever
5. Slowly turn the lug wrench
counterclockwise until the spare tire
reaches the ground and the cable
becomes loose.
Spare tire
CAUTION
Do not loosen the cable too much as
this may cause damage to the spare
tire carrier.
6. Rotate the small lever on top of the
retaining plate and pull the retaining
plate out from the center hole of the
tire.
7-6
In Case of an Emergency
Flat Tire
CX-9_8CM9-EA-12I_Edition1 Page450
Thursday, September 13 2012 2:39 PM
