MAZDA MODEL CX-9 2015 Owners Manual (in English)

Black plate (121,1)
Liftgate
WARNING
Never allow a person to ride in the
luggage compartment:Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open: Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
Do not stack or leave loaded luggage
unsecured in the luggage
compartment: Otherwise, the luggage may move or
collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may affect the side or rear field of
view.
CAUTION
ØBefore opening the liftgate,
remove any snow and ice
accumulation on it. Otherwise, the
liftgate could close under the
weight of the snow and ice
resulting in injury.
Ø Be careful when opening/closing
the liftgate during strong winds. If
a strong gust blows against the
liftgate, it could close suddenly
resulting in injury.
Ø Fully open the liftgate and make
sure that it stays open. If the
liftgate is only opened partially, it
could slam shut by vibration or
wind gusts resulting in injury.
Ø When loading or unloading
luggage in the luggage
compartment, turn off the engine.
Otherwise, you could get burned
by the heat of the exhaust gas.
Ø Be careful not to apply excessive
force to the damper stay on the
liftgate such as by putting your
hand on the stay. Otherwise, the
damper stay may bend and affect
the liftgate operation.
Damper stay
Knowing Your Mazda
Doors and Locks
3-33
CX-9_8DU1-EA-14H_Edition1 Page121
Thursday, June 5 2014 4:17 PM
Form No.8DU1-EA-14H

Black plate (122,1)
qLocking, Unlocking with Request
Switch (With Advanced Key)
The liftgate can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (With Advanced Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(With Retractable Type Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-22).
qLocking, Unlocking with Door-
Lock Switch
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-29).
qOpening and Closing the Liftgate
Manually opening the liftgate
Pull up on the handle.
NOTE
If the vehicle battery is dead or there is a
malfunction in the electrical system and the
liftgate cannot be unlocked, perform the
following procedure as an emergency measure
to unlock it:
1. Remove the cap on the interior surface of
the liftgate with a flathead screwdriver.
Cap
2.(With power liftgate)
Push the liftgate while pressing the lever
down.
(Without power liftgate)
Turn the lever to the right to unlock the
liftgate
3-34
Knowing Your Mazda
Doors and Locks
CX-9_8DU1-EA-14H_Edition1 Page122
Thursday, June 5 2014 4:17 PM
Form No.8DU1-EA-14H

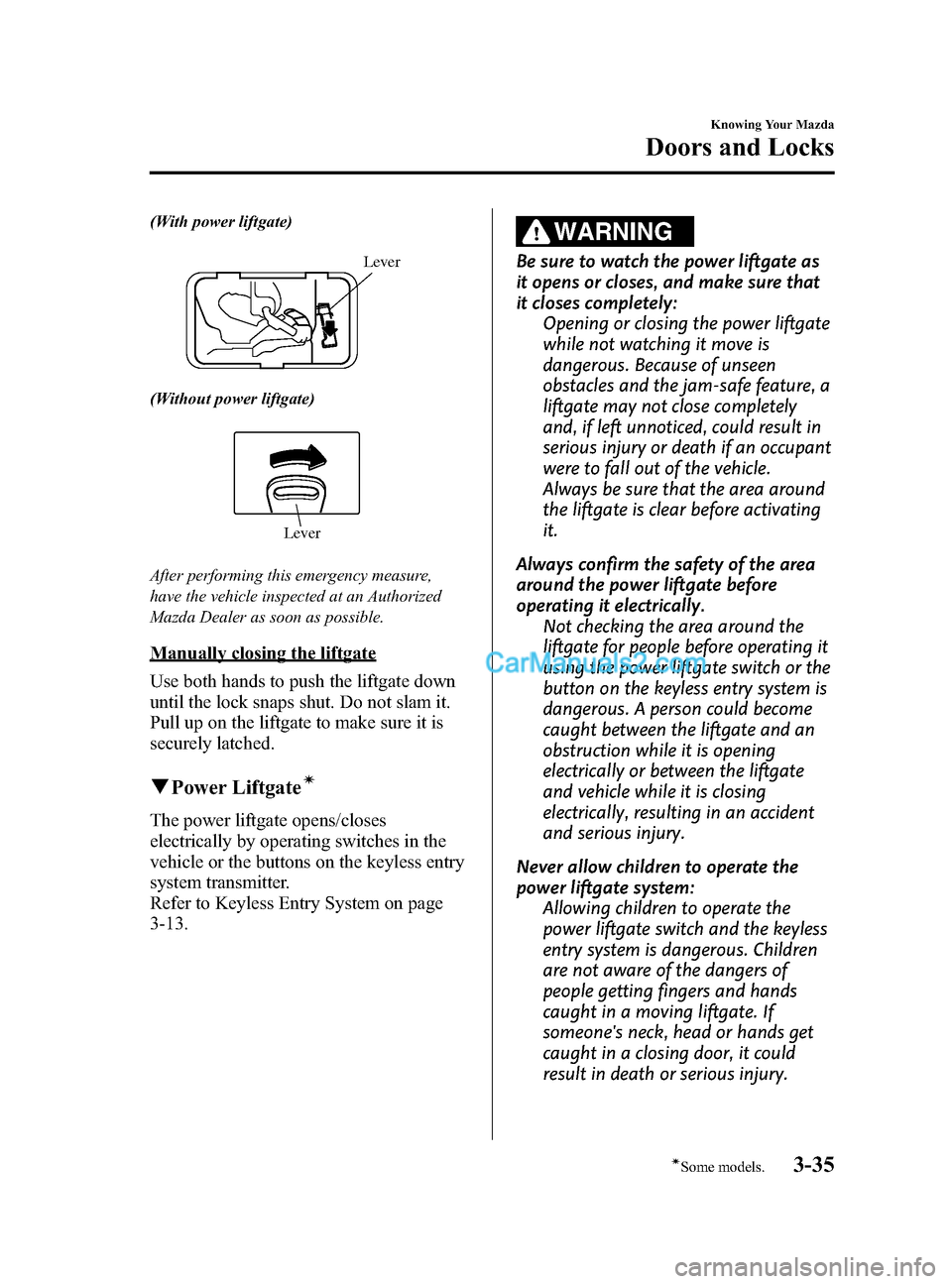

Black plate (123,1)
(With power liftgate)
Lever
(Without power liftgate)
Lever
After performing this emergency measure,
have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Manually closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
qPower Liftgateí
The power liftgate opens/closes
electrically by operating switches in the
vehicle or the buttons on the keyless entry
system transmitter.
Refer to Keyless Entry System on page
3-13.
WARNING
Be sure to watch the power liftgate as
it opens or closes, and make sure that
it closes completely:
Opening or closing the power liftgate
while not watching it move is
dangerous. Because of unseen
obstacles and the jam-safe feature, a
liftgate may not close completely
and, if left unnoticed, could result in
serious injury or death if an occupant
were to fall out of the vehicle.
Always be sure that the area around
the liftgate is clear before activating
it.
Always confirm the safety of the area
around the power liftgate before
operating it electrically. Not checking the area around the
liftgate for people before operating it
using the power liftgate switch or the
button on the keyless entry system is
dangerous. A person could become
caught between the liftgate and an
obstruction while it is opening
electrically or between the liftgate
and vehicle while it is closing
electrically, resulting in an accident
and serious injury.
Never allow children to operate the
power liftgate system: Allowing children to operate the
power liftgate switch and the keyless
entry system is dangerous. Children
are not aware of the dangers of
people getting fingers and hands
caught in a moving liftgate. If
someone's neck, head or hands get
caught in a closing door, it could
result in death or serious injury.
Knowing Your Mazda
Doors and Locks
3-35íSome models.
CX-9_8DU1-EA-14H_Edition1 Page123
Thursday, June 5 2014 4:17 PM
Form No.8DU1-EA-14H

Black plate (124,1)
CAUTION
ØWhen closing the power liftgate,
make sure there are no foreign
objects around the striker. If
foreign objects are obstructing the
striker, the liftgate may not close
properly.
Striker
ØDo not install accessories to the
power liftgate other than specified
accessories. Otherwise, it cannot
be opened/closed automatically
and could result in a malfunction.
Ø Be careful when switching the
power liftgate from electrical to
manual operation. The power
liftgate may open/close
unexpectedly depending on its
position which could result in
injury. NOTE
lDo not apply unnecessary force to the
power liftgate when it is opening/closing
electrically. Unnecessary force on the
liftgate may cause it to reverse direction of
movement automatically. Also, it could
result in a malfunction.
lThe power liftgate may not open/close
electrically if the vehicle is parked on an
incline, or there is strong wind, or the
liftgate is laden with snow.
lThe power liftgate will not operate unless it
is unlocked. The power liftgate does not
operate unless it is unlocked using the
power door lock function.
Refer to Locking, Unlocking with Door-
Lock Knob on page 3-29.
lIf a power liftgate system fuse has blown,
the liftgate cannot be opened using the
power liftgate switch or the outer handle
(liftgate). Use the emergency lever to open
the liftgate.
lFully close the power liftgate before
disconnecting the vehicle battery. If the
battery is disconnected with the liftgate
open, it cannot be opened or closed
automatically after the battery is
reconnected. If this happens, fully close the
liftgate manually to restore the auto full
open/close function.
Opening/Closing the power liftgate
If the vehicle has satisfied all the
following operation conditions, the power
liftgate can be opened using the power
function.
Operation conditions
(1) The power liftgate is unlocked.
(2) The shift lever is in park (P) when the
ignition is switched ON.
3-36
Knowing Your Mazda
Doors and Locks
CX-9_8DU1-EA-14H_Edition1 Page124
Thursday, June 5 2014 4:17 PM
Form No.8DU1-EA-14H

Black plate (125,1)
NOTElIf condition (2) is not satisfied while the
power liftgate is opening electrically, the
beep sound will be heard and the liftgate
will move in the reverse direction
automatically.
lIf condition (2) is not satisfied while the
power liftgate is closing electrically, the
beep sound will be heard and the liftgate
continues closing.
lWhen condition (2) is satisfied, you can
resume power liftgate open/close operation
with the switches.
lWhen the ignition is switched ON, the
transmitter does not operate.
Operation using the transmitter
Press the power liftgate button for one
second or more with the power liftgate in
the fully closed/open position. The hazard
warning lights flash twice and the liftgate
opens/closes after the beep sounds.
Refer to Keyless Entry System on page
3-13.Operation from the driver's seat (To
open/close)
Press the power liftgate switch for about
one second or more while the liftgate is in
the fully closed/open position. The hazard
warning lights flash twice and the liftgate
opens/closes fully after the beep sound is
heard.
Power liftgate
switch
Operation from outside (To close only)
Press the power liftgate close switch while
the liftgate is fully opened. The hazard
warning lights flash twice and the liftgate
closes automatically after the beep sound
is heard.
Power liftgate
close switch
Knowing Your Mazda
Doors and Locks
3-37
CX-9_8DU1-EA-14H_Edition1 Page125
Thursday, June 5 2014 4:17 PM
Form No.8DU1-EA-14H

Black plate (126,1)
NOTE
If the power liftgate switch/power liftgate close
switch/power liftgate button on the transmitter
is pressed or the outside handle is operated
while the liftgate is opening/closing
electrically, the beep sound is heard and the
liftgate moves in the reverse direction
automatically. If this operation is repeated the
system switches to manual operation.
Jam-safe equipment
While the power liftgate is opening/
closing electrically and the system detects
a person or an object in the liftgate's path,
the liftgate will move in the reverse
direction automatically.
WARNING
Always check the area around the
power liftgate before opening/closing
it:Not checking for occupants and
objects around the power liftgate
before opening/closing it is
dangerous. The jam-safe equipment
is designed to prevent jamming in the
event an obstruction is in the
liftgate's path. The system may not
detect certain objects obstructing the
liftgate depending on the way they
are positioned and their shape.
However, if the jam-safe function
detects an obstruction and moves the
liftgate in the reverse direction, an
occupant in the liftgate's path could
be seriously injured.
CAUTION
Sensors are installed on both ends of
the power liftgate. Be careful not to
allow the sensors to be scratched or
damaged by sharp objects, otherwise
the liftgate may no longer open/close
automatically. In addition, if the
sensor is damaged while the liftgate
is closing automatically, the system
changes to manual operation.
Sensor
NOTE
The jam-safe equipment does not activate
during easy closure operation when the power
liftgate is between the near-shut position and
fully closed position.
When the power liftgate is moving in the
open/close direction and an obstruction is
detected, the beep sound will be heard and
the liftgate moves in the reverse direction.
NOTE
If the system repeatedly detects an object
obstructing the power liftgate in the open/close
direction several times, the beep sound will be
heard and the system changes to manual
operation.
3-38
Knowing Your Mazda
Doors and Locks
CX-9_8DU1-EA-14H_Edition1 Page126
Thursday, June 5 2014 4:17 PM
Form No.8DU1-EA-14H

Black plate (127,1)
Power liftgate drop prevention
mechanism
The power liftgate drop prevention
mechanism activates if the system detects
weight such as that caused by a snow-
laden liftgate when it is opened
electrically. After the liftgate is fully
opened, the beep sound will be heard and
the liftgate closes automatically.
NOTE
lIf the power liftgate is snow-laden, remove
the snow before operating the liftgate.
lTrying to force the power liftgate closed
manually immediately after it has fully
opened automatically may activate the
liftgate drop prevention mechanism.
However, this does not indicate a
malfunction.
Liftgate easy closure
The Easy Closure system automatically
closes the liftgate completely from the
near-shut position.
This system also operates when the
liftgate is closed manually.
WARNING
When closing a liftgate, always keep
hands and fingers away from the
liftgate:Placing hands or fingers around a
liftgate is dangerous because the
liftgate closes automatically from the
near-shut position, which could
cause hands and fingers to be
pinched and injured. NOTE
lIf the liftgate handle is pulled while the
easy closure function is operating, the
liftgate can be opened.
lIf the liftgate is opened/closed repeatedly in
a short period of time, the easy closure
function may not operate. Wait for a while
and then try again.
Knowing Your Mazda
Doors and Locks
3-39
CX-9_8DU1-EA-14H_Edition1 Page127
Thursday, June 5 2014 4:17 PM
Form No.8DU1-EA-14H

Black plate (128,1)
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Never allow children to play with
power window switches: Power window switches that are not
locked with the power window lock
switch would allow children to
operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.
qOperating the Front Power Windows
NOTElEach passenger power window can be
operated with each door switch when the
power window lock switch on the driver's
door is in the unlocked position (page
3-44).
lEach passenger power window can also be
operated using the master control switches
on the driver's door.
Driver's window
Left rear
window
Master control switches
Front passenger's
window
Right rear window
lThe following functions can be performed
for the front power windows using the
power window master control switches on
the driver's door or front passenger's door
switch.
lManual opening/closinglAuto-opening/closinglTwo-step down function
3-40
Knowing Your Mazda
Doors and Locks
CX-9_8DU1-EA-14H_Edition1 Page128
Thursday, June 5 2014 4:17 PM
Form No.8DU1-EA-14H

Black plate (129,1)

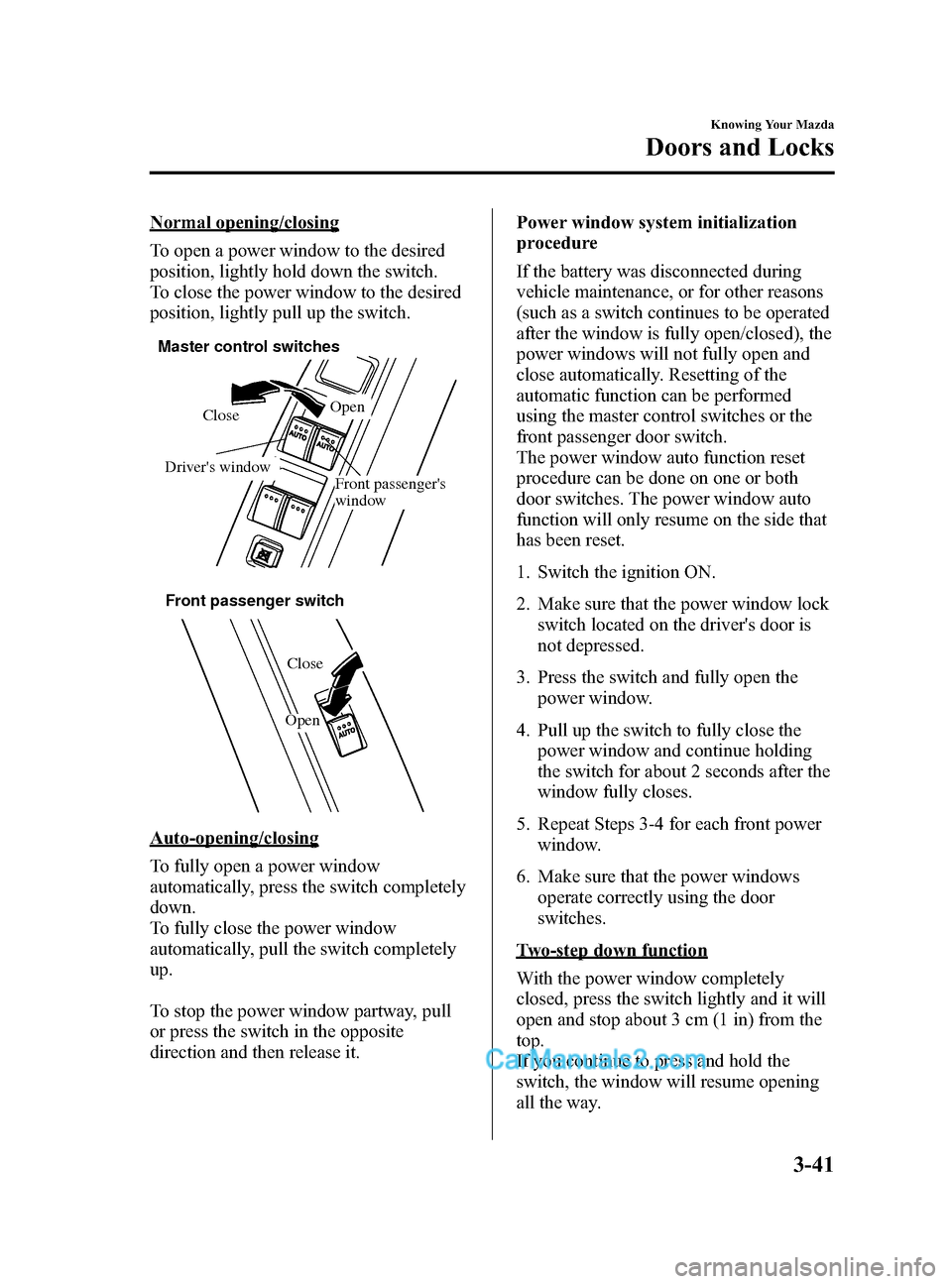

Normal opening/closing
To open a power window to the desired
position, lightly hold down the switch.
To close the power window to the desired
position, lightly pull up the switch.
Close
Driver's windowFront passenger's
window
Master control switches
Open
Close
Open
Front passenger switch
Auto-opening/closing
To fully open a power window
automatically, press the switch completely
down.
To fully close the power window
automatically, pull the switch completely
up.
To stop the power window partway, pull
or press the switch in the opposite
direction and then release it. Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
power windows will not fully open and
close automatically. Resetting of the
automatic function can be performed
using the master control switches or the
front passenger door switch.
The power window auto function reset
procedure can be done on one or both
door switches. The power window auto
function will only resume on the side that
has been reset.
1. Switch the ignition ON.
2. Make sure that the power window lock
switch located on the driver's door is
not depressed.
3. Press the switch and fully open the power window.
4. Pull up the switch to fully close the power window and continue holding
the switch for about 2 seconds after the
window fully closes.
5. Repeat Steps 3-4 for each front power window.
6. Make sure that the power windows operate correctly using the door
switches.
Two-step down function
With the power window completely
closed, press the switch lightly and it will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.
Knowing Your Mazda
Doors and Locks
3-41
CX-9_8DU1-EA-14H_Edition1 Page129
Thursday, June 5 2014 4:17 PM
Form No.8DU1-EA-14H

Black plate (130,1)
NOTE
Pressing the power window switch once when
the window is fully closed will only open it
about 3 cm (1 in) to allow convenient
ventilation of the cabin.
Canceling the two-step down function
To cancel the two-step down function for
the front power windows, carry out the
following procedure using the master
control switches.
1. Switch the ignition ON and complete the following procedure within 5
seconds:
Press the power window switch 2 times
firmly, then pull it 2 times firmly.
Driver's windowFront passenger's
window
Master control switches
2. Switch the ignition off.
3. With the ignition off, and within 40
seconds, switch the ignition ON and
complete the following procedure
within 5 seconds:
Press the power window switch 2 times
firmly, then pull 2 times firmly. NOTE
lThe two-step down function cannot be
canceled if the procedure is not completed
within the specified times, or the procedure
is changed along the way. To redo the
procedure, first switch the ignition off and
proceed from the beginning.
lIf you are unable to cancel the function
despite carrying out the cancellation
procedure, consult an Authorized Mazda
Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function despite
doing the restore procedure, consult an
Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
3-42
Knowing Your Mazda
Doors and Locks
CX-9_8DU1-EA-14H_Edition1 Page130
Thursday, June 5 2014 4:17 PM
Form No.8DU1-EA-14H
