MAZDA MODEL CX-9 2015 Navigation Manual (in English)

1
Contents
Read me first 4
Turning the system on and off ........................................................................................... 4
Setting up the system ........................................................................................................ 4
GPS reception ...................................................................................................................4
System does not start........................................................................................................ 5
Taking care of the system .................................................................................................. 5
Reference .......................................................................................................................... 5
The MAP SD card 6
About the SD card ............................................................................................................. 6
Inserting the SD card......................................................................................................... 6
Removing the SD card ...................................................................................................... 7
Safety Notice 8
Safety settings ................................................................................................................... 8
The commander 9
About the commander ....................................................................................................... 9
Using the commander ....................................................................................................... 9
Planning a route 10
Planning a route .............................................................................................................. 10
Route summary ............................................................................................................... 12
Navigation menu options ................................................................................................. 12
Voice control 14
Voice control .................................................................................................................... 14
Using voice control .......................................................................................................... 15
Planning a journey using your voice ................................................................................ 16
The Driving View 17
About the Driving View .................................................................................................... 17
The Driving View ............................................................................................................. 17
Driving View Symbols ...................................................................................................... 18
View map 19
About viewing the map .................................................................................................... 19
View map ......................................................................................................................... 19
Options ............................................................................................................................ 21
©2012 Mazda Motor Corporation
Printed in Japan May 2014(Print4)
USA_NAVI_EN.book 1 ページ ２０１４年５月８日　木曜日　午後１２時５１分

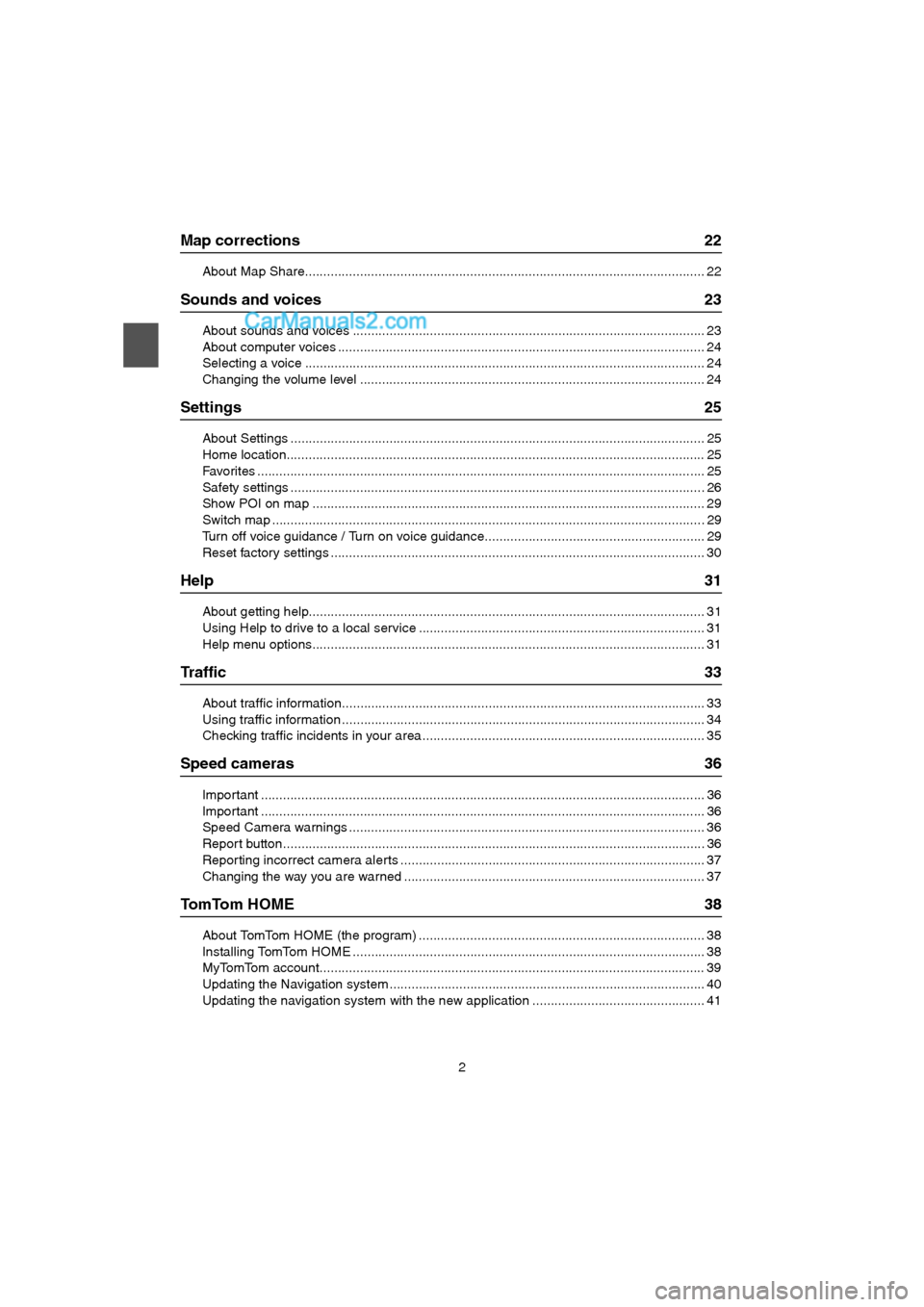

2
Map corrections 22
About Map Share............................................................................................................. 22
Sounds and voices 23
About sounds and voices ................................................................................................ 23
About computer voices .................................................................................................... 24
Selecting a voice ............................................................................................................. 24
Changing the volume level .............................................................................................. 24
Settings 25
About Settings .................................................................................................................25
Home location..................................................................................................................25
Favorites .......................................................................................................................... 25
Safety settings .................................................................................................................26
Show POI on map ........................................................................................................... 29
Switch map ......................................................................................................................29
Turn off voice guidance / Turn on voice guidance............................................................ 29
Reset factory settings ...................................................................................................... 30
Help 31
About getting help............................................................................................................ 31
Using Help to drive to a local service .............................................................................. 31
Help menu options........................................................................................................... 31
Tr a f f i c 3 3
About traffic information................................................................................................... 33
Using traffic information ................................................................................................... 34
Checking traffic incidents in your area ............................................................................. 35
Speed cameras 36
Important ......................................................................................................................... 36
Important ......................................................................................................................... 36
Speed Camera warnings ................................................................................................. 36
Report button ...................................................................................................................36
Reporting incorrect camera alerts ................................................................................... 37
Changing the way you are warned .................................................................................. 37
To m To m H O M E 3 8
About TomTom HOME (the program) .............................................................................. 38
Installing TomTom HOME ................................................................................................ 38
MyTomTom account......................................................................................................... 39
Updating the Navigation system ...................................................................................... 40
Updating the navigation system with the new application ............................................... 41
USA_NAVI_EN.book 2 ページ ２０１４年５月８日　木曜日　午後１２時５１分

3
Customer support 43
Getting help to the use navigation system....................................................................... 43
Status & information ........................................................................................................ 43
Addendum 44
Important Safety Notices and Warnings .......................................................................... 44
Copyright notices 48
USA_NAVI_EN.book 3 ページ ２０１４年５月８日　木曜日　午後１２時５１分

4
Read me first
Turning the system on and off
The Navigation system turns on when your vehicle starts and turns off automatically when
you turn off your vehicle's engine.
Until a connection has been established between the Audio control unit and the Navigation
system, the screen shows audio-related information and the Nav button on the main display
is inactive. If the Navigation system is restarted, press the Nav button. A Mazda/TomTom
screen is shown at first, followed by the main screen (which may take up to 30 seconds to
appear).
Under extreme temperature conditions, the navigation system may not star t. The system
should start once the temperature in the vehicle reaches a normal range. If the system fails to
start automatically in this situation, the vehicle's engine may need to be turned off and
restar ted.
Setting up the system
Important: Make sure to select the desired language. The language you choose will be used
for all text on the screen.
When the system is first started, you have to answer a few questions for set up. Answer the
questions by tapping the screen.
GPS reception
When you first start the Navigation system, it may need a few minutes to determine your GPS
position and show your current position on the map. After that, your position will be found
much faster, usually within a few seconds.
In areas where GPS reception is not possible, such as tunnels, your location may not be
accurate.
Important: The GPS antenna is located in the dashboard, so do not put objects on top of the
dash.
Note: In some situations, your navigation system may restart when turning the ignition
from ACC-ON to the engine start position. If this happens, it may take up to 30 seconds
for the main screen to appear on the navigation system.
USA_NAVI_EN.book 4 ページ ２０１４年５月８日　木曜日　午後１２時５１分

5
System does not start
In rare cases, the TomTom navigation system may not star t correctly or may stop responding
to taps on the screen. This can happen if the device temperature is too high or too low, which
causes the system to shut down.
In rare circumstances, you may need to reset the navigation system. To reset the system, turn
off the vehicle's engine and then remove the MAP SD card. Re-inser t the MAP SD card and
restart the engine.
Taking care of the system
It is impor tant to take care of the system as follows:
The system is not designed for use in extreme temperatures, and any such exposure may
cause permanent damage.
Do not open the casing of the system under any circumstances. Doing so may be dangerous
and will void the warranty.
Important: If you sell the vehicle, you should remove all personal information from the
navigation system first. To remove your personal information, tap Settings and then tap
Reset factory settings.
Reference
Refer to online manual for full operations.
URL :www.mazdausa.com/navigation
www.mazdanav.com
Depending on the region in which the system is used, there may be differences in the
functions/displayed specifications that can be used.
USA_NAVI_EN.book 5 ページ ２０１４年５月８日　木曜日　午後１２時５１分

6
The MAP SD card
About the SD card
A SD card is supplied with the navigation system. It includes a map of the country or group of
countries.
Updates are regularly produced by TomTom, par ticularly for maps and services like speed
cameras. These updates are only available for download by inserting the navigation system's
SD card into a computer that is connected to the internet.
Once your new vehicle has been delivered, if a newer version of the map is available within 60
days, you can download this map for free.
Important: In order to qualify for the latest map guarantee, you need to check if a new map is
available within the 60 day period. You are only entitled to one free map download.
Inserting the SD card
To insert the SD card into the Navigation system in the vehicle do the following:
1. Switch off the ignition in the vehicle so that the navigation system turn off.
2. Open the sliding door and insert the SD card, taking care to handle it carefully and making
sure it is right side up.
Note: Only use the SD card for operating and updating the navigation system. Do not
inser t the SD card into another vehicle or into any other device such as a camera.
USA_NAVI_EN.book 6 ページ ２０１４年５月８日　木曜日　午後１２時５１分

7
Removing the SD card
To remove the SD card from the Navigation system in the vehicle, do the following:
1. Switch off the ignition in the vehicle so that the navigation system turn off.
2. Slide the door open and push gently on the SD card.
3. Remove the SD card, handling it carefully.
Important: Use the SD card only after the doors are securely closed.
Switch the ignition off before inser ting/removing the SD card.
Data could be possibly written on the SD card directly after the sliding door is opened. DO
NOT remove the SD card for about 3 seconds after turning the ignition off and opening the
sliding door.
When replacing the Navigation system due to damage, it is necessary to update the SD card
from TomTom Home so that the SD card information can be re-read. Consult your dealer for
details.
Only use a genuine Mazda SD card. DO NOT use any other SD card
In case the SD card is damaged, personal data on the SD card cannot be guaranteed. The
user can backup and restore data using TomTom Home. Refer to
www.mazdausa.com/navigation for details.
USA_NAVI_EN.book 7 ページ ２０１４年５月８日　木曜日　午後１２時５１分

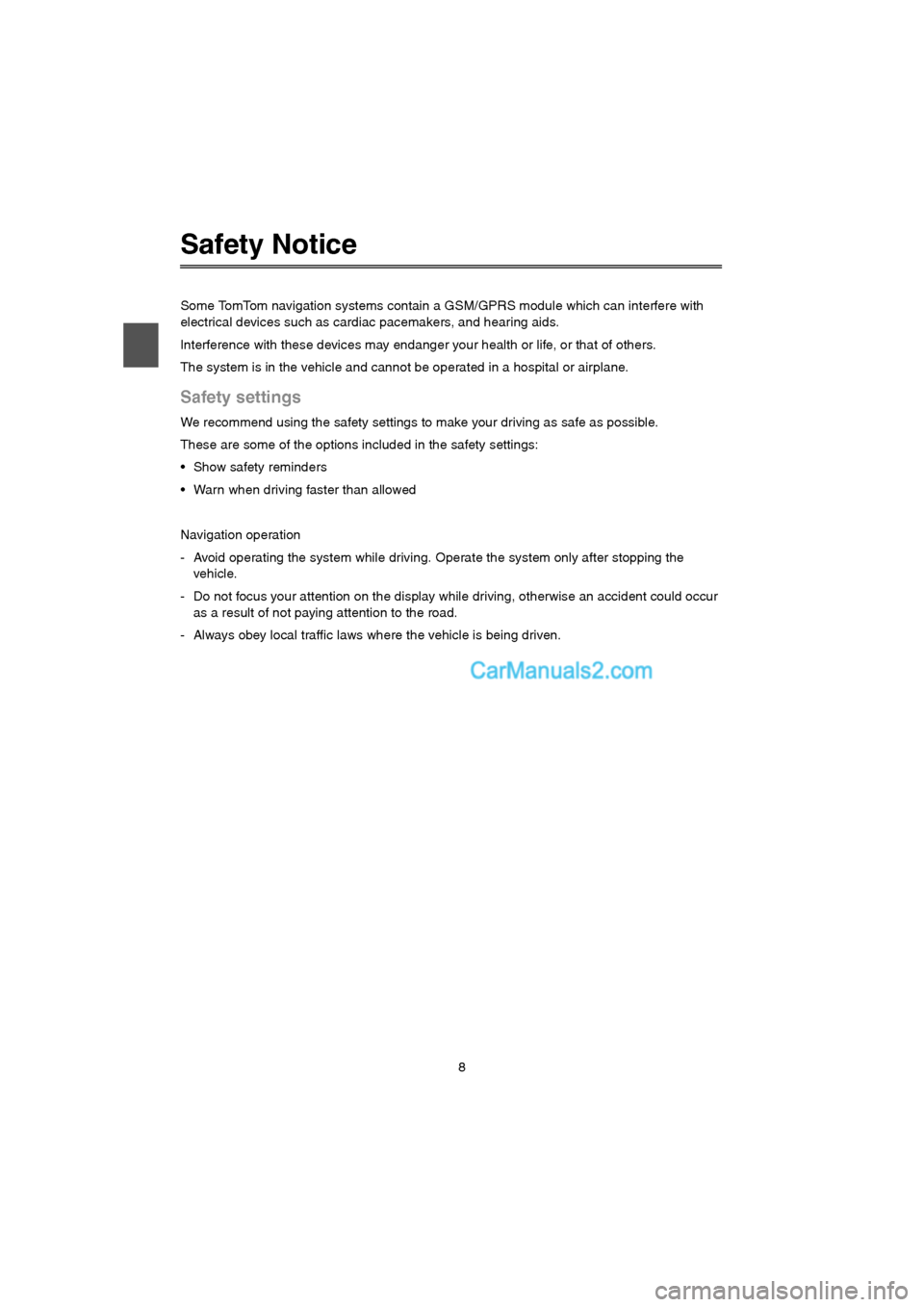

8
Safety Notice
Some TomTom navigation systems contain a GSM/GPRS module which can interfere with
electrical devices such as cardiac pacemakers, and hearing aids.
Interference with these devices may endanger your health or life, or that of others.
The system is in the vehicle and cannot be operated in a hospital or airplane.
Safety settings
We recommend using the safety settings to make your driving as safe as possible.
These are some of the options included in the safety settings:
• Show safety reminders
Warn when driving faster than allowed
Navigation operation
- Avoid operating the system while driving. Operate the system only after stopping the
vehicle.
- Do not focus your attention on the display while driving, otherwise an accident could occur
as a result of not paying attention to the road.
- Always obey local traffic laws where the vehicle is being driven.
USA_NAVI_EN.book 8 ページ ２０１４年５月８日　木曜日　午後１２時５１分

9
The commander
About the commander
The commander is an input device located near the arm rest of your car in the central
console.
It has a central stick that you can move in the following ways:

Rotate left or right
Push the stick forwards or backwards
Push the stick left or right
Using the commander
1. Push in - selects the item highlighted, For example, when the volume control is highlighted
on the middle panel of the status bar in the Driving View, pushing in on the commander
switches items on or off.
2. Rotate left or right - operates slider bars, such as the volume control, and zoom in/out in
the Driving View.
3. Push forward or back - moves the focus around the different areas of the screen or around
the map when browsing.
4. Push left or right - moves you between pages in a menu or between tabs on a screen.
Examples of how to carry out common tasks using the commander
To access the Main menu from the Driving View, push the button in.
To zoom in or out in the Driving View, use rotate right and left.
When focused on the map in the Driving View, push right to access the traffic menu.
When focused on the map in the Driving View, push left to access the quick menu.
When focused on the map in the Driving View, push back towards you to access the
volume control in the center panel of the status bar.
To access the Driving View from the Main menu, push the stick back towards you until you
are focused on the Done button, then push the button in.
To move between letters on the keyboard screen, push left or right. Use push up or back to
move to the letter above or below. You can also use rotate left or right to move between
letters.
USA_NAVI_EN.book 9 ページ ２０１４年５月８日　木曜日　午後１２時５１分

10
Planning a route
Planning a route
Important: In the interest of safety and to reduce distractions while you are driving, you
should always plan a route before you star t driving.
To plan a route on the Navigation system, do the following:
1. Tap the screen to open the Main menu.

2. Tap Navigate to.
3. Tap Address.
You can change the country or state setting by tapping the flag before you select a city.
4. Enter the town or city name.
Towns with similar names are shown in the list while you type.
When the correct city or town appears in the list, tap the name to select the destination.

5. Enter the streetname.
Streets with similar names are shown in the list while you type.
Tip: Instead of typing the address, tap the microphone button to enter the address by
speaking to the Navigation system using voice control.
USA_NAVI_EN.book 10 ページ ２０１４年５月８日　木曜日　午後１２時５１分
