Black plate (324,1)

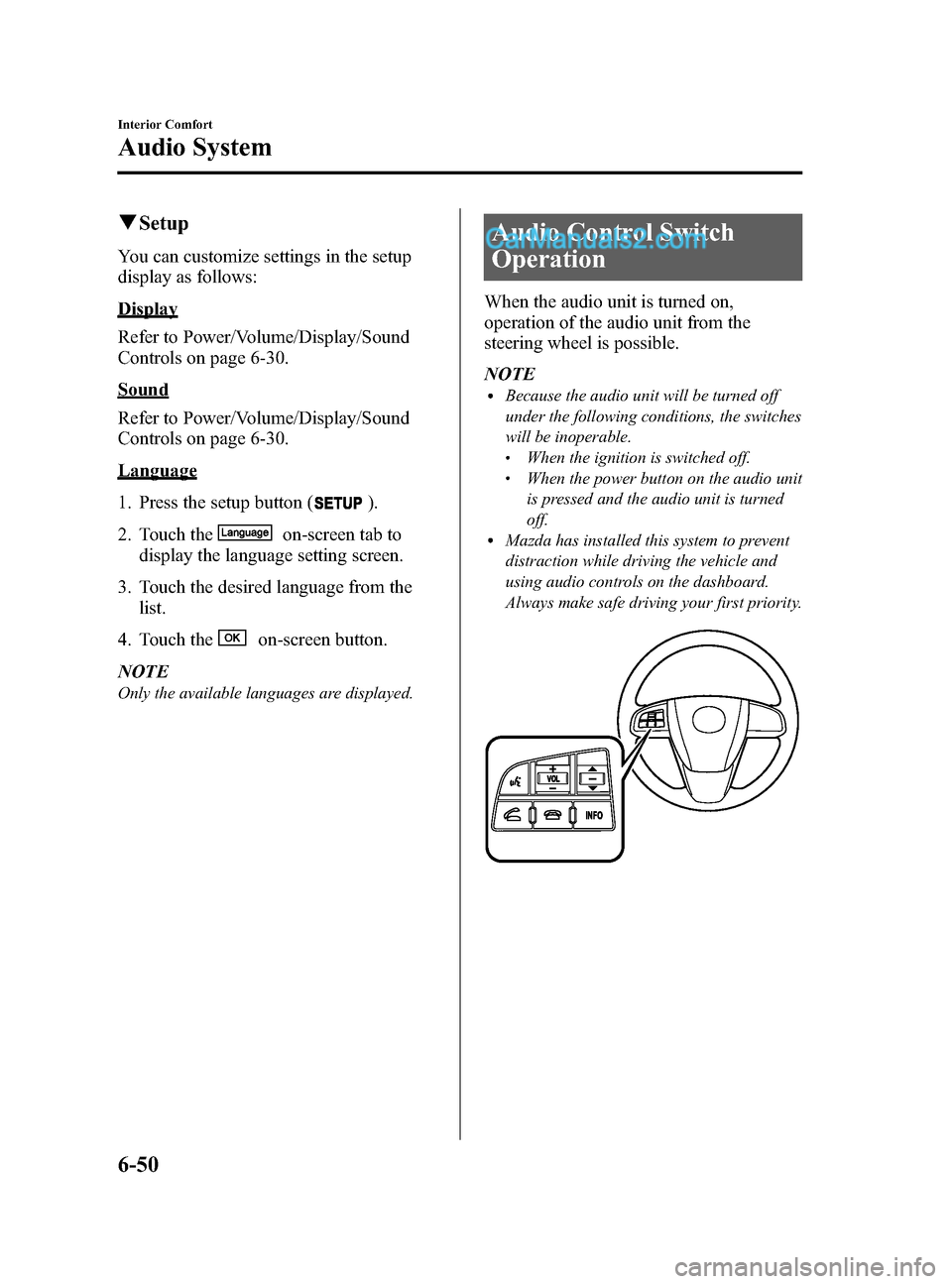

qSetup
You can customize settings in the setup
display as follows:
Display
Refer to Power/Volume/Display/Sound
Controls on page 6-30.
Sound
Refer to Power/Volume/Display/Sound
Controls on page 6-30.
Language
1. Press the setup button (
).
2. Touch the
on-screen tab to
display the language setting screen.
3. Touch the desired language from the list.
4. Touch the
on-screen button.
NOTE
Only the available languages are displayed.
Audio Control Switch
Operation
When the audio unit is turned on,
operation of the audio unit from the
steering wheel is possible.
NOTE
lBecause the audio unit will be turned off
under the following conditions, the switches
will be inoperable.
lWhen the ignition is switched off.lWhen the power button on the audio unit
is pressed and the audio unit is turned
off.
lMazda has installed this system to prevent
distraction while driving the vehicle and
using audio controls on the dashboard.
Always make safe driving your first priority.
6-50
Interior Comfort
Audio System
CX-9_8DU1-EA-14H_Edition1 Page324
Thursday, June 5 2014 4:19 PM
Form No.8DU1-EA-14H

Black plate (537,1)
Interior Care
WARNING
Do not spray water in the cabin:Splashing water on electrical parts
such as the audio unit and switches
is dangerous as it could cause a
malfunction or a fire.
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor
the dashboard. If these solutions get on
the dashboard, wipe them off
immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leather
Remove dust and sand first using a
vacuum cleaner or other means, then wipe
dirt off using a soft cloth with a leather
cleaner or a soft cloth soaked in mild
soap.
Wipe off the remaining cleaner or soap
using a cloth soaked in clean water and
wrung out well.
Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, shaded area. If the leather
gets wet such as from rain, also remove
moisture and dry it as soon as possible.
Maintenance and Care
Appearance Care
8-61
CX-9_8DU1-EA-14H_Edition1 Page537
Thursday, June 5 2014 4:21 PM
Form No.8DU1-EA-14H

Black plate (590,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard
Labelí
qChassis Number
Open the cover shown in the figure to
check the chassis number.
qVehicle Emission Control
Information Labelí
10-2íSome models.
Identification Numbers
CX-9_8DU1-EA-14H_Edition1 Page590
Thursday, June 5 2014 4:21 PM
Form No.8DU1-EA-14H

Black plate (599,1)
B
BrakesAnti-lock brake system (ABS) ..... 5-8
Brakes assist ............................... 5-10
Foot brake .................................... 5-5
Pad wear indicator ...................... 5-10
Parking brake ............................... 5-7
Warning light ............................... 5-8
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-38
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-173
Cargo Sub-Compartment ................ 6-173
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-20
Center Console ................................ 6-173
Child Restraint Child restraint precautions ......... 2-35
Child-restraint system installation
position ...................................... 2-40
Installing child-restraint
systems ....................................... 2-41
LATCH child-restraint
systems ....................................... 2-49
Child Safety Locks for Rear Doors ... 3-32
Climate Control System ...................... 6-2 Gas specifications ...................... 10-5
Clock ............................................... 6-166
Courtesy Lights ............................... 6-164
Cruise Control ................................... 5-21
Cup Holder ...................................... 6-169
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-55
Daytime Running Lights ................... 5-77
Defogger Mirror ......................................... 5-86
Rear window .............................. 5-85
Dimensions ....................................... 10-5
Door Locks ....................................... 3-28
Driving In Flooded Area ................... 4-12
Driving on Uneven Road .................. 4-13
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-17
Break-in period ............................ 4-6
Driving in flooded area .............. 4-12
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-9
Winter driving ............................ 4-10
Dynamic Stability Control
(DSC)/Roll Stability Control
(RSC) ................................................ 5-27
TCS/DSC/RSC Indicator light.... 5-28
E
Emergency Starting ........................... 7-18Jump-starting .............................. 7-18
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-23
Exhaust gas .................................. 4-4
Hood release .............................. 3-49
Oil .............................................. 8-21
Overheating ................................ 7-16
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-20
Index
11-3
