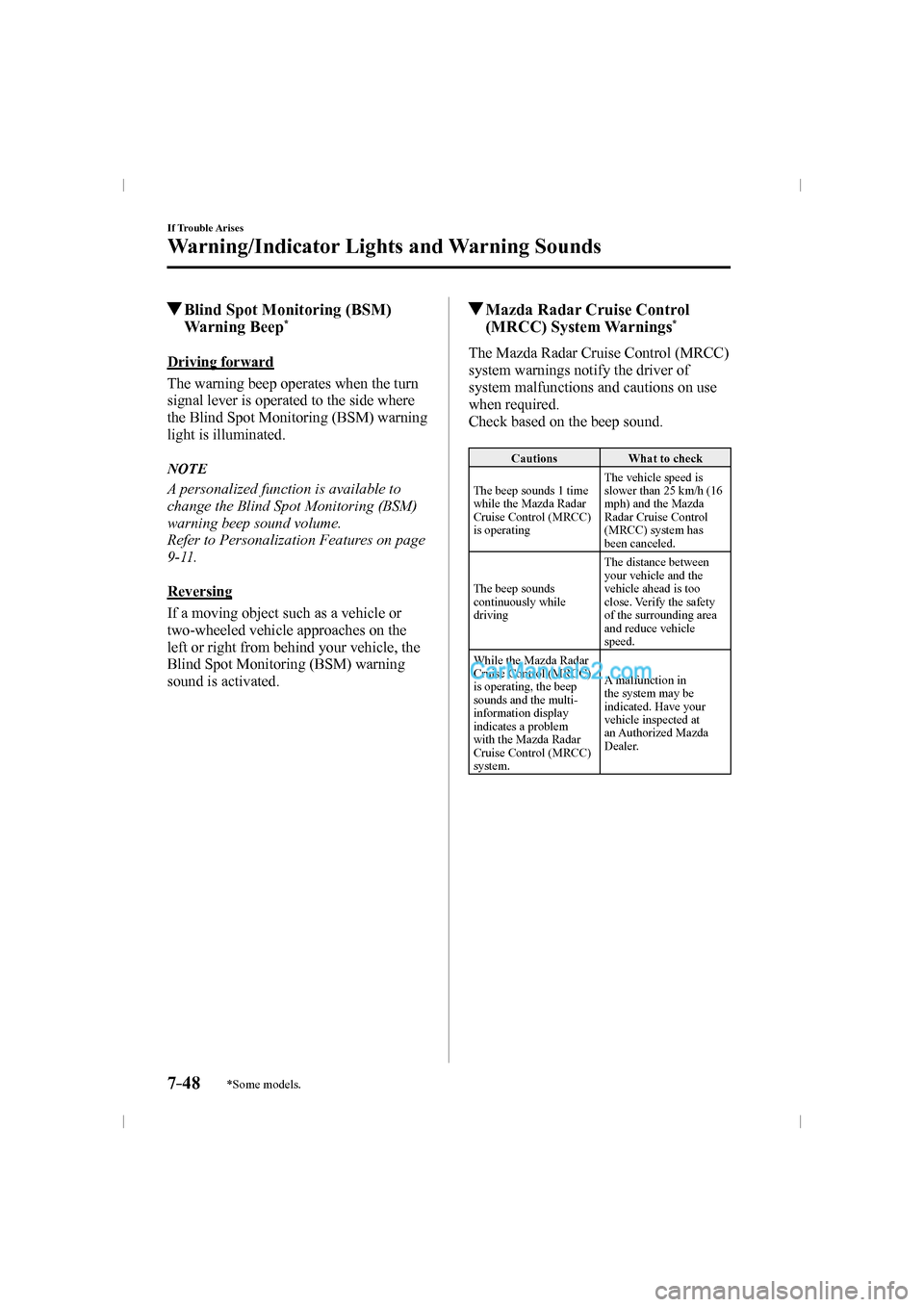

Page 532 of 612
7–48
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Blind Spot Monitoring (BSM)
Warning Beep *
D r i v i n g f o r w a r d
The warning beep operates when the turn
signal lever is operated to the side where
the Blind Spot Monitoring (BSM) warning
light is illuminated.
N O T E
A personalized function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to Personalization Features on page
9-11 .
Reversing
If a moving object such as a vehicle or
two-wheeled vehicle approaches on the
left or right from behind your vehicle, the
Blind Spot Monitoring (BSM) warning
sound is activated.
Mazda Radar Cruise Control
(MRCC) System Warnings *
The Mazda Radar Cruise Control (MRCC)
system warnings notify the driver of
system malfunctions and cautions on use
when required.
Check based on the beep sound.
Cautions What to check
The beep sounds 1 time
while the Mazda Radar
Cruise Control (MRCC)
is operating The vehicle speed is
slower than 25 km/h (16
mph) and the Mazda
Radar Cruise Control
(MRCC) system has
been canceled.
The beep sounds
continuously while
driving The distance between
your vehicle and the
vehicle ahead is too
close. Verify the safety
of the surrounding area
and reduce vehicle
speed.
While the Mazda Radar
Cruise Control (MRCC)
is operating, the beep
sounds and the multi-
information display
indicates a problem
with the Mazda Radar
Cruise Control (MRCC)
system. A malfunction in
the system may be
indicated. Have your
vehicle inspected at
an Authorized Mazda
Dealer.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 533 of 612
7–49
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Lane Departure Warning Sound *
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
N O T E
y The volume of the Lane-keep Assist
System (LAS) & Lane Departure
Warning System (LDWS) warning sound
can be changed.
Refer to Personalization Features on
page 9-11 .
y The type of the Lane-keep Assist System
(LAS) & Lane Departure Warning
System (LDWS) warning sound can be
changed.
Refer to Personalization Features on
page 9-11 .
Collision warning *
If there is a possibility of a collision
with a vehicle ahead, a warning sound is
activated at the same time as the warning
indications are displayed in the instrument
cluster or active driving display.
Power Steering Warning Buzzer
If the power steering system has
a malfunction, the power steering
malfunction light turns on or À ashes and
the buzzer operates at the same time.
Refer to Warning Lights on page 4-33 .
Electric Parking Brake Warning
Beep
The warning buzzer is activated under the
following conditions:
y The vehicle is driven with the electric
parking brake applied.
y The electric parking brake switch is
pulled while the vehicle is driven.
Power Liftgate Warning Beep *
If system operation precautions are
necessary, the driver is noti ¿ ed by the
warning sound.
Cautions What to check
The beep sounds 3 times The conditions required
for the power liftgate
to operate have not
been met, such as an
object being stuck in the
liftgate.
The beep sound
continues The vehicle is being
driven with the liftgate
open. Stop the vehicle
and close the liftgate.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 535 of 612
7–51
If Trouble Arises
Active Driving Display Does Not Operate*
*Some models.
I f t h e A c t i v e D r i v i n g
Display does not operate
If the active driving display does not
operate, switch the ignition off and then
restart the engine. If the active driving
display does not operate even with
the engine restarted, have the vehicle
inspected at an Authorized Mazda Dealer.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 597 of 612
9–11
Speci ¿ cations
Personalization Features
Personalization Features
The following personalization features can be set or changed by the customer or an
Authorized Mazda Dealer. Consult an Authorized Mazda Dealer for details.
Additionally, some of the personalization features can be changed by the customer
depending on the feature.
Personalization features and settings which can be changed differ depending on the market
and speci ¿ cation.
Settings Change Method
Settings can be changed by operating the center display screen.
A: Refer to Settings on page 5-71 .
B: Refer to Fuel Economy Monitor on page 4-78 .
C: Refer to Active Driving Display on page 4-29 .
Settings can be changed by operating the vehicle switches.
D: Refer to Auto Lock/Unlock Function on page 3-17 .
E: Refer to Transmitter on page 3-4 .
F: Refer to Locking, Unlocking with Request Switch (With the advanced keyless function)
on page 3-13 .
Settings can be changed by an Authorized Mazda Dealer.
Item Feature Factory
Setting Available
Settings Settings
Change
Method
Safety
Smart City
Brake Support
(SCBS) (page
4-129 ) The system can be changed so that Smart City
Brake Support (SCBS) does not operate.
*1 On On/Off A —
Smart Brake
Support (SBS)
(page 4-134 ) The system can be changed so that Smart Brake
Support (SBS) does not operate.
*1 On On/Off A —
The distance at which the collision warning
activates can be changed. Near Near/Far A —
The volume of the collision warning can be
changed. High High/Low/Off A —
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 599 of 612
9–13
Speci ¿ cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings
Change
Method
Distance
Recognition
Support System
(DRSS) (page
4-98 ) The system can be changed so that Distance
Recognition Support System (DRSS) does not
operate.
*1 On On/Off A —
The distance at which the vehicle ahead and your
vehicle indicated in the display À ashes in white
can be changed. Near Far/Medium/
Near A —
Vehicle
Door locks
(page 3-17 ) Operation condition of auto lock/unlock function Lock:
When
Driving
Unlock:
IGN Off Lock: When
Driving
Unlock: In
Park/
Lock: Out of
Park Unlock: In
Park/
Lock: Shifting
Out of Park/
Lock: When
Driving
Unlock: IGN
Off/
Lock: When
Driving/
O f f A D
Keyless entry
system (page
3-3 ) Method for unlocking door using transmitter Driver's:
Once, All
Doors:
Twice All Doors:
Once/
Driver's: Once,
All Doors:
Twice A E
Time for locking door automatically 60
seconds 90 seconds/
60 seconds/
30 seconds A —
Advanced
keyless entry
system (page
3-9 ) Method for unlocking door using request switch/
transmitter Driver's:
Once, All
Doors:
Twice All Doors:
Once/
Driver's: Once,
All Doors:
Twice A E,
F
Time for locking door automatically 60
seconds 90 seconds/
60 seconds/
30 seconds A —
Auto-lock function operation/non-operational
Off On/Off A —
Beep volume when locking/unlocking
Medium High/
Medium/
L o w /
O f f A E,
F
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 601 of 612
9–15
Speci ¿ cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings
Change
Method
Three- À ash turn
signal (page
4-56 ) Operational/non-operational
On On/Off A —
Ambient
Lighting (page
5-83 ) Ambient lights brightness
*7 Medium Bright/
Medium/
Dark/
O f f
*8 A —
Rear window
defogger (page
4-61 ) The operation time for the rear window defogger
can be changed. 15
minutes 15 minutes/
Continuous
*9 — —
System
Language Language indicated in display
English Depends on
market
*10 A —
Temperature Temperature unit indicated in display
°F or °C °F/°C A —
Distance Distance unit indicated in display
mi or km mi/km A —
Fuel Economy Monitor (page 4-78 )
Ending display On/off
Off On/Off B —
Fuel economy
resetting
procedureLinkage/non-linkage with fuel economy reset
and trip meter resetOff On/Off B —
Active driving display (page 4-29 )
Turn by turn
(TBT) Display of turn by turn (TBT) can be turned off. On On/Off C —
Street name Display timing of street name can be changed. On-
Demand Off/Always/
On-Demand C —
Tachometer Setting can be changed to display the tachometer. Off On/Off C —
*1 Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda recommends
that these systems remain On.
*2 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation can be changed. The
volume of the warning beep during Rear Cross Traf ¿ c Alert (RCTA) operation cannot be changed.
*3 If the auto-wiper control is set to Off, the wiper lever
position is set to intermittent operation.
*4 If the setting is changed to Off, the following operation is performed according to the headlight switch position:
y A t position: Headlights turn off immediately after the ignition is switched off.
y At any position other than : Headlights on/off conditions vary according to the headlight switch
position. Refer to Headlights on page 4-49 .
*5 When set to Off, the lights-on reminder is operable.
*6 The lights-on reminder settings can be changed at anytime, however, the lights-on reminder only operates when
the auto headlight function is set to Off. Refer to Lights-On Reminder on page 7-45 .
*7 Change the ambient light illumination level with the parking lights or headlights turned on.
*8 When set to OFF, the ambient lights remain turned off regardless of whether of not the parking lights or
headlights are on or off. However, they will turn on or off in conjunction with the illuminated entry system.
*9 The operation may stop in 15 minutes due to the effect of the outside temperature even if the operation time of
the rear window defogger has been changed to Continuous.
*10 Available only in display from the center display.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 604 of 612
10–2
Index
A
Accessory Socket ................................ 5-86
Active Driving Display ....................... 4-29
Adaptive Front Lighting System
(AFS)................................................... 4-88
Add-On Non-Genuine Parts and
Accessories ......................................... 8-18
Advanced Key
Advanced keyless entry system ...... 3-9
Operational range .......................... 3-10
Advanced Key Removed from Vehicle
Warning Beep ...................................... 7-47
Air Bag/Seat Belt Pretensioner System
Warning Beep ...................................... 7-45
Air Bag Systems ................................. 2-48
Ambient Temperature Display ... 4-18, 4-25
Antilock Brake System (ABS) ............ 4-73
Armrest Box ........................................ 5-91
Audio Control Switch
Adjusting the Volume .................... 5-14
Seek Switch ................................... 5-14
Audio Set
Applications .................................. 5-73
AUX .............................................. 5-34
Bluetooth
® ..................................... 5-41
Radio ............................................. 5-26
Satellite Radio ............................... 5-30
Settings .......................................... 5-71
Troubleshooting ............................ 5-74
USB ............................................... 5-35
Voice Recognition ......................... 5-68
Volume/Display/Sound Controls ... 5-24
Audio System
Antenna ......................................... 5-18
Appendix ....................................... 5-77
Audio Control Switch ................... 5-14
Audio Set ....................................... 5-19
AUX/USB mode ........................... 5-15
Before Using the Audio System .... 5-14 Automatic Transaxle ........................... 4-39
Active Adaptive Shift (AAS) ........ 4-42
Automatic transaxle controls......... 4-39
Driving tips.................................... 4-48
Manual shift mode......................... 4-43
Shift-lock system ........................... 4-40
Transaxle ranges ............................ 4-41
B
Battery ................................................. 6-38
Maintenance .................................. 6-40
Replacement .................................. 6-40
Speci ¿ cations .................................. 9-4
Battery Runs Out ................................. 7-20
Jump-starting ................................. 7-20
Blind Spot Monitoring (BSM) ............ 4-92
Blind Spot Monitoring (BSM) OFF
switch ............................................ 4-97
Blind Spot Monitoring (BSM) Warning
Beep .................................................... 7-48
Bluetooth
®
Bluetooth® Audio .......................... 5-47
Bluetooth® Hands-Free.................. 5-58
Bluetooth® Preparation .................. 5-44
Body Lubrication ................................ 6-32
Bottle Holder ....................................... 5-90
Brakes
Brake assist.................................... 4-71
Electric parking brake ................... 4-68
Foot brake...................................... 4-67
Pad wear indicator ......................... 4-70
Warning light ................................. 4-70
Break-In Period ................................... 3-50
C
Capacities .............................................. 9-5
Carbon Monoxide ............................... 3-30
Cargo Sub-Compartment .................... 5-92
Cell Phones ......................................... 8-19
Center Console .................................... 5-91
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 605 of 612
10–3
Index
Child Restraint
Child-restraint precautions ............ 2-29
Child-restraint system installation ... 2-34
Installing child-restraint systems... 2-35
LATCH child-restraint systems ..... 2-44
Child Safety Locks for Rear Doors ..... 3-19
Climate Control System ........................ 5-2
Front Air Conditioner ...................... 5-5
Gas speci ¿ cations ............................ 9-6
Operating tips .................................. 5-2
Rear Air Conditioner ..................... 5-11
Vent Operation (Front) .................... 5-3
Vent operation (Rear) ...................... 5-9
Collision warning ................................ 7-49
Coming Home Light ........................... 4-53
Cruise Control ................................... 4-147
Cruise control switch................... 4-147
Cruise main indication (white)/
cruise set indication (green) ........ 4-148
Cruise Control Set Vehicle Speed
Display ................................................ 4-18
Cup Holder .......................................... 5-88
Customer Assistance ............................. 8-2
D
Dashboard Illumination ...................... 4-17
Daytime Running Lights ..................... 4-54
Defogger
Mirror ............................................ 4-61
Rear window ................................. 4-61
Dimensions ........................................... 9-5
Distance Recognition Support System
(DRSS) ................................................ 4-98
Indication on display ..................... 4-99
Door Locks .......................................... 3-11
Drive Selection .................................... 4-80
Driving In Flooded Area ..................... 3-55 Driving Tips
Automatic transaxle ...................... 4-48
Break-in period.............................. 3-50
Driving in À ooded area.................. 3-55
Driving on uneven road ................. 3-56
Floor mat ....................................... 3-52
Hazardous driving ......................... 3-51
Overloading ................................... 3-55
Rocking the vehicle ....................... 3-52
Saving fuel and protection of the
environment................................... 3-50
Turbocharged vehicles .................. 3-57
Winter driving ............................... 3-53
Driving on Uneven Road .................... 3-56
Dynamic Stability Control (DSC) ....... 4-76
TCS/DSC indicator light ............... 4-76
E
Electric Parking Brake Warning Beep ... 7-49
Electric parking brake ......................... 4-68
Emergency Starting
Push-starting .................................. 7-23
Starting a À ooded engine ............... 7-23
Emergency Towing
Towing description ........................ 7-26
Towing hooks ................................ 7-27
Emission Control System .................... 3-29
Ending Screen Display ........................ 4-79
Engine
Coolant .......................................... 6-29
Engine compartment overview ..... 6-25
Exhaust gas.................................... 3-30
Hood release .................................. 6-23
Oil .................................................. 6-26
Starting ............................................ 4-5
Engine Coolant Temperature
Gauge ......................................... 4-16, 4-24
Essential Information ............................ 6-2
Event Data Recorder ........................... 8-20
Exhaust Gas ........................................ 3-30
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 606 of 612
10–4
Index
Exterior Care ....................................... 6-62
Aluminum wheel maintenance ...... 6-67
Bright-metal maintenance ............. 6-66
Maintaining the ¿ nish ................... 6-64
Plastic part maintenance ................ 6-68
F
Flasher
Hazard warning ............................. 4-62
Headlights ..................................... 4-49
Flat Tire ................................................. 7-3
Mounting the spare tire ................. 7-14
Removing a À at tire ....................... 7-10
Floor Mat ............................................ 3-52
Fluid
Brake ............................................. 6-31
Washer ........................................... 6-31
Fluids
Classi ¿ cation ................................... 9-4
Fog Lights ........................................... 4-55
Foot Brake ........................................... 4-67
Forward Sensing Camera (FSC) ....... 4-137
Front Seat .............................................. 2-5
Fuel
Filler lid and cap............................ 3-31
Gauge ................................... 4-16, 4-24
Requirements................................. 3-28
Tank capacity .................................. 9-5
Fuel Consumption Display ................. 4-79
Fuel Economy Monitor ....................... 4-78
Ending screen display ................... 4-79
Fuel consumption display ............. 4-79
Fuses ................................................... 6-56
Panel description ........................... 6-58
Replacement .................................. 6-56
G
Gauges ................................................. 4-12
Glove Compartment ............................ 5-91
H
Hazard Warning Flasher ...................... 4-62
Hazardous Driving .............................. 3-51
Head Restraint ..................................... 2-16
Headlights
Coming home light ........................ 4-53
Control........................................... 4-49
Flashing ......................................... 4-53
High-low beam .............................. 4-53
Leaving home light ....................... 4-54
Leveling......................................... 4-54
High Beam Control System (HBC) .... 4-89
High Beam Control System (HBC)
indicator light (green) .................... 4-91
Hill Launch Assist (HLA) ................... 4-71
HomeLink Wireless Control System ... 4-63
Hood Release ...................................... 6-23
Horn .................................................... 4-62
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 607 of 612
10–5
Index
I
i-ACTIV AWD Operation ................... 4-82
i-ACTIVSENSE .................................. 4-85
Active safety technology ............... 4-85
Adaptive Front Lighting System
(AFS) ............................................. 4-88
Blind Spot Monitoring (BSM) ...... 4-92
Camera and sensors ....................... 4-86
Distance Recognition Support System
(DRSS) .......................................... 4-98
Forward Sensing Camera (FSC) ... 4-137
High Beam Control System
(HBC) ............................................ 4-89
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) ....................................... 4-117
Laser sensor (front) ..................... 4-143
Mazda Radar Cruise Control
(MRCC)....................................... 4-106
Pre-crash safety technology .......... 4-86
Radar sensor (front)..................... 4-140
Radar sensors (rear)..................... 4-145
Rear Cross Traf ¿ c Alert (RCTA) ... 4-102
Smart Brake Support (SBS) ........ 4-134
Smart City Brake Support
(SCBS) ........................................ 4-129
If a Warning Light Turns On or
Flashes................................................. 7-30
If the Active Driving Display does not
operate ................................................. 7-51
Ignition
Switch .............................................. 4-4
Ignition Not Switched Off (STOP)
Warning Beep ...................................... 7-46
Illuminated Entry System ................... 5-86
Immobilizer System ............................ 3-46
Indication/Indicator Lights .................. 4-36
Indicator Lights
Low engine coolant temperature ... 4-38
Wrench .......................................... 4-38
Inspecting Brake Fluid Level .............. 6-31
Inspecting Coolant Level .................... 6-29 Inspecting Engine Oil Level ............... 6-29
Inspecting Washer Fluid Level............ 6-31
Instrument Cluster ............................... 4-12
Interior Care ........................................ 6-68
Active driving display
maintenance................................... 6-71
Cleaning the À oor mats ................. 6-71
Cleaning the window interiors ...... 6-71
Instrument panel top maintenance ... 6-70
Leather upholstery maintenance ... 6-69
Panel maintenance ......................... 6-70
Plastic part maintenance ................ 6-70
Seat belt maintenance .................... 6-69
Upholstery maintenance ................ 6-69
Vinyl upholstery maintenance ....... 6-69
Interior Lights ..................................... 5-83
Luggage compartment light .......... 5-83
Map lights...................................... 5-83
Overhead lights ............................. 5-83
J
Jack ....................................................... 7-4
Jump-Starting ...................................... 7-20
K
Key Left-in-luggage Compartment
Warning beep (With the advanced keyless
function) .............................................. 7-47
Key Left-in-trunk Warning Beep (With the
advanced keyless function) ................. 7-47
Key Left-in-vehicle Warning Beep (With
the advanced keyless function) ........... 7-47
Key Removed from Vehicle Warning
Beep .................................................... 7-47
Key Suspend Function .......................... 3-8
Keyless Entry System ........................... 3-3
Keys ...................................................... 3-2
Key suspend function ...................... 3-8
Transmitter ...................................... 3-4
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
