4–114
When Driving
i-ACTIVSENSE
To Deactivate
The Mazda Radar Cruise Control (MRCC)
is deactivated when the OFF/CAN switch
is pressed twice.
When the system is temporarily
canceled
In the following cases, the Mazda Radar
Cruise Control (MRCC) is temporarily
canceled, the Mazda Radar Cruise Control
(MRCC) set indication (green) is turned
off, and the Mazda Radar Cruise Control
(MRCC) main indication (white) is turned
on.
y The OFF/CAN switch is pressed once.
y The brake pedal is depressed.
y The parking brake is applied.
y The selector lever is shifted to park (P),
neutral (N) or reverse (R).
y Any door is opened.
y The driver's seat belt is unfastened.
y In the following cases, the “Mazda
Radar Cruise Control Canceled”
indication is displayed and the beep
sounds one time.
y
The vehicle speed decreases to less
than 25 km (16 mph).
y
The DSC has operated.
y
The TCS has operated for a certain
period of time.
y
The Smart City Brake Support (SCBS)
has operated.
y
The Smart Brake Support (SBS) has
operated.
y
When traveling on a down slope for a
long period of time.
y There is a problem with the system.
N O T E
y The Mazda Radar Cruise Control
(MRCC) system may be canceled during
rain, fog, snow or other inclement
weather conditions, or the front surface
of the radiator grille is dirty.
y If you have temporarily canceled the
Mazda Radar Cruise Control (MRCC),
you can return to your previously set
speed by pressing the RES switch and
after all of the operation conditions
have been met.
y If the Mazda Radar Cruise Control
(MRCC) system is deactivated, the
system does not return to the previously
set speed even if the RES switch is
pressed.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 263 of 612
4–115
When Driving
i-ACTIVSENSE
Cruise Control Function
While this function is operating, the
headway control operation is canceled and
only the cruise control function operates.
The vehicle speed can be set more than
about 25 km/h (16 mph).
Use the cruise control function on
expressways and other highways which do
not require a lot of repeated acceleration
and deceleration.
WARNING
Do not use the cruise control function in
the following locations:
Otherwise, it could lead to an accident.
¾ Roads with sharp curves and where
vehicle traffi c is heavy and there is
insuffi cient space between vehicles.
(Driving under these conditions
using the cruise control function is
not possible)
¾ Steep down slopes (Set speed may
be exceeded because suffi cient
engine braking cannot be applied)
¾ Slippery roads such as ice or snow-
bound roads (Tires could spin
causing you to lose vehicle control)
Always drive carefully:
The warnings and brake control
will not operate after the headway
control function is canceled and the
system is switched to only the cruise
control function. Depress the brake
pedal to decelerate according to the
surrounding conditions while keeping
a safer distance from the vehicle ahead
and always driving carefully.
Switching to cruise control function
When the MODE switch is pressed while
the Mazda Radar Cruise Control (MRCC)
system is turned on, the system switches to
the cruise control function.
When the system switches to the cruise
control function, the indicator and multi-
information display notify the driver as
follows:
y The Mazda Radar Cruise Control
(MRCC) set indication (green) or the
Mazda Radar Cruise Control (MRCC)
main indication (white) is turned off,
and the cruise main indication (white) is
turned on.
y A message is displayed in the multi-
information display.
WARNING
Always turn off the cruise control
function when it is not in use:
Leaving the cruise control function
turned on when it is not in use
is dangerous as it could operate
unexpectedly, resulting in an accident.
How to set the speed
Adjust the system to the desired vehicle
speed using the accelerator pedal.
When the SET
or SET switch is
pressed, the cruise set indication (green) is
turned on and headway control begins.
N O T E
y The system may not be able to maintain
the set speed constantly depending on
driving conditions such as steep up or
down slopes.
y The speed will continue increasing
while the SET
switch is pressed and
held. The speed will continue
decreasing while the SET
switch is
pressed and held.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 264 of 612
4–116
When Driving
i-ACTIVSENSE

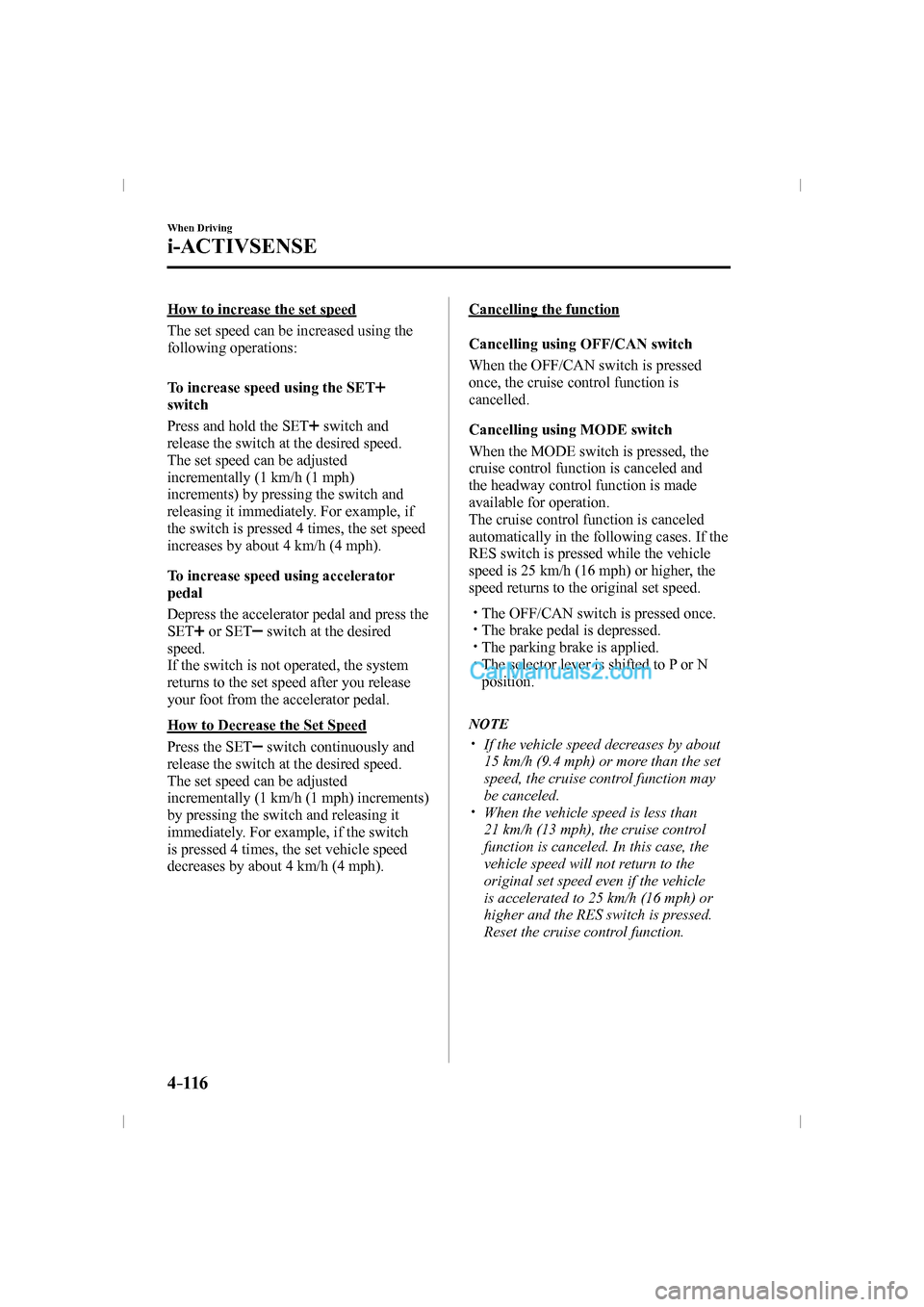

How to increase the set speed
The set speed can be increased using the
following operations:
To increase speed using the SET
switch
Press and hold the SET
switch and
release the switch at the desired speed.
The set speed can be adjusted
incrementally (1 km/h (1 mph)
increments) by pressing the switch and
releasing it immediately. For example, if
the switch is pressed 4 times, the set speed
increases by about 4 km/h (4 mph).
To increase speed using accelerator
pedal
Depress the accelerator pedal and press the
SET
or SET switch at the desired
speed.
If the switch is not operated, the system
returns to the set speed after you release
your foot from the accelerator pedal.
How to Decrease the Set Speed
Press the SET
switch continuously and
release the switch at the desired speed.
The set speed can be adjusted
incrementally (1 km/h (1 mph) increments)
by pressing the switch and releasing it
immediately. For example, if the switch
is pressed 4 times, the set vehicle speed
decreases by about 4 km/h (4 mph).
Cancelling the function
Cancelling using OFF/CAN switch
When the OFF/CAN switch is pressed
once, the cruise control function is
cancelled.
Cancelling using MODE switch
When the MODE switch is pressed, the
cruise control function is canceled and
the headway control function is made
available for operation.
The cruise control function is canceled
automatically in the following cases. If the
RES switch is pressed while the vehicle
speed is 25 km/h (16 mph) or higher, the
speed returns to the original set speed.
y The OFF/CAN switch is pressed once.
y The brake pedal is depressed.
y The parking brake is applied.
y The selector lever is shifted to P or N
position.
N O T E
y If the vehicle speed decreases by about
15 km/h (9.4 mph) or more than the set
speed, the cruise control function may
be canceled.
y When the vehicle speed is less than
21 km/h (13 mph), the cruise control
function is canceled. In this case, the
vehicle speed will not return to the
original set speed even if the vehicle
is accelerated to 25 km/h (16 mph) or
higher and the RES switch is pressed.
Reset the cruise control function.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 288 of 612
4–14 0
When Driving
i-ACTIVSENSE
*Some models.
Radar Sensor (Front) *
Your vehicle is equipped with a radar sensor (front).
The following systems also use the radar sensor (front).
y Distance Recognition Support System (DRSS)
y Mazda Radar Cruise Control (MRCC)
y Smart Brake Support (SBS)
The radar sensor (front) functions by detecting the radio waves re À ected off a vehicle ahead
or an obstruction sent from the radar sensor.
The radar sensor (front) is mounted behind the front emblem.
Radar sensor (front)
If “Front Radar Sensor Blocked” is displayed in the multi-information display of the
instrument cluster, clean the area around the radar sensor (front).
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 295 of 612
4–147
When Driving
Cruise Control
*Some models.
Cruise Control *
With cruise control, you can set and automatically maintain any speed of more than about
25 km/h (16 mph).
WARNING
Do not use the cruise control under the following conditions:
Using the cruise control under the following conditions is dangerous and could result in
loss of vehicle control.
¾ Hilly terrain
¾ Steep inclines
¾ Heavy or unsteady traffi c
¾ Slippery or winding roads
¾ Similar restrictions that require inconsistent speed
Cruise Control Switch
ON switchRESUME/+ switch
SET/- switch
OFF/CANCEL switch
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 296 of 612
4–14 8
When Driving
Cruise Control
Cruise Main Indication (White)/
Cruise Set Indication (Green)
The indication has two colors.
Cruise Main Indication (White)
The indication turns on (white) when the
cruise control system is activated.
Cruise Set Indication (Green)
The indication turns on (green) when a
cruising speed has been set.
Activation/Deactivation
To activate the system, press the ON
switch. The cruise main indication (white)
turns on.
To deactivate the system, press the OFF/
CANCEL switch.
The cruise main indication (white) turns
off.
WARNING
Always turn off the cruise control system
when it is not in use:
Leaving the cruise control system in an
activation-ready state while the cruise
control is not in use is dangerous as
the cruise control could unexpectedly
activate if the activation button is
accidentally pressed, and result in loss
of vehicle control and an accident.
N O T E
When the ignition is switched OFF, the
system status before it was turned off is
maintained. For example, if the ignition
is switched OFF with the cruise control
system operable, the system will be
operable when the ignition is switched ON
the next time.
To Set Speed
1. Activate the cruise control system by
pressing the ON switch. The cruise
main indication (white) turns on.
2. Accelerate to the desired speed, which
must be more than 25 km/h (16 mph).
3. Set the cruise control by pressing the
SET/
switch at the desired speed. The
cruise control is set at the moment the
SET/
switch is pressed. Release the
accelerator pedal simultaneously. The
cruise set indication (green) turns on.
N O T E
y The cruise control speed setting cannot
be performed under the following
conditions:
y The selector lever is in the P or N
position.
y The parking brake is applied.
y Release the SET/ switch at the desired
speed, otherwise the speed will continue
decreasing while the SET/
switch is
pressed and held (except when the
accelerator pedal is depressed).
y On a steep grade, the vehicle may
momentarily slow down while ascending
or speed up while descending.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 297 of 612
4–149
When Driving
Cruise Control
y The cruise control will cancel if the
vehicle speed decreases below 21 km/h
(13 mph) when the cruise control is
activated, such as when climbing a
steep grade.
y The cruise control may cancel at about
15 km/h (9 mph) below the preset speed,
such as when climbing a long, steep
grade.
The vehicle speed preset using the cruise
control is displayed in the instrument
cluster and the active driving display
(vehicles with active driving display).
Type A Instrument Cluster
Type B Instrument ClusterMulti-information Display
Active Driving Display
To Increase Cruising Speed
Follow either of these procedures.
To increase speed using cruise control
switch
Press the RESUME/
switch and hold it.
Your vehicle will accelerate. Release the
switch at the desired speed.
Press the RESUME/
switch and release
it immediately to adjust the preset speed.
Multiple operations will increase the
preset speed according to the number of
times it is operated.
Increasing speed with a single
RESUME/
switch operation
Instrument cluster display for vehicle
speed indicated in km/h: 1 km/h (0.6 mph)
Instrument cluster display for vehicle
speed indicated in mph: 1 mph (1.6 km/h)
To increase speed using accelerator
pedal
Depress the accelerator pedal to accelerate
to the desired speed. Press the SET/
switch and release it immediately.
N O T E
Accelerate if you want to speed up
temporarily when the cruise control is on.
Greater speed will not interfere with or
change the set speed. Take your foot off the
accelerator to return to the set speed.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 298 of 612
4–150
When Driving
Cruise Control
To Decrease Cruising Speed
Press the SET/ switch and hold it. The
vehicle will gradually slow.
Release the switch at the desired speed.
Press the SET/
switch and release it
immediately to adjust the preset speed.
Multiple operations will decrease the
preset speed according to the number of
times it is operated.
Decreasing speed with a single SET/
switch operation
Instrument cluster display for vehicle
speed indicated in km/h: 1 km/h (0.6 mph)
Instrument cluster display for vehicle
speed indicated in mph: 1 mph (1.6 km/h)
To Resume Cruising Speed at
More Than 25 km/h (16 mph)
If some other method besides the OFF/
CANCEL switch was used to cancel
cruising speed (such as applying the brake
pedal) and the system is still activated, the
most recent set speed will automatically
resume when the RESUME/
switch is
pressed.
If vehicle speed is below 25 km/h (16
mph), increase the vehicle speed up to 25
km/h (16 mph) or more and press the
RESUME/
switch.
To Temporarily Cancel
To temporarily cancel the system, use one
of these methods:
y Slightly depress the brake pedal.
y Press the OFF/CANCEL switch.
If the RESUME/ switch is pressed when
the vehicle speed is 25 km/h (16 mph) or
higher, the system reverts to the previously
set speed.
N O T E
y If any of the following conditions occur,
the cruise control system is temporarily
canceled.
y The parking brake is applied.
y The selector lever is in the P or N
position.
y When the cruise control system is
temporarily canceled by even one of the
applicable cancel conditions, the speed
cannot be re-set.
y The cruise control cannot be cancelled
while driving in manual mode (selector
lever shifted from D to M position).
Therefore, engine braking will not be
applied even if the transaxle is shifted
down to a lower gear. If deceleration is
required, lower the set speed or depress
the brake pedal.
To Deactivate
When a cruising speed has been set
(cruise set indication (green) turns on)
Long-press the OFF/CANCEL switch or
press the OFF/CANCEL switch 2 times.
When a cruising speed has not been set
(cruise main indication (white) turns on)
Press the OFF/CANCEL switch.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 521 of 612
7–37
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
(Amber)
Mazda Radar
Cruise Control
(MRCC) Warning
Indication
* The “Front Radar Sensor System Malfunction” is displayed if there is a malfunction in the
system while the Mazda Radar Cruise Control (MRCC) system is on. Have your vehicle
inspected at an Authorized Mazda Dealer.
(Amber)
Lane-keep Assist
System (LAS) &
Lane Departure
Warning System
(LDWS) Warning
Indication
* The message is displayed when the system has a malfunction. Have your vehicle inspected
at an Authorized Mazda Dealer.
The system does not operate when the warning message is displayed.
CAUTION
¾ Always use tires for all wheels that are of the speci ¿ ed size, and the same manufacture,
brand, and tread pattern. In addition, do not use tires with signi ¿ cantly different wear
patterns on the same vehicle. If such improper tires are used, the system may not operate
normally.
¾ When an emergency spare tire is used, the system may not operate normally.
LED Headlight
Warning Light This light illuminates if there is a malfunction in the LED headlight. Have your vehicle
inspected by an Authorized Mazda Dealer.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 532 of 612
7–48
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Blind Spot Monitoring (BSM)
Warning Beep *
D r i v i n g f o r w a r d
The warning beep operates when the turn
signal lever is operated to the side where
the Blind Spot Monitoring (BSM) warning
light is illuminated.
N O T E
A personalized function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to Personalization Features on page
9-11 .
Reversing
If a moving object such as a vehicle or
two-wheeled vehicle approaches on the
left or right from behind your vehicle, the
Blind Spot Monitoring (BSM) warning
sound is activated.
Mazda Radar Cruise Control
(MRCC) System Warnings *
The Mazda Radar Cruise Control (MRCC)
system warnings notify the driver of
system malfunctions and cautions on use
when required.
Check based on the beep sound.
Cautions What to check
The beep sounds 1 time
while the Mazda Radar
Cruise Control (MRCC)
is operating The vehicle speed is
slower than 25 km/h (16
mph) and the Mazda
Radar Cruise Control
(MRCC) system has
been canceled.
The beep sounds
continuously while
driving The distance between
your vehicle and the
vehicle ahead is too
close. Verify the safety
of the surrounding area
and reduce vehicle
speed.
While the Mazda Radar
Cruise Control (MRCC)
is operating, the beep
sounds and the multi-
information display
indicates a problem
with the Mazda Radar
Cruise Control (MRCC)
system. A malfunction in
the system may be
indicated. Have your
vehicle inspected at
an Authorized Mazda
Dealer.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
