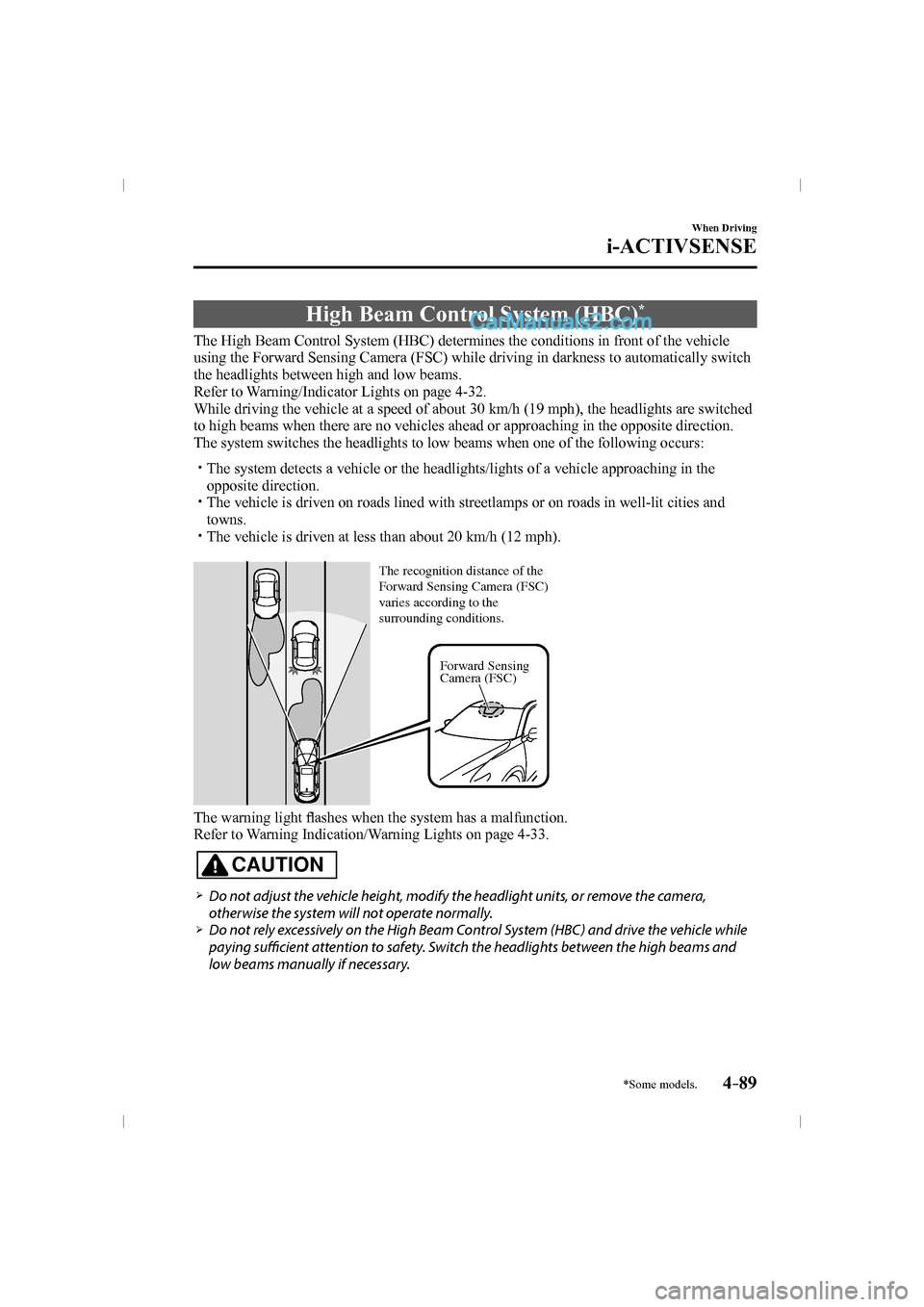

Page 237 of 612
4–89
When Driving
i-ACTIVSENSE
*Some models.
High Beam Control System (HBC) *
The High Beam Control System (HBC) determines the conditions in front of the vehicle
using the Forward Sensing Camera (FSC) while driving in darkness to automatically switch
the headlights between high and low beams.
Refer to Warning/Indicator Lights on page 4-32 .
While driving the vehicle at a speed of about 30 km/h (19 mph), the headlights are switched
to high beams when there are no vehicles ahead or approaching in the opposite direction.
The system switches the headlights to low beams when one of the following occurs:
y The system detects a vehicle or the headlights/lights of a vehicle approaching in the
opposite direction.
y The vehicle is driven on roads lined with streetlamps or on roads in well-lit cities and
towns.
y The vehicle is driven at less than about 20 km/h (12 mph).
Forward Sensing
Camera (FSC) The recognition distance of the
Forward Sensing Camera (FSC)
varies according to the
surrounding conditions.
The warning light À ashes when the system has a malfunction.
Refer to Warning Indication/Warning Lights on page 4-33 .
CAUTION
¾ Do not adjust the vehicle height, modify the headlight units, or remove the camera,
otherwise the system will not operate normally.
¾ Do not rely excessively on the High Beam Control System (HBC) and drive the vehicle while
paying suffi cient attention to safety. Switch the headlights between the high beams and
low beams manually if necessary.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 255 of 612
4–107
When Driving
i-ACTIVSENSE
WARNING
Do not rely completely on the Mazda Radar Cruise Control (MRCC) system and always
drive carefully:
The Mazda Radar Cruise Control (MRCC) system is designed to reduce load on the
driver, and although it maintains a constant vehicle speed, or specifi cally, it maintains
a constant distance between your vehicle and the detected vehicle ahead according to
the vehicle speed, the system has detection limitations depending on the type of vehicle
ahead and its conditions, the weather conditions, and the road conditions. Additionally,
the system may be unable to decelerate suffi ciently to avoid hitting the vehicle ahead
if the vehicle ahead applies the brakes suddenly or another vehicle cuts into the driving
lane, which could result in an accident. Always verify the safety of the surrounding area
and depress the brake pedal or accelerator pedal while keeping a safer distance from
vehicles ahead or on-coming vehicles.
Do not use the Mazda Radar Cruise Control (MRCC) system in the following locations.
Otherwise, it could lead to an accident:
¾ Roads with sharp curves and where vehicle traffi c is heavy and there is insuffi cient
space between vehicles. Roads where frequent and repetitive acceleration and
deceleration occur (Driving under these conditions using the Mazda Radar Cruise
Control (MRCC) system is not possible).
¾ When entering and exiting interchanges, service areas, and parking areas of highways
(If you exit a highway while headway control is in use, the vehicle ahead will no longer
be tracked and your vehicle may accelerate to the set speed).
¾ Slippery roads such as ice or snow-bound roads (The tires could spin causing you to
lose vehicle control).
¾ Long descending slopes (to maintain distance between vehicles, the system
automatically and continuously applies the brakes which could result in the loss of
brake power).
For the purposes of safety, switch the Mazda Radar Cruise Control (MRCC) system off
when it is not being used.
CAUTION
If the vehicle is towed or you are towing something, switch the Mazda Radar Cruise
Control (MRCC) system off to prevent an incorrect operation.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 278 of 612
4–130
When Driving
i-ACTIVSENSE
Do not rely completely on the Smart City Brake Support (SCBS) system:
¾ The Smart City Brake Support (SCBS) system is only designed to reduce damage in the
event of a collision. Over reliance on the system leading to the accelerator pedal or
brake pedal being mistakenly operated could result in an accident.
¾ The Smart City Brake Support (SCBS) is a system which operates in response to a
vehicle ahead. The system may not be able to detect or react to two-wheeled vehicles
or pedestrians.
¾ The laser sensor (front) for the Smart City Brake Support (SCBS) system is installed near
the rearview mirror. To assure the correct operation of the Smart City Brake Support
(SCBS), heed the following cautions.
¾
Do not apply stickers to the surface of the windshield near the laser sensor (front)
(including transparent stickers). Otherwise, the laser sensor (front) may not be able
to detect vehicles ahead which could result in an accident.
¾
Do not apply coating agent to the windshield. Otherwise, the laser sensor (front)
may not be able to detect vehicles or obstructions in front which could result in an
accident.
¾
Do not disassemble the laser sensor (front).
¾
If cracks or damage caused by fl ying gravel or debris is visible near the laser sensor
(front), stop using the Smart City Brake Support (SCBS) system immediately and
have your vehicle inspected by an Authorized Mazda Dealer. If the vehicle continues
to be driven with cracks or scratch marks left on the windshield near the laser sensor
(front), the system may operate unnecessarily and cause an unexpected accident.
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page
4-133 .
¾
When replacing the windshield wipers or windshield, consult an Authorized Mazda
Dealer.
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles ahead. This will result in the Smart City Brake Support (SCBS) system not
operating normally or mistakenly operating, which could cause a serious accident.
Turn off the Smart City Brake Support (SCBS) when the vehicle is running on a chassis
roller or being towed:
Turn off the Smart City Brake Support (SCBS) system to prevent mistaken operation when
the vehicle is running on a chassis roller or being towed.
Refer to the Stopping the Smart City Brake Support (SCBS) System Operation on page
4-133 on how to turn off the Smart City Brake Support (SCBS) system.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 280 of 612
4–132
When Driving
i-ACTIVSENSE
y Under the following conditions, the Smart City Brake Support (SCBS) system may not
operate normally.
y Heavy luggage is loaded in the luggage compartment or on the rear seat.
y If there is the possibility of partial contact with a vehicle ahead.
y When driving on continuously curving roads, and entering and exiting exits.
y Elongated luggage or cargo is loaded onto installed roof rails and covers the laser
sensor (front).
y Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.
y When towing a malfunctioning vehicle.
y When driving with tires having signi ¿ cantly different wear.
y In the following cases, the laser sensor (front) may inadvertently determine that there is a
vehicle ahead and the Smart City Brake Support (SCBS) system may operate.
y Objects on the road at the entrance to a curve.
y Vehicles passing in the opposite lane while making a curve.
y Metal objects, bumps, or protruding objects on the road.
y When passing through a toll gate equipped with a bar.
y When passing under a vinyl curtain or À ag.
y Plastic objects such as pylons.
y Two-wheeled vehicles, pedestrians, animals or standing trees.
y When the system operates, the user is noti ¿ ed by the multi-information display.
y The Smart City Brake Support (SCBS) warning indication (amber) turns on when the
system has a malfunction.
Refer to Warning Indication/Warning Lights on page 4-33 .
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 282 of 612
4–134
When Driving
i-ACTIVSENSE
*Some models.
Smart Brake Support (SBS) *
Smart Brake Support (SBS) is a system which alerts the driver of a possible collision using
an indicator and warning sound in the instrument cluster while the vehicle is being driven at
about 15 km/h or faster (10 mph or faster) and the system's radar sensor (front) determines
that your vehicle may hit a vehicle ahead. Furthermore, if the radar sensor (front) determines
that a collision is unavoidable, the automatic brake control is performed to reduce damage in
the event of a collision.
In addition, when the driver depresses the brake pedal, the brakes operate more quickly to
assist the driver.
WARNING
Do not rely completely on the Smart Brake Support (SBS) system and always drive
carefully:
The Smart Brake Support (SBS) is designed to reduce damage in the event of a collision,
not avoid an accident. The ability to detect an obstruction is limited depending on the
obstruction, weather conditions, or traffi c conditions. Therefore, if the accelerator pedal
or brake pedal is mistakenly operated it could result in an accident. Always verify the
safety of the surrounding area and depress the brake pedal or accelerator pedal while
keeping a safer distance from vehicles ahead or on-coming vehicles.
CAUTION
If the vehicle is towed or you are towing something, switch the Smart Brake Support (SBS)
system off to prevent a mistaken operation.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 287 of 612
4–139
When Driving
i-ACTIVSENSE
N O T E
y In the following cases, the Forward Sensing Camera (FSC) cannot detect target objects
correctly, and each system may be unable to operate normally.
y The height of the vehicle ahead is low.
y You drive your vehicle at the same speed as the vehicle ahead.
y Headlights are not turned on during the night or when going through a tunnel.
y In the following cases, the Forward Sensing Camera (FSC) may not be able to detect
target objects correctly.
y When driving next to walls with no patterning (including fences and longitudinally
striped walls).
y The taillights of the vehicle ahead are turned off.
y A vehicle is outside the illumination range of the headlights.
y The vehicle is making a sharp turn, or ascending or descending a steep slope.
y Entering or exiting a tunnel.
y Heavy luggage is loaded causing the vehicle to tilt.
y Strong light is shone at the front of the vehicle (back light or high-beam light from on-
coming vehicles).
y There are many light emitters on the vehicle ahead.
y When the vehicle ahead is not equipped with taillights or the taillights are turned off at
nighttime.
y The vehicle ahead has a special shape. For example, a vehicle towing a trailer house
or a boat, or a vehicle carrier carrying a vehicle with its front pointed rearward.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 313 of 612
4–165
When Driving
Parking Sensor System
y The system may not operate normally under the following conditions:
y Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).
y The sensor area is frozen (Returns to normal operation when the ice is thawed).
y The sensor is covered by a hand.
y The sensor is excessively shocked.
y The vehicle is excessively tilted.
y Under extremely hot or cold weather conditions.
y The vehicle is driven on bumps, inclines, gravel, or grass covered roads.
y Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors.
y The vehicle is driven in heavy rain or in road conditions causing water-splash.
y A commercially-available fender pole or an antenna for a radio transmitter is installed
to the vehicle.
y The vehicle is moving towards a tall or square curbstone.
y An obstruction is too close to the sensor.
y Obstructions under the bumper may not be detected. Obstructions that are lower than the
bumper or thin which may have been initially detected but are no longer detected as the
vehicle approaches more closely.
y The following types of obstructions may not be detected:
y Thin objects such as wire or rope
y Things which absorb sonic waves easily such as cotton or snow
y Angular shaped objects
y Very tall objects, and those which are wide at the top
y Small, short objects
y Always have the system inspected at an Authorized Mazda Dealer if any shock is applied
to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect
obstructions.
y The system may have a malfunction if the beep does not operate or the indicator
light does not illuminate when the park assist sensors switch is turned on. Consult an
Authorized Mazda Dealer.
y The system may have a malfunction if the beep sound which indicates a system
malfunction is heard and the indicator light À ashes. Consult an Authorized Mazda Dealer.
y The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area. Remove
any foreign material from the sensor area.
y When installing a trailer hitch, consult an Authorized Mazda Dealer.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 386 of 612
5–68
Interior Features
Audio Set
Voice Recognition
Basic Operation Method
Activating Voice Recognition
Press the talk button.
Ending Voice Recognition
Use one of the following methods:
y Press the hang-up button.
y Say, “Cancel”.
y Operate the commander switch or the
center display (only when vehicle is
stopped).
Skipping Voice Guidance (for faster
operation)
Press and release the talk button.
Troubleshooting for Voice Recognition
If you do not understand an operation
method while in the voice recognition
mode, say “Tutorial” or “Help”.
Commands useable anytime during
voice recognition
“Go Back” and “Cancel” are commands
which can be used at anytime during voice
recognition.
Returning to previous operation
To return to the previous operation, say,
“Go Back” while in voice recognition
mode.
Cancel
To put the Bluetooth
® Hands-Free system
in standby mode, say, “Cancel” while in
voice recognition mode.
To prevent a deterioration in the voice
recognition rate and voice quality, the
following points should be observed:
y The voice recognition cannot be
performed while voice guidance or
the beep sound is operating. Wait
until the voice guidance or the beep
sound is ¿ nished before saying your
commands.
y Phone related commands are available
only when your phone is connected via
Bluetooth
® . Make sure your phone is
connected via Bluetooth ® before you
operate phone related voice commands.
y Music play commands, such as Play
Artist and Play Album can be used only
in USB audio mode.
y Do not speak too slowly or loudly (no
loud voice).
y Speak clearly, without pausing between
words or numbers.
y Dialects or different wording other
than hands-free prompts cannot be
recognized by voice recognition. Speak
in the wording speci ¿ ed by the voice
commands.
y It is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.
y Close the windows and/or the moonroof
to reduce loud noises from outside the
vehicle, or turn down the air À ow of the
climate control system while Bluetooth
®
Hands-Free is being used.
y Make sure the vents are not directing air
up towards the microphone.
N O T E
If the voice recognition performance is not
satisfactory.
Refer to Troubleshooting on page 5-74 .
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 397 of 612
5–79
Interior Features
Appendix
Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from the
transmitter. Reception in such fringe areas
is characterized by sound breakup.
Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are extremely
strong, so the result is noise and sound
breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 2
88.3 MHz Station 1
88.1 MHz
Operating Tips for MP3
MP3 stands for MPEG Audio Layer 3,
which is standardized voice compression
established by the ISO
*1 working group
(MPEG).
Use of MP3 allows for audio data to be
compressed to approximately a tenth of
the source data size.
This unit plays ¿ les with the extension
(.mp3) as MP3 ¿ les.
*1 International Organization for
Standardization
CAUTION
Do not use an audio fi le extension on
fi les other than audio fi les. In addition,
do not change the audio fi le extension.
Otherwise, the unit will not recognize
the fi le correctly resulting in noise or a
malfunction.
N O T E
Supply of this product only conveys a
license for private, non-commercial
use and does not convey a license nor
imply any right to use this product in any
commercial (i.e. revenue-generating)
real time broadcasting (terrestrial,
satellite, cable and/or any other media),
broadcasting/streaming via the Internet,
intranets and/or other networks or in other
electronic content distribution systems,
such as pay-audio or audio-on-demand
applications. An independent license for
such use is required. For details, please
visit http://www.mp3licensing.com.
y When naming an MP3 ¿ le, be sure to
add an MP3 ¿ le extension (.mp3) after
the ¿ le name.
y The number of characters which can be
displayed is restricted.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 409 of 612
5–91
Interior Features
Interior Equipment
*Some models.
Overhead Console
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
Glove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment,
¿ rmly press in the center of the glove
compartment lid.
Center Console
To open, push the button.
Armrest Box *
To open, push the button and pull up the
lid.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
