Interior Features
Interior Equipment
Interior Lights
N O T E
Do not leave the lights on for long periods
while the engine is turned off. Otherwise
the battery power could be depleted.



O v e r h e a d L i g h t s
Switch
Position Overhead Lights

Light off


y Light is on when any door is open
y Light is on or off when the
illuminated entry system is on

Light on

Front


Center


R e a r


N O T E
The rear overhead light and the center
map lights also turn on and off when the
front overhead light switch is operated.

Map Lights
When the overhead light switch is in the
door or off position, press the lens to
illuminate the map lights, and then press
the lens again to turn them off.
Front


Center


$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–84
Interior Features
Interior Equipment
N O T E



y Once the center map lights have been
turned off, they will turn on and off
depending on the position to which the
overhead light is switched.



y The map lights will not turn off even
if the lens is pressed in the following
cases:



y The overhead light switch is in the
ON position.



y The overhead light switch is in the
door position with the door open.



y The illuminated entry system is on.

Luggage Compartment Lights



Switch
Position Luggage Compartment Light

Light off

Light on when the liftgate is open

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–85
Interior Features
Interior Equipment
*Some models.
Ambient Light *
The ambient lights continuously turn on when the ignition is switched ON.
The ambient lights dim when the parking lights or headlights are turned on.

Ambient light

N O T E



y The ambient lights turn on or off in conjunction with the illuminated entry system when
the ignition is switched OFF.



y The ambient light illumination level can be changed while the parking lights or
headlights are turned on.
  Refer to Personalization Features on page 9-11 .
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–86
Interior Features
Interior Equipment
Illuminated Entry System
When the illuminated entry system
operates, the overhead lights and the
ambient lights turn on in the following
conditions:


y After the driver's door is unlocked and
the ignition is switched off.


y After all doors are closed and the
ignition is switched off.
N O T E



y (Overhead lights)
The illuminated entry system operates
when the overhead light switch is in the
DOOR position.
 y The illumination time differs depending
on the operation.



y Battery saver
 If an interior light is left on with the
ignition switched OFF, the light is
turned off automatically after about 30
minutes to prevent battery depletion.



y The operation of the illuminated entry
system can be changed.
  Refer to Personalization Features on
page 9-11 .

Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition must be switched to ACC or
ON.



R e a r
The accessory sockets can be used
regardless of whether the ignition is on or
off.




$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–87
Interior Features
Interior Equipment
*Some models.
CAUTION



¾ To prevent accessory socket damage or
electrical failure, pay attention to the
following:



¾ Do not use accessories that require
more than 120 W (DC 12 V, 10 A).



¾ Do not use accessories that are not
genuine Mazda accessories or the
equivalent.



¾ Close the cover when the accessory
socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket.



¾ Correctly insert the plug into the
accessory socket.



¾ Do not insert the cigarette lighter into
the accessory socket.



¾ Noise may occur on the audio playback
depending on the device connected to
the accessory socket.



¾ Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be aff ected,
which could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem
is resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off . If the
problem is not resolved, consult an
Authorized Mazda Dealer.

N O T E
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.

USB Power Outlet *
The USB power outlets can be used
regardless of whether the ignition is on or
off.
Only use USB devices that have a
maximum power consumption of 10.5W
(DC5V, 2.1A) or below.

USB power outlet
CAUTION
To prevent USB power outlets damage
or electrical failure, pay attention to
the following:



¾ Do not use USB devices that require
more than 10.5 W (DC 5 V, 2.1 A).



¾ Close the lid when the USB power
outlets are not in use to prevent
foreign objects and liquids from
getting into the USB power outlets.



¾ Correctly connect the USB
connector into the USB power
outlets.


N O T E



y The USB power outlets are designed
only for charging and they cannot be
used for connecting to the vehicle's
audio system.



y To prevent discharging of the battery, do
not use the USB power outlets for long
periods with the engine off or idling.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–88
Interior Features
Interior Equipment

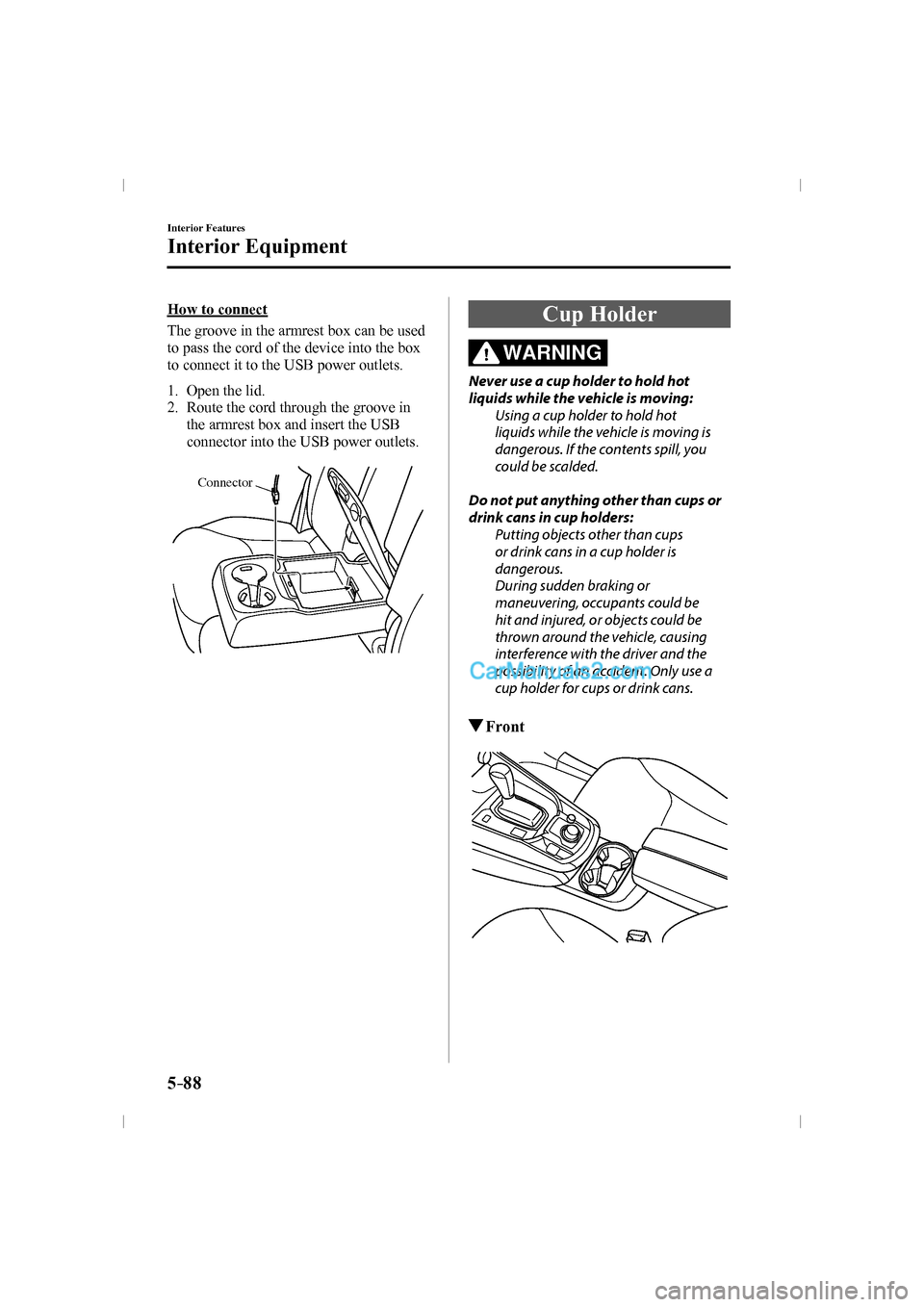

How to connect
The groove in the armrest box can be used
to pass the cord of the device into the box
to connect it to the USB power outlets.

1. Open the lid.
2. Route the cord through the groove in
the armrest box and insert the USB
connector into the USB power outlets.


Connector

Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.

Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups
or drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be
hit and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.

Front

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–89
Interior Features
Interior Equipment
Rear
Second-row seat
Cup holders are located in the armrest.


Third-row seat
Cup holders are located in the third-row
seat side trims.
Right-side

Left-side


$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–90
Interior Features
Interior Equipment
Bottle Holder
Bottle holders are on the inside of the
doors.

Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.

Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.

Do not put articles in storage spaces
with no lid:
Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin if the vehicle
is suddenly accelerated and cause
injury depending on how the article is
stored.

CAUTION
Do not leave lighters or eyeglasses
in the storage boxes while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–91
Interior Features
Interior Equipment
*Some models.
Overhead Console
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.


Glove Compartment
To open the glove compartment, pull the
latch toward you.


To close the glove compartment,
¿ rmly press in the center of the glove
compartment lid.
Center Console
To open, push the button.


Armrest Box *
To open, push the button and pull up the
lid.


$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–92
Interior Features
Interior Equipment
*Some models.
Cargo Securing Loops
WARNING
Make sure luggage and cargo is secured
before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.

Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.


Cargo Sub-Compartment
Center cargo sub-compartment *
Raise the luggage board to put small items
in the cargo sub-compartment.


Side cargo sub-compartment
Open the cover to put small items in the
cargo sub-compartment.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC
