Page 3 of 612
A Word to Mazda Owners
Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete
customer satisfaction in mind.
To help ensure enjoyable and trouble-free operation of your Mazda, read this manual
carefully and follow its recommendations.
An Authorized Mazda Dealer knows your vehicle best. So when maintenance or service is
necessary, that's the place to go.
Our nationwide network of Mazda professionals is dedicated to providing you with the best
possible service.
We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure
and in your full satisfaction with your Mazda product.
Mazda Motor Corporation
HIROSHIMA, JAPAN
Important Notes About This Manual
Keep this manual in the glove compartment as a handy reference for the safe and enjoyable use of your Mazda.
Should you resell the vehicle, leave this manual with it for the next owner.
All speci ¿ cations and descriptions are accurate at the time of printing. Because improvement is a constant goal at
Mazda, we reserve the right to make changes in speci ¿ cations at any time without notice and without obligation.
Air-Conditioning and the Environment
Your Mazda's genuine air conditioner is ¿ lled with a refrigerant that has been found not to damage the earth's
ozone layer. If the air conditioner does not operate properly, consult an Authorized Mazda Dealer.
Perchlorate
Certain components of this vehicle such as [air bag modules, seat belt pretensioners, lithium batteries,…] may
contain Perchlorate Material-- Special handling may apply for service or vehicle end of life disposal. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Please be aware that this manual applies to all models, equipment and options. As a result, you may ¿ nd
some explanations for equipment not installed on your vehicle.
©2016 Mazda Motor Corporation
Apr. 2016 (Print3)
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 19 of 612
2–7
Essential Safety Equipment
Seats
*Some models.
Seat Warmer *
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
OFF
High
Mid
Low
WARNING
Be careful when using the seat warmer:
The heat from the seat warmer may be
too hot for some people, as indicated
below, and could cause a low-
temperature burn.
¾ Infants, small children, elderly
people, and physically challenged
people
¾ People with delicate skin
¾ People who are excessively fatigued
¾ People who are intoxicated
¾ People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine
Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
N O T E
y If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
y Use the seat warmer when the engine
is running. Leaving the seat warmer
on for long periods with the engine not
running could cause the battery power
to be depleted.
y The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 21 of 612
2–9
Essential Safety Equipment
Seats
To move the driving position to a
programmed position
(Using a button on the side of the seat)
1. Make sure the parking brake is on.
2. Make sure the selector lever is in the P
position.
3. Start the engine.
4. Press the programming button for the
driving position you want to call up
(button 1 or 2).
5. A beep sound is heard when the driving
position adjustment is completed.
N O T E
y If the driving position movement is not
changed, only the beep sounds.
y A seat position can be called up even
with the engine not running.
y The driving position adjustment is
canceled in the following cases:
y Any of the seat adjustment switches
is operated.
y The SET button is pressed.
y Programming button 1 or 2 is
pressed.
y The key button or button is
operated.
y The vehicle starts moving.
y The active driving display is
adjusted.
(Using a programmed key)
1. Unlock the doors by pressing a request
switch or the key
button.
2. After unlocking the doors, the seat
position adjustment begins within 40
seconds of opening the driver's door,
and a beep sounds when the operation
is ¿ nished.
3. Make sure the parking brake is on.
4. Make sure the selector lever is in the P
position.
5. Start the engine.
6. The active driving display adjustment
begins.
N O T E
y If there is no driving position movement,
a beep is not heard.
y The driving position adjustment is
canceled in the following cases:
y Any of the seat adjustment switches
is operated.
y The SET button is pressed.
y Programming button 1 or 2 is
pressed.
y The key button or button is
operated.
y The vehicle starts moving.
y The active driving display is
adjusted.
Erasing programmed driving positions
(Erasing the driving positions
programmed to the key)
1. Switch the ignition OFF.
2. Press the SET button on the side of the
seat until a beep sound is heard one
time.
3. After the beep sounds, press the key
button within 5 seconds until a beep
sound is heard one time.
N O T E
If a beep sound is heard three times, the
operation is canceled.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 87 of 612
3–5
Before Driving
Keys
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
All of the doors and the liftgate lock
and the beep sound activates at the
currently set volume. The setting
changes each time the LOCK button
on the key is pressed and the beep
sound activates at the set volume. (If
the beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed by
doing any one of the following:
y Switching the ignition to ACC or
ON.
y Closing the driver's door.
y Opening the liftgate.
y Not operating the key for 10
seconds.
y Pressing any button except the
LOCK button on the key.
y Pressing a request switch.
The operation indicator light À ashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press the
lock button and the hazard warning lights
will À ash once.
(With the advanced keyless function)
A beep sound will be heard once.
T o c o n ¿ rm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.
N O T E
y The doors and the liftgate can be locked
by pressing the lock button while any
other door or the liftgate is open. The
hazard warning lights will not À ash.
When the lock button is pressed while
any door is open and then the door is
closed, all the doors and the liftgate are
locked.
y Con ¿ rm that all doors and the liftgate
are locked visually or audibly by use of
the double click.
y Make sure all doors and the liftgate are
locked after pressing the button.
y (With theft-deterrent system)
When the doors are locked by pressing
the lock button on the key while the
theft-deterrent system is armed, the
hazard warning lights will À ash once to
indicate that the system is armed.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will À ash twice.
(With the advanced keyless function)
A beep sound will be heard twice.
To unlock all doors and the liftgate, press
the unlock button again within 3 seconds
and two more beep sounds will be heard.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 88 of 612
3–6
Before Driving
Keys
*Some models.
N O T E
y The system can be set to unlock all
doors by performing a single operation.
Refer to Personalization Features on
page 9-11 .
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
UNLOCK button on the key for 5
seconds or longer (the sound of
the doors locking/unlocking can be
heard).
After this, the system switches the
setting each time the UNLOCK
button is pressed (the sound of the
doors locking/unlocking can be
heard).
4. The setting change is completed by
doing any one of the following:
y Switching the ignition to ACC or
ON.
y Closing the driver's door.
y Opening the liftgate.
y Not operating the key for 10
seconds.
y Pressing any button except the
UNLOCK button on the key.
y Pressing a request switch.
y (Auto re-lock function)
After unlocking with the key, all doors
and the liftgate will automatically lock
if any of the following operations are
not performed within about 60 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights will
À ash for con ¿ rmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on
page 9-11 .
y A door or the liftgate is opened.
y The ignition is switched to any
position other than off.
y (With theft-deterrent system)
When the doors are unlocked by
pressing the unlock button on the key
while the theft-deterrent system is
turned off, the hazard warning lights
will À ash twice to indicate that the
system is turned off.
Power liftgate button *
To open/close the liftgate, press the power
liftgate button for one second or more
with the liftgate in the fully closed/open
position.
The hazard warning lights À ash twice and
the liftgate opens/closes after the beep
sounds.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 96 of 612
3–14
Before Driving
Doors and Locks
To lock
To lock the doors and the liftgate, press
the request switch and the hazard warning
lights will À ash once.
A beep sound will be heard once.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be heard
twice and the hazard warning lights will
À ash twice.
To unlock all doors and the liftgate, press
the request switch again within 3 seconds
and two more beep sounds will be heard.
Front passenger door request switch
To unlock all doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will À ash twice. N O T E
y The system can be set to unlock all
doors by performing a single operation.
Refer to Personalization Features on
page 9-11 .
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
UNLOCK button on the key for 5
seconds or longer (the sound of
the doors locking/unlocking can be
heard).
After this, the system switches the
setting of pressing the driver's
request switch once or twice to
unlock all doors and the liftgate
each time the UNLOCK button is
pressed (the sound of the doors
locking/unlocking can be heard).
4. The setting change is completed by
doing any one of the following:
y Switching the ignition to ACC or
ON.
y Closing the driver's door.
y Opening the liftgate.
y Not operating the key for 10
seconds.
y Pressing any button except the
UNLOCK button on the key.
y Pressing a request switch.
y Con ¿ rm that all doors and the liftgate
are securely locked.
For the liftgate, move it without
pressing the electric liftgate opener to
verify that the liftgate has not been left
ajar.
y All doors and the liftgate cannot be
locked when any door or the liftgate is
open.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 97 of 612
3–15
Before Driving
Doors and Locks
y It may require a few seconds for the
doors to unlock after the request switch
is pressed.
y A beep sound is heard for con ¿ rmation
when the doors and the liftgate are
locked/unlocked using the request
switch. If you prefer, the beep sound can
be turned off.
The volume of the beep sound can also
be changed. Refer to Personalization
Features on page 9-11 .
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
All of the doors and the liftgate lock
and the beep sound activates at the
currently set volume. The setting
changes each time the LOCK button
on the key is pressed and the beep
sound activates at the set volume. (If
the beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed by
doing any one of the following:
y Switching the ignition to ACC or
ON.
y Closing the driver's door.
y Opening the liftgate.
y Not operating the key for 10
seconds.
y Pressing any button except the
LOCK button on the key.
y Pressing a request switch.
y (With theft-deterrent system)
The hazard warning lights À ash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-48 .
y The setting can be changed so that
the doors and the liftgate are locked
automatically without pressing the
request switch.
Refer to Personalization Features on
page 9-11 .
(Auto-lock function)
A beep sound is heard when all doors
and the liftgate are closed while the
advanced key is being carried. All doors
and the liftgate are locked automatically
after about three seconds when the
advanced key is out of the operational
range. Also, the hazard warning lights
À ash once. (Even if the driver is in the
operational range, all doors and the
liftgate are locked automatically after
about 30 seconds.) If you are out of
the operational range before the doors
and the liftgate are completely closed
or another key is left in the vehicle, the
auto-lock function will not work. Always
make sure that all doors and the liftgate
are closed and locked before leaving the
vehicle. The auto-lock function does not
close the power windows.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 98 of 612
3–16
Before Driving
Doors and Locks
y Auto re-lock function
After unlocking with the request
switch, all doors and the liftgate
will automatically lock if any of the
following operations are not performed
within about 60 seconds. If your
vehicle has a theft-deterrent system,
the hazard warning lights will À ash for
con ¿ rmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on
page 9-11 .
y Opening a door or the liftgate.
y Switching the ignition to any position
other than off.
Locking, Unlocking with
Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-3 ).
Locking, Unlocking with Door-
Lock Switch
All doors and the liftgate lock
automatically when the lock side is
pressed. They unlock when the unlock side
is pressed.
Driver's door
Unlock
Lock
Front passenger's door
UnlockLock
To lock all the doors and the liftgate from
an open front door, press the lock side of
the door lock switch and then close the
door.
N O T E
When locking the doors this way, be
careful not to leave the key inside the
vehicle.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 99 of 612
3–17
Before Driving
Doors and Locks
Auto Lock/Unlock Function
WARNING
Do not pull the inner handle on a front
door:
Pulling the inner handle on a front
door while the vehicle is moving
is dangerous. Passengers can fall
out of the vehicle if the door opens
accidentally , which could result in
death or serious injury.
y When the vehicle speed exceeds 20
km/h (12 mph), all doors and the liftgate
lock automatically.
y When the ignition is switched off,
all doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can be set to
lock or unlock automatically by selecting
any one of the functions from the
following table and using the driver's door-
lock switch on the interior door panel.
N O T E
y Function number 3 in the following
table is the factory setting for your
vehicle.
y There are only a total of six auto lock/
unlock settings available. Be sure to
press the unlock side of the driver's
door-lock switch the correct number of
times according to the selected function
number. If the switch is mistakenly
pressed seven times, the procedure will
be cancelled. If this occurs, start the
procedure from the beginning.
Function
number Function *1
1 The auto door-lock function is
disabled.
2 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
3 (Factory
Setting) All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors and the liftgate unlock
when the ignition is switched from
ON to Off.
4 When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position,
all the doors and the liftgate lock
automatically.
5 When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position,
all the doors and the liftgate lock
automatically.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate
unlock automatically.
6 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate
unlock automatically.
*1 Other settings for the auto door lock function are
available at an Authorized Mazda Dealer. For
details consult an Authorized Mazda Dealer. Refer
to Personalization Features on page 9-11 .
Settings can be changed using the
following procedure.
1. Safely park the vehicle. All doors must
remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the
driver's door-lock switch within 20
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C

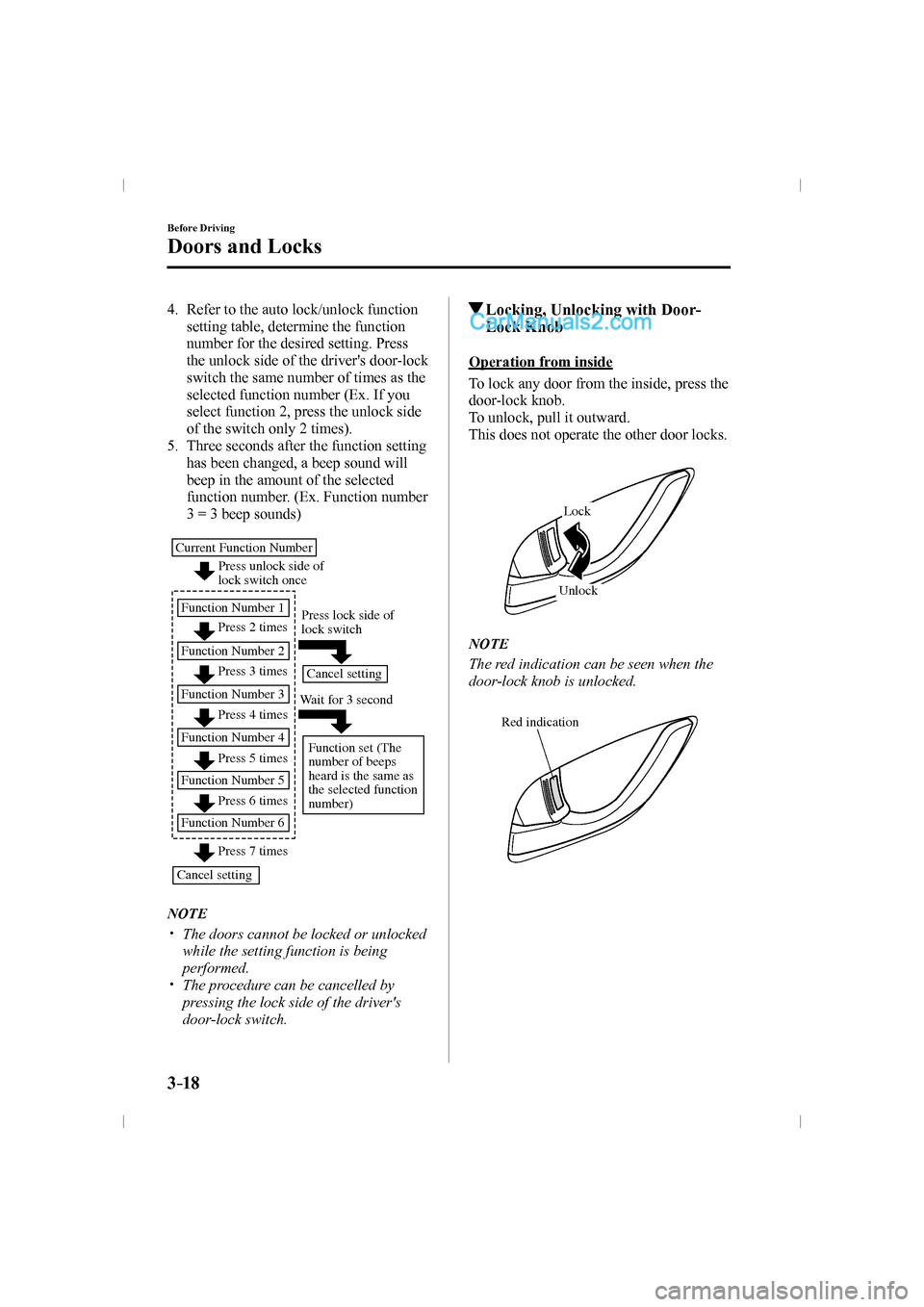

Page 100 of 612
3–18
Before Driving
Doors and Locks
4. Refer to the auto lock/unlock function
setting table, determine the function
number for the desired setting. Press
the unlock side of the driver's door-lock
switch the same number of times as the
selected function number (Ex. If you
select function 2, press the unlock side
of the switch only 2 times).
5. Three seconds after the function setting
has been changed, a beep sound will
beep in the amount of the selected
function number. (Ex. Function number
3 = 3 beep sounds)
Press unlock side of
lock switch once
Press 2 times
Press 3 times Current Function Number
Function Number 1
Function Number 2
Press 4 times Function Number 3
Press 5 times Function Number 4
Press 7 times Function Number 5
Press 6 times
Function Number 6
Cancel settingCancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number) Press lock side of
lock switch
Wait for 3 second
N O T E
y The doors cannot be locked or unlocked
while the setting function is being
performed.
y The procedure can be cancelled by
pressing the lock side of the driver's
door-lock switch.
Locking, Unlocking with Door-
Lock Knob
Operation from inside
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
This does not operate the other door locks.
Lock
Unlock
N O T E
The red indication can be seen when the
door-lock knob is unlocked.
Red indication
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
