Page 41 of 612
2–29
Essential Safety Equipment
Child Restraint
Child-Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for speci ¿ c requirements regarding the safety
of children riding in your vehicle.
Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.
A child who has outgrown child-restraint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer
to the center of the vehicle in the outboard seats, and towards the buckle on the right if the
child is seated on the center seat.
Statistics con ¿ rm that the rear seat is the best place for all children up to 12 years of age,
and more so with a supplemental restraint system (air bags).
A rear-facing child-restraint system should NEVER be used on the front seat with the air
bag system activated. The front passenger's seat is also the least preferred seat for other
child-restraint systems.
(With Front Passenger Occupant Classi ¿ cation System)
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
front passenger occupant classi ¿ cation sensor works as a part of the supplemental restraint
system. This system deactivates the front passenger front and side air bags and also the
front passenger seat belt pretensioner system when the front passenger air bag deactivation
indicator light illuminates.
When an infant or small child sits on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner system, so make sure the front
passenger air bag deactivation indicator light illuminates.
Even if the front passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-restraint systems of all kinds are properly secured on the rear
seats which are the best place for children.
For more details, refer to "Front passenger occupant classi ¿ cation sensor" (page 2-65 ).
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 83 of 612
3–1
*Some models.
3Before Driving
Use of various features, including keys, doors, mirrors and windows.
Keys ...................................................... 3-2
Keys ............................................... 3-2
Keyless Entry System .................... 3-3
Advanced Keyless Entry System ....... 3-9
Advanced Keyless Entry
System
* ........................................... 3-9
Operational Range ....................... 3-10
Doors and Locks ................................ 3-11
Door Locks ................................... 3-11
Liftgate ......................................... 3-20
Fuel and Emission ............................. 3-28
Fuel and Engine Exhaust
Precautions ................................... 3-28
Fuel-Filler Lid and Cap ................ 3-31
Steering Wheel................................... 3-33
Steering Wheel ............................. 3-33
Mirrors ............................................... 3-34
Mirrors ......................................... 3-34
Windows ............................................. 3-38
Power Windows ........................... 3-38
Moonroof
* ................................... 3-43
Security System ................................. 3-46
Modi ¿ cation and Add-On
Equipment .................................... 3-46
Immobilizer System ..................... 3-46
Theft-Deterrent System
* ............... 3-48
Driving Tips ....................................... 3-50
Break-In Period ............................ 3-50
Saving Fuel and Protection of the
Environment ................................. 3-50
Hazardous Driving ....................... 3-51
Floor Mat ..................................... 3-52
Rocking the Vehicle ..................... 3-52
Winter Driving ............................. 3-53
Driving In Flooded Area .............. 3-55
Overloading .................................. 3-55
Driving on Uneven Road ............. 3-56
Turbocharger Information ............ 3-57
Towing ................................................ 3-58
Trailer Towing (U.S.A. and
Canada) ........................................ 3-58
Recreational Towing .................... 3-66
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 95 of 612
3–13
Before Driving
Doors and Locks
Locking, Unlocking with Auxiliary
Key
Turn the auxiliary key toward the front to
lock, toward the back to unlock.
To lock
All doors and the liftgate lock
automatically when the driver's door is
locked using the auxiliary key.
To unlock
The driver’s door unlocks when the
auxiliary key is turned brie À y to the
unlock position and then immediately
returned to the center position.
All doors and the liftgate unlock when the
driver's door is unlocked and the auxiliary
key is held in the unlock position for one
second or longer.
LockUnlock
Locking, Unlocking with Request
Switch (With the advanced keyless
function)
All doors and the liftgate can be locked/
unlocked by pressing the request switch
on the front doors while the key is being
carried.
The request switch on the liftgate can only
be used to lock all doors and the liftgate.
Front doors
Request switch
Liftgate ( Lock only)
Request switch
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 132 of 612
3–50
Before Driving
Driving Tips
Break-In Period
No special break-in is necessary, but a
few precautions in the ¿ rst 1,000 km
(600 miles) may add to the performance,
economy, and life of the vehicle.
y Do not race the engine.
y Do not maintain one constant speed,
either slow or fast, for a long period of
time.
y Do not drive constantly at full-throttle or
high engine rpm for extended periods of
time.
y Avoid unnecessary hard stops.
y Avoid full-throttle starts.
y Do not tow a trailer.
Saving Fuel and
Protection
of the Environment
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save fuel and
reduce CO2.
y Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
y Avoid fast starts.
y Drive at lower speeds.
y Anticipate when to apply the brakes
(avoid sudden braking).
y Follow the maintenance schedule
(page 6-4 ) and have an Authorized
Mazda Dealer perform inspections and
servicing.
y Use the air conditioner only when
necessary.
y Slow down on rough roads.
y Keep the tires properly in À ated.
y Do not carry unnecessary weight.
y Do not rest your foot on the brake pedal
while driving.
y Keep the wheels in correct alignment.
y Keep windows closed at high speeds.
y Slow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going down
a hill:
Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause damage
to the drivetrain. Any loss of steering
or braking control could cause an
accident.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 140 of 612
3–58
Before Driving
Towing
Trailer Towing (U.S.A. and Canada)
Your Mazda was designed and built primarily to carry passengers and cargo.
If you tow a trailer, follow these instructions because driver and passenger safety depends
on proper equipment and safe driving habits. Towing a trailer will affect handling, braking,
durability, performance, and fuel economy.
Never overload your vehicle or trailer. Consult an Authorized Mazda Dealer if you need
further details.
CAUTION
Do not tow a trailer during the fi rst 1,000 km (600 miles) of your new Mazda. If you do,
you may damage the engine, transaxle, diff erential, wheel bearings, and other power-
train components.
NOTE
Your vehicle is equipped with a Trailer Stability Assist (TSA) mechanism, which enhances
vehicle stability when towing a trailer.
Refer to Trailer Stability Assist (TSA) on page 4-77 .
Weight Limits
TTW and GCWR
The total trailer weight (TTW), gross combination weight rating (GCWR), gross
axle weight rating (GAWR), trailer load, and trailer tongue load must be within the
prescribed limits.
y The total trailer weight (TTW) is the sum of the weights of the trailer load (trailer
weight plus cargo), trailer hitch, 2 passengers, and vehicle load (baggage, food, camp
gear, etc.). Never allow the total trailer weight (TTW) to exceed speci ¿ cations in the
Trailer Towing-Load Table.
y The maximum GCWR is the combination weight of the trailer and load plus the
towing vehicle (including trailer hitch, vehicle passengers, and load). It must not
exceed speci ¿ cations in the load table.
GAWR and GVWR
Do not exceed front and rear GAWR (gross axle weight rating) and GVWR (gross vehicle
weight rating). If you do, vehicle handling, braking, and performance will be affected. These
values are also on the Motor Vehicle Safety Certi ¿ cation Label posted on the driver's door
frame.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 141 of 612
3–59
Before Driving
Towing
High-altitude operation
CAUTION
Be aware of the towing load weight diff erences when towing at high altitudes. For altitudes
exceeding 1,000 meter (3,280 ft 10 in), always reduce the towing load by 10 % for every
1,000 meter (3,280 ft 10 in) increase in altitude from the load indicated under the maximum
GCWR heading in the trailer towing-load table. If the determined maximum total towing
load weight is exceeded, the engine and other power-train parts may be damaged.
TRAILER TOWING-LOAD TABLE
Because vehicle weights vary, adjustments must be made to meet the requirements in this
table.
Item Model
2WD AWD
MAX. FRONTAL
AREA
2.97 m
2 (32 ft 2 )
MAX. TTW
1,587.5 kg (3,500 lb)
MAX. GCWR
3,629 kg
(8,000.4 lb) 3,782 kg
(8,337.7 lb)
MAX. GAWR
Front 1,217 kg
(2,683 lb) 1,241 kg
(2,736 lb)
Rear 1,386 kg
(3,056 lb) 1,433 kg
(3,159 lb)
MAX. GVWR
2,568 kg
(5,661 lb) 2,638 kg
(5,816 lb)
TRAILER-
TONGUE LOAD Tongue load
Tongue load/Trailer load × 100
= 10 % to 15 %
Trailer load
DISTRIBUTION
OF TRAILER
LOAD
Front 60 %
Rear
40 %
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 142 of 612

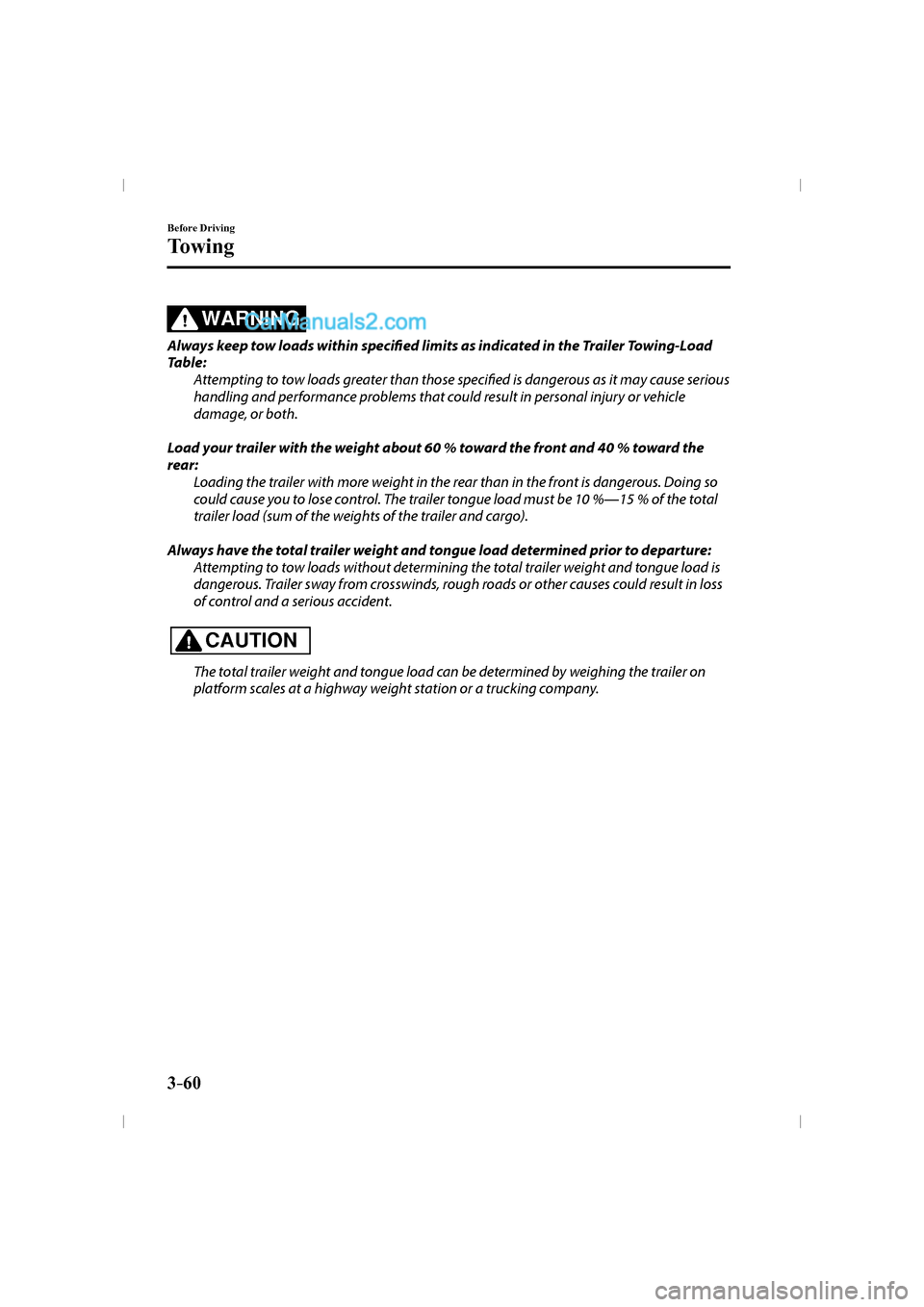

3–60
Before Driving
Towing
WARNING
Always keep tow loads within specifi ed limits as indicated in the Trailer Towing-Load
Table:
Attempting to tow loads greater than those specifi ed is dangerous as it may cause serious
handling and performance problems that could result in personal injury or vehicle
damage, or both.
Load your trailer with the weight about 60 % toward the front and 40 % toward the
rear:
Loading the trailer with more weight in the rear than in the front is dangerous. Doing so
could cause you to lose control. The trailer tongue load must be 10 %—15 % of the total
trailer load (sum of the weights of the trailer and cargo).
Always have the total trailer weight and tongue load determined prior to departure:
Attempting to tow loads without determining the total trailer weight and tongue load is
dangerous. Trailer sway from crosswinds, rough roads or other causes could result in loss
of control and a serious accident.
CAUTION
The total trailer weight and tongue load can be determined by weighing the trailer on
platform scales at a highway weight station or a trucking company.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 143 of 612
3–61
Before Driving
Towing
Trailer Hitch
Use only a hitch ball recommended by the trailer manufacturer that conforms to the gross
trailer weight requirement.
When not towing a trailer, remove the trailer hitch (if detachable) to reduce the possibility of
damage as a result of the vehicle being rear-ended.
WARNING
Always make sure the trailer hitch is securely attached before departure:
An unsecured trailer hitch is dangerous as it causes greater trailer sway from crosswinds,
rough roads or other causes, resulting in loss of control and a serious accident.
Examine all trailer-hitch mounting bolts regularly and tighten any that are loose. If the
hitch is removed, seal any open mounting holes to prevent exhaust, dust, water, dirt
and other foreign elements from fi ltering in, possibly endangering personal safety and
damaging your vehicle.
Do not install a hitch that stiff ens the bumper as it will reduce the bumper's performance.
Make sure there are no exhaust gas leaks into the passenger compartment if any
mounting bolts are connected to the body:
Modifying your vehicle exhaust system is dangerous. Exhaust gas entering the vehicle
could cause loss of consciousness or even death.
When mounting the trailer hitch, make no modifi cations to the vehicle exhaust system.
CAUTION
¾ Make all hitch adjustments with actual loads. Do not load and unload vehicle while
adjusting hitch. This action will change the vehicle height.
¾ Do not use an axle-mounted hitch. This may damage the axle and related parts.
Tires
When towing a trailer, make sure all tires are in À ated to the recommended cold-tire pressure,
as indicated on the tire pressure chart on the driver's door frame. Trailer tire size, load rating,
and in À ation pressures should conform to tire manufacturer speci ¿ cations.
WARNING
Never use the temporary spare tire when towing:
Using the temporary spare tire on your vehicle when towing a trailer is dangerous as it
could result in tire failure, loss of control, and injury to vehicle occupants.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 144 of 612
3–62
Before Driving
Towing
Safety Chains
Safety chains must be used as a precautionary measure should the trailer become
unintentionally unhitched. They should cross under the trailer tongue and attach to the hitch.
Leave enough slack to allow full turns. Consult literature published by your trailer or hitch
manufacturer for more details.
WARNING
Make sure the safety chain is securely attached to both the trailer and the vehicle prior
to departure:
Towing a trailer without using a safety chain securely attached to both the trailer and the
vehicle is dangerous. If damage occurs to the coupling unit or hitch ball, the trailer could
wander into another lane and cause a collision.
Trailer Lights
Trailer lights must comply with all federal, state, and local regulations. Equip your trailer as
required before towing it day or night.
CAUTION
Do not connect a trailer lighting system directly to the lighting system of your Mazda. This
may damage your vehicle's electrical system and lighting systems. Have a recreational
vehicle dealer or trailer rental agency connect the system, and inspect the brake lights
and turn signals yourself before each trip.
Trailer Brakes
If the total trailer weight exceeds 450 kg (1,000 lb), trailer brakes are required. If your trailer
has brakes, make sure they comply with all federal, state, and local regulations.
WARNING
Do not connect a hydraulic trailer-brake system to your vehicle's brake system:
Connecting a hydraulic trailer-brake system directly to the vehicle brake system is
dangerous and will result in inadequate braking and possible injury.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 145 of 612
3–63
Before Driving
Towing
Trailer Towing Tips
y Verify that your Mazda maintains a near-normal attitude when a loaded or unloaded trailer
is connected. Do not drive if it has an abnormal front-up or front-down position. Inspect
for incorrect tongue load, worn suspension parts, and trailer overloading.
y Make sure the trailer is properly loaded and the cargo is secure to prevent it from shifting.
y Make sure the mirrors conform to all government regulations. If they do not, install
required rear view mirrors appropriate for towing purposes.
The three main causes of vehicle-trailer accidents are driver error, excessive speed, and
improper trailer loading.
Before driving
y Have your cooling and braking system checked by an Authorized Mazda Dealer.
y Before starting out, inspect the operation of all vehicle and trailer lights and all vehicle-
to-trailer connections. Stop and re-inspect all lights and connections after driving a short
distance.
Driving
y Your Mazda will handle differently with a trailer in tow, so practice turning, backing, and
stopping in a traf ¿ c-free area.
y Take time to get accustomed to the extra weight and length.
y Allow more room between your vehicle and the one in front because braking distance
increases with a trailer. For each 16 km/h (10 mph) of speed, allow at least one vehicle
and trailer length between your Mazda and the vehicle ahead.
y Avoid jerky starts or sudden acceleration.
y Avoid sudden braking. It may cause loss of control and result in jackkni ¿ ng, especially so
on wet or slippery roads.
y Shift the shift lever to the D position when towing a trailer in hilly terrain or when heavily
loaded.
The D position will allow operating the vehicle without frequent shifting.
Lane changes and turning
Avoid quick lane changes, sudden turns, and tight turns. Slow down before turning to avoid
the need of sudden braking.
A turning trailer will make a tighter arc than the tow vehicle. Compensate with turns that are
larger than normal.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
