Page 470 of 612
6–58
Maintenance and Care
Owner Maintenance
*Some models.
Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 WIPER.DEI 20 A —
2 IG2 30 A For protection of various circuits
3 INJECTOR 30 A Engine control system
4 — — —
5 P.WINDOW1 30 A Power windows
*
6 — — —
7 — — —
8 EVVT 20 A Engine control system
9 DEFOG 40 A Rear window defogger
10 — — —
11 R.HEATER 40 A Air conditioner
12 EPB L 20 A Electric parking brake (EPB) (LH)
13 AUDIO 40 A Audio system
14 EPB R 20 A Electric parking brake (EPB) (RH)
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17
50 A For protection of various circuits
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
CX-9_8FS7-EA-16K_Edition2.indb 58CX-9_8FS7-EA-16K_Edition2.indb 582016/12/15 18:36:182016/12/15 18:36:18
Page 471 of 612
6–59
Maintenance and Care
Owner Maintenance
*Some models.
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
20 — — —
21 ENGINE.IG1 7.5 A Engine control system
22 C/U IG1 15 A For protection of various circuits
23 H/L LOW L 15 A Headlight low beam (LH)
24 H/L LOW R1 15 A —
25 ENGINE3 15 A Engine control system
26 ENGINE2 15 A Engine control system
27 ENGINE1 15 A Engine control system
28 AT 15 A Transaxle control system
29 H/CLEAN 20 A —
30 A/C 7.5 A Air conditioner
31 AT PUMP 15 A —
32 STOP 10 A Brake lights
33 R.WIPER 15 A Rear window wiper
34 H/L HI 20 A Headlight high beam
35 H/L LOW R2 15 A Headlight low beam (RH)
36 FOG 15 A Fog lights
*
37
7.5 A Engine control system
38 AUDIO2 7.5 A Audio system
39 INTERIOR 10 A Overhead light
40 METER2 15 A —
41 METER1 10 A Instrument cluster
42 SRS1 7.5 A Air bag
43 AUDIO4 10 A Audio system
*
44 AUDIO1 25 A Audio system
45 ABS/DSC S 30 A ABS, Dynamic stability control system
46 — — —
47 ST.HEATER 15 A Heated steering wheel
*
48 TAIL 15 A Parking lights
49 FUEL PUMP2 25 A Fuel system
50 HAZARD 25 A Hazard warning fl ashers, Turn signal lights, Taillights
51 DRL 15 A Daytime running lights
52 R.OUTLET2 15 A Accessory sockets
53 HORN 15 A Horn
54 ROOM 25 A For protection of various circuits
CX-9_8FS7-EA-16K_Edition2.indb 59CX-9_8FS7-EA-16K_Edition2.indb 592016/12/15 18:36:182016/12/15 18:36:18
Page 472 of 612
6–60
Maintenance and Care
Owner Maintenance
*Some models.
Fuse block (Left side)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 P.SEAT D 30 A Power seat
*
2 P.WINDOW3 30 A Power windows *
3 R.OUTLET3 15 A Accessory sockets
4 P.WINDOW2 25 A Power windows
5 PLG 20 A Power liftgate
6 D.LOCK 25 A Power door locks
7 SEAT WARM 20 A Seat warmer
8 SRS2/ESCL 15 A —
9 SUNROOF 10 A Moonroof
10 INTERIOR2 15 A Audio system
11
7.5 A Engine control system
12 MIRROR 7.5 A Power control mirror
13 AT IND 7.5 A AT shift indicator
14 F.OUTLET 15 A Accessory sockets
15 R.OUTLET1 15 A —
16 — — —
17 M.DEF 7.5 A Mirror defogger
CX-9_8FS7-EA-16K_Edition2.indb 60CX-9_8FS7-EA-16K_Edition2.indb 602016/12/15 18:36:192016/12/15 18:36:19
Page 476 of 612
6–64
Maintenance and Care
Appearance Care
Maintaining the Finish
Washing
CAUTION
When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
If the windshield above the rain
sensor is touched or wiped with a
cloth.
If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windshield when the wiper lever is in the
position and the ignition is
switched ON as fi ngers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.
Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.
When washing and waxing the vehicle,
be careful not to apply excessive force
to any single area of the vehicle roof.
Otherwise, you could dent the vehicle.
To help protect the fi nish from rust
and deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface when:
The vehicle is washed without fi rst
rinsing off dirt and other foreign matter.
The vehicle is washed with a rough, dry,
or dirty cloth.
The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.
Cleansers or wax containing abrasives
are used.
NOTE
Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.
Scratches are more noticeable on
vehicles with darker paint fi nishes.
To minimize scratches on the vehicle's
paint fi nish:
Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.
Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
Rub gently when washing or drying the
vehicle.
Take your vehicle only to a car wash
that keeps its brushes well maintained.
Do not use abrasive cleansers or wax
that contain abrasives.
CX-9_8FS7-EA-16K_Edition2.indb 64CX-9_8FS7-EA-16K_Edition2.indb 642016/12/15 18:36:202016/12/15 18:36:20
Page 480 of 612
6–68
Maintenance and Care
Appearance Care
Plastic Part Maintenance
When cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectifi ed spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a signifi cant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, fl ush with water
immediately.
If plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fl uids such as
gasoline, oil, engine coolant, or battery
fl uid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fl uids using a
soft cloth immediately.
High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended period
of time, it could deform plastic parts or
damage the paint.
Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
In addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result
in deformation of plastic parts or paint
damage.
Interior Care
WARNING
Do not spray water into the vehicle
cabin:
Spraying water into the vehicle cabin is
dangerous as electrical devices such as
the audio and switches could get wet
resulting in a malfunction or vehicle
fi r e .
NOTE
Do not wipe the interior using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, and gasoline.
Otherwise, it may cause discoloration
or stains.
Rubbing hard with a stiff brush or cloth
may cause damage.
If the vehicle interior becomes soiled
by any of the following, wipe it off
immediately using a soft cloth.
Leaving it uncleaned could cause
discoloration, stains, cracks, or peeling
of the coating, and it will make it hard to
wipe off later.
Beverage or fragrance
Grease or oil
Soiling
CX-9_8FS7-EA-16K_Edition2.indb 68CX-9_8FS7-EA-16K_Edition2.indb 682016/12/15 18:36:222016/12/15 18:36:22
Page 485 of 612
7–1
*Some models.
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency .................................................................. 7-2
Parking in an Emergency .............................................................. 7-2
Flat Tire............................................................................................... 7-3
Spare Tire and Tool Storage .......................................................... 7-3
Changing a Flat Tire ...................................................................... 7-9

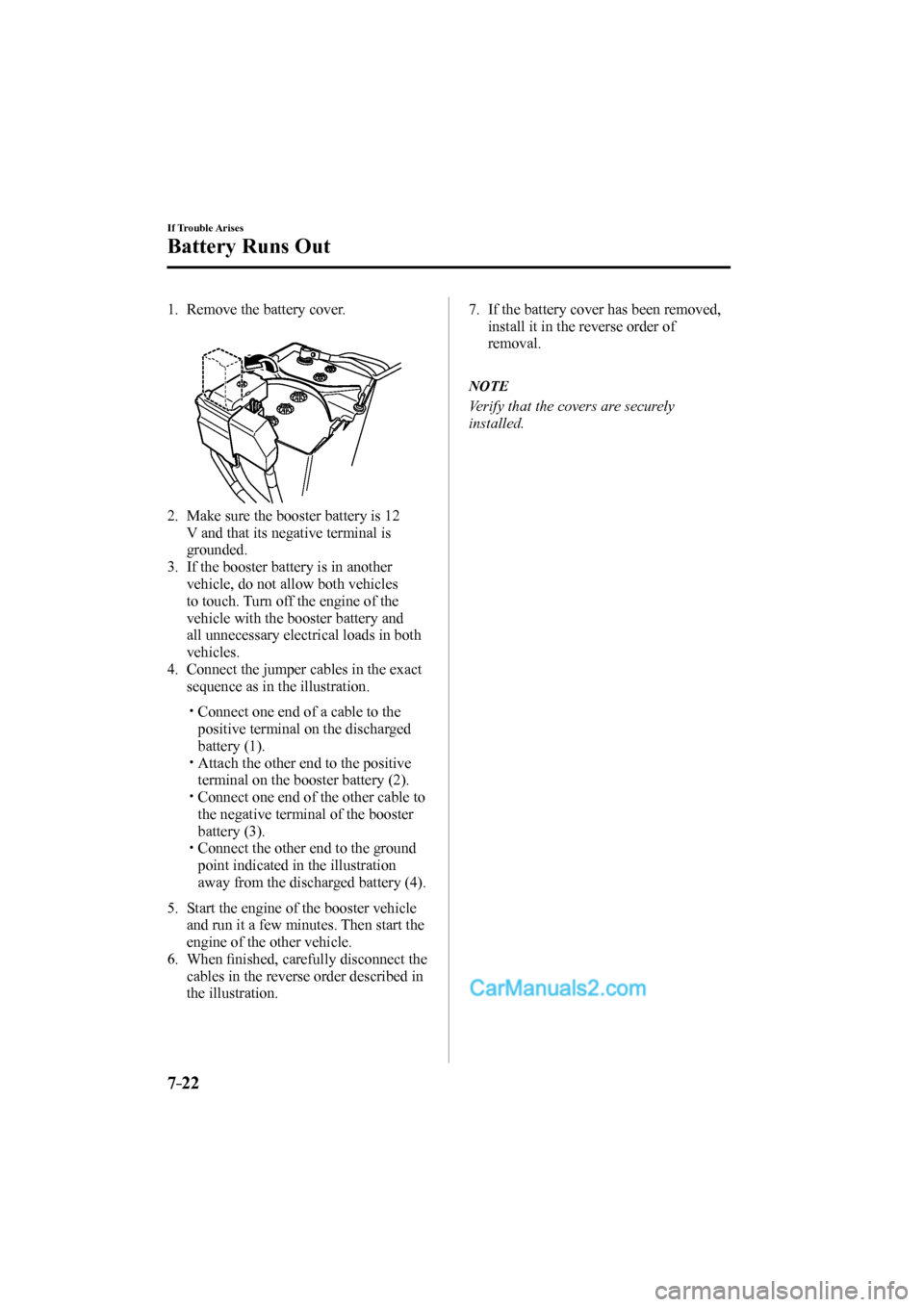

Battery Runs Out ............................................................................. 7-20
Jump-Starting .............................................................................. 7-20
Emergency Starting ......................................................................... 7-23
Starting a Flooded Engine ........................................................... 7-23
Push-Starting ............................................................................... 7-23
Overheating ...................................................................................... 7-24
Overheating ................................................................................. 7-24
Emergency Towing ........................................................................... 7-26
Towing Description ..................................................................... 7-26
Towing Hooks (Mexico) ............................................................. 7-27
Warning/Indicator Lights and Warning Sounds ........................... 7-30
If a Warning Light Turns On or Flashes...................................... 7-30
Message Indicated on Display .................................................... 7-42
Message Indicated in Multi-information Display
* ...................... 7-44
Warning Sound is Activated ........................................................ 7-45
When Liftgate Cannot be Opened .................................................. 7-50
When Liftgate Cannot be Opened ............................................... 7-50
Active Driving Display Does Not Operate
* .................................... 7-51
If the Active Driving Display does not operate .......................... 7-51
CX-9_8FS7-EA-16K_Edition2.indb 1CX-9_8FS7-EA-16K_Edition2.indb 12016/12/15 18:36:242016/12/15 18:36:24
Page 493 of 612
7–9
If Trouble Arises
Flat Tire
To secure the spare tire
Store the spare tire in the reverse order
of removal. After storing, verify that the
spare tire is stored securely.
CAUTION
(Vehicles with sub-woofer)
Secure the sub-woofer in its correct
position. If the sub-woofer is not
installed to the correct position, it
may move while the vehicle is driven
which may damage the sub-woofer
or the wiring harness.
Store the tool bag on the right side
of the vehicle. If the tool bag is stored
on the left side of the vehicle, it may
move while the vehicle is driven
which may damage the wiring
harness.
Refer to Spare Tire and Tool Storage on
page 7-3 .
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a fl at tire.
Steering becomes diffi cult.
The vehicle begins to vibrate
excessively.
The vehicle pulls in one direction.
If you have a fl at tire, drive slowly to a
level spot that is well off the road and out
of the way of traffi c to change the tire.
Stopping in traffi c or on the shoulder of a
busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a hard, level surface off the
right-of-way and fi rmly set the parking
brake.
2. Shift into Park (P) and turn off the
engine.
CX-9_8FS7-EA-16K_Edition2.indb 9CX-9_8FS7-EA-16K_Edition2.indb 92016/12/15 18:36:282016/12/15 18:36:28
Page 497 of 612
7–13
If Trouble Arises
Flat Tire
WARNING
Do not jack up the vehicle higher than is
necessary:
Jacking up the vehicle higher than
is necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking
the vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
8. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel and center cap.
Locking Lug Nuts
If your vehicle has Mazda optional
antitheft wheel lug nuts, each wheel will
have one locking lug nut that locks the
wheel and tire, and you must use a special
key to unlock the locking lug nut. This
key is stored in the glove compartment.
Register the key and lug nuts with the
lock manufacturer by fi lling out the
card provided in the glove compartment
and mailing it in the accompanying
envelope. If you lose this key, consult an
Authorized Mazda Dealer or use the lock
manufacturer's order form, which is with
the registration card.
Accessory wheel locks cannot be used on
steel wheels. This includes situations when
the spare tire is installed. If the spare tire
is installed, one of the original lug nuts
(which should still be in the vehicle) must
be installed in place of the wheel lock.
Special key Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the
antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
CX-9_8FS7-EA-16K_Edition2.indb 13CX-9_8FS7-EA-16K_Edition2.indb 132016/12/15 18:36:302016/12/15 18:36:30
Page 504 of 612
7–20
If Trouble Arises
Battery Runs Out
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Do not allow the positive ( ) terminal to contact any other metal object that
could cause sparks:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a battery, do
not allow metal tools to contact the positive (
) or negative ( ) terminal of the battery.
Keep all fl ames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Do not jump-start a frozen battery or one with a low fl uid level:
Jump-starting a frozen battery or one with a low fl uid level is dangerous. It may rupture
or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.
CX-9_8FS7-EA-16K_Edition2.indb 20CX-9_8FS7-EA-16K_Edition2.indb 202016/12/15 18:36:342016/12/15 18:36:34
Page 506 of 612
7–22
If Trouble Arises
Battery Runs Out
1. Remove the battery cover.
2. Make sure the booster battery is 12
V and that its negative terminal is
grounded.
3. If the booster battery is in another
vehicle, do not allow both vehicles
to touch. Turn off the engine of the
vehicle with the booster battery and
all unnecessary electrical loads in both
vehicles.
4. Connect the jumper cables in the exact
sequence as in the illustration.
Connect one end of a cable to the
positive terminal on the discharged
battery (1).
Attach the other end to the positive
terminal on the booster battery (2).
Connect one end of the other cable to
the negative terminal of the booster
battery (3).
Connect the other end to the ground
point indicated in the illustration
away from the discharged battery (4).
5. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
6. When fi nished, carefully disconnect the
cables in the reverse order described in
the illustration. 7. If the battery cover has been removed,
install it in the reverse order of
removal.
NOTE
Verify that the covers are securely
installed.
CX-9_8FS7-EA-16K_Edition2.indb 22CX-9_8FS7-EA-16K_Edition2.indb 222016/12/15 18:36:352016/12/15 18:36:35
