4–83
When Driving
Power Steering
Power Steering
Power steering is only operable when
the engine is running. If the engine is
off or if the power steering system is
inoperable, you can still steer, but it
requires more physical effort.
If the steering feels stiffer than usual
during normal driving or the steering
vibrates, consult an Authorized Mazda
Dealer.
The warning indication/warning
light notifi es the driver of system
abnormalities and operation conditions.
In addition, the buzzer may also activate
depending on the system abnormality or
operation condition.
Refer to Warning Indication/Warning
Lights on page 4-32 .
Refer to Power Steering Warning Buzzer
on page 7-49 .
CAUTION
Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running. This
could damage the power steering
system.
CX-9_8FS7-EA-16K_Edition2.indb 83CX-9_8FS7-EA-16K_Edition2.indb 832016/12/15 18:34:142016/12/15 18:34:14
Page 232 of 612
4–84
When Driving
i-ACTIVSENSE
*Some models.
i-ACTIVSENSE *
i-ACTIVSENSE is a collective term covering a series of advanced safety and driver support
systems which make use of a Forward Sensing Camera (FSC) and radar sensors. These
systems consist of active safety and pre-crash safety systems.
These systems are designed to assist the driver in safer driving by reducing the load on the
driver and helping to avert collisions or reduce their severity. However, because each system
has its limitations, always drive carefully and do not rely solely on the systems.
Active Safety Technology
Active Safety Technology supports safer driving by helping the driver to recognize potential
hazards and avert accidents.
Driver awareness support systems
Nighttime visibility
Adaptive Front Lighting System (AFS) .............................................................................. 4-87
High Beam Control System (HBC) .................................................................................... 4-88
Rear side detection
Blind Spot Monitoring (BSM) ............................................................................................ 4-91
Inter-vehicle distance recognition
Distance Recognition Support System (DRSS) .................................................................. 4-97
Rear obstruction detection when leaving a parking space
Rear Cross Traffi c Alert (RCTA) ...................................................................................... 4-101
Driver support systems
Inter-vehicle distance
Mazda Radar Cruise Control (MRCC) ............................................................................. 4-105
Lane departure
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) ............... 4-116
CX-9_8FS7-EA-16K_Edition2.indb 84CX-9_8FS7-EA-16K_Edition2.indb 842016/12/15 18:34:152016/12/15 18:34:15
Page 233 of 612
4–85
When Driving
i-ACTIVSENSE
Pre-Crash Safety Technology
Pre-crash safety technology is designed to assist the driver in averting collisions or reduce
their severity in situations where they cannot be avoided.
Collision damage reduction in low vehicle speed range
Forward driving
Smart City Brake Support (SCBS) ................................................................................... 4-128
Collision damage reduction in medium/high speed range
Smart Brake Support (SBS) .............................................................................................. 4-133
Camera and Sensors
Forward sensing camera (FSC)
The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while
traveling at night and detects traffi c lanes. The following systems also use the Forward
Sensing Camera (FSC).
High Beam Control system (HBC)
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
Smart Brake Support (SBS)
The Forward Sensing Camera (FSC) is installed at the top of the windshield near the
rearview mirror.
Refer to Forward Sensing Camera (FSC) on page 4-136 .
Radar sensor (front)
The radar sensor (front) functions by detecting the radio waves refl ected off a vehicle ahead
sent from the radar sensor. The following systems also use the radar sensor (front).
Mazda Radar Cruise Control (MRCC)
Distance Recognition Support System (DRSS)
Smart Brake Support (SBS)
The radar sensor (front) is mounted behind the radiator grille.
Refer to Radar Sensor (Front) on page 4-139 .
Laser sensor (front)
The laser sensor (front) emits a near-infrared laser beam and receives the beam refl ected
off the refl ective surface of a vehicle in front, and the detected beam is then used for
measurement. The following systems also use the laser sensor (front).
Smart City Brake Support (SCBS)
Smart Brake Support (SBS)
The laser sensor (front) is installed at the top of the windshield near the rearview mirror.
Refer to Laser Sensor (Front) on page 4-142 .
CX-9_8FS7-EA-16K_Edition2.indb 85CX-9_8FS7-EA-16K_Edition2.indb 852016/12/15 18:34:152016/12/15 18:34:15
Page 234 of 612
4–86
When Driving
i-ACTIVSENSE

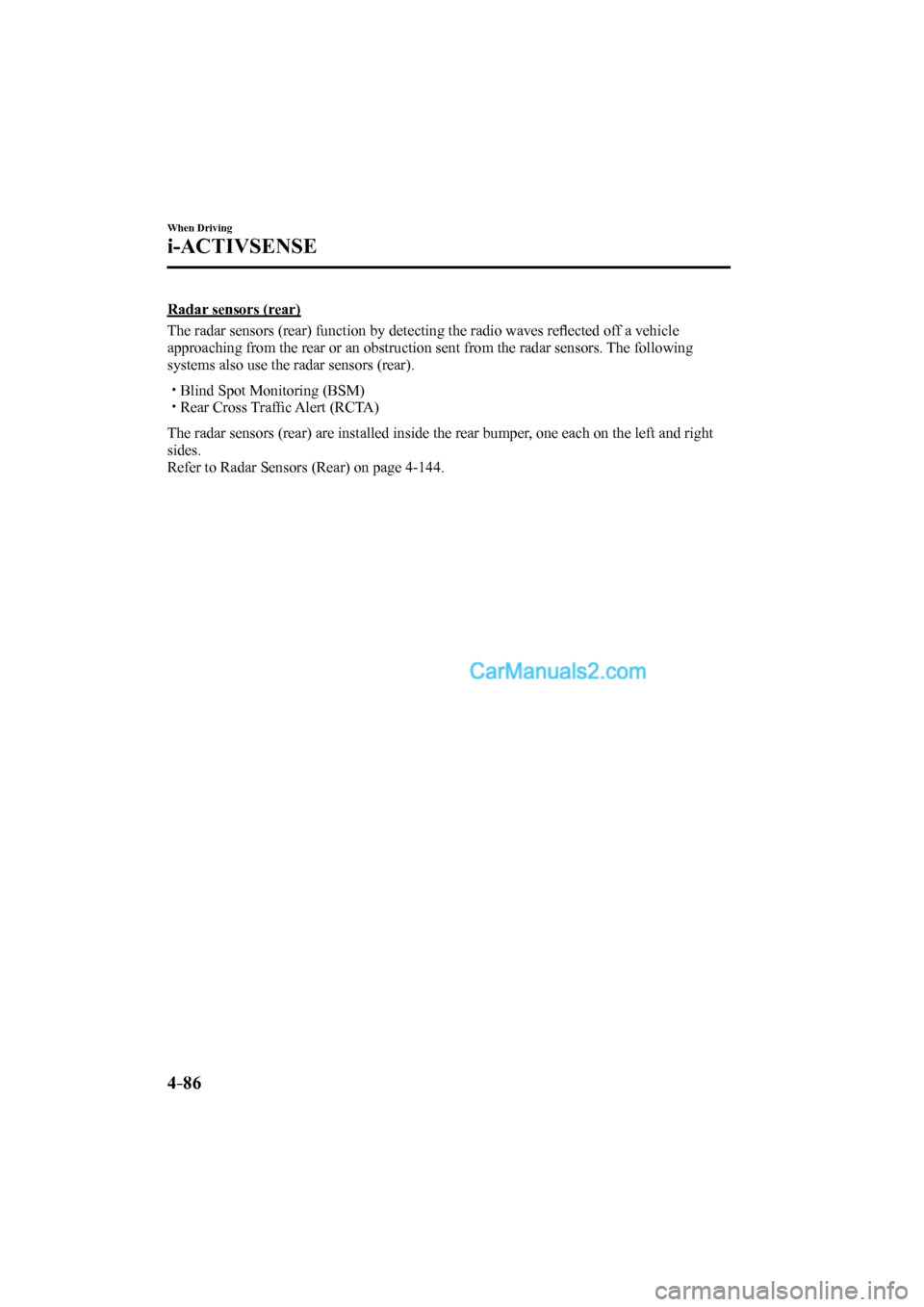

Radar sensors (rear)
The radar sensors (rear) function by detecting the radio waves refl ected off a vehicle
approaching from the rear or an obstruction sent from the radar sensors. The following
systems also use the radar sensors (rear).
Blind Spot Monitoring (BSM)
Rear Cross Traffi c Alert (RCTA)
The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
Refer to Radar Sensors (Rear) on page 4-144 .
CX-9_8FS7-EA-16K_Edition2.indb 86CX-9_8FS7-EA-16K_Edition2.indb 862016/12/15 18:34:152016/12/15 18:34:15
Page 235 of 612
4–87
When Driving
i-ACTIVSENSE
*Some models.
Adaptive Front Lighting System (AFS) *
The adaptive front lighting system (AFS) automatically adjusts the headlight beams to the
left or right in conjunction with the operation of the steering wheel after the headlights have
been turned on.
A system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-31 .
NOTE
The Adaptive Front Lighting System (AFS) function can be switched to operable/inoperable
using the personalization function.
Refer to Personalization Features on page 9-11 .
CX-9_8FS7-EA-16K_Edition2.indb 87CX-9_8FS7-EA-16K_Edition2.indb 872016/12/15 18:34:152016/12/15 18:34:15
Page 236 of 612
4–88
When Driving
i-ACTIVSENSE
*Some models.
High Beam Control System (HBC) *
The High Beam Control System (HBC) determines the conditions in front of the vehicle
using the Forward Sensing Camera (FSC) while driving in darkness to automatically switch
the headlights between high and low beams.
Refer to Warning/Indicator Lights on page 4-31 .
While driving the vehicle at a speed of about 30 km/h (19 mph) or more, the headlights are
switched to high beams when there are no vehicles ahead or approaching in the opposite
direction.
The system switches the headlights to low beams when one of the following occurs:
The system detects a vehicle or the headlights/lights of a vehicle approaching in the
opposite direction.
The vehicle is driven on roads lined with streetlamps or on roads in well-lit cities and
towns.
The vehicle is driven at less than about 20 km/h (12 mph).
Forward Sensing
Camera (FSC) The recognition distance of the
Forward Sensing Camera (FSC)
varies according to the
surrounding conditions.
The warning light fl ashes when the system has a malfunction.
Refer to Warning Indication/Warning Lights on page 4-32 .
CAUTION
Do not adjust the vehicle height, modify the headlight units, or remove the camera,
otherwise the system will not operate normally.
Do not rely excessively on the High Beam Control System (HBC) and drive the vehicle while
paying suffi cient attention to safety. Switch the headlights between the high beams and
low beams manually if necessary.
CX-9_8FS7-EA-16K_Edition2.indb 88CX-9_8FS7-EA-16K_Edition2.indb 882016/12/15 18:34:162016/12/15 18:34:16
Page 237 of 612
4–89
When Driving
i-ACTIVSENSE
NOTE
The timing in which the system switches the headlights changes under the following
conditions. If the system does not switch the headlights appropriately, manually switch
between high and low beams according to the visibility as well as road and traffi c
conditions.
When there are sources of light in the area such as street lamps, illuminated signboards,
and traffi c signals.
When there are refl ective objects in the surrounding area such as refl ective plates and
signs.
When visibility is reduced under rain, snow and foggy conditions.
When driving on roads with sharp turn or hilly terrain.
When the headlights/rear lamps of vehicles in front of you or in the opposite lane are dim
or not illuminated.
When there is suffi cient darkness such as at dawn or dusk.
When the luggage compartment is loaded with heavy objects or the rear passenger seats
are occupied.
When visibility is reduced due to a vehicle in front of you spraying water from its tires
onto your windshield.
CX-9_8FS7-EA-16K_Edition2.indb 89CX-9_8FS7-EA-16K_Edition2.indb 892016/12/15 18:34:162016/12/15 18:34:16
Page 238 of 612
4–90
When Driving
i-ACTIVSENSE
To Operate the System
The High Beam Control System (HBC)
operates to switch the headlights
automatically between high and low
beams after the ignition is switched ON
and the headlight switch is in the AUTO
and high beam position.
The High Beam Control System (HBC)
determines that it is dark based on the
brightness of the surrounding area. At the
same time, the High Beam Control System
(HBC) indicator light (green) in the
instrument cluster illuminates.
NOTE
When the vehicle speed is about
30 km/h (19 mph) or more, the
headlights automatically switch to
high beams when there are no vehicles
ahead or approaching in the opposite
direction.
When the vehicle speed is less than
about 20 km/h (12 mph), the High Beam
Control System (HBC) switches the
headlights to low beams.
The low beams may not switch to high
beams when cornering.
Operation of the High Beam Control
System (HBC) function can be disabled.
Refer to Personalization Features on
page 9-11 .
Manual Switching
Switching to low beams
Shift the lever to the low beam position.
The High Beam Control System (HBC)
indicator light (green) turns off.
Switching to high beams
Turn the headlight switch to the
position.
The High Beam Control System (HBC)
indicator light (green) turns off and the
is illuminated.
CX-9_8FS7-EA-16K_Edition2.indb 90CX-9_8FS7-EA-16K_Edition2.indb 902016/12/15 18:34:162016/12/15 18:34:16
Page 239 of 612
4–91
When Driving
i-ACTIVSENSE
*Some models.
Blind Spot Monitoring (BSM) *
The Blind Spot Monitoring (BSM) is designed to assist the driver in checking the area to the
rear of the vehicle on both sides during lane changes by notifying the driver of the presence
of vehicles approaching from the rear in an adjacent lane.
The Blind Spot Monitoring (BSM) detects vehicles approaching from the rear while
traveling in the forward direction at a speed of 10 km/h (6.3 mph) or faster and notifi es
the driver by turning on the Blind Spot Monitoring (BSM) warning indicator light and
displaying the vehicle detection screen (vehicles with multi-information display and active
driving display).
If the turn signal lever is operated to signal a turn in the direction in which the Blind Spot
Monitoring (BSM) warning indicator light is illuminated while the approaching vehicle is
detected, the Blind Spot Monitoring (BSM) notifi es the driver of possible danger by turning
on the Blind Spot Monitoring (BSM) warning indicator light, and by activating the warning
sound and the warning screen indicator display (vehicles with multi-information display and
active driving display).
The detection area on this system covers the driving lanes on both sides of the vehicle and
from the rear part of the front doors to about 50 m (164 ft) behind the vehicle.
Detection areas Your vehicle
WARNING
Always check the surrounding area visually before making an actual lane change:
The system is only designed to assist you in checking for vehicles at your rear when
making a lane change. Due to certain limitations with the operation of this system, the
Blind Spot Monitoring (BSM) warning indicator light, the warning sound and the warning
screen indicator display may not activate or they might be delayed even though a vehicle
is in an adjacent driving lane. Always make it your responsibility as a driver to check the
rear.
CX-9_8FS7-EA-16K_Edition2.indb 91CX-9_8FS7-EA-16K_Edition2.indb 912016/12/15 18:34:172016/12/15 18:34:17
Page 240 of 612
4–92
When Driving
i-ACTIVSENSE
NOTE
The Blind Spot Monitoring (BSM) will operate when all of the following conditions are
met:
The ignition is switched ON.
The Blind Spot Monitoring (BSM) OFF switch is pressed and the BSM OFF switch
indicator light is turned off.
The vehicle speed is about 10 km/h (6.3 mph) or faster.
The Blind Spot Monitoring (BSM) will not operate under the following circumstances.
The vehicle speed falls below about 10 km/h (6.3 mph) even though the Blind Spot
Monitoring (BSM) OFF switch indicator light is turned off.
The selector lever is shifted to reverse (R) and the vehicle is reversing.
In the following cases, the Blind Spot Monitoring (BSM) warning indication/warning
light turns on and operation of the system is stopped. If the Blind Spot Monitoring (BSM)
warning indication/warning light remains illuminated, have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
Some problem with the system including the Blind Spot Monitoring (BSM) warning
indicator lights is detected.
A large deviation in the installation position of a radar sensor (rear) on the vehicle has
occurred.
There is a large accumulation of snow or ice on the rear bumper near a radar sensor
(rear). Remove any snow, ice or mud on the rear bumper.
Driving on snow-covered roads for long periods.
The temperature near the radar sensors (rear) becomes extremely hot due to driving
for long periods on slopes during the summer.
The battery voltage has decreased.
Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be diffi cult to detect them.
A vehicle is in the detection area at the rear in an adjacent driving lane but it does not
approach. The Blind Spot Monitoring (BSM) determines the condition based on radar
detection data.
A vehicle is traveling alongside your vehicle at nearly the same speed for an extended
period of time.
Vehicles approaching in the opposite direction.
A vehicle in an adjacent driving lane is attempting to pass your vehicle.
A vehicle is in an adjacent lane on a road with extremely wide driving lanes. The
detection area of the radar sensors (rear) is set at the road width of expressways.
CX-9_8FS7-EA-16K_Edition2.indb 92CX-9_8FS7-EA-16K_Edition2.indb 922016/12/15 18:34:172016/12/15 18:34:17
