Page 211 of 612
4–63
When Driving
Switches and Controls
Pre-programming the HomeLink
System
NOTE
It is recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink
for quicker training and accurate
transmission of the radio-frequency signal.
Verify that there is a remote control
transmitter available for the device you
would like to program.
Disconnect the power to the device.
Programming the HomeLink
System
CAUTION
When programming a garage door
opener or a gate, disconnect the power
to these devices before performing
programming. Continuous operation
of the devices could damage the
motor.
The HomeLink system provides 3 buttons
which can be individually selected and
programmed using the transmitters for
current, on-market devices as follows:
1. Disconnect the power to the garage
door opener or gate programmed to the
hand-held transmitter.
2. Position the end of your hand-held
transmitter 2.5—7.5 cm (1—3 inches)
away from the HomeLink button you
wish to program while keeping the
indicator light in view. 3. Simultaneously press and hold both
the chosen HomeLink and hand-held
transmitter buttons. Do not release
the buttons until step 3 has been
completed.
NOTE
Some gate operators and garage door
openers may require you to replace this
Programming Step 2 with procedures
noted in the “Gate Operator/Canadian
Programming” section.
4. After the HomeLink indicator light
changes from a slow to a rapidly
blinking light, release both the
HomeLink and hand-held transmitter
buttons.
NOTE
If the HomeLink indicator light does not
change to a rapidly blinking light, contact
HomeLink at www.homelink.com or call
1-800-355-3515 for assistance.
5. Connect the power to the garage door
opener or gate programmed to the
hand-held transmitter.
CX-9_8FS7-EA-16K_Edition2.indb 63CX-9_8FS7-EA-16K_Edition2.indb 632016/12/15 18:34:052016/12/15 18:34:05
Page 212 of 612
4–64
When Driving
Switches and Controls
6. Firmly press and hold the programmed
HomeLink button for fi ve seconds,
and then release it. Perform this
operation two times to activate the door
or gate. If the door or gate does not
activate, press and hold the just-trained
HomeLink button and observe the
indicator light.
If the indicator light stays on
constantly, programming is complete
and your device should activate when
the HomeLink button is pressed and
released.
NOTE
To program the remaining two HomeLink
buttons, begin with “Programming” —
step 1
If the indicator light blinks rapidly
for two seconds and then turns
to a constant light, continue with
“Programming” steps 7—9 to
complete the programming of a rolling
code equipped device (most commonly
a garage door opener).
7. At the garage door opener receiver
(motor-head unit) in the garage, locate
the “learn” or “smart” button. This can
usually be found where the hanging
antenna wire is attached to the motor-
head unit.
8. Firmly press and release the “learn” or
“smart” button. (The name and color of
the button may vary by manufacturer.)
NOTE
Complete the programming within 30
seconds.
9. Return to the vehicle and fi rmly press,
hold for two seconds and release the
programmed HomeLink button. Repeat
the “ press/hold/release ” sequence a
second time, and, depending on the
brand of the garage door opener (or
other rolling code equipped device),
repeat this sequence a third time to
complete the programming process.
HomeLink should now activate your
rolling code equipped device.
NOTE
To program the remaining two HomeLink
buttons, begin with “Programming” —
step 1
For questions or comments, please contact
HomeLink at www.homelink.com or 1-
800-355-3515 .
CX-9_8FS7-EA-16K_Edition2.indb 64CX-9_8FS7-EA-16K_Edition2.indb 642016/12/15 18:34:062016/12/15 18:34:06

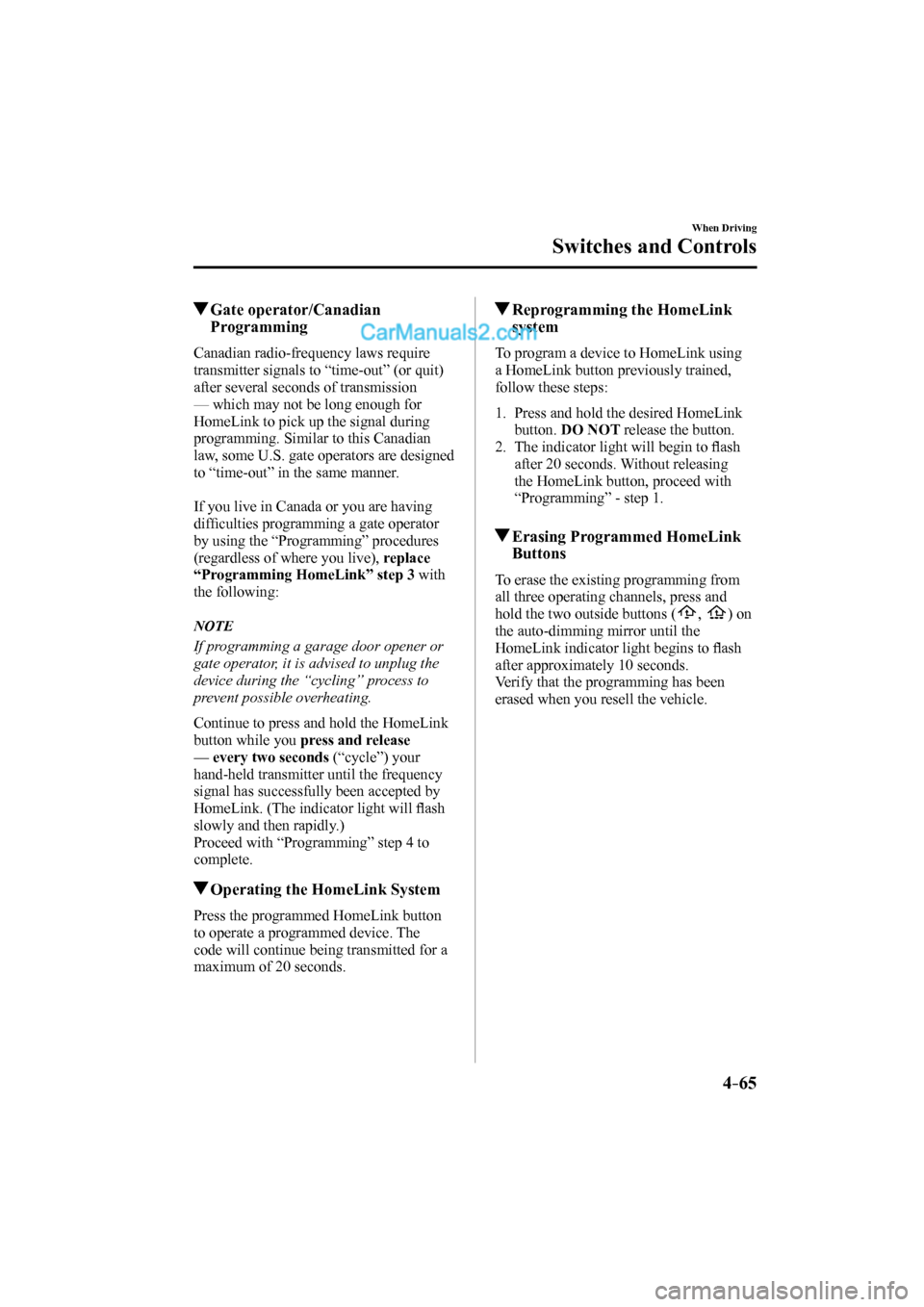

Page 213 of 612
4–65
When Driving
Switches and Controls
Gate operator/Canadian
Programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
— which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are designed
to “time-out” in the same manner.
If you live in Canada or you are having
diffi culties programming a gate operator
by using the “Programming” procedures
(regardless of where you live), replace
“Programming HomeLink” step 3 with
the following:
NOTE
If programming a garage door opener or
gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.
Continue to press and hold the HomeLink
button while you press and release
— every two seconds (“cycle”) your
hand-held transmitter until the frequency
signal has successfully been accepted by
HomeLink. (The indicator light will fl ash
slowly and then rapidly.)
Proceed with “Programming” step 4 to
complete.
Operating the HomeLink System
Press the programmed HomeLink button
to operate a programmed device. The
code will continue being transmitted for a
maximum of 20 seconds.
Reprogramming the HomeLink
system
To program a device to HomeLink using
a HomeLink button previously trained,
follow these steps:
1. Press and hold the desired HomeLink
button. DO NOT release the button.
2. The indicator light will begin to fl ash
after 20 seconds. Without releasing
the HomeLink button, proceed with
“Programming” - step 1.
Erasing Programmed HomeLink
Buttons
To erase the existing programming from
all three operating channels, press and
hold the two outside buttons (
, ) on
the auto-dimming mirror until the
HomeLink indicator light begins to fl ash
after approximately 10 seconds.
Verify that the programming has been
erased when you resell the vehicle.
CX-9_8FS7-EA-16K_Edition2.indb 65CX-9_8FS7-EA-16K_Edition2.indb 652016/12/15 18:34:062016/12/15 18:34:06
Page 214 of 612
4–66
When Driving
Brake
Brake System
Foot Brake
This vehicle has power-assisted brakes
that adjust automatically through normal
use.
Should power-assist fail, you can stop by
applying greater force than normal to the
brake pedal. But the distance required to
stop will be greater than usual.
WARNING
Do not coast with the engine stalled or
turned off , fi nd a safe place to stop:
Coasting with the engine stalled or
turned off is dangerous. Braking will
require more eff ort, and the brake's
power-assist could be depleted if
you pump the brake. This will cause
longer stopping distances or even an
accident.
Shift to a lower gear when going down
steep hills:
Driving with your foot continuously on
the brake pedal or steadily applying
the brakes for long distances is
dangerous. This causes overheated
brakes, resulting in longer stopping
distances or even total brake failure.
This could cause loss of vehicle
control and a serious accident. Avoid
continuous application of the brakes.
Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been aff ected.
CAUTION
Do not drive with your foot held on the
brake pedal. Doing so could result in the
following:
The brake parts will wear out more
quickly.
The brakes can overheat and
adversely aff ect brake performance.
Always depress the brake pedal with
the right foot. Applying the brakes with
the unaccustomed left foot could slow
your reaction time to an emergency
situation resulting in insuffi cient braking
operation.
Wear shoes appropriate for driving in
order to avoid your shoe contacting
the brake pedal when depressing the
accelerator pedal.
CX-9_8FS7-EA-16K_Edition2.indb 66CX-9_8FS7-EA-16K_Edition2.indb 662016/12/15 18:34:072016/12/15 18:34:07
Page 215 of 612
4–67
When Driving
Brake
Electric Parking Brake (EPB)
The electric parking brake (EPB)
equipment applies the parking brake
using an electric motor. When the
electric parking brake (EPB) is applied,
the electric parking brake (EPB) switch
indicator light turns on.
Indicator light
WARNING
Do not drive the vehicle with the electric
parking brake (EPB) applied:
If the vehicle is driven with the parking
brake applied, the brake parts may
generate heat and the brake system
may not operate, leading to an
accident.
Before driving, release the electric
parking brake (EPB) and verify that the
brake system warning light is turned
off .
NOTE
The electric parking brake (EPB)
cannot be applied or released while the
vehicle battery is dead.
If the electric parking brake (EPB) is
repeatedly applied and released it may
stop operating to prevent overheating
of the motor. If this occurs, wait approx.
1 minute before operating the electric
parking brake (EPB) switch again.
An operation sound occurs when
applying or releasing the electric
parking brake (EPB), however, this does
not indicate a malfunction.
If the electric parking brake (EPB) is
not used for long periods, an automatic
inspection of the system is performed
while the vehicle is parked. An
operation sound can be heard, however,
this does not indicate a problem.
When the electric parking brake (EPB)
is applied and the ignition is switched
OFF, an operation sound can be heard,
however, this does not indicate a
problem.
The brake pedal may move while the
electric parking brake (EPB) is being
applied or released, however, this does
not indicate a problem.
If the electric parking brake (EPB)
switch is continually pulled while
driving the vehicle, the electric parking
brake (EPB) will be applied and the
electric parking brake (EPB) warning
beep will be activated. When the switch
is released, the electric parking brake
(EPB) is released and the beep stops.
If the electric parking brake (EPB) is
applied with the ignition switched off
or in ACC, the brake system warning
light in the instrument cluster and the
indicator light in the switch may turn on
for 15 seconds.
When running the vehicle through an
automatic car wash, it may be necessary
to switch the ignition off with the
parking brake released depending on
the type of automatic car wash.
CX-9_8FS7-EA-16K_Edition2.indb 67CX-9_8FS7-EA-16K_Edition2.indb 672016/12/15 18:34:072016/12/15 18:34:07
Page 216 of 612
4–68
When Driving
Brake
When applying the electric parking
brake (EPB)
The electric parking brake (EPB) can be
applied regardless of the ignition switch
position.
Securely depress the brake pedal and
pull up the electric parking brake (EPB)
switch.
The electric parking brake (EPB) is
applied and the brake system warning
light and the electric parking brake (EPB)
switch indicator light turn on.
Refer to Warning/Indicator Lights on page
4-31 .
When releasing the electric parking
brake (EPB)
The electric parking brake (EPB) can be
released while the ignition is switched ON
or the engine is running. When the electric
parking brake (EPB) is released, the brake
system warning light and the electric
parking brake (EPB) switch indicator light
turn off.
electric parking brake (EPB) manual
release
Securely depress the brake pedal and press
down the electric parking brake (EPB)
switch.
Firmly depress the brake pedal and press
the electric parking brake (EPB) switch.
If the electric parking brake (EPB) switch
is pressed without depressing the brake
pedal, the display or indicator light in the
instrument cluster notifi es the driver that
the brake is not depressed.
(Type A instrument cluster)
A message is displayed on the multi-
information display in the instrument
cluster.
Refer to Message Indicated in Multi-
information Display on page 7-44 .
CX-9_8FS7-EA-16K_Edition2.indb 68CX-9_8FS7-EA-16K_Edition2.indb 682016/12/15 18:34:082016/12/15 18:34:08
Page 217 of 612
4–69
When Driving
Brake
(Type B instrument cluster)
The brake pedal operation demand
indicator light in the instrument cluster
turns on.
electric parking brake (EPB) automatic
release
If the accelerator pedal is depressed with
the electric parking brake (EPB) applied
and all of the following conditions met, the
parking brake is released automatically.
The engine is running.
The driver's door is closed.
The driver's seat belt is fastened.
Selector lever is in the D, M, or R
position
NOTE
If something such as the driver's foot
contacts the accelerator pedal with the
engine running and the electric parking
brake (EPB) applied, the parking brake
may be released automatically. If you do
not intend to drive immediately, shift the
selector lever to the P or N position.
Warning Light
The warning light turns on when the
system has a malfunction.
Refer to Warning Indication/Warning
Lights on page 4-32 .
Brake Pad Wear Indicator
When the disc brake pads become worn,
the built-in wear indicators contact the
disc plates. This causes a screeching noise
to warn that the pads should be replaced.
When you hear this noise, consult an
Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive with worn disc pads:
Driving with worn disc pads is
dangerous. The brakes could fail and
cause a serious accident. As soon as
you hear a screeching noise consult an
Authorized Mazda Dealer.
CX-9_8FS7-EA-16K_Edition2.indb 69CX-9_8FS7-EA-16K_Edition2.indb 692016/12/15 18:34:082016/12/15 18:34:08
Page 218 of 612
4–70
When Driving
Brake
Brake Assist
During emergency braking situations
when it is necessary to depress the brake
pedal with greater force, the brake assist
system provides braking assistance, thus
enhancing braking performance.
When the brake pedal is depressed hard or
depressed more quickly, the brakes apply
more fi rmly.
NOTE
When the brake pedal is depressed hard
or depressed more quickly, the pedal
will feel softer but the brakes will apply
more fi rmly. This is a normal effect of
the brake assist operation and does not
indicate a malfunction.
When the brake pedal is depressed
hard or depressed more quickly, a
motor/pump operation noise may be
heard. This is a normal effect of the
brake assist and does not indicate a
malfunction.
The brake assist equipment does not
supersede the functionality of the
vehicle's main braking system.
Hill Launch Assist (HLA)
Hill Launch Assist (HLA) is a function
which assists the driver in accelerating
from a stop while on a slope. When
the driver releases the brake pedal and
depresses the accelerator pedal while
on a slope, the function prevents the
vehicle from rolling. The braking force is
maintained automatically after the brake
pedal is released on a steep grade.
Hill Launch Assist (HLA) operates on a
downward slope when the selector lever
is in the reverse (R) position, and on an
upward slope when the selector lever is in
a forward gear.
WARNING
Do not rely completely on Hill Launch
Assist (HLA):
Hill Launch Assist (HLA) is an auxiliary
device for accelerating from a stop
on a slope. The system only operates
for about two seconds and therefore,
relying only on the system, when
accelerating from a stop is dangerous
because the vehicle may move (roll)
unexpectedly and cause an accident.
The vehicle could roll depending on
the vehicle's load or if it is towing
something.
Always confi rm the safety around the
vehicle before starting to drive the
vehicle.
CX-9_8FS7-EA-16K_Edition2.indb 70CX-9_8FS7-EA-16K_Edition2.indb 702016/12/15 18:34:082016/12/15 18:34:08
Page 219 of 612
4–71
When Driving
Brake
NOTE
Hill Launch Assist (HLA) does not
operate on a gentle slope. In addition,
the gradient of the slope on which the
system will operate changes depending
on the vehicle's load.
Hill Launch Assist (HLA) does not
operate if the parking brake is applied,
or if the vehicle has not stopped
completely.
While Hill Launch Assist (HLA) is
operating, the brake pedal may feel
stiff and vibrate, however, this does not
indicate a malfunction.
Hill Launch Assist (HLA) does not
operate while the TCS/DSC indicator
light is illuminated.
Refer to Warning/Indicator Lights on
page 4-31 .
Hill Launch Assist (HLA) does not
turn off even if the TCS OFF switch is
pressed to turn off the TCS.
CX-9_8FS7-EA-16K_Edition2.indb 71CX-9_8FS7-EA-16K_Edition2.indb 712016/12/15 18:34:092016/12/15 18:34:09
Page 220 of 612
4–72
When Driving
ABS/TCS/DSC/Trailer Stability Assist (TSA)
Antilock Brake System
(ABS)
The ABS control unit continuously
monitors the speed of each wheel. If
one wheel is about to lock up, the ABS
responds by automatically releasing and
reapplying that wheel's brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal ABS system operation. Continue to
depress the brake pedal without pumping
the brakes.
The warning light turns on when the
system has a malfunction.
Refer to Warning Indication/Warning
Lights on page 4-32 .
WARNING
Do not rely on ABS as a substitute for
safe driving:
The ABS cannot compensate for unsafe
and reckless driving, excessive speed,
tailgating (following another vehicle
too closely), driving on ice and snow,
and hydroplaning (reduced tire friction
and road contact because of water on
the road surface). You can still have an
accident.
NOTE
Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
The sound of the ABS operating may
be heard when starting the engine
or immediately after starting the
vehicle, however, it does not indicate a
malfunction.
CX-9_8FS7-EA-16K_Edition2.indb 72CX-9_8FS7-EA-16K_Edition2.indb 722016/12/15 18:34:092016/12/15 18:34:09
