Trailer Stability Control(TSC)
If the vehicle sways while being driven
and towing a trailer, the Trailer Stability
Control (TSC) auto matically controls
braking and engine torque to suppress the
swaying and enhance vehicle stability.
The Trailer Stability Control (TSC) is
operable at a vehicle speed of about 65
km/h (40 mph) or more.
When the Trailer Stability Control (TSC)
operates while driving the vehicle, the
TCS/DSC indicator light flashes.
Refer to TCS/DSC Indicator Light on page
4-105.
WA R N I N G
Do not rely solely on the Trailer Stability
Control (TSC)
Assured vehicle stability is limited even if
the Trailer Stability Control (TSC) is
operating. Drive carefully to prevent
accidents.
In particular, if the TCS/DSC indicator light
is flashing, drive the vehicle carefully as it is
in a less stable condition and could sway
more easily. Drive with caution and in
accordance with the road, vehicle and
trailer conditions.
CAUTION
 The Trailer Stability Control (TSC) may
not operate correctly unless the
following are observed:
 Use tires of the correct size specified for
your Mazda on all four wheels.
Use tires of the same manufacturer,
brand and tread pattern on all four
wheels.
 Do not mix worn tires.
 The Trailer Stability Control (TSC) may
not operate correctly when tire chains
are used or a temp orary spare tire is
installed because the tire diameter
changes.
NOTE
ï‚·The Trailer Stability Control (TSC) uses
the TCS/DSC functions. The Trailer
Stability Control (TSC) does not operate
if there is a malfunction in the TCS/DSC
(the TCS/DSC indicator light turns on).
ï‚·When the Trailer Stability Control (TSC)
is operating, the brake lights may turn
on.
ï‚·For information regarding trailer
towing, refer to Trailer Towing (U.S.A.
and Canada) on page 3-57.
When Driving
ABS/TCS/DSC/Trailer Stability Cont rol (TSC)/Off-Road Traction Assist
4-106
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Off-Road Traction Assist*
When the vehicle tires become embedded
in mud, sand, or deep snow, the Off-Road
Traction Assist functions to prevent
drive-wheel spinning and to assist in
freeing tires that are stuck.
Do not drive over rough rocky roads and
river beds.
WARNING
Do not rely completely on the Off-Road
Traction Assist.
The Off-Road Traction Assist has
limitations. Always drive the vehicle safely
according to the road conditions. Do not
drive the vehicle recklessly, otherwise it
may result in an accident. In addition, do
not drive the vehicle under the following
conditions while the Off-Road Traction
Assist is operating. Otherwise, it could
negatively affect the drivetrain parts which
could result in an accident.
 Vehicle is driven on paved roads.
 Temporary spare tire or tires of a
different specified size are used.
 Tire chains are used.
CAUTION
The Off-Road Traction Assist is a function
to assist in freeing tires that are stuck.
When it is not necessary to use this
function, avoid driving the vehicle
continuously with the Off-Road Traction
Assist on.
(Vehicle equipped with Type A/ B
instrument cluster)
If the vehicle is driven continuously with
the Off-Road Traction Assist on, the AWD
warning indication may be displayed.
(Vehicle equipped with Type C instrument
cluster)
If the vehicle is driven continuously with
the Off-Road Traction Assist on, the AWD
warning light may flash.
Refer to If a Warning Light Turns On or
Flashes on page 7-28.
NOTE
The vehicle may vibrate or you might hear
an operation sound while the Off-Road
Traction Assist is operating or is
operational, however, this does not
indicate a problem.
â–¼ Off-Road Traction Assist Indicator
Light
ï‚·When the ignition is switched ON, the
indicator light turns on and then turns
off after a few seconds.
ï‚·When pressing the Off-Road Traction
Assist switch to operate the Off-Road
Traction Assist, the indicator light turns
on.
ï‚·A problem in the system might be
indicated under the following
conditions. Have your vehicle inspected
by an Authorized Mazda Dealer.
ï‚·The indicator light does not turn on
when the ignition is switched ON or it
remains on.
ï‚·The indicator li
ght turns on even
though the Off-Road Traction Assist
was not operated.
When Driving
ABS/TCS/DSC/Trailer Stability Control (TSC)/Off-Road Traction Assist
*Some models.4-107
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

â–¼Off-Road Traction Assist Switch
When the switch is pressed after stopping
the vehicle, the Off-Road Traction Assist
becomes operational.
The Off-Road Traction Assist indicator
light in the instrument cluster and the
Off-Road Traction Assist switch indicator
light turn on.
Indicator light
If the switch is pressed again, the
Off-Road Traction Assi
st is stopped and
the Off-Road Traction Assist indicator
light and the Off-Road Traction Assist
switch indicator light turn off.

NOTE
If the engine is stopped with the Off-Road
Traction Assist operational, the Off-Road
Traction Assist is stopped when the engine
is started the next time.
When Driving
ABS/TCS/DSC/Trailer Stability Cont rol (TSC)/Off-Road Traction Assist
4-108
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

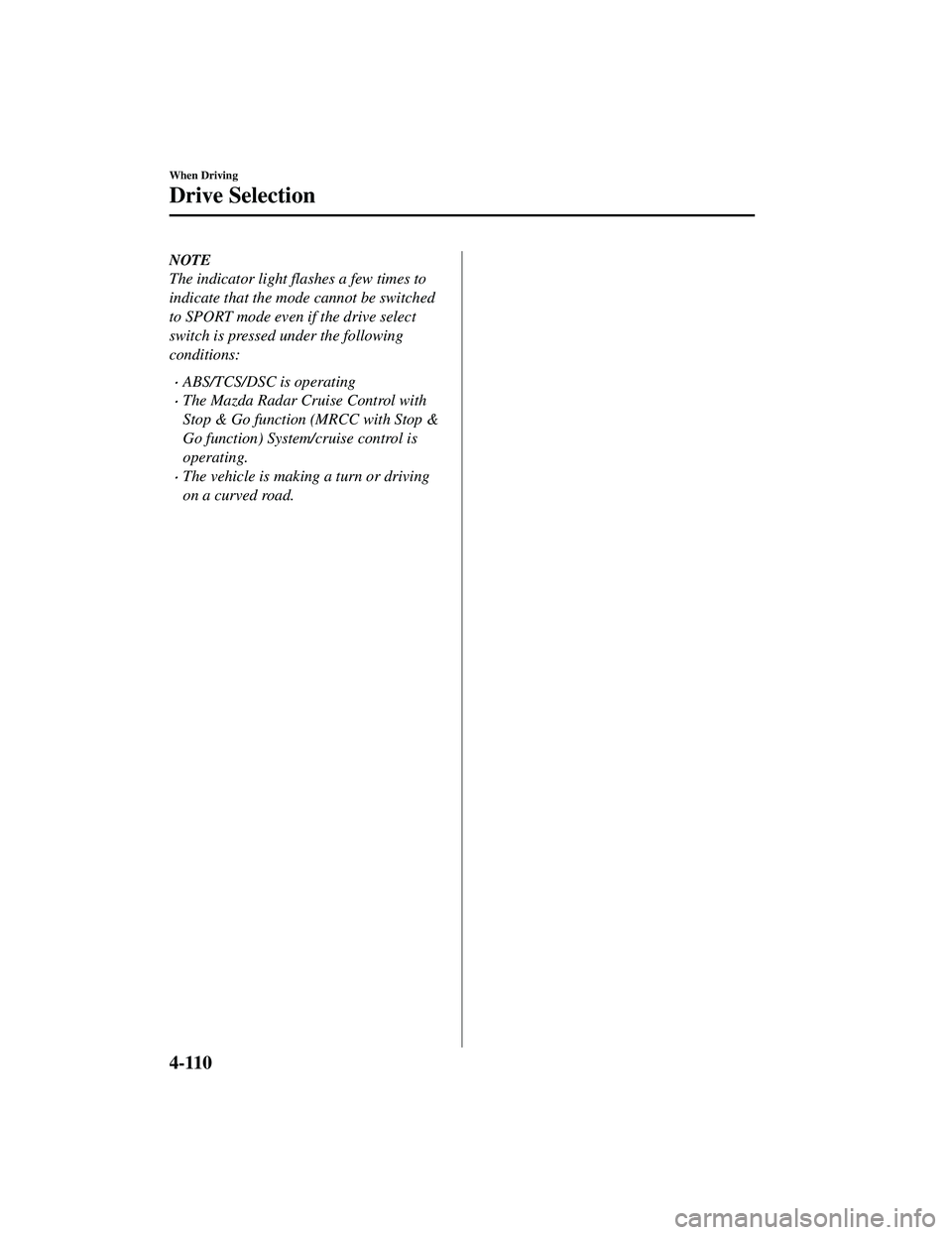

NOTE
The indicator light flashes a few times to
indicate that the mode cannot be switched
to SPORT mode even if the drive select
switch is pressed under the following
conditions:
ï‚·ABS/TCS/DSC is operating
ï‚·The Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop &
Go function) System/cruise control is
operating.
ï‚·The vehicle is making a turn or driving
on a curved road.
When Driving
Drive Selection
4-110
CX-9_8JK1-EA-20G_Edition6_old2021-12-8 9:30:44

Power Steering
ï‚·Power steering is only operable when
the engine is running. If the engine is off
or if the power steering system is
inoperable, you can still steer, but it
requires more physical effort.
If the steering feels stiffer than usual
during normal driving or the steering
vibrates, consult an Authorized Mazda
Dealer.
ï‚·The warning indication/warning light
notifies the driver of system
abnormalities and operation conditions.
In addition, the buzzer may also activate
depending on the system abnormality or
operation condition.
Refer to Stop Vehicle in Safe Place
Immediately on page 7-28.
Refer to Power Steering Warning
Buzzer on page 7-50.
CAUTION
Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running. This
could damage the power steering system.
When Driving
Power Steering
4-113
CX-9_8JK1-EA-20G_Edition6_old2021-12-8 9:30:44

i-ACTIVSENSE*
i-ACTIVSENSE is a collective term covering a series of advanced safety and driver support
systems which make use of a Forward Sensing Camera (FSC) and radar sensors. These
systems consist of active safety and pre-crash safety systems.
These systems are designed to assist the driver in safer driving by reducing the load on the
driver and helping to avert collisions or reduce their severity. However, because each system
has its limitations, always drive carefully and do not rely solely on the systems.
â–¼Active Safety Technology
Active Safety Technology supports safer driving by helping the driver to recognize potential
hazards and avert accidents.
Driver awareness support systems
Nighttime visibility
Adaptive Fron
t Lighting System (AFS)................................................................... page 4-117
High Beam Control System (HBC).......................................................................... page 4-118
Left/right side and rear side detection
Lane Departure Warning System (LDWS)..... ......................................................... page 4-158
Blind Spot Monitoring (BSM)......................... ........................................................ page 4-121
Road sign recognition
Traffic Sign Recognition System (TSR).................................................................. page 4-127
Inter-vehicle distance recognition
Distance Recognition Su pport System (DRSS)....................................................... page 4-133
Driver fatigue detection
Driver Attention Alert (DAA)................................................................................. page 4-137
Rear obstruction detection when leaving a parking space
Rear Cross Traffic Alert (RCTA).............................................................................page 4-139
Full-surround recognition
360°View Monitor (Mazda Connect (Type A))... .................................................... page 4-181
360°View Monitor (Mazda Connect (Type B))... .................................................... page 4-207
When Driving
i-ACTIVSENSE
4-114*Some models.
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Driver support systems
Inter-vehicle distance
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function)................................................................................................................... pag e 4-143
Lane departure
Lane-keep Assist System (LAS)............................. ................................................. page 4-158
â–¼Pre-Crash Safety Technology
Pre-crash safety technology is designed to assi
st the driver in averting collisions or reduce
their severity in situations where they cannot be avoided.
Collision damage reduction in low vehicle speed range
Forward driving
Smart City Brake Support [Forward] (SCBS F)...................................................... page 4-172
Advanced Smart City Brake Support (Advan ced SCBS)........................................ page 4-169
Reverse driving
Smart City Brake Support [Reverse] (SCBS R)...................................................... page 4-175
Collision damage reduction in medium/high speed range
Smart Brake Support (SBS)..................................................................................... page 4-179
â–¼ Camera and Sensors
Forward Sensing Camera (FSC)
The Forward Sensing Camera (FSC) detects la
ne indications and recognizes headlights,
taillights and city lights during nighttime driv ing. In addition, it also detects the vehicle
ahead, pedestrians, or obstructions. The following systems also use the Forward Sensing
Camera (FSC).
ï‚·High Beam Control System (HBC)
ï‚·Driver Attention Alert (DAA)
ï‚·Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
ï‚·Traffic Sign Recognition System (TSR)
ï‚·Advanced Smart City Brake Support (Advanced SCBS)
ï‚·Smart City Brake Support [Forward] (SCBS F)
ï‚·Smart Brake Support (SBS)
ï‚·Mazda Radar Cruise Control wi th Stop & Go function (MRCC with Stop & Go function)
The Forward Sensing Camera (FSC) is installed at the top of the windshield near the
rearview mirror.
When Driving
i-ACTIVSENSE
4-115
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Adaptive Front Lighting System (AFS)*
The adaptive front lighting system (AFS) automatically adjusts the headlight beams to the
left or right in conjunction with the operation of the steering wheel after the headlights have
been turned on.
A system malfunction or operation conditions are indicated by a warning.
Refer to Contact Authorized Mazda Dealer and Have Vehicle Inspected on page 7-31.
NOTE
The Adaptive Front Lighting System (AFS) func tion can be switched to operable/inoperable
using the personalization function.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When Driving
i-ACTIVSENSE
*Some models.4-117
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

High Beam Control System (HBC)*
The HBC determines the conditions in front of the vehicle using the Forward Sensing
Camera (FSC) while driving in darkness to automatically switch the headlights between
high and low beams.
Refer to Forward Sensing Camera (FSC) on page 4-235.
While driving the vehicle at a speed of about 30 km/h (19 mph) or more, the headlights are
switched to high beams when there are no vehicles ahead or approaching in the opposite
direction.
The system switches the headlights to low beams when one of the following occurs:
ï‚·The system detects a vehicle or the headlights/lights of a vehicle approaching in the
opposite direction.
ï‚·The vehicle is driven on roads lined with st reetlamps or on roads in well-lit cities and
towns.
ï‚·The vehicle is driven at less than about 20 km/h (12 mph).
Forward Sensing
Camera (FSC)
The recognition distance of the
Forward Sensing Camera (FSC)
varies according to the
surrounding conditions.
The warning light turns on when
the system has a malfunction.
Refer to Contact Authorized Mazda Dealer and Have Vehicle Inspected on page 7-31.
CAUTION
 Do not adjust the vehicle height, modify th e headlight units, or remove the camera,
otherwise the system will not operate normally.
 Do not rely excessively on the HBC and drive the vehicle while paying sufficient attention to
safety. Switch the headlights between the high beams and low beams manually if
necessary.
When Driving
i-ACTIVSENSE
4-118*Some models.
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

NOTE
The timing in which the system switches the headlights changes under the following
conditions. If the system does not switch the headlights appropriately, manually switch
between high and low beams according to the visibility as well as road and traffic
conditions.
ï‚·When there are sources of light in the area such as street lamps, illuminated signboards,
and traffic signals.
ï‚·When there are reflective objects in the surrounding area such as reflective plates and
signs.
ï‚·When visibility is reduced under rain, snow and foggy conditions.
ï‚·When driving on roads with sharp turn or hilly terrain.
ï‚·When the headlights/rear lamps of vehicles in front of you or in the opposite lane are dim
or not illuminated.
ï‚·When there is sufficient darkness such as at dawn or dusk.
ï‚·When the luggage compartment is loaded with heavy objects or the rear passenger seats
are occupied.
ï‚·When visibility is reduced due to a vehicle in front of you spraying water from its tires
onto your windshield.
â–¼ To Operate the System
The HBC operates to switch the headlights
automatically between high and low
beams after the igniti
on is switched ON
and the headlight switch is in the AUTO
and high beam position.
The HBC determines that it is dark based
on the brightness of the surrounding area.
At the same time, the HBC indicator light
(green) in the in strument cluster
illuminates.

NOTE
ï‚·When the vehicle speed is about 30 km/h
(19 mph) or more, the headlights
automatically switch to high beams
when there are no vehicles ahead or
approaching in the opposite direction.
When the vehicle speed is less than
about 20 km/h (12 mph), the HBC
switches the headlights to low beams.
ï‚·The low beams may not switch to high
beams when cornering.
ï‚·Operation of the HBC function can be
disabled. Refer to th e Settings section in
the Mazda Connect Owner's Manual.
â–¼ Manual Switching
Switching to low beams
Shift the lever to th
e low beam position.
The HBC indicator light (green) turns off.
When Driving
i-ACTIVSENSE
4-119
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44
