selector while one of them is displayed.
The selected mode will be displayed.

Dashboard illumination knob
Press the dashboard illumination knob
Press the dashboard illumination knob
Press the dashboard illumination knob
Odometer
Trip meter A
Trip meter B

Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.

For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.

When trip meter A is selected, pressing the
selector again within 1 second will change
to trip meter B mode.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to “0.0” by
depressing and holding the selector for 1
second or more. Use this meter to measure
trip distances and to compute fuel
consumption.
NOTE
If TRIP A is reset using the trip meter
when the function which synchronizes
(resets) the fuel economy monitor and
the trip meter (TRIP A) is on, the fuel
economy data resets in conjunction with
TRIP A.
Refer to the Information section in the
Mazda Connect Owner's Manual.
Only the trip meters record tenths of
kilometers (miles).
The trip record will be erased when:
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over 9999.9 km
(mile).
▼
Engine Coolant Temperature Gauge
Displays the engine coolant temperature.
The white range of the gauge indicates
that the engine coolant temperature is low,
When Driving
Instrument Cluster and Display
4-46
CX-9_8JK1-EA-20G_Edition6_old
2021-12-8 9:30:44

and the red range of the gauge indicates
that the engine coolant temperature is high
and overheating.

CAUTION
If the engine coolant temperature gauge
needle (white) flashes, there is a possibility
of overheating. Drive slowly to reduce
engine load until you can find a safe place
to stop the vehicle and wait for the engine
to cool down.
Refer to Overheating on page 7-23.
NOTE
If the engine coolant temperature is high
or the engine is hot, the engine output
may be limited.
The temperature unit (Centigrade/
Fahrenheit) of the engine coolant gauge
display changes in conjunction with the
temperature unit of the outside
temperature display.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Fuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

Full
1/4 Full
Empty
If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
If inconsistency in engine performance or
stalling occurs due to low fuel level
conditions, refuel the vehicle as soon as
possible and add at least 10 L (2.7 US gal,
2.2 Imp gal) of fuel.
Refer to Taking Action on page 7-37.
NOTE
After refueling, it may require some time
for the indicator to
stabilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.
The display indicating a quarter or less
remaining fuel has more segments to
show the remaining fuel level in greater
detail.
When Driving
Instrument Cluster and Display
4-47
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

NOTE
Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:
Significantly cold or hot temperatures.
Sudden changes in outside
temperature.
The vehicle is parked.
The vehicle is driven at low speeds.
Changing the Temperature Unit of the
Outside Tempera ture Display
The outside temperature unit can be
switched between Celsius and Fahrenheit.
Settings can be changed by operating the
center display screen.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.
▼Trip Computer
The following information can be selected
by pressing the INFO switch with the
ignition switched ON.
Distance-to-empty mode
Average fuel economy mode
Current fuel economy mode
Compass mode
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.

The distance-to-empty will be calculated
and displayed every second.

NOTE
Even though the distance-to-empty
display may indicate a sufficient amount
of remaining driving distance before
refueling is required , refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.
The display may not change unless you
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.
The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
(indicating the remaining fuel supply)
disappear.
If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.
Average fuel economy mode
This mode displays the average fuel
economy by calculating the total traveled
distance and the total fuel consumption
since the vehicle was purchased or the past
When Driving
Instrument Cluster and Display
4-49
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

▼Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Instrument Cluster
Center of Dashboard
Warning lights will appear in any of the highlighted areas
▼Warning Indication/Warning Lights
These lights turn on or flash to notify the us
er of the system operation status or a system
malfunction.
Signal Warning Page
Brake System Warning Light*1*27-28
ABS Warning Light*1
Electronic Brake
Force Distribu ‐
tion System Wa r n i n g 7-28
ABS warning 7-31
Charging System Warning Light*17-28
Engine Oil Warning Light*17-28
Power Steering Malfunction Indicator Light*17-28
Master Warning Light*17-31
Electric Parking Brake (EPB) Warning Light*17-31
When Driving
Instrument Cluster and Display
4-51
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

SignalWarning Page
(Red)Electric Parking Brake (EPB) Warning Light
*1
Flashing
4-96
Buzzer & Flash ‐
ing
7-31
Check Engine Light*17-31
Automatic Transaxle Warning Light*17-31
*AWD Warning Light 7-31
Air Bag/Front Seat Belt Pretensioner System Warning Light*17-31
Tire Pressure Monitoring System Warning Light*1
Flashing
7-31
Turns on 7-37
(Red) KEY Warning Light
*1
Turns on
7-31
Flashing 7-37
LED Headlight Warning Light*17-31
*Smart City Brake Support (SCBS) Warning Light 7-37
Low Fuel Warning Light
7-37
Check Fuel Cap Warning Light*17-37
Engine Oil Level Warning Light*17-37
Seat Belt Warning Light (Front seat) 7-37
(Red)Seat Belt Warning Light (Rear seat) 7-37
*Low Washer Fluid Level Warning Light
7-37
Door-Ajar Warning Light
7-37
When Driving
Instrument Cluster and Display
4-52*Some models.
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

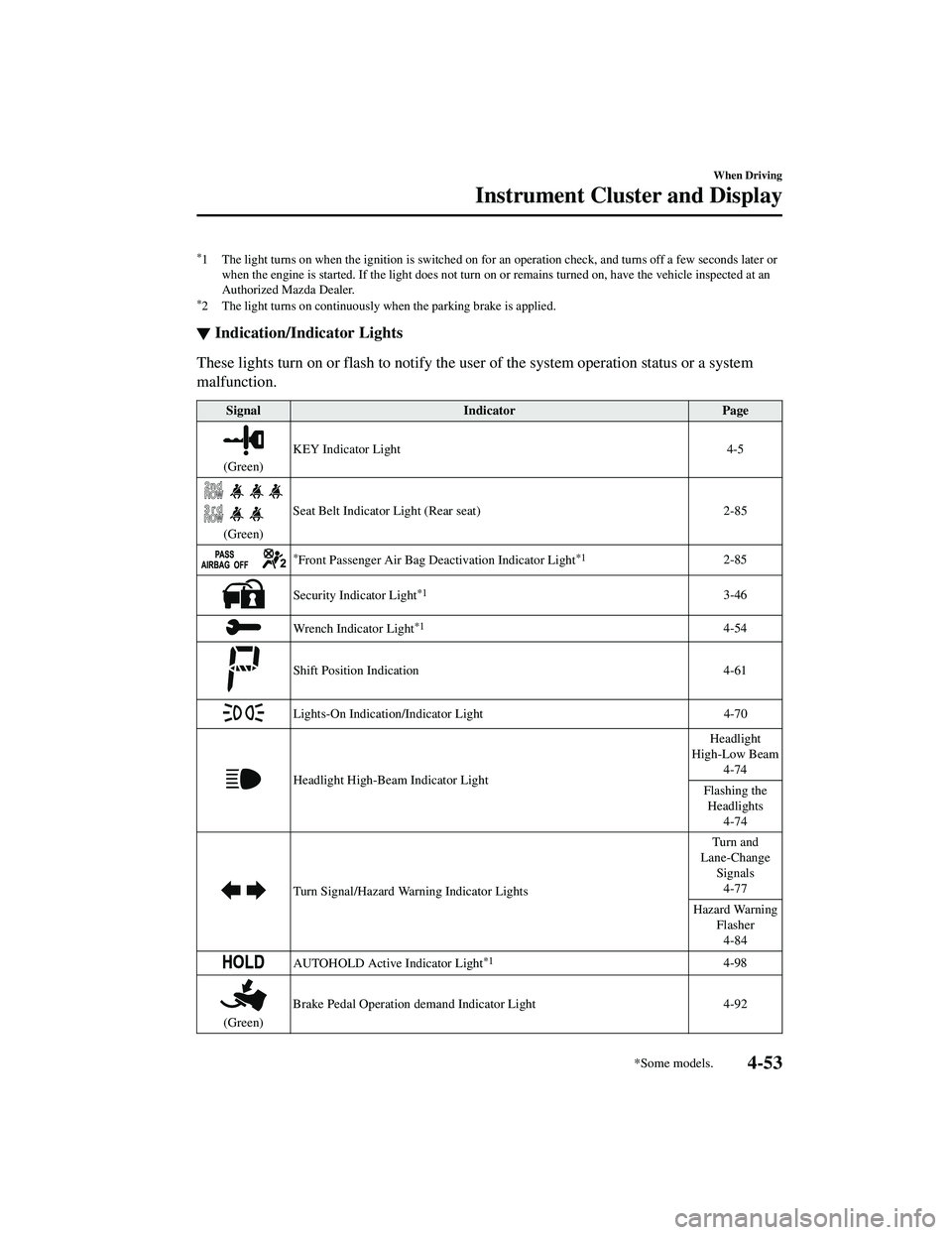

*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later orwhen the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
▼ Indication/Indicator Lights
These lights turn on or flash to notify the us
er of the system operation status or a system
malfunction.
Signal Indicator Page
(Green)KEY Indicator Light 4-5
(Green)Seat Belt Indicator Light (Rear seat)
2-85
*Front Passenger Air Bag Deactivation Indicator Light*12-85
Security Indicator Light*13-46
Wrench Indicator Light*14-54
Shift Position Indication4-61
Lights-On Indication/Indicator Light 4-70
Headlight High-Beam Indicator LightHeadlight
High-Low Beam 4-74
Flashing the Headlights 4-74
Turn Signal/Hazard Warning Indicator Lights Turn and
Lane-Change Signals
4-77
Hazard Warning Flasher4-84
AUTOHOLD Active Indicator Light*14-98
(Green) Brake Pedal Operation demand Indicator Light 4-92
When Driving
Instrument Cluster and Display
*Some models.4-53
CX-9_8JK1-EA-20G_Edition6_old
2021-12-8 9:30:44

SignalIndicator Page
TCS/DSC Indicator Light*1
Traction Control
System (TCS) 4-103
Dynamic Stabil ‐
ity Control (DSC)4-105
Turns on 7-31
TCS OFF Indicator Light (FWD) *14-104
Off-Road Traction Assist Indicator Light (AWD) *14-107
Select Mode Indication 4-109
*Blind Spot Monitoring (BSM) OFF Indicator Light*1
Malfunction
7-31
Except malfunc ‐
tion
4-125
(Red)
*Smart City Brake Support (SCBS) Indicator Light 4-174
*Smart City Brake Support (SCBS) OFF Indicator Light*14-174
(White)Cruise Main Indication 4-248
(Green)Cruise Set Indication 4-248
*1 The light turns on when the i
gnition is switched on for an operation check, and turns off
a few seconds later or when the engine is sta rted. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.
▼ Wrench Indicator Light
When Driving
Instrument Cluster and Display
4-54*Some models.
CX-9_8JK1-EA-20G_Edition6_old
2021-12-8 9:30:44

When the ignition is switched ON, the
wrench indicator light turns on and then
turns off after a few seconds.

The wrench indicator light turns on under
the following conditions:
When the preset maintenance period has
arrived.
When it’s time to replace the engine oil.
Refer to the Information section in the
Mazda Connect Owner's Manual.
NOTE
The wrench indicator light turns on
earlier than the preset period depending
on vehicle usage conditions.
Whenever the engine oil is replaced, a
reset of the vehicle engine control unit is
necessary.
Refer to the Information section in the
Mazda Connect Owner's Manual.
When Driving
Instrument Cluster and Display
4-55
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Automatic Transaxle Controls
Lock-release button
Indicates the selector lever can be shifted freely into any position.
Indicates that you must hold in the lock-release button to shift.
Indicates that you must depress the brake pedal and hold in the lock-release
button to shift (The ignition must be switched ON).
Various Lockouts:
NOTE
The Sport AT has an option that is not included in the traditional automatic transaxle that
gives the driver the option of selecting each ge ar instead of leaving it to the transaxle to
shift gears. Even if you intend to use the automatic transaxle functions as a traditional
automatic, you should also be aware that you can inadvertently shift into manual shift mode
and an inappropriate gear may be retained as the vehicle speed increases. If you notice the
engine speed going higher or hear the engine racing, confirm you have not accidentally
slipped into manual shift mode (page 4-62).
When Driving
Automatic Transaxle
4-59
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Shift-Lock System
The shift-lock system prevents shifting out
of P unless the brake pedal is depressed.

To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Press and hold the lock-release button.
4. Move the selector lever.
NOTE
When the ignition is switched to ACC or
the ignition is switched off, the selector
lever cannot be shifted from P position.
The ignition cannot be switched to OFF
if the selector lever is not in P position.
▼ Shift-Lock Override
If the selector lever will not move from P
using the proper shift procedure, continue
to hold down the brake pedal.
1. Remove the shift-lock override cover
using a cloth-wr apped flat head
screwdriver.
2. Insert a screwdriver and push it down.
Cover
3. Press and hold the lock-release button.
4. Move the selector lever.
Take the vehicle to an Authorized Mazda
Dealer to have the system checked.
Transaxle Ranges
The shift position indication in the
instrument cluster illuminates.
Refer to Indication/Indicator Lights on
page 4-25, 4-40, 4-53.
The selector lever must be in P or N
position to operate the starter.
P (Park)
WA R N I N G
Always set the selector lever to P position
and set the parking brake:
Only setting the selector lever to the P
position without using the parking brake to
hold the vehicle is dangerous. If P fails to
hold, the vehicle could move and cause an
accident.
CAUTION
 Shifting into P, N or R while the vehicle is
moving can damage your transaxle.
 Shifting into a driving gear or reverse
when the engine is running faster than
idle can damage the transaxle.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except under
rare circumstances as explained in
Rocking the Vehicle (page 3-51).
NOTE
(With parking sensor system)
When Driving
Automatic Transaxle
4-60
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44
