Light Bulbs
Type A (With Adaptive Front Lighting System (AFS))
Type B (Without Adaptive Front Lighting System (AFS))Rear side-marker lights
Rear turn signal lights Brake lights
License plate lights
Headlights (Low/High beam) High-mount brake light
Overhead lights (Front)/
Map lights (Front) Luggage compartment light
Vanity mirror lights
Daytime running lights/
Parking lights Taillights
Ambient lights
Reverse lights
Fog lights
Front turn signal lights
Fog lights
Map lights (Center) Overhead light (Rear)
Rear side-marker lights
Rear turn signal lights Brake lights
License plate lights
Headlights (Low/High beam)/
Daytime running lights High-mount brake light
Overhead lights (Front)/
Map lights (Front) Luggage compartment light
Vanity mirror lights
Reverse lights
Front turn signal lights
Map lights (Center)Overhead light (Rear)
Parking lights/Front
side-marker lights
Front side-marker lights
Some models.
Side turn
signal lights
Side turn
signal lights
Signature wing
illumination
Brake lights/Taillights
Brake lights/Taillights
Ambient lights
Maintenance and Care
Owner Maintenance
6-38
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

CAUTION
When removing the lens or lamp unit using
a flathead screwdriver, make sure that the
flathead screwdriver does not contact the
interior terminal. If the flathead screwdriver
contacts the terminal, a short circuit may
occur.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.
▼ Replacing Exterior Light Bulbs
The exterior lights have either LEDs or
normal bulbs.
LED type
Headlights (type A)
Headlights/Daytime running lights (type
B)
Front turn signal lights (type A)
Daytime running light
s/Parking lights
(type A)
Front side-marker lights (type A)
Signature wing illumination (type A)*
Fog lights*
Brake lights
Taillights
High-mount brake light
Side turn signal lights
Rear side-marker lights
License plate lights
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized
Mazda Dealer when the replacement is
necessary.
Bulb type
Front turn signal lights (type B),
Parking lights/Front side-marker lights
(type B)
NOTE
When replacing a bulb for the front turn
signal lights and parking lights/front
side-marker lights, turn the steering wheel
and change the direction in which the tires
are pointed to the position where the bulb
replacement can be done easily.
Turn the steering wheel after starting the
engine and stop the engine after you finish
turning the steering wheel.
1. If you are changing the right bulb, start the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left,
and turn off engine.
2. Make sure the ignition is switched off, and the headlight switch is off.
Maintenance and Care
Owner Maintenance
*Some models.6-39
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Parking lights/Front side-marker
lights

8. Install the new bulb in the reverseorder of the removal procedure.
NOTE
There will be no problem with
functionality with the wiring harness
disconnected in Step 5 left
disconnected.
Therefore, there is no need to connect
the wiring harness.
Rear turn signal lights
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Remove the cover.

3. Turn the screws counterclockwise andremove them.

4. Pull the unit rearward to remove it.
5. Disconnect the wiring harness byreleasing the clamp.

Maintenance and Care
Owner Maintenance
6-41
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

6. Turn the socket and bulb assemblycounterclockwise and remove it.

7. Temporarily install the light unit withthe socket pulled out of the top of the
light unit.

Socket pull-out range
CAUTION
 The wiring harness may be damaged
when temporarily installing the light
unit. When performing the
procedure, observe the following
points.
Pull out the socket from within the
socket pull-out range shown in the
figure.
 Do not push the light unit into the
vehicle with force.
 When temporarily installing the light
unit, cover the rear bumper light unit
installation surface with a soft cloth.
The rear bumper may be scratched or
damaged if the light unit contacts it.
8. Disconnect the bulb from the socket.

9. Install the new bulb in the reverseorder of the removal procedure.
Reverse lights
1. Make sure the igniti on is switched off,
and the headlight switch is off.
2. Remove the cover.

3. Disconnect the electrical connectorfrom the bulb by pressing the tab on
Maintenance and Care
Owner Maintenance
6-42
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

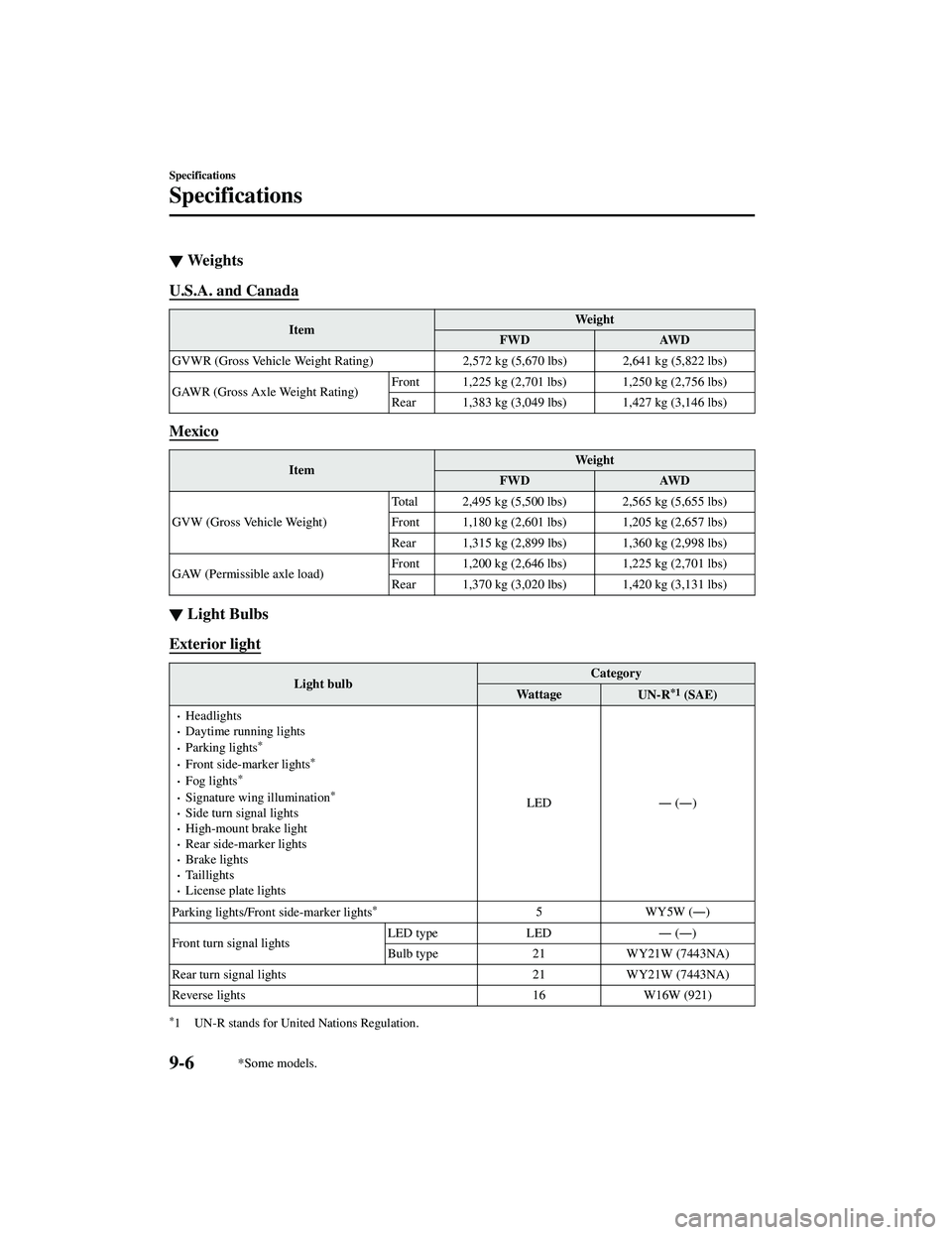

▼We i g h t s
