qFront Air Bag System Components
(1)
(6)
(10)
(7)
(6) (9)(5)(4) (3) (2)
(8)
(1) Driver seat slide position sensor (page 2-49)
(2) Front seats
(3) Front dual stage inflators and air

Page 62 of 402

MAZDA MODEL MAZDASPEED 3 2007   (in English) Repair Manual Black plate (62,1)
qSide and Curtain Air Bag System Componentsí
4 Door
5 Door(4) (1)(1)
(3)(2)
(3)
(4) (1)(1) (2)
(1) Side and curtain inflators and air bags
(2) Front seats
(3) Crash sensors and dia

Page 63 of 402

MAZDA MODEL MAZDASPEED 3 2007   (in English) Repair Manual Black plate (63,1)
How the Air Bags Work
qHow the Front Air Bags Work
When air bag crash sensors detect a frontal impact of greater than moderate force, an
electrical current is sent to the inflators.

Page 64 of 402

MAZDA MODEL MAZDASPEED 3 2007   (in English) Repair Manual Black plate (64,1)
Front passenger seat weight sensors
Vehicles equipped with front passenger seat weight sensors are also equipped with a front
passenger air bag deactivation indicator light is also

Page 65 of 402

MAZDA MODEL MAZDASPEED 3 2007   (in English) Repair Manual Black plate (65,1)
The front passenger air bag deactivation indicator light illuminates or is off under the following conditions:
Total seated weight on the
front passenger seatFront passenger air bag

Page 66 of 402

MAZDA MODEL MAZDASPEED 3 2007   (in English) Repair Manual Black plate (66,1)
WARNING
Do not increase the total seated weight on the passenger seat:
When an infant or small child sits on the front passenger seat, increasing the total
seated weight on the fron

Page 67 of 402

MAZDA MODEL MAZDASPEED 3 2007   (in English) Repair Manual Black plate (67,1)
CAUTION
lTo assure proper deployment of the front air bag and to prevent damage to the sensors
in the front seat bottoms:
lDo not place sharp objects on the front seat bottoms or le

Page 68 of 402

MAZDA MODEL MAZDASPEED 3 2007   (in English) Repair Manual Black plate (68,1)
qHow the Side and Curtain Air Bags Workí
When air bag crash sensors detect a side impact of greater than moderate force, an
electrical current is sent to the inflators.
Gases are p

Page 69 of 402

MAZDA MODEL MAZDASPEED 3 2007   (in English) Repair Manual Black plate (69,1)

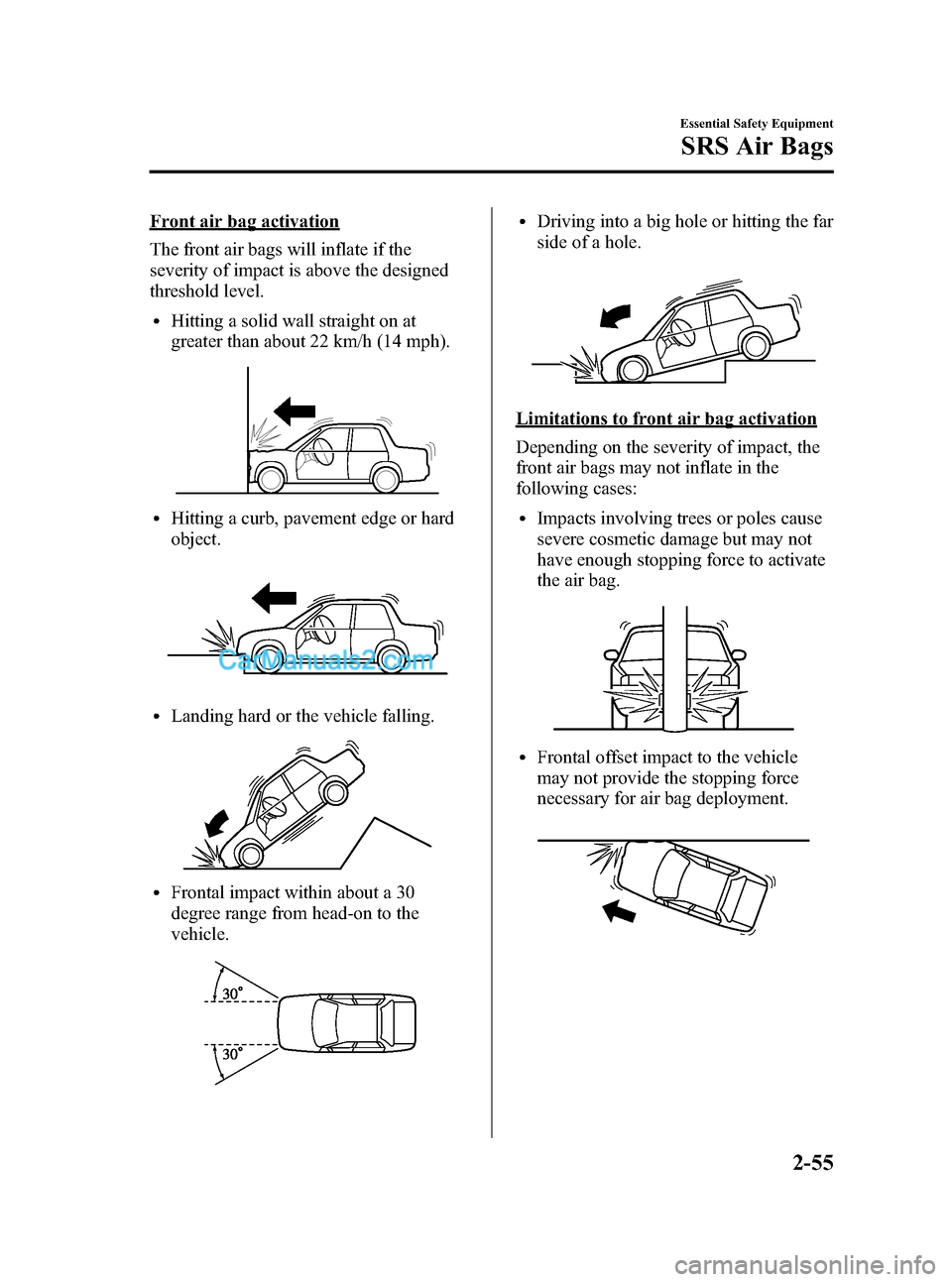

Front air bag activation
The front air bags will inflate if the
severity of impact is above the designed
threshold level.
lHitting a solid wall straight on at
greater than about 22

Page 70 of 402

MAZDA MODEL MAZDASPEED 3 2007   (in English) Repair Manual Black plate (70,1)
lRear-ending or running under a trucks
tail gate may not provide the stopping
force necessary for air bag deployment.
Non-activation of front air bags
Front air bags will not norma
