Black plate (81,1)
qLocking, Unlocking with
Transmitterí
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Knob
To lock any door from the inside, push the
door-lock knob.
To unlock, pull it out.
This does not operate the other door
locks.
UnlockLock
To lock any door with the door-lock knob
from the outside, push the door-lock knob
to the lock position and close the door.
This does not operate the other door
locks.
Door-lock knob
(Lock position)
NOTE
When locking the doors this way, be careful
not to leave the key inside the vehicle.
qPower Door Locksí
Vehicle lock-out prevention
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the liftgate will
automatically unlock if they are locked
using the power door locks with either
front door open.
Knowing Your Mazda
Doors and Locks
3-9íSome models. Mazda3_8X41-EA-07F_Edition1 Page81
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (82,1)
Locking, unlocking with key
All doors and the liftgate lock
automatically when the driver's door is
locked with the key. All doors and the
liftgate unlock when the driver's door is
unlocked and the key is held in the unlock
position for one second or longer.
Unlock
Lock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors and the liftgate. To unlock only the
driver's door, insert the key into the driver's
door lock and turn the key briefly to the unlock
position and then immediately return it to the
center position.
Locking, unlocking with door-lock
switch
All doors and the liftgate lock
automatically when LOCK is pushed.
They all unlock when the unmarked part
of the door-lock switch is pushed.
Unlock
Lock
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you insert the key and turn the child
safety lock to the lock position before
closing that door, the door cannot be
opened from the inside.
The door can be opened only by lifting
the outside handle.
Lock Unlock
3-10
Knowing Your Mazda
Doors and Locks
Mazda3_8X41-EA-07F_Edition1 Page82
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (83,1)
Liftgate (5 Door)
WARNING
Never allow a person to ride in the
luggage compartment:
Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
qLocking, Unlocking with Key
The liftgate can be locked/unlocked by
inserting the key into the driver's door key
slot, refer to Power Door Locks (page
3-9).
qLocking, Unlocking with Transmitter
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Switch
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-9).
qOpening and Closing the Liftgate
Opening the liftgate
Pull the handle and lift up the liftgate.
Knowing Your Mazda
Doors and Locks
3-11
Mazda3_8X41-EA-07F_Edition1 Page83
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (84,1)
NOTE
If the vehicle battery is dead or there is a
malfunction in the electrical system and the
liftgate cannot be unlocked, perform the
following procedure as an emergency measure
to unlock it:
1. Remove the cap on the interior surface of
the liftgate with a flathead screwdriver.
Cap
2. Turn the lever to the right to unlock the
liftgate.
Lever
After performing this emergency measure,
have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
qLuggage Compartment
WARNING
Do not place anything on top of the
cover:
Placing luggage or other cargo on
top of the luggage compartment
cover is dangerous. During sudden
braking or a collision, the cargo
could become a projectile that could
hit and injure someone. The vehicle
has a light weight luggage
compartment cover to keep the
contents of your luggage area out of
sight; it will not retain heavy objects
that are not tied down in an accident
such as a rollover. Tie down all heavy
objects, whether luggage or cargo,
using the tie down hooks.
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
CAUTION
Make sure the luggage compartment
cover is firmly secured. If it is not
firmly secured, it could unexpectedly
disengage resulting in injury.
3-12
Knowing Your Mazda
Doors and Locks
Mazda3_8X41-EA-07F_Edition1 Page84
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (85,1)

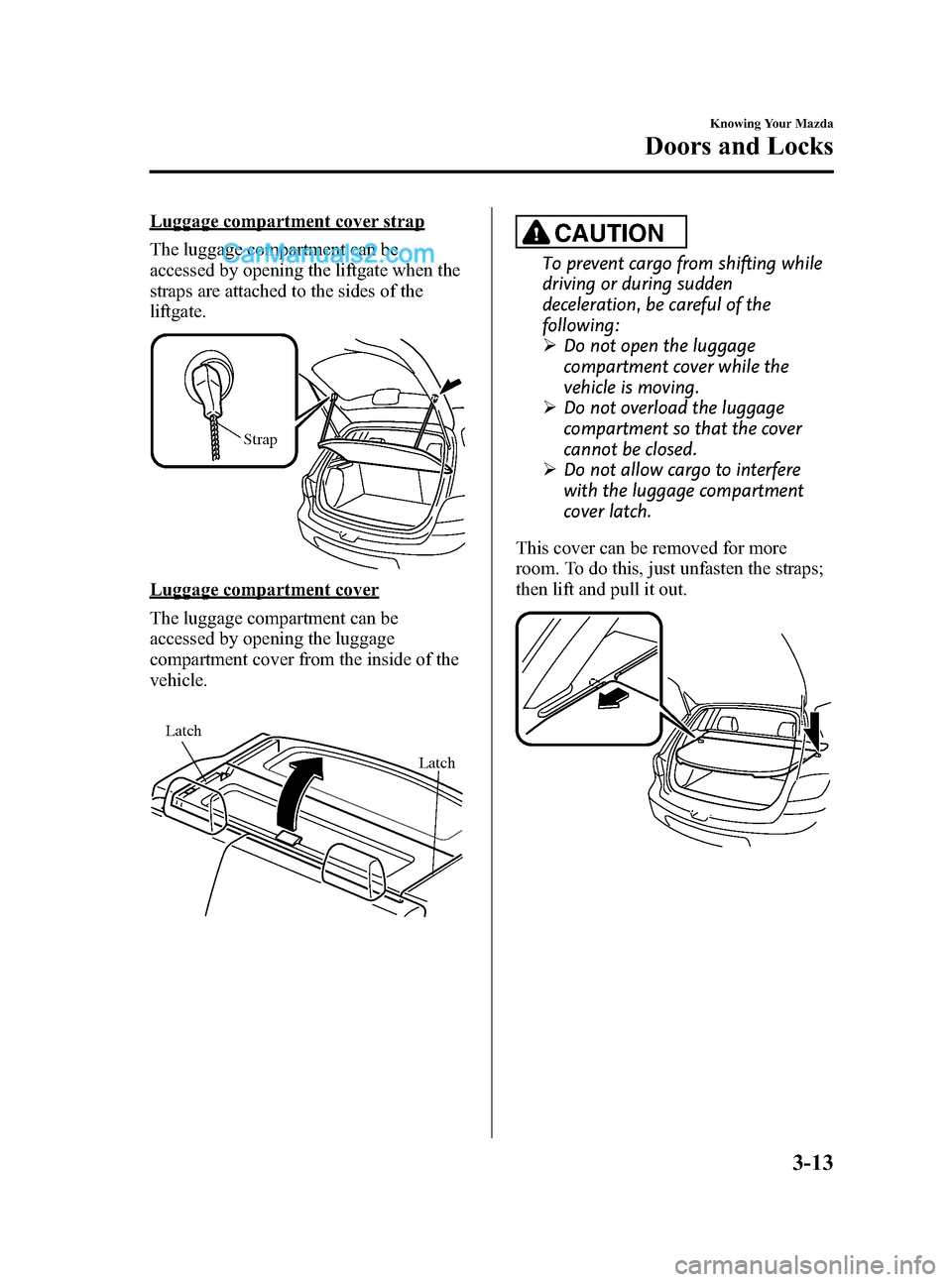

Luggage compartment cover strap
The luggage compartment can be
accessed by opening the liftgate when the
straps are attached to the sides of the
liftgate.
Strap
Luggage compartment cover
The luggage compartment can be
accessed by opening the luggage
compartment cover from the inside of the
vehicle.
Latch
Latch
CAUTION
To prevent cargo from shifting while
driving or during sudden
deceleration, be careful of the
following:
ØDo not open the luggage
compartment cover while the
vehicle is moving.
ØDo not overload the luggage
compartment so that the cover
cannot be closed.
ØDo not allow cargo to interfere
with the luggage compartment
cover latch.
This cover can be removed for more
room. To do this, just unfasten the straps;
then lift and pull it out.
Knowing Your Mazda
Doors and Locks
3-13
Mazda3_8X41-EA-07F_Edition1 Page85
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (86,1)
Trunk Lid (4 Door)
WARNING
Never allow a person to ride in the
trunk:
Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously
injured or killed during sudden
braking or a collision.
Keep the trunk closed when driving:
Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.
qOpening and Closing the Trunk Lid
WARNING
Close the trunk lid, lock the rear
seatbacks and do not allow children to
play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking rear
seats, doors and the trunk, and
keeping the keys where children can
not play with them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
CAUTION
For vehicles equipped with a rear
spoiler, do not lift the trunk lid by the
spoiler. Lifting up the trunk lid by the
rear spoiler could cause damage to
the rear spoiler and the trunk lid.
3-14
Knowing Your Mazda
Doors and Locks
Mazda3_8X41-EA-07F_Edition1 Page86
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (87,1)
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Opening the trunk lid with the remote
release lever
Pull up the release lever next to the
driver's seat.
Release lever
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qTrunk Security
In some situations you may want to
prevent the trunk from being opened with
the remote trunk lid release lever.
Give your key only to someone you trust.
To secure the trunk lid, lock the rear
seatbacks (page 2-8), push the trunk lock
lever up, and close the trunk.
To cancel the security feature, insert the
key into the lock, turn the key clockwise,
and pull the trunk lock lever down.
Unlock
Lock
Trunk lock lever
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
Knowing Your Mazda
Doors and Locks
3-15
Mazda3_8X41-EA-07F_Edition1 Page87
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (88,1)
NOTE
To prevent the battery from being discharged,
do not leave the trunk open for a long period
when the engine is not running.Inside Trunk Release
Lever (4 Door)
Your vehicle is equipped with an inside
trunk release handle that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside release handle so
that all children can be told about it in an
appropriate way, keeping in mind that
most vehicles don't have such handles.
3-16
Knowing Your Mazda
Doors and Locks
Mazda3_8X41-EA-07F_Edition1 Page88
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (89,1)
WARNING
Close the trunk lid, lock the rear
seatbacks and do not allow children to
play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking rear
seats, doors and the trunk, and
keeping the keys where children can
not play with them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk lid.
Knowing Your Mazda
Doors and Locks
3-17
Mazda3_8X41-EA-07F_Edition1 Page89
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (90,1)
Power Windowsí
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
qOperating the Driver's Side
Power Window
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Open Close Driver's window
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
3-18
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda3_8X41-EA-07F_Edition1 Page90
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F
