MAZDA MODEL MAZDASPEED 3 2010 Owners Manual (in English)

Black plate (421,1)

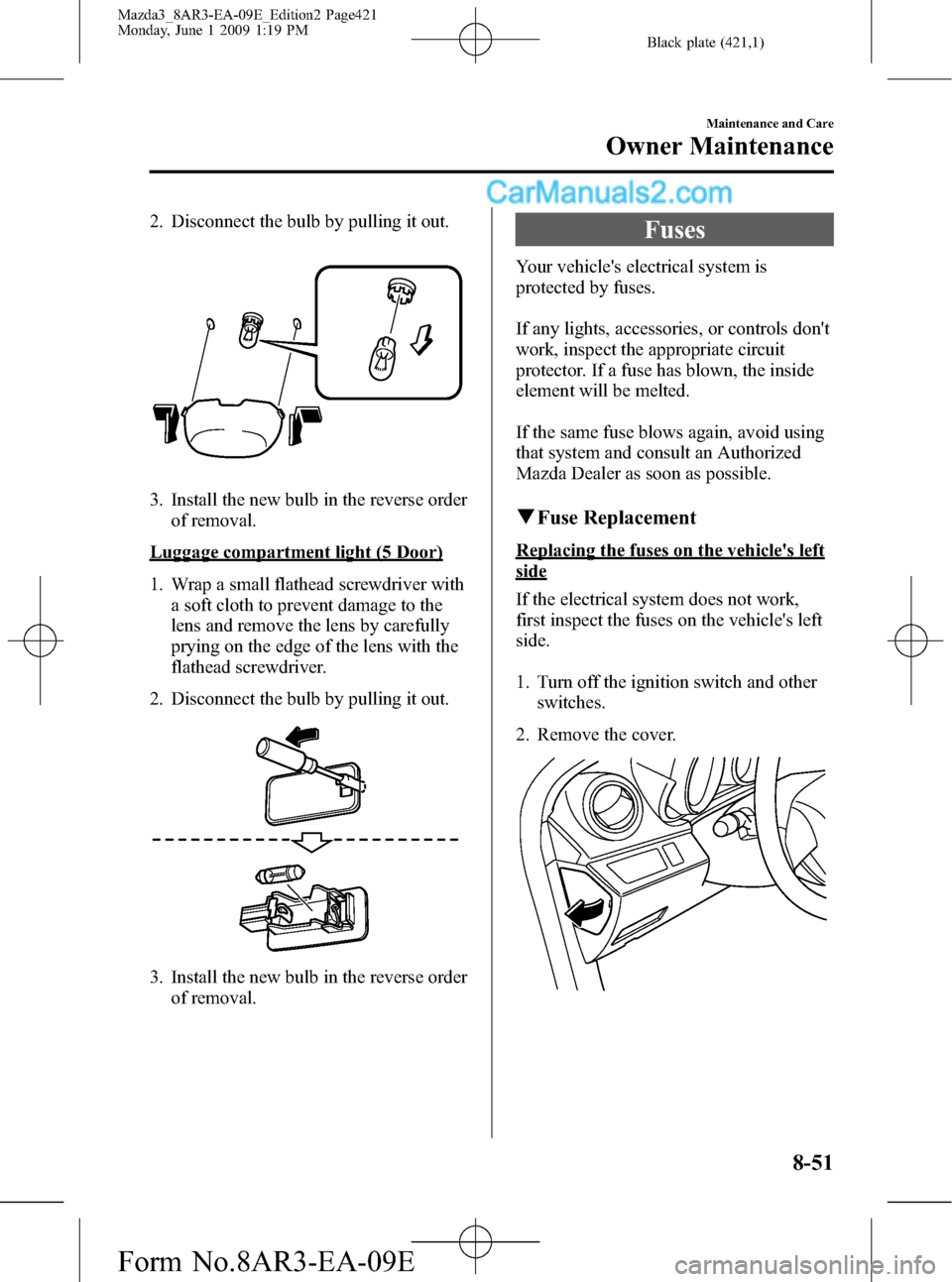

2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Luggage compartment light (5 Door)
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
Maintenance and Care
Owner Maintenance
8-51
Mazda3_8AR3-EA-09E_Edition2 Page421
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (422,1)
3. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
4. Inspect the fuse and replace it if it's
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
8-52
Maintenance and Care
Owner Maintenance
Mazda3_8AR3-EA-09E_Edition2 Page422
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (423,1)

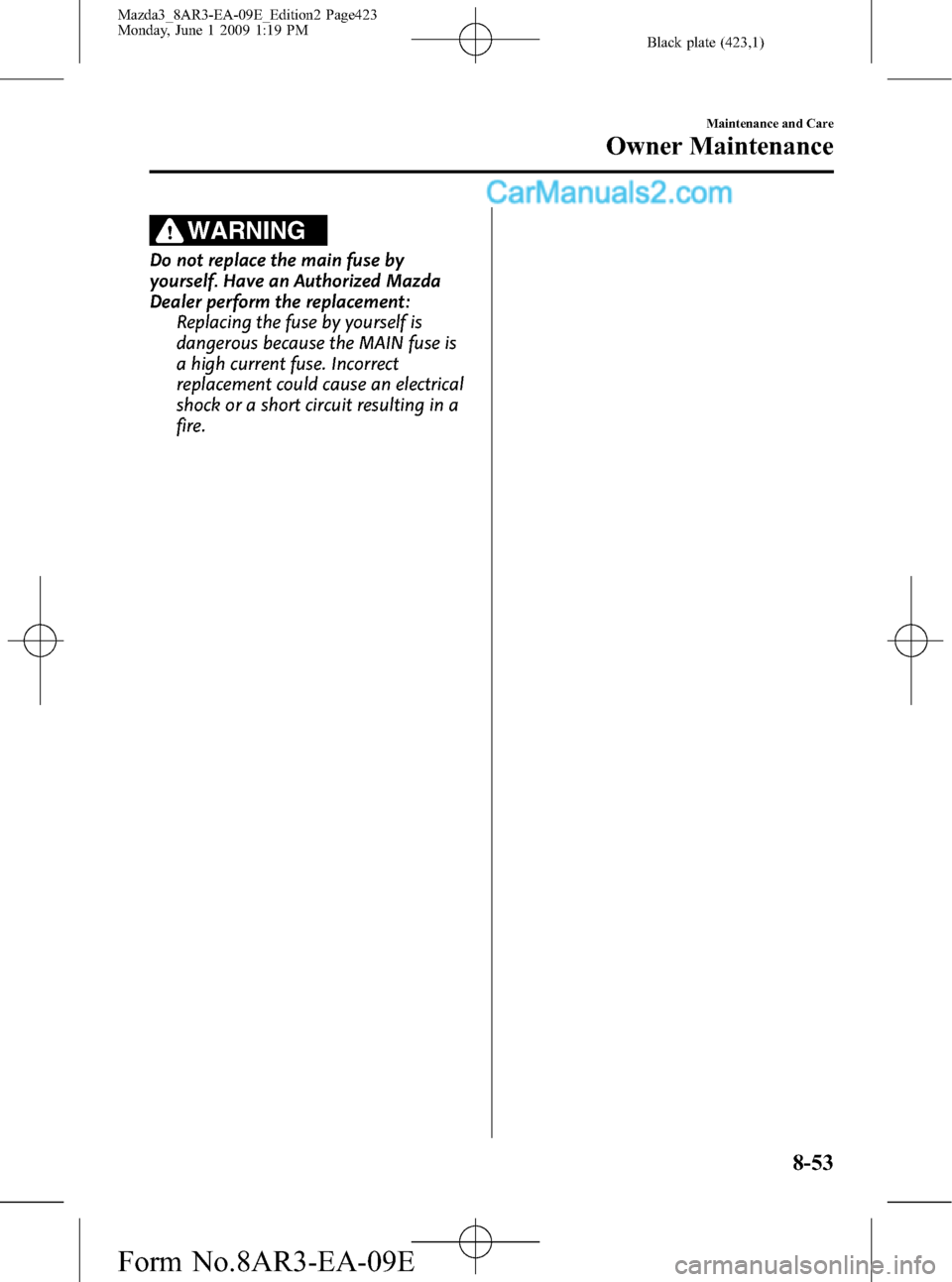

WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Maintenance and Care
Owner Maintenance
8-53
Mazda3_8AR3-EA-09E_Edition2 Page423
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (424,1)
qFuse Panel Description
Fuse block (Engine compartment)
32 33 34 35
36 37 38 39
5 4 1 2 3 678
13 12 14 15 16
22
11 10 9
21 20 19
23 24 25
29 30 3127
28 26 17 18
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 FAN 2 40 A Cooling fan
í
2 ENG MAIN 40 A Engine control system
3 BTN 1 50 A For protection of various circuits
4 A/C MAG 7.5 A Air conditioner
5 H/L HI 20 A Headlight high beam
6 FOG 15 A Fog lights
í
7 H/L WASH――
8 SUNROOF 15 A Moonroofí
9 F.DEF RH――
10 F.DEF LH――
11 FAN 1 40 A Cooling fan
12 ROOM 15 A Interior lights
13 TCM 15 A TCM
í
14 DSC 20 A Dynamic Stability Control systemí
15 BTN 2 7.5 A For protection of various circuits
16 AT PUMP――
17 HEATER 40 A Heater
8-54
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8AR3-EA-09E_Edition2 Page424
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (425,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
18 INJ 30 A Injector
í
19 R.DEF 30 A Rear window defroster
20 IGKEY 2 40 A For protection of various circuits
21 IGKEY 1 40 A For protection of various circuits
22 HORN 15 A Horn
23 STOP 15 A Brake lights
24
10A Engine control system
25 FUEL PUMP 25 A Fuel system
26 ABS 40 A ABS
27 SEAT WARM 20 A Seat warmer
í
28 EHPAS 80 A Electro-Hydraulic Power Assist Steering
29―― ―
30 ABS IG 7.5 A ABS
31―― ―
32 H/L LO RH 15 A Headlight low beam (RH)
33 H/L LO LH 15 A Headlight low beam (LH)
34 ILLUM 7.5 A Dashboard illumination
35 TAIL 15 A Taillights
36 ENG INJ 15 A Engine control system
37 ENG BAR 15 A PCM
38 ENG BAR 2 20 A PCM
39 ETV 15 A Electric throttle valve
Maintenance and Care
Owner Maintenance
8-55íSome models. Mazda3_8AR3-EA-09E_Edition2 Page425
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (426,1)
Fuse block (Passenger's side)
1 4 7 10131619
5 8 11 14 17 20
6 9 12 15 18 21
28 30 22 24 26
29 31 23 25 2732 33 34 2
3
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 BOSE 30 A Bose
®Sound System-equipped modelí
2 P SEAT 30 A Power seatí
3 P.WIND 30 A Power window
4 D LOCK 25 A Door lock motor
5―― ―
6―― ―
7 ESCL 15 A Electronic steering lock
í
8 SAS 15 A Air bag
9―― ―
10 HAZARD 15 A Hazard warning flashers
11 METER 15 A For protection of various circuits
12 OUTLET 15 A Accessory sockets
13 R WIPER 15 A Rear wiper
í
14 CIGAR 15 A Lighter
15―― ―
16 HEATER 10 A Blower motor
17 MIRROR 10 A Power control mirror
18 ST SIG 10 A Starter sig
19―― ―
8-56
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8AR3-EA-09E_Edition2 Page426
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (427,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
20 AUDIO 7.5 A Audio system
21 M.DEF 7.5 A Mirror defroster
í
22 AFS 7.5 A Adaptive Front-Lighting Systemí
23―― ―
24 ENG 20 A Engine control system
25―― ―
26―― ―
27―― ―
28―― ―
29―― ―
30 P.WIND 25 A Power window
31―― ―
32 F WIPER 25 A Windshield wiper and washer
33―― ―
34―― ―
Maintenance and Care
Owner Maintenance
8-57íSome models. Mazda3_8AR3-EA-09E_Edition2 Page427
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (428,1)
How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
8-58
Maintenance and Care
Appearance Care
Mazda3_8AR3-EA-09E_Edition2 Page428
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (429,1)
qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.NOTE
lThe paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of paint
chipping.
lChipped paint can lead to rust forming on
your Mazda. Before this happens, repair the
damage by using Mazda touch-up paint
according to the instructions in this section.
Failure to repair the affected area could
lead to serious rusting and expensive
repairs.
Maintenance and Care
Appearance Care
8-59
Mazda3_8AR3-EA-09E_Edition2 Page429
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (430,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
qMaintaining the Finish
Washing
CAUTION
When the wiper lever is in the AUTO
position and the ignition switch is in
the ON position, the wipers may
move automatically in the following
cases:
ØIf the windshield above the rain
sensor is touched.
ØIf the windshield above the rain
sensor is wiped with a cloth.
ØIf the windshield is struck with a
hand or other object.
ØIf the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing your Mazda, make sure
the wiper lever is in the OFF position.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for scratches
caused by automatic car washes or
improper washing.
lScratches are more noticeable on vehicles
with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDo not use abrasive cleansers or wax
that contain abrasives.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.
8-60
Maintenance and Care
Appearance Care
Mazda3_8AR3-EA-09E_Edition2 Page430
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E
