MAZDA MODEL MAZDASPEED 3 2010 Owners Manual (in English)

Black plate (431,1)
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.When using a high water pressure car
wash
High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is put
too close to the vehicle, the force of the
spray could damage or deform the
molding, affect the sealability of parts,
and allow water to penetrate the interior.
Keep a sufficient space (30 cm or more)
between the nozzle and the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas even if the rest of the
vehicle does not need it.
Maintenance and Care
Appearance Care
8-61
Mazda3_8AR3-EA-09E_Edition2 Page431
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (432,1)
qRepairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced,
make sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
CAUTION
Don't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt.It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
8-62
Maintenance and Care
Appearance Care
Mazda3_8AR3-EA-09E_Edition2 Page432
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (433,1)
qAluminum Wheel Maintenanceí
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lOnly use a mild soap or neutral detergent
and always use a sponge or soft cloth to
clean the wheels.
Rinse thoroughly with lukewarm or cold
water. Also, be sure to clean the wheels
after driving on dusty or salted roads. This
helps prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-33.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather is not uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with adampsoft cloth; then dry
and buff it with adrysoft cloth.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
Maintenance and Care
Appearance Care
8-63íSome models. Mazda3_8AR3-EA-09E_Edition2 Page433
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (434,1)
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Multi information display edge panelí,
Panel beside the multi information
displayí
Multi information display edge panel and
panel beside the multi information display
are fitted with panels that have been
treated with a special coating that resists
scratching.
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels resulting from
the use of a hard brush or cloth may not be
repairable.
Front passenger's side instrument panel
top (soft pad)
lExtremely soft material is used for the
soft pad surface. When cleaning, it is
recommended that you use a clean
towel dampened in a mild detergent to
remove soiling.
lIf the soft pad surface is rubbed
harshly, it could result in the surface
being damaged leaving white scratch
marks.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
Don't scrape or scratch the inside of
the rear window. You may damage
the rear window defroster grid.
8-64
Maintenance and Care
íSome models.
Appearance Care
Mazda3_8AR3-EA-09E_Edition2 Page434
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (435,1)
9Customer Information
Important consumer information including warranties and add-on equipment.
Customer Assistance ............................... 9-2
Customer Assistance (U.S.A.) ............ 9-2
Customer Assistance (Canada) ........... 9-7
Customer Assistance (Puerto Rico) ... 9-10
Customer Assistance (Mexico) ......... 9-11
Mazda Importer/Distributors ............... 9-13
Importer/Distributor .......................... 9-13
Distributor in Each Area ................... 9-13
Warranty ................................................ 9-15
Warranties for Your Mazda ............... 9-15
Outside the United States .................. 9-16
Outside Canada ................................. 9-17
Registering Your Vehicle in A Foreign
Country (Except United States and
Canada) ............................................. 9-18
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Cell Phones ............................................. 9-20
Cell Phones Warning ......................... 9-20
Uniform Tire Quality Grading System
(UTQGS) ................................................ 9-21
Uniform Tire Quality Grading System
(UTQGS) .......................................... 9-21
Tire Information (U.S.A.) ..................... 9-23
Tire Labeling ..................................... 9-23
Location of the Tire Label
(Placard) ............................................ 9-29
Tire Maintenance .............................. 9-32
Vehicle Loading ................................ 9-35
Steps for Determining the Correct Load
Limit: ................................................ 9-41Reporting Safety Defects ....................... 9-42
Reporting Safety Defects (U.S.A.) .... 9-42
Reporting Safety Defects (Canada) ... 9-43
Service Publications .............................. 9-44
Service Publications .......................... 9-44
9-1
Mazda3_8AR3-EA-09E_Edition2 Page435
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (436,1)
Customer Assistance (U.S.A.)
Your complete and permanent satisfaction is our business. We are here to serve you. All
Authorized Mazda Dealers have the knowledge and the tools to keep your Mazda vehicle
in top condition.
If you have any questions or recommendations for improvement regarding the service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we recommend that you take
the following steps:
NOTE
If it becomes necessary to have the components or wiring system for the supplementary restraint
system modified to accommodate a person with certain medical conditions in accordance with a
certified physician, contact an Authorized Mazda Dealer.
qSTEP 1: Contact Your Mazda Dealer
Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to
address the issue.
lIf your concern has not been resolved by the CUSTOMER RELATIONS, SALES,
SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of
the dealership or the OWNER.
lIf it becomes necessary to have the components or wiring system for the supplementary
restraint system modified to accommodate a person with certain medical conditions in
accordance with a certified physician, go to STEP2.
qSTEP 2: Contact Mazda North American Operations
If for any reason you feel the need for further assistance after contacting your dealership
management and it becomes necessary to have the components or wiring system for the
supplementary restraint system modified to accommodate a person with certain medical
conditions in accordance with a certified physician, you can reach Mazda North American
Operations by one of the following ways.
Log on: at www.mazdaUSA.com
Answers to many questions, including how to locate or contact a local Mazda dealership in
the U.S., can be found here.
E-mail: click on“Contact Us”located on the“Inside Mazda”tab, or at the bottom of the
page at www.mazdaUSA.com
By phone at: 1 (800) 222-5500
9-2
Customer Information
Customer Assistance
Mazda3_8AR3-EA-09E_Edition2 Page436
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (437,1)
By letter at:
Attn: Customer Assistance
Mazda North American Operations
7755 Irvine Center Drive
Irvine, CA 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
In order to serve you efficiently and effectively, please help us by providing the following
information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your registration or title or located on
the upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
If you live outside the U.S.A., please contact your nearest Mazda Distributor.
qSTEP 3: Contact Better Business Bureau (BBB)
Mazda North American Operations realizes that mutual agreement on some issues may not
be possible. As a final step to ensure that your concerns are being fairly considered, Mazda
North American Operations has agreed to participate in a dispute settlement program
administered by the Better Business Bureau (BBB) system, at no cost to you the consumer.
BBB AUTO LINE works with consumers and the manufacturer in an attempt to reach a
mutually acceptable resolution of any warranty related concerns. If the BBB is not able to
facilitate a settlement they will provide an informal hearing before an arbitrator.
You are required to resort to BBB AUTO LINE before exercising rights or seeking
remedies under the Federal Magnuson-Moss Warranty Act, 15 U.S.C. § 2301 et seq. To the
extent permitted by the applicable state“Lemon Law”, you are also required to resort to
BBB AUTO LINE before exercising any rights or seeking remedies under the“Lemon
Law”. If you choose to seek remedies that are not created by the Magnuson-Moss Warranty
Act or the applicable state“Lemon Law”, you are not required to first use BBB AUTO
LINE.
Customer Information
Customer Assistance
9-3
Mazda3_8AR3-EA-09E_Edition2 Page437
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (438,1)

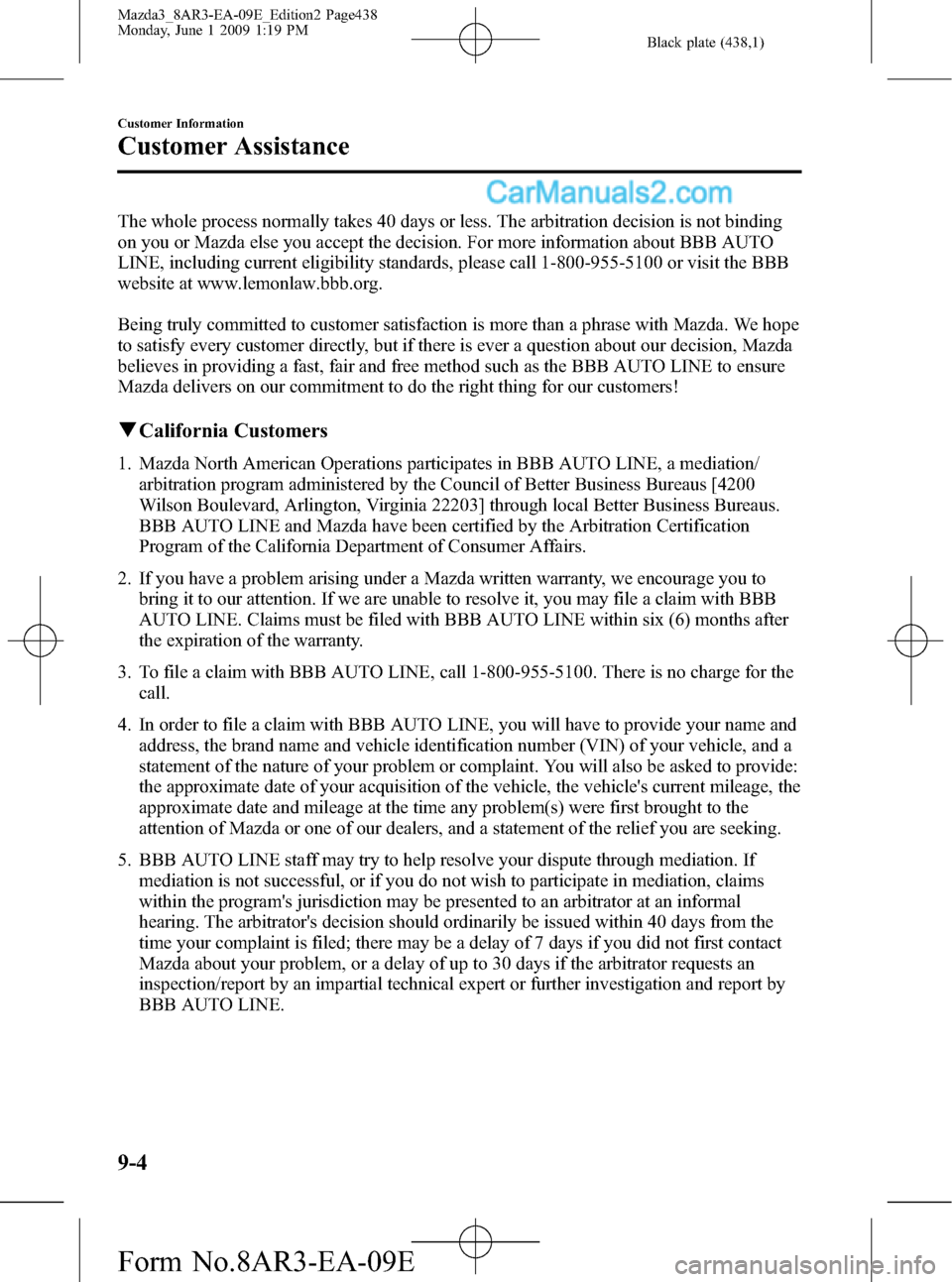

The whole process normally takes 40 days or less. The arbitration decision is not binding
on you or Mazda else you accept the decision. For more information about BBB AUTO
LINE, including current eligibility standards, please call 1-800-955-5100 or visit the BBB
website at www.lemonlaw.bbb.org.
Being truly committed to customer satisfaction is more than a phrase with Mazda. We hope
to satisfy every customer directly, but if there is ever a question about our decision, Mazda
believes in providing a fast, fair and free method such as the BBB AUTO LINE to ensure
Mazda delivers on our commitment to do the right thing for our customers!
qCalifornia Customers
1. Mazda North American Operations participates in BBB AUTO LINE, a mediation/
arbitration program administered by the Council of Better Business Bureaus [4200
Wilson Boulevard, Arlington, Virginia 22203] through local Better Business Bureaus.
BBB AUTO LINE and Mazda have been certified by the Arbitration Certification
Program of the California Department of Consumer Affairs.
2. If you have a problem arising under a Mazda written warranty, we encourage you to
bring it to our attention. If we are unable to resolve it, you may file a claim with BBB
AUTO LINE. Claims must be filed with BBB AUTO LINE within six (6) months after
the expiration of the warranty.
3. To file a claim with BBB AUTO LINE, call 1-800-955-5100. There is no charge for the
call.
4. In order to file a claim with BBB AUTO LINE, you will have to provide your name and
address, the brand name and vehicle identification number (VIN) of your vehicle, and a
statement of the nature of your problem or complaint. You will also be asked to provide:
the approximate date of your acquisition of the vehicle, the vehicle's current mileage, the
approximate date and mileage at the time any problem(s) were first brought to the
attention of Mazda or one of our dealers, and a statement of the relief you are seeking.
5. BBB AUTO LINE staff may try to help resolve your dispute through mediation. If
mediation is not successful, or if you do not wish to participate in mediation, claims
within the program's jurisdiction may be presented to an arbitrator at an informal
hearing. The arbitrator's decision should ordinarily be issued within 40 days from the
time your complaint is filed; there may be a delay of 7 days if you did not first contact
Mazda about your problem, or a delay of up to 30 days if the arbitrator requests an
inspection/report by an impartial technical expert or further investigation and report by
BBB AUTO LINE.
9-4
Customer Information
Customer Assistance
Mazda3_8AR3-EA-09E_Edition2 Page438
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (439,1)
6. You are required to use BBB AUTO LINE before asserting in court any rights or
remedies conferred by California Civil Code Section 1793.22. You are also required to
use BBB AUTO LINE before exercising rights or seeking remedies created by Title I of
the Magnuson-Moss Warranty Act, 15 U.S.C. sec. 2301 et seq. If you choose to seek
redress by pursuing rights and remedies not created by California Civil Code Section
1793.22 or Title I of the Magnuson-Moss Warranty Act, resort to BBB AUTO LINE is
not required by those statutes.
7. California Civil Code Section 1793.2 (d) requires that, if Mazda or its representative is
unable to repair a new motor vehicle to conform to the vehicle's applicable express
warranty after a reasonable number of attempts, Mazda may be required to replace or
repurchase the vehicle. California Civil Code Section 1793.22 (b) creates a presumption
that Mazda has had a reasonable number of attempts to conform the vehicle to its
applicable express warranties if, within 18 months from delivery to the buyer or 18,000
miles on the vehicle's odometer, whichever occurs first, one or more of the following
occurs:
lThe same nonconformity [a failure to conform to the written warranty that
substantially impairs the use, value or safety of the vehicle] results in a condition that
is likely to cause death or serious bodily injury if the vehicle is drivenANDthe
nonconformity has been subject to repair two or more times by Mazda or its agents
ANDthe buyer or lessee has directly notified Mazda of the need for the repair of the
nonconformity; OR
lThe same nonconformity has been subject to repair 4 or more times by Mazda or its
agentsANDthe buyer has notified Mazda of the need for the repair of the
nonconformity; OR
lThe vehicle is out of service by reason of repair of nonconformities by Mazda or its
agents for a cumulative total of more than 30 calendar days after delivery of the
vehicle to the buyer.
NOTICE TO Mazda AS REQUIRED ABOVE SHALL BE SENT TO THE
FOLLOWING ADDRESS:
Mazda North American Operations
7755 Irvine Center Drive
Irvine, CA 92618
ATTN: Customer Mediation
8. The following remedies may be sought in BBB AUTO LINE: repairs, reimbursement
for money paid to repair a vehicle or other expenses incurred as result of a vehicle
nonconformity, repurchase or replacement of your vehicle, and compensation for
damages and remedies available under Mazda's written warranty or applicable law.
9. The following remedies maynotbe sought in BBB AUTO LINE: punitive or multiple
damages, attorneys' fees, or consequential damages other than as provided in California
Civil Code Section 1794 (a) and (b).
Customer Information
Customer Assistance
9-5
Mazda3_8AR3-EA-09E_Edition2 Page439
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (440,1)
10. You may reject the decision issued by a BBB AUTO LINE arbitrator. If you reject the
decision, you will be free to pursue further legal action. The arbitrator's decision and
any findings will be admissible in a court action.
11. If you accept the arbitrator's decision, Mazda will be bound by the decision, and will
comply with the decision within a reasonable time not to exceed 30 days after we
receive notice of your acceptance of the decision.
12. Please call BBB AUTO LINE at 1-800-955-5100 for further details about the program.
9-6
Customer Information
Customer Assistance
Mazda3_8AR3-EA-09E_Edition2 Page440
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E
