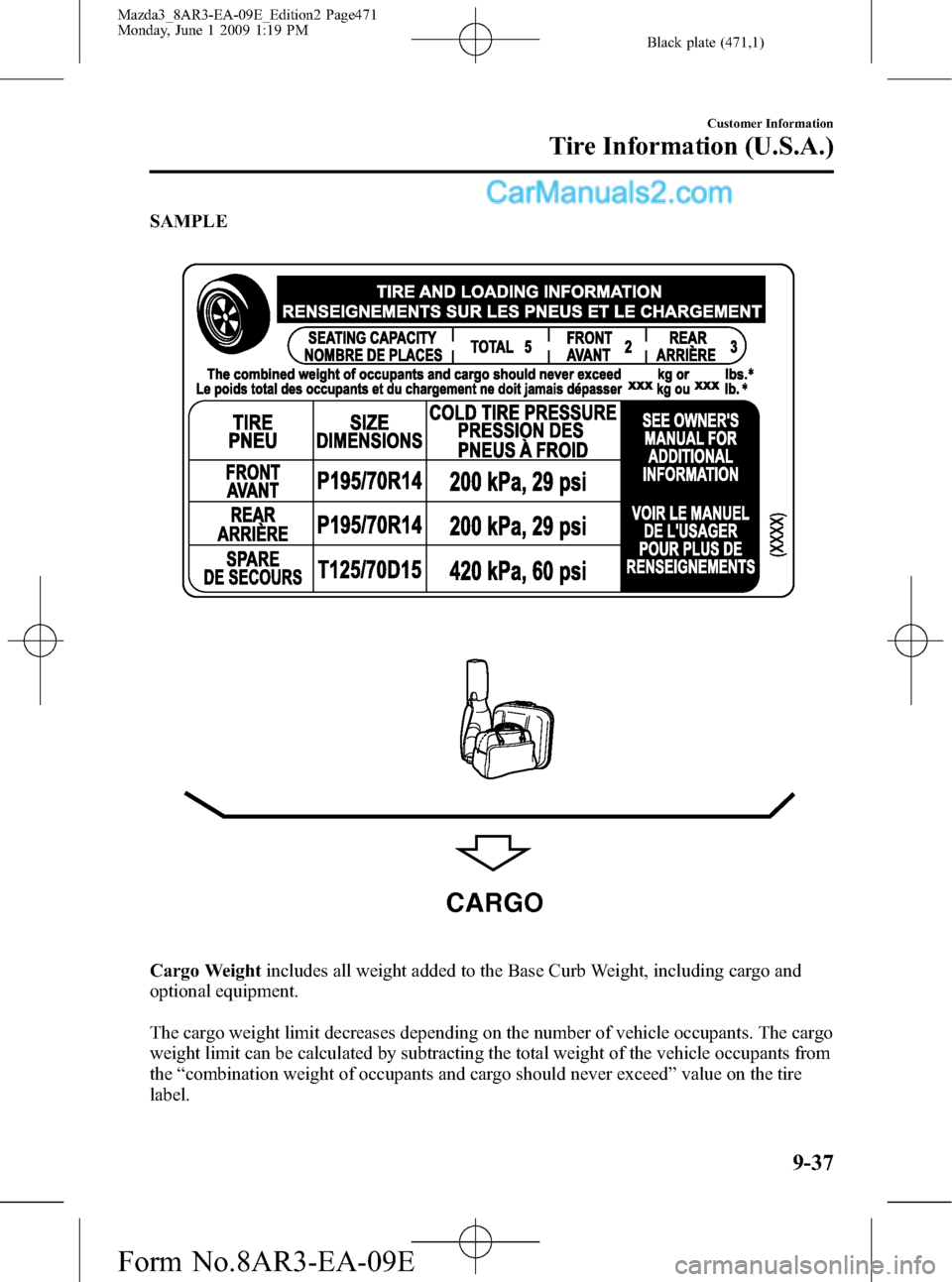

CARGO
Cargo Weightincludes all weight added to the Base Curb Weight, including cargo and
optional equipment.
The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the“combination weight of occupants and cargo should never exceed”value on the tire
label.
Customer Information
Tire Information (U.S.A.)
9-37
Mazda3_8AR3-EA-09E_Edition2 Page471
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (472,1)

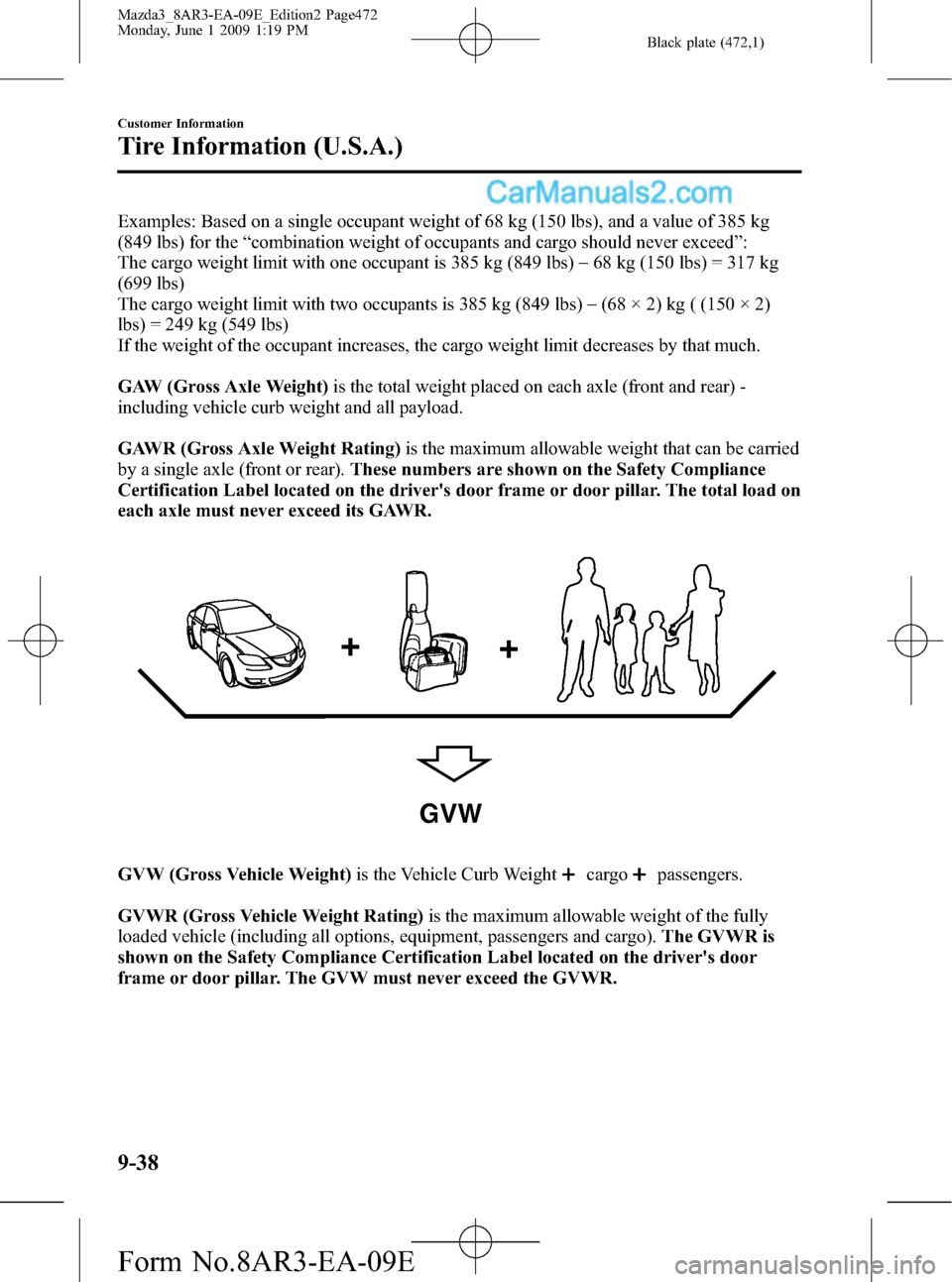

Examples: Based on a single occupant weight of 68 kg (150 lbs), and a value of 385 kg
(849 lbs) for the“combination weight of occupants and cargo should never exceed”:
The cargo weight limit with one occupant is 385 kg (849 lbs)_
68 kg (150 lbs) = 317 kg
(699 lbs)
The cargo weight limit with two occupants is 385 kg (849 lbs)_
(68 × 2) kg ( (150 × 2)
lbs) = 249 kg (549 lbs)
If the weight of the occupant increases, the cargo weight limit decreases by that much.
GAW (Gross Axle Weight)is the total weight placed on each axle (front and rear) -
including vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating)is the maximum allowable weight that can be carried
by a single axle (front or rear).These numbers are shown on the Safety Compliance
Certification Label located on the driver's door frame or door pillar. The total load on
each axle must never exceed its GAWR.
GVW
GVW (Gross Vehicle Weight)is the Vehicle Curb Weightcargopassengers.
GVWR (Gross Vehicle Weight Rating)is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers and cargo).The GVWR is
shown on the Safety Compliance Certification Label located on the driver's door
frame or door pillar. The GVW must never exceed the GVWR.
9-38
Customer Information
Tire Information (U.S.A.)
Mazda3_8AR3-EA-09E_Edition2 Page472
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (473,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not tow a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
Customer Information
Tire Information (U.S.A.)
9-39
Mazda3_8AR3-EA-09E_Edition2 Page473
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (474,1)
GCW
GCW (Gross Combination Weight)is the weight of the loaded vehicle (GVW).
GCWR (Gross Combination Weight Rating)is the maximum allowable weight of the
vehicle - including all cargo and passengers - that the vehicle can handle without risking
damage.The GCW must never exceed the GCWR.
WARNING
Exceeding GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the certification label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement
tires with a higher limit than the originals do not increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR specified on the certification label.
9-40
Customer Information
Tire Information (U.S.A.)
Mazda3_8AR3-EA-09E_Edition2 Page474
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (475,1)
Steps for Determining the Correct Load Limit:
Steps for Determining Correct Load Limit:
(1) Locate the statement“The combined weight of occupants and cargo should
never exceed XXX kg or XXX lbs”on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be
riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg
or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load
capacity. For example, if the“XXX”amount equals 1400 lbs. and there
will be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400_
750 (5 × 150) = 650
lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the
vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step 4.
Customer Information
Tire Information (U.S.A.)
9-41
Mazda3_8AR3-EA-09E_Edition2 Page475
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (476,1)

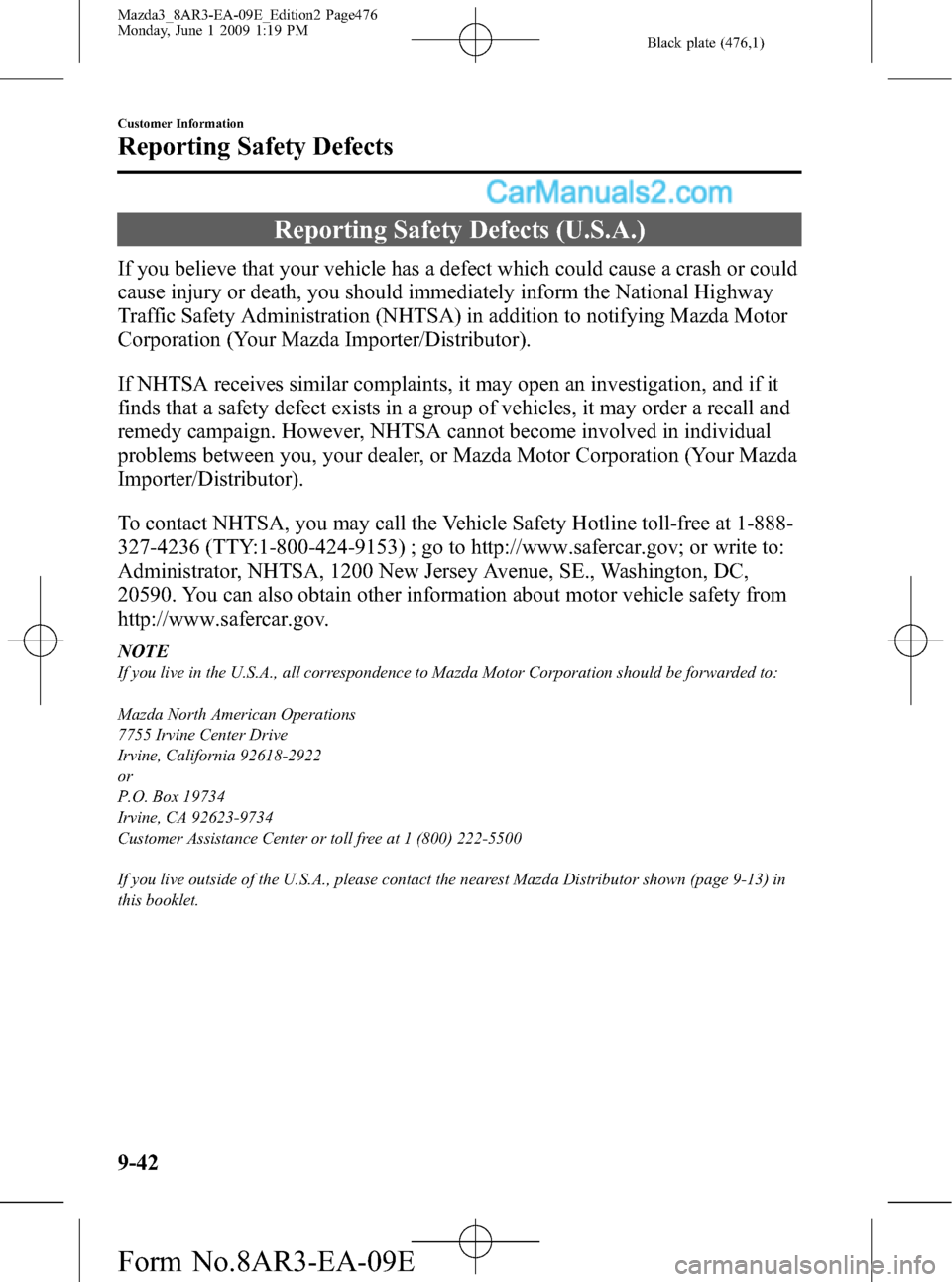

Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY:1-800-424-9153) ; go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey Avenue, SE., Washington, DC,
20590. You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be forwarded to:
Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
or
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown (page 9-13) in
this booklet.
9-42
Customer Information
Reporting Safety Defects
Mazda3_8AR3-EA-09E_Edition2 Page476
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (477,1)
Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information
Reporting Safety Defects
9-43
Mazda3_8AR3-EA-09E_Edition2 Page477
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (478,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-017B-10 2010 WORKSHOP MANUAL (English)
9999-MX-017B-10 2010 WORKSHOP MANUAL (Spanish)
9999-95-019G-10 2010 WIRING DIAGRAM (English)
9999-MX-019G-10 2010 WIRING DIAGRAM (Spanish)
9999-EC-038C-10R3 (U.S.A. only) 2010 OWNER'S MANUAL
9999-95-038C-10R3 (Canada only) 2010 OWNER'S MANUAL
9999-PR-038C-10R3 (Puerto Rico, Mexico only) 2010 OWNER'S MANUAL
9999-95-064F-10 2010 SERVICE HIGHLIGHTS
9999-95-038C-10NAV (U.S.A. only) 2010 NAVIGATION SYSTEM OWNER'S MANUAL
9999-EC-038C-10NAV (Canada only) 2010 NAVIGATION SYSTEM OWNER'S MANUAL
9999-PR-038C-10NAV (Puerto Rico, Mexico only) 2010 NAVIGATION SYSTEM OWNER'S MANUAL
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
9-44
Customer Information
Service Publications
Mazda3_8AR3-EA-09E_Edition2 Page478
Monday, June 1 2009 1:19 PM
Form No.8AR3-EA-09E

Black plate (479,1)

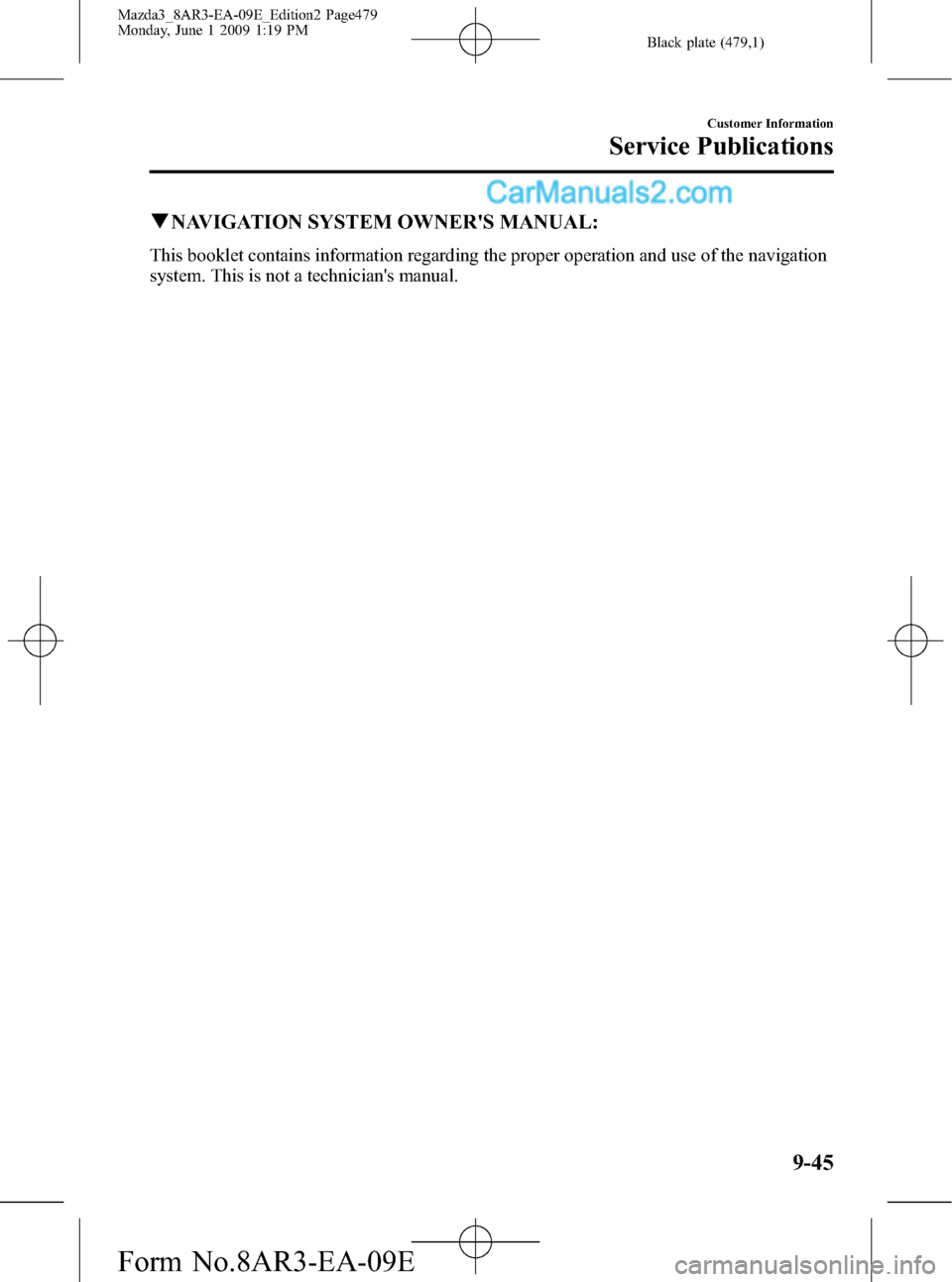

qNAVIGATION SYSTEM OWNER'S MANUAL:
