qAdvanced Key Maintenance
CAUTION
ØMake sure the battery is installed
with the correct pole facing
upward. Battery leakage could
occur if it is not installed correctly.
ØWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could be
damaged.
ØThere is the danger of explosion if
the battery is not correctly
replaced.
ØReplace only with the same type
battery (CR2025 or equivalent).
ØDispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire or water.
ØNever deform or crush.
The following conditions indicate that the
battery power is low:
lThe KEY indicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is turned off.
lThe system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.
lThe system's operational range is
reduced.Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the advanced key. If replacing
the battery by yourself, follow the
instruction below.
Replacing the advanced key battery
1. Pull out the auxiliary key.
2. Insert a flathead screwdriver into the
groove shown in the figure and rotate
the screwdriver to open the cover
slightly.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-5
Mazda3_8BM5-EA-10F_Edition2 Page81
Monday, July 26 2010 1:52 PM
Form No.8BM5-EA-10F

Black plate (82,1)
3. Insert the flathead screwdriver into the
gap between the cover and the
transmitter, and then rotate the
screwdriver to detach the cover.
4. Remove the battery cap, then remove
the battery.
5. Insert a new battery with the positive
pole facing up, and then cover the
battery with the battery cap.
6. Close the cover.
7. Reinsert the auxiliary key.
3-6
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8BM5-EA-10F_Edition2 Page82
Monday, July 26 2010 1:52 PM
Form No.8BM5-EA-10F

Black plate (83,1)
CAUTION
ØBe careful not to allow the rubber
ring shown in the figure to be
scratched or damaged.
ØIf the rubber ring detaches,
reattach it before inserting a new
battery.
Rubber ring
qService
If you have a problem with the advanced
keyless functions, consult an Authorized
Mazda Dealer.
If your advanced key is lost or stolen,
bring all remaining advanced keys to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen advanced key
inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Operation Using Advanced
Keyless Functions
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the advanced key is being
carried.
NOTE
When the battery power is low, or in places
where there are high-intensity radio waves or
noise, the operational range may become
narrower or the system may not operate.
Locking, unlocking the doors and the
liftgate
The operational range for locking/
unlocking the doors and the liftgate is an
area of up to 80 cm (31 in) from the center
of the front door handles.
The operational range for locking the
doors and the liftgate is within a
maximum radius of 80 cm (31 in) from
the center of the liftgate.
4 door
Operational range Exterior transmitter
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-7
Mazda3_8BM5-EA-10F_Edition2 Page83
Monday, July 26 2010 1:52 PM
Form No.8BM5-EA-10F

Black plate (84,1)

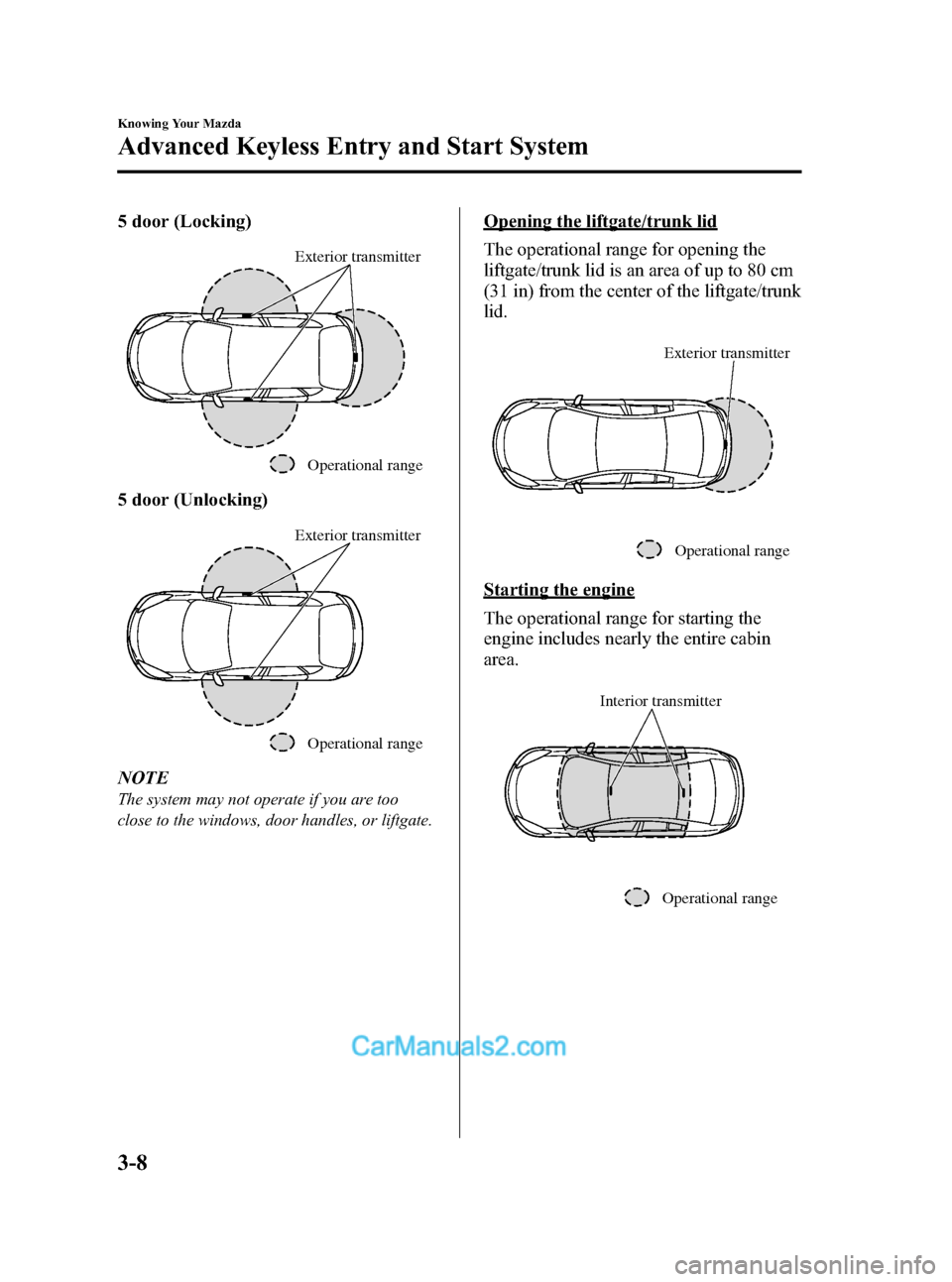

5 door (Locking)
Operational range Exterior transmitter
5 door (Unlocking)
Operational range Exterior transmitter
NOTE
The system may not operate if you are too
close to the windows, door handles, or liftgate.
Opening the liftgate/trunk lid
The operational range for opening the
liftgate/trunk lid is an area of up to 80 cm
(31 in) from the center of the liftgate/trunk
lid.
Operational range Exterior transmitter
Starting the engine
The operational range for starting the
engine includes nearly the entire cabin
area.
Operational range Interior transmitter
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8BM5-EA-10F_Edition2 Page84
Monday, July 26 2010 1:52 PM
Form No.8BM5-EA-10F

Black plate (85,1)
NOTElThe luggage compartment/trunk is out of
the operational range, however, starting the
engine may be possible.
lThe engine may not start if the advanced
key is placed in the following areas:
lAround the dashboardlIn the storage compartments such as the
glove box
lOn the rear parcel shelf(4 door)lStarting the engine may be possible even if
the advanced key is outside of the vehicle
and extremely close to a door and window,
however, always start the engine from the
driver's seat.
If the vehicle is started and driven away
while the advanced key is not in the vehicle,
the vehicle will not restart after it is turned
off and the ignition is switched off.
lIf the advanced key is detected within
operational range, the operation indicator
light on the transmitter flashes
momentarily.
qLocking, Unlocking with Request
Switch
All doors and the liftgate can be locked/
unlocked by pressing the request switch
on the front doors or the liftgate while the
advanced key is being carried.
Front doors
Request switch
Liftgate (Lock only)
Request switch
To lock
To lock the doors and the liftgate, press
the request switch. A beep sound will be
heard once and the hazard warning lights
will flash once.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash once to
indicate that the doors and the liftgate are
locked.
(With theft-deterrent system)
The hazard warning lights flash when the theft
deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before the
theft-deterrent system is properly armed.
When the doors are locked by pressing the
request switch on the front doors while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate that
the system is armed.
Refer to the theft-deterrent system on page
3-61.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
Mazda3_8BM5-EA-10F_Edition2 Page85
Monday, July 26 2010 1:52 PM
Form No.8BM5-EA-10F

Black plate (86,1)
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors and the liftgate, press
the request switch again within 5 seconds
and two more beep sounds will be heard.
Front passenger door request switch
To unlock the doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
NOTE
lConfirm that all doors and the liftgate are
securely locked.
lAll doors and the liftgate cannot be locked
when any door or the liftgate is open.
lA beep sound is heard for confirmation
when the doors and the liftgate are locked/
unlocked using the request switch. If you
prefer, the beep sound can be turned off
(page 10-12).
lThe setting can be changed so that the
doors and the liftgate are locked
automatically without pressing the request
switch (page 10-12).
(Auto-lock function)
A beep sound is heard when all doors and
the liftgate are closed while the advanced
key is being carried. All doors and the
liftgate are locked automatically after about
3 seconds when the advanced key is out of
the operational range. Also, the hazard
warning lights flash once. (Even if the
driver is in the operational range, all doors
and the liftgate are locked automatically
after about 30 seconds.)
If you are out of the operational range
before the doors and the liftgate are
completely closed or another advanced key
is left in the vehicle, the auto-lock function
will not work. Always make sure that all
doors and the liftgate are closed and locked
before leaving the vehicle.
l(Auto re-lock function)
After unlocking all doors and the liftgate by
pressing the request switch, all doors and
the liftgate will automatically lock if any of
the following operations are not performed
within about 30 seconds. If your vehicle has
a theft-deterrent system, the hazard
warning lights will flash for confirmation.
lA door or the liftgate/trunk lid is opened.lThe auxiliary key is inserted into the key
slot.
lThe push button start is in any position
except off.
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8BM5-EA-10F_Edition2 Page86
Monday, July 26 2010 1:52 PM
Form No.8BM5-EA-10F

Black plate (87,1)
qOpening the Liftgate/Trunk Lid
A locked liftgate/trunk lid can also be
opened while the advanced key is being
carried.
5 Door
Grasp the lower end of the liftgate, press
the electric liftgate opener on the liftgate,
and then raise the liftgate when the latch
releases.
Electric liftgate
opener
NOTE
When the liftgate is unlocked by pressing the
electric liftgate opener button, the liftgate
raises slightly to allow it to be opened. If the
liftgate is not operated for a certain period of
time after the electric liftgate opener button
has been pressed, the liftgate cannot be raised
any more from its slightly raised position.
Press the electric liftgate opener button again
to fully open the liftgate. To close the liftgate
from its slightly raised position, open it first by
pressing the electric liftgate opener button and
wait for 1 second or longer, then close it.
The door-ajar warning light will illuminate if
the liftgate is not fully closed.
4 Door
Raise the trunk lid by pressing the electric
trunk lid opener on trunk lid.
Electric trunk
lid opener
While the ignition is switched ON, the
liftgate/trunk lid can be opened only when
the vehicle is stopped with the parking
brake applied (manual transaxle), or with
the selector lever in the P position
(automatic transaxle).
NOTE
When using the advanced keyless function to
open the liftgate/trunk lid, it may require a few
seconds for the liftgate/trunk lid to unlock after
the electric liftgate/trunk lid opener is pressed.
The liftgate/trunk lid can be closed when
the doors are locked with the advanced
key left in the vehicle. However, to
prevent leaving the advanced key in the
vehicle, the liftgate/trunk lid can be
opened by pressing the electric liftgate/
trunk lid opener.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
Mazda3_8BM5-EA-10F_Edition2 Page87
Monday, July 26 2010 1:52 PM
Form No.8BM5-EA-10F

Black plate (88,1)
qStarting the Engine
Locking the steering wheel
If the electronic steering lock warning
light is flashing and the beep sound is
heard, this indicates that the steering
wheel is not unlocked. To unlock the
steering wheel, jiggle the steering wheel
from side to side while pressing the push
button start.
Ignition positions
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.
Indicator light Indicator
light (ACC)Indicator
light (ON)
NOTElThe order in which the ignition is switched
can be changed.
Refer to Personalization Features on page
10-12.
lThe engine starts by pressing the push
button start while depressing the clutch
pedal (manual transaxle) or the brake
pedal (automatic transaxle). To switch the
ignition position, press the push button start
without depressing the pedal.
lDo not leave the ignition switched ON
while the engine is not running. Doing so
could result in the battery going dead. If the
ignition is left in ACC (For automatic
transaxle, the shift lever is in the P position,
and the ignition is in ACC), the ignition
switches off automatically after one hour.
The setting can be changed to not switch
the ignition off automatically.
Refer to Personalization Features on page
10-12.
Off
The power supply to electrical devices
turns off and the push button start
indicator lights (ACC and ON) also turn
off.
3-12
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8BM5-EA-10F_Edition2 Page88
Monday, July 26 2010 1:52 PM
Form No.8BM5-EA-10F

Black plate (89,1)
WARNING
Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the shift lever is
in P (automatic transaxle) or in 1st gear
or R (manual transaxle):
Leaving the driver's seat without
switching the ignition off, setting the
parking brake, and shifting the shift
lever to P (automatic transaxle) or to
1st gear or R (manual transaxle) is
dangerous. Unexpected vehicle
movement could occur which could
result in an accident.
In addition, if your intention is to
leave the vehicle for even a short
period, it is important to switch the
ignition off, as leaving it in another
position will disable some of the
vehicle's security systems and run the
battery down.
ACC (Accessory)
Some electrical accessories will operate
and the indicator light (ACC) illuminates.
In addition, for vehicles equipped with the
steering column lock function, the
steering wheel unlocks.
NOTE
The advanced keyless entry system does not
function while the push button start has been
pressed to ACC, and the doors will not lock/
unlock even if they have been locked manually.
ON
This is the normal running position after
the engine is started. The indicator light
(ON) turns off. (The indicator light (ON)
illuminates when the ignition is switched
ON and the engine is not running.)
The warning lights (except brakes) should
be inspected before the engine is started
(page 5-41).
NOTE
(With headlight auto-leveling)
When the push button start is pressed to the
ON position, the sound of the headlight
leveling motors operating at the front of the
engine compartment can be heard. This does
not indicate an abnormality.
Starting the engine
NOTE
lThe advanced key must be carried because
the advanced key carries an immobilizer
chip that must communicate with the engine
controls at short range.
lThe engine can be started when the push
button start is pressed from off, ACC, or
ON.
1. Make sure you are carrying the
advanced key.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Continue to press the brake pedal
firmly until the engine has completely
started.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
Mazda3_8BM5-EA-10F_Edition2 Page89
Monday, July 26 2010 1:52 PM
Form No.8BM5-EA-10F

Black plate (90,1)
5.(Manual transaxle)
Continue to press the clutch pedal
firmly until the engine has completely
started.
(Automatic transaxle)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transaxle)
The starter will not operate if the clutch pedal
is not depressed sufficiently.
(Automatic transaxle)
The starter will not operate if the shift lever is
not in P or N and the brake pedal is not
depressed sufficiently.
6. Verify that the KEY indicator light
(green) in the instrument cluster and
the push button start indicator light
(green) illuminate. If the KEY indicator
light (green) does not illuminate, make
sure that the advanced key is being
carried. If the KEY indicator light
(green) does not illuminate while the
advanced key is being carried, you may
have to use the auxiliary key to start
the engine instead (page 3-25).
CAUTION
If the KEY warning light (red)
illuminates, and the push button
start indicator light (red) illuminates,
this could indicate a problem with
the engine starting system and the
inability to start the engine or switch
the ignition to ACC or ON. Have your
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8BM5-EA-10F_Edition2 Page90
Monday, July 26 2010 1:52 PM
Form No.8BM5-EA-10F
