Black plate (121,1)
Theft-Deterrent System
The theft-deterrent system is designed to
prevent your vehicle or its contents from
being stolen when all doors, hood, and
trunk lid are locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.
NOTE
lThe theft-deterrent system operates
with the key or the keyless entry
system transmitter.
l(With advanced key)
The theft-deterrent system can also
be operated using a request switch or
the start knob.
The system operates only when the
driver is in the vehicle or within
operational range while the advanced
key is being carried.
lThe system will not function unless
it is properly armed. To properly
secure the vehicle, always make sure
all windows are completely closed
and all doors and the trunk lid are
locked before leaving the vehicle.
Remember to take your key and
transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 25
seconds when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
trunk lid.
lUnlocking a door with the inside door-
lock knob.
lOpening the hood by operating the
hood release handle.
If the system is triggered again, the lights
and horn will activate until a door or the
trunk lid is unlocked with the key or with
the transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing a request switch.
qHow to Arm the System
1. Remove the key from the ignition
switch.
(With advanced key)
Turn the start knob to the LOCK
position.
2. Make sure the hood is closed. Close
and lock all doors and the trunk lid
from the outside using the key or press
the lock button on your keyless entry
system transmitter.
(With advanced key)
Press a request switch or the lock
button on the transmitter.
The hazard warning lights will flash
once to indicate that the system is
armed.
(Without advanced key)
The following method will also arm the
theft-deterrent system:
Close the hood and the trunk lid . Press
the area on the door-lock switch
marked“LOCK”once. Close all doors.
NOTE
Locking the doors with the inside door-
lock knob will not arm the system.
Knowing Your Mazda
Security System
3-53
Mazdaspeed6_8U01-EA-05H_Edition1 Page121
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (122,1)
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door or the trunk lid with the
key.
lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
l(With advanced key)
lPress a request switch or the unlock
button on the transmitter.
lTurn the start knob to the ON
position.
The hazard warning lights will flash twice
to indicate that the system is turned off.
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door or the trunk lid with the
key.
lPress the unlock button on the keyless
entry system transmitter.
l(With advanced key)
lPress a request switch.lPress the unlock button on the
transmitter.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized
Mazda Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove box.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-54
Knowing Your Mazda
Security System
Mazdaspeed6_8U01-EA-05H_Edition1 Page122
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (123,1)
Steering Wheel
WARNING
Adjusting the Steering Wheel:
Adjusting the steering wheel while the
vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident. Never adjust the
steering wheel while the vehicle is
moving.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, pull down the lock
release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust the
steering column length to the desired
positions, push the lever up to lock the
column.
3. Push the wheel up and down to be
certain it's locked before driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
WARNING
Convex Mirror (Passenger Side):
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder before
changing lanes.
Power control mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Press the left or right side of the
selector switch to choose the left or
right side mirror.
2. Depress the mirror switch in the
appropriate direction.
Outside mirrorSelector switch
Mirror switch
Knowing Your Mazda
Steering Wheel and Mirrors
3-55
Mazdaspeed6_8U01-EA-05H_Edition1 Page123
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (124,1)
After adjusting the mirror, lock the control
by placing the selector switch in the
middle position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the outside
mirrors to the driving position before
you start driving.
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-40).
qRearview Mirror
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Reducing glare from headlights
Do this with the day/night lever in the day
position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night DayDay/Night lever
3-56
Knowing Your Mazda
íSome models.
Steering Wheel and Mirrors
Mazdaspeed6_8U01-EA-05H_Edition1 Page124
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

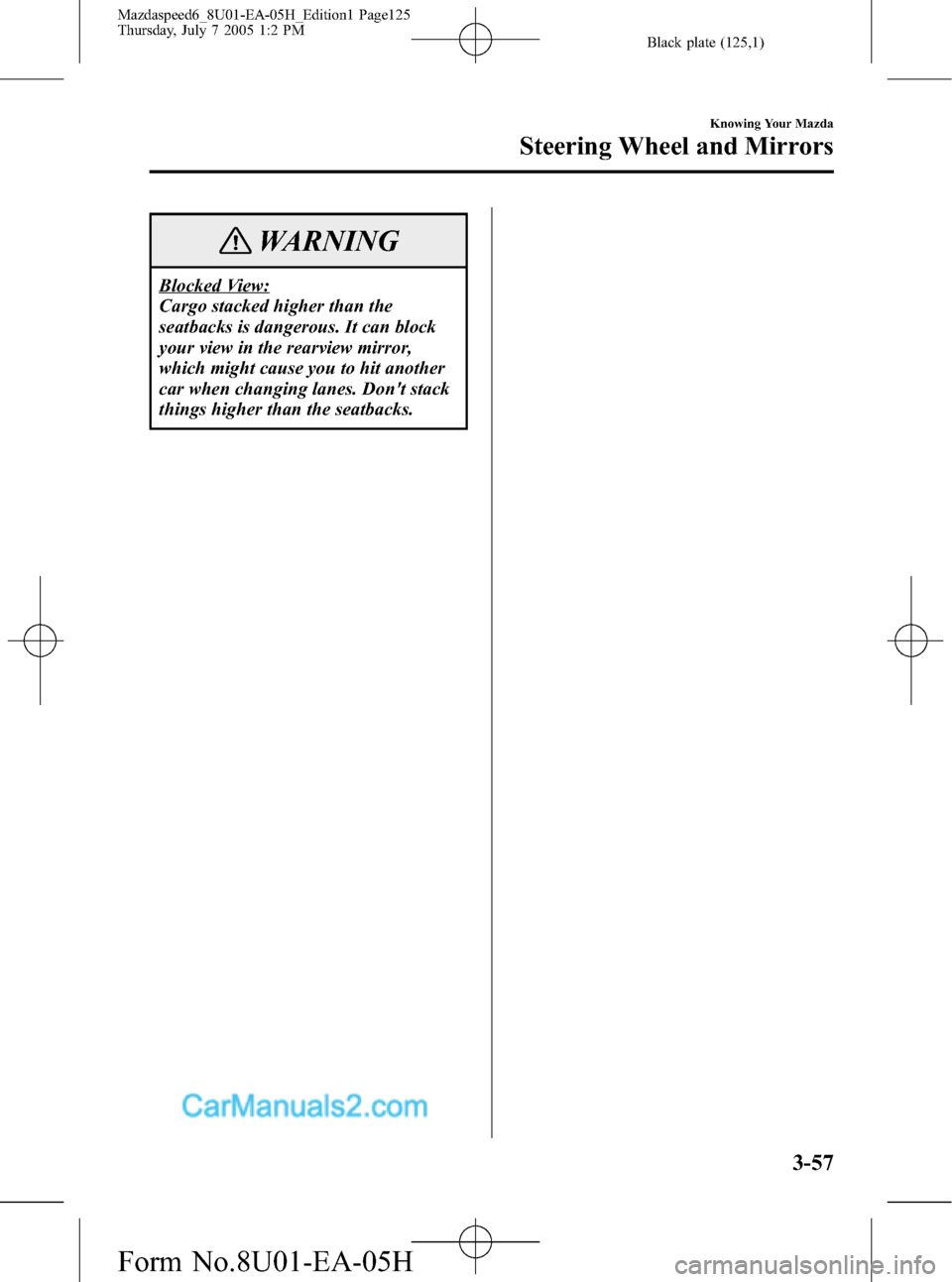

Black plate (125,1)
WARNING
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don't stack
things higher than the seatbacks.
Knowing Your Mazda
Steering Wheel and Mirrors
3-57
Mazdaspeed6_8U01-EA-05H_Edition1 Page125
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (126,1)
3-58
Mazdaspeed6_8U01-EA-05H_Edition1 Page126
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (127,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2
Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-3
Engine Exhaust (Carbon Monoxide) ......................................... 4-5
Before Starting the Engine ........................................................... 4-6
Before Getting In ...................................................................... 4-6
After Getting In ......................................................................... 4-6
Driving Tips ................................................................................... 4-7
Break-In Period ......................................................................... 4-7
Money-Saving Suggestions ...................................................... 4-7
Hazardous Driving .................................................................... 4-8
Rocking the Vehicle .................................................................. 4-8
Winter Driving .......................................................................... 4-9
Driving In Flooded Area ......................................................... 4-10
Overloading ............................................................................ 4-10
Turbocharger Information ....................................................... 4-11
Towing ......................................................................................... 4-12
Trailer Towing ......................................................................... 4-12
4-1
Mazdaspeed6_8U01-EA-05H_Edition1 Page127
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (128,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
Fuel Octane Rating*(Anti-knock index)
Premium unleaded fuel 93 [(R+M)/2 method] or above (98 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
This vehicle is designed to use 93 [ (R+M)/2 method] (98RON) or higher gasoline for best
performance. If 93 [ (R+M)/2 method] (98RON) is not available, 91 or 92 [ (R+M)/2
method] (96 or 97RON) gasoline can be used. In case 91 or 92 [ (R+M)/2 method] (96 or
97RON) is not available, gasoline as low as 87 [ (R+M)/2method] (91RON) can be used
temporarily for emergency purposes. Use of gasoline lower than 93 [ (R+M)/2 method]
(98RON) can decrease performance during its use.
CAUTION
lUSE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter or the oxygen sensor. The lead will
accumulate on the oxygen sensor and the catalyst inside the converter. This will result
in a malfunction of the emission control system, causing poor performance.
lYour vehicle can only use oxygenated fuels containing no more than 10% ethanol by
volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of any
kind if your vehicle engine is performing poorly.
lNever add fuel system additives. Never add cleaning agents other than those specified
by Mazda. Other cleaning agents and additives may damage the system. Consult an
Authorized Mazda Dealer.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name“Gasohol”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10% ethanol.
lGasoline or gasohol containing methanol.
lLeaded fuel or leaded gasohol.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazdaspeed6_8U01-EA-05H_Edition1 Page128
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (129,1)
Emission Control System
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
WARNING
Parking Over Flammable Objects:
Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system could ignite it because the exhaust system
gets very hot during normal use. A resulting fire could cause serious injury or death.
Never park over or near anything flammable.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst inside
the converter or cause the converter to get very hot. Either condition will damage the
converter and cause poor performance.
lUSE ONLY UNLEADED FUEL.
lDon't drive your Mazda with any sign of engine malfunction.
lDon't coast with the ignition switch turned off.
lDon't descend steep grades in gear with the ignition switch turned off.
lDon't operate the engine at high idle for more than 2 minutes.
lDon't tamper with the emission control system. All inspections and adjustments must
be made by a qualified technician.
lDon't push-start or pull-start your vehicle.
NOTE
Under U.S. federal law, any modification to the original-equipment emission control
system before the first sale and registration of a vehicle is subject to penalties. In some
states, such modification made on a used vehicle is also subject to penalties.
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
4-3
Mazdaspeed6_8U01-EA-05H_Edition1 Page129
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (130,1)
NOTE
While the engine is off, the sound of a valve opening and closing can be heard at the rear
of the vehicle, however this does not indicate an abnormality. Your vehicle has a self-
checking device and it operates while the engine is off.
4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazdaspeed6_8U01-EA-05H_Edition1 Page130
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H
