Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals don't work when the
hazard warning lights are on.
lCheck local regulations about the use
of hazard warning lights while the
vehicle is being towed. They may
forbid it.
5-42
Driving Your Mazda
Switches and Controls
Mazdaspeed6_8V77-EA-06F_Edition1 Page180
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (181,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2
Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Control Panel ............................................................................ 6-5
Audio System ............................................................................... 6-10
Antenna ................................................................................... 6-10
Operating Tips for Audio System ........................................... 6-10
Audio Set ................................................................................ 6-21
Audio Control Switch Operation (Steering Wheel) ................ 6-37
Safety Certification ................................................................. 6-39
Interior Equipment ..................................................................... 6-40
Sunvisors ................................................................................. 6-40
Interior Lights ......................................................................... 6-40
Information Display ................................................................ 6-43
Lighter ..................................................................................... 6-45
Ashtray .................................................................................... 6-46
Cup Holder .............................................................................. 6-47
Bottle Holder ........................................................................... 6-48
Storage Compartments ............................................................ 6-49
Accessory Sockets .................................................................. 6-51
6-1
Mazdaspeed6_8V77-EA-06F_Edition1 Page181
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (182,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with
the ignition switch in the ACC position
when the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along
with the heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
Mazdaspeed6_8V77-EA-06F_Edition1 Page182
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (183,1)
Vent Operation
qAdjusting the Vents
Directing airflow
1. Press the upper part of the air vent to
open it.
2. Rotate the air vent left and right to
adjust the direction of airflow.
NOTE
When using the air conditioner, mist
may come out from the vents. This is
not a sign of trouble but a result of
humid air being suddenly cooled.
Interior Comfort
Climate Control System
6-3
Mazdaspeed6_8V77-EA-06F_Edition1 Page183
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (184,1)
qSelecting the Airflow Mode
Defroster and Floor Vents Dashboard Vents
Floor VentsDefroster Vents Dashboard and Floor Vents
6-4
Interior Comfort
Climate Control System
Mazdaspeed6_8V77-EA-06F_Edition1 Page184
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (185,1)
Control Panel
Climate control information is displayed on the information display.
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperature
lAmount of airflow
lSelection of airflow mode
lOutside/Recirculated air selection
lAir conditioner operation
NOTE
AUTO switch indicator light
lWhen on, it indicates AUTO
operation, and the system will
function automatically.
lWhen off, it indicates the operation
of other switches such as the mode
selector switch, fan control dial, A/C
switch and windshield defroster
switch. Other functions will continue
to operate automatically.
Interior Comfort
Climate Control System
6-5
Mazdaspeed6_8V77-EA-06F_Edition1 Page185
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (186,1)
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Hot Cold
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Fast Slow
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
lWith the airflow mode set to
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and a
comparably lower air temperature
will flow through the central, left and
right vents.
lTo set the air vent to, press the
windshield defroster switch.
A/C switch
With the AUTO or fan control dial ON,
press the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off.
6-6
Interior Comfort
Climate Control System
Mazdaspeed6_8V77-EA-06F_Edition1 Page186
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (187,1)

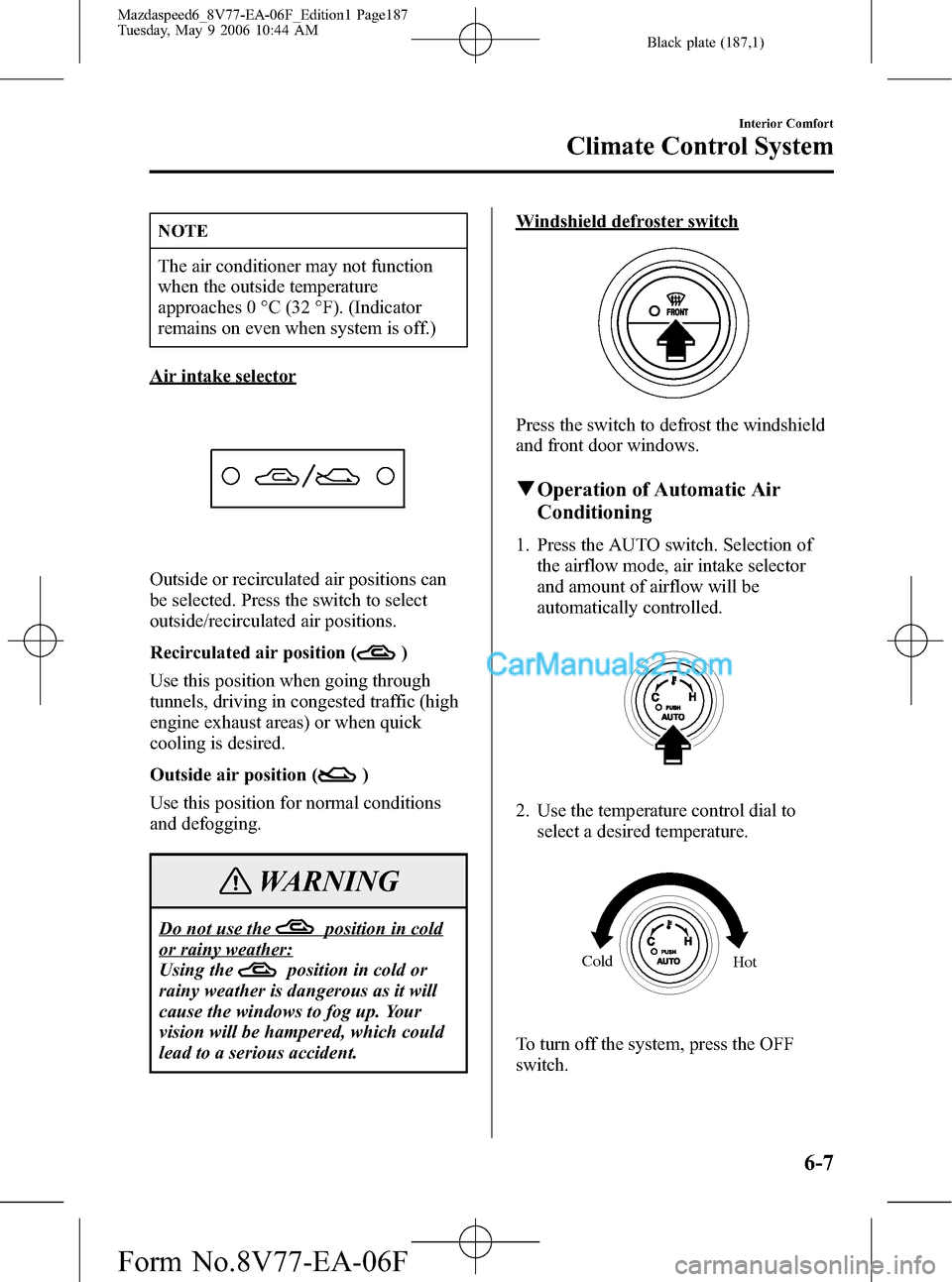

NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F). (Indicator
remains on even when system is off.)
Air intake selector
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.
Recirculated air position (
)
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position (
)
Use this position for normal conditions
and defogging.
WARNING
Do not use theposition in cold
or rainy weather:
Using the
position in cold or
rainy weather is dangerous as it will
cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.
qOperation of Automatic Air
Conditioning
1. Press the AUTO switch. Selection of
the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.
2. Use the temperature control dial to
select a desired temperature.
Hot Cold
To turn off the system, press the OFF
switch.
Interior Comfort
Climate Control System
6-7
Mazdaspeed6_8V77-EA-06F_Edition1 Page187
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (188,1)
NOTE
lSetting the temperature to maximum
high or low will not provide the
desired temperature at a faster rate.
lWhen selecting heat, the system will
restrict airflow until it has warmed to
prevent cold air from blowing out of
the vents.
qWindshield Defrosting and Defogging
Press the windshield defroster switch.
In this position, the
position is
automatically selected, and the air
conditioner automatically turns on
(however, the indicator light does not
illuminate). The air conditioner will
directly dehumidify the air to the front
windshield and side windows (page 6-4).
Airflow amount will be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging (
position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog up.
Your vision will be hampered, which
could lead to a serious accident.
NOTE
Use the temperature control dial to
increase the air flow temperature and
defog the windshield more quickly.
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and sunlight. It then sets
temperatures inside the passenger
compartment accordingly.
CAUTION
Do not obstruct either sensor, otherwise
the automatic air conditioner will not
operate properly.
6-8
Interior Comfort
Climate Control System
Mazdaspeed6_8V77-EA-06F_Edition1 Page188
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (189,1)
Sunlight sensor
Interior temperature sensor
Interior Comfort
Climate Control System
6-9
