MAZDA MODEL MAZDASPEED 6 2007 Owners Manual (in English)

Black plate (220,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
The vanity mirror light will illuminate
when you open the cover.
Interior Lights
qIlluminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) and the courtesy
lights turn on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition
switch is in the LOCK position (with
the ignition key removed).
lAbout 15 seconds after all doors are
closed (If your vehicle is equipped with
the advanced key, the overhead light
turns on for about 5 seconds when the
advanced key is outside of the vehicle).
lAbout 15 seconds after the ignition
switch is in the LOCK position (with
the ignition key removed) with all
doors closed.
The light also turns off when:
lThe ignition switch is turned to the ON
position and all doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light goes
out after about 30 minutes to save the
battery.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
6-40
Interior Comfort
Interior Equipment
Mazdaspeed6_8V77-EA-06F_Edition1 Page220
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (221,1)

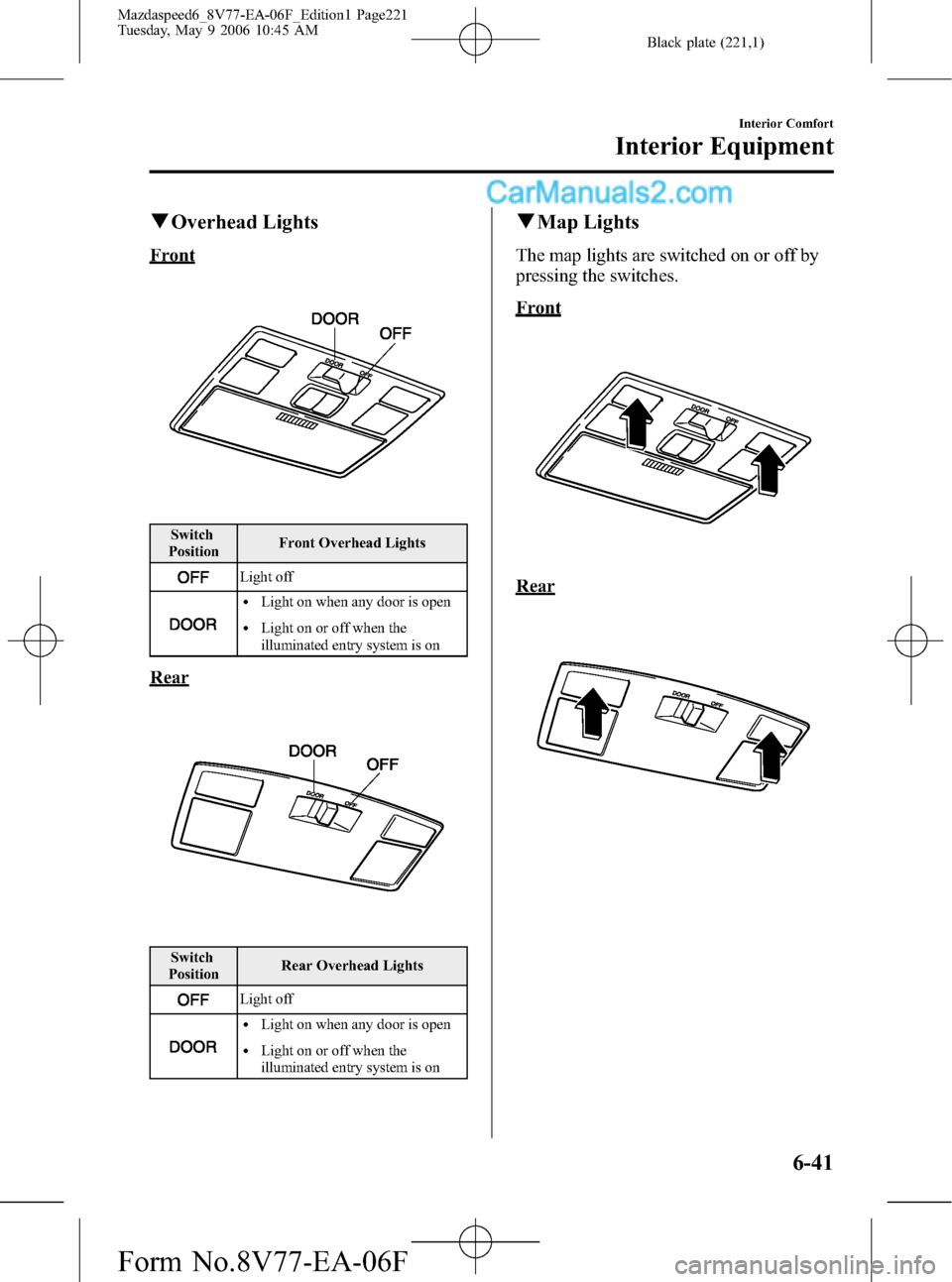

qOverhead Lights
Front
Switch
PositionFront Overhead Lights
Light off
lLight on when any door is open
lLight on or off when the
illuminated entry system is on
Rear
Switch
PositionRear Overhead Lights
Light off
lLight on when any door is open
lLight on or off when the
illuminated entry system is on
qMap Lights
The map lights are switched on or off by
pressing the switches.
Front
Rear
Interior Comfort
Interior Equipment
6-41
Mazdaspeed6_8V77-EA-06F_Edition1 Page221
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (222,1)

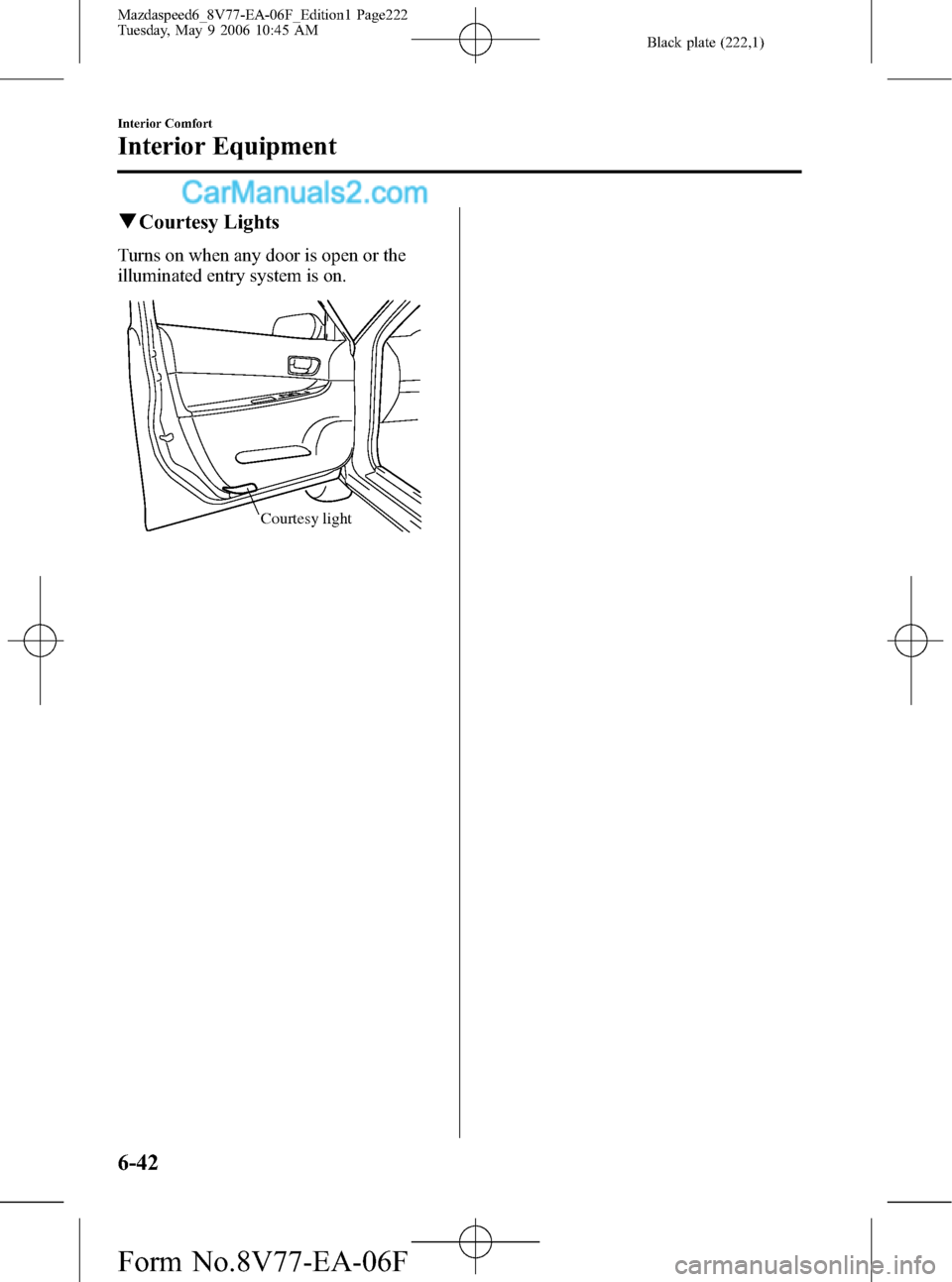

qCourtesy Lights
Turns on when any door is open or the
illuminated entry system is on.
Courtesy light
6-42
Interior Comfort
Interior Equipment
Mazdaspeed6_8V77-EA-06F_Edition1 Page222
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (223,1)
Information Display
OPEN/CLOSE switch (with navigation system)
AMB switch (with outside temperature display )
TILT switch (with navigation system)
CLOCK/CLK switch
SET switch
qInformation Display Functions
The information display has the following functions:
lClock
lAmbient Temperature Display (Outside Temperature Display)
lClimate Control Display
lAudio Display
Interior Comfort
Interior Equipment
6-43
Mazdaspeed6_8V77-EA-06F_Edition1 Page223
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (224,1)
qClock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Press the CLOCK/CLK switch until a
beep sounds, and“12Hr”and“24Hr”
will be displayed.
2. Press the SET switch to switch between
“12Hr”and“24Hr”displays. The
selected display will flash.
To select the desired clock setting,
press the CLOCK/CLK switch again
while the preferred setting is flashing.
3.“Hr. ADJUST”will be displayed next,
and the hour portion of the display will
flash. Press the SET switch to set the
hour, then press the CLOCK/CLK
switch.
4.“Min. ADJUST”will be displayed
next, and the minutes portion of the
display will flash. Press the SET switch
to set the minutes, then press the
CLOCK/CLK switch.
Time resetting
While the clock is displayed, press the
SET switch 1.5 seconds or more. When
the switch is released, a beep will sound
and the clock will be reset as follows:
(Example)
12:01―12:29→12:00
12:30―12:59→1:00
NOTE
When the SET switch is released, the
seconds are reset to“00”.
qAmbient Temperature Display
When the ignition switch is in the ON
position, press the AMB switch to display
the ambient temperature.
6-44
Interior Comfort
Interior Equipment
Mazdaspeed6_8V77-EA-06F_Edition1 Page224
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (225,1)
NOTE
lUnder the following conditions, the
ambient temperature display may
differ from the actual ambient
temperature depending on the
surroundings and vehicle conditions:
lSignificantly cold or hot
temperatures.
lSudden changes in ambient
temperature.
lThe vehicle is parked.lThe vehicle is driven at low
speeds.
lPress the AMB switch 2 seconds or
more to switch the display from
Fahrenheit to Centigrade or vice
versa.
lPress the AMB switch again to
switch the display from ambient
temperature to the temperature set
for the air conditioner.
qClimate Control Display
The climate control system status is
displayed. To operate the climate control
system, refer to“Climate Control System”
(page 6-2).
qAudio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System”(page 6-10).
Lighter
The ignition switch must be in the ACC
or ON position.
1. Open the cover.
2. Press the lighter in and release it. When
ready for use, it automatically pops out.
Interior Comfort
Interior Equipment
6-45
Mazdaspeed6_8V77-EA-06F_Edition1 Page225
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (226,1)

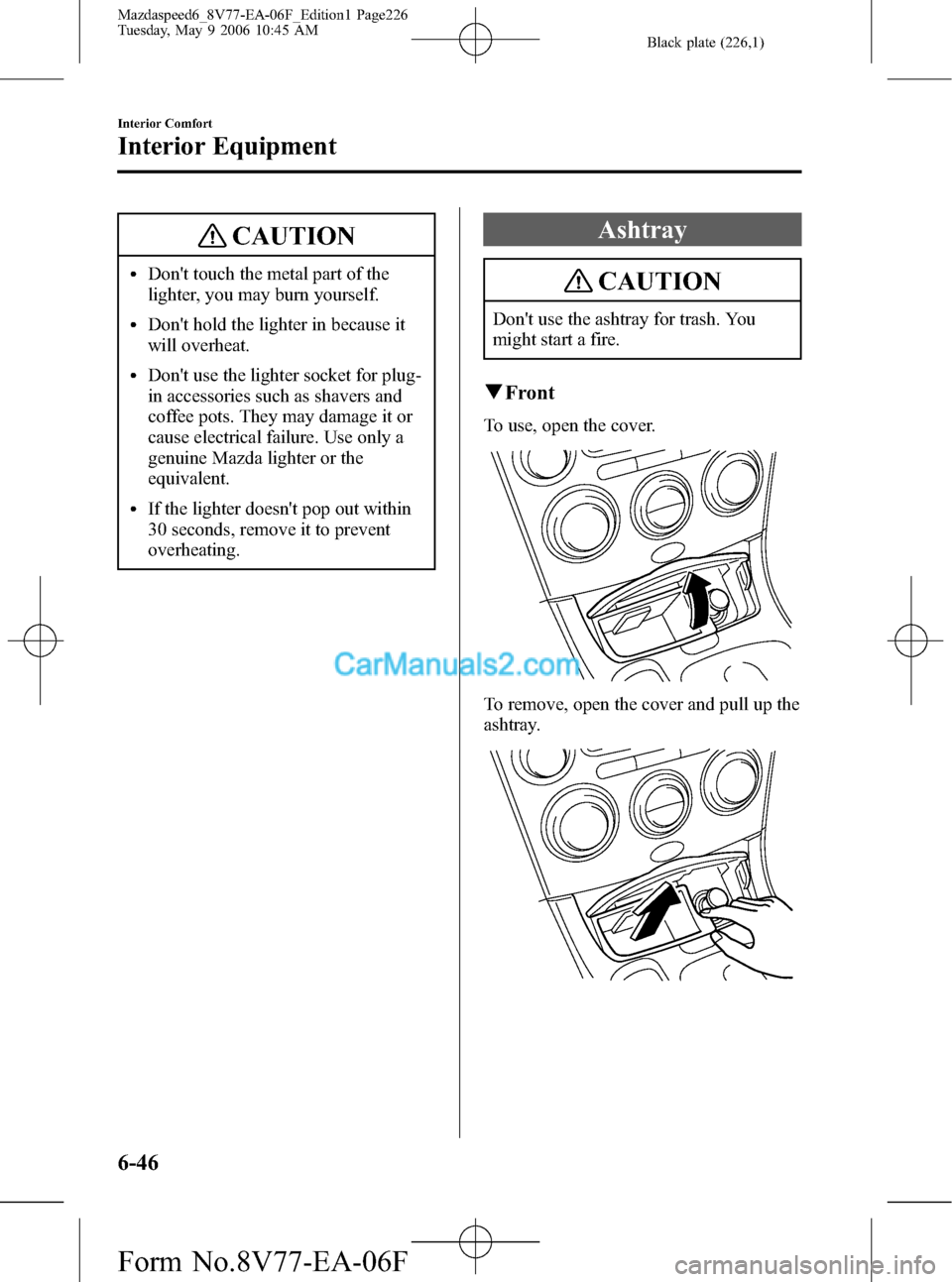

CAUTION
lDon't touch the metal part of the
lighter, you may burn yourself.
lDon't hold the lighter in because it
will overheat.
lDon't use the lighter socket for plug-
in accessories such as shavers and
coffee pots. They may damage it or
cause electrical failure. Use only a
genuine Mazda lighter or the
equivalent.
lIf the lighter doesn't pop out within
30 seconds, remove it to prevent
overheating.
Ashtray
CAUTION
Don't use the ashtray for trash. You
might start a fire.
qFront
To use, open the cover.
To remove, open the cover and pull up the
ashtray.
6-46
Interior Comfort
Interior Equipment
Mazdaspeed6_8V77-EA-06F_Edition1 Page226
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (227,1)
qRear
To remove, open the ashtray lid, grasp
both sides of the ashtray and pull it out.
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups
or drink cans in cup holders:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.
Interior Comfort
Interior Equipment
6-47
Mazdaspeed6_8V77-EA-06F_Edition1 Page227
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (228,1)
qFront
To use the cup holder, open the center
console by pressing the lower center part
of its cover.
qRear
The rear cup holder is on the rear center
armrest.
Bottle Holder
Bottle holders are on the inside of the
front doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
6-48
Interior Comfort
Interior Equipment
Mazdaspeed6_8V77-EA-06F_Edition1 Page228
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (229,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
qOverhead Console
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
qStorage Pocket
To open, push the release catch down and
pull the lid downward.
qCenter Box with Lid (Without
Navigation System)
To use, pull the knob, and the lid opens
automatically.
Knob
Interior Comfort
Interior Equipment
6-49
Mazdaspeed6_8V77-EA-06F_Edition1 Page229
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F
