Black plate (99,1)
Trunk Lid
WARNING
Never allow a person to ride in the
trunk:
Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously injured
or killed during sudden braking or a
collision.
Keep the trunk closed when driving:
Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death.
qLocking, Unlocking with Key
To lock the trunk lid, insert the master key
into the key slot and turn it
counterclockwise, then return it to the
center position and remove it.
Lock
Unlock
To unlock the trunk lid, insert the master
key into the key slot and turn it clockwise,
then return it to the center position and
remove it.
The trunk lid can be locked/unlocked by
inserting the key into the driver's door key
slot, refer to Power Door Locks (page
3-27).
qLocking, Unlocking with Request
Switch (with Advanced Key)
The trunk lid can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The trunk lid can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The trunk lid can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-21).
qLocking, Unlocking with Door-
Lock Switch
The trunk lid can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-27).
Knowing Your Mazda
Doors and Locks
3-29
Mazdaspeed6_8V77-EA-06F_Edition1 Page99
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

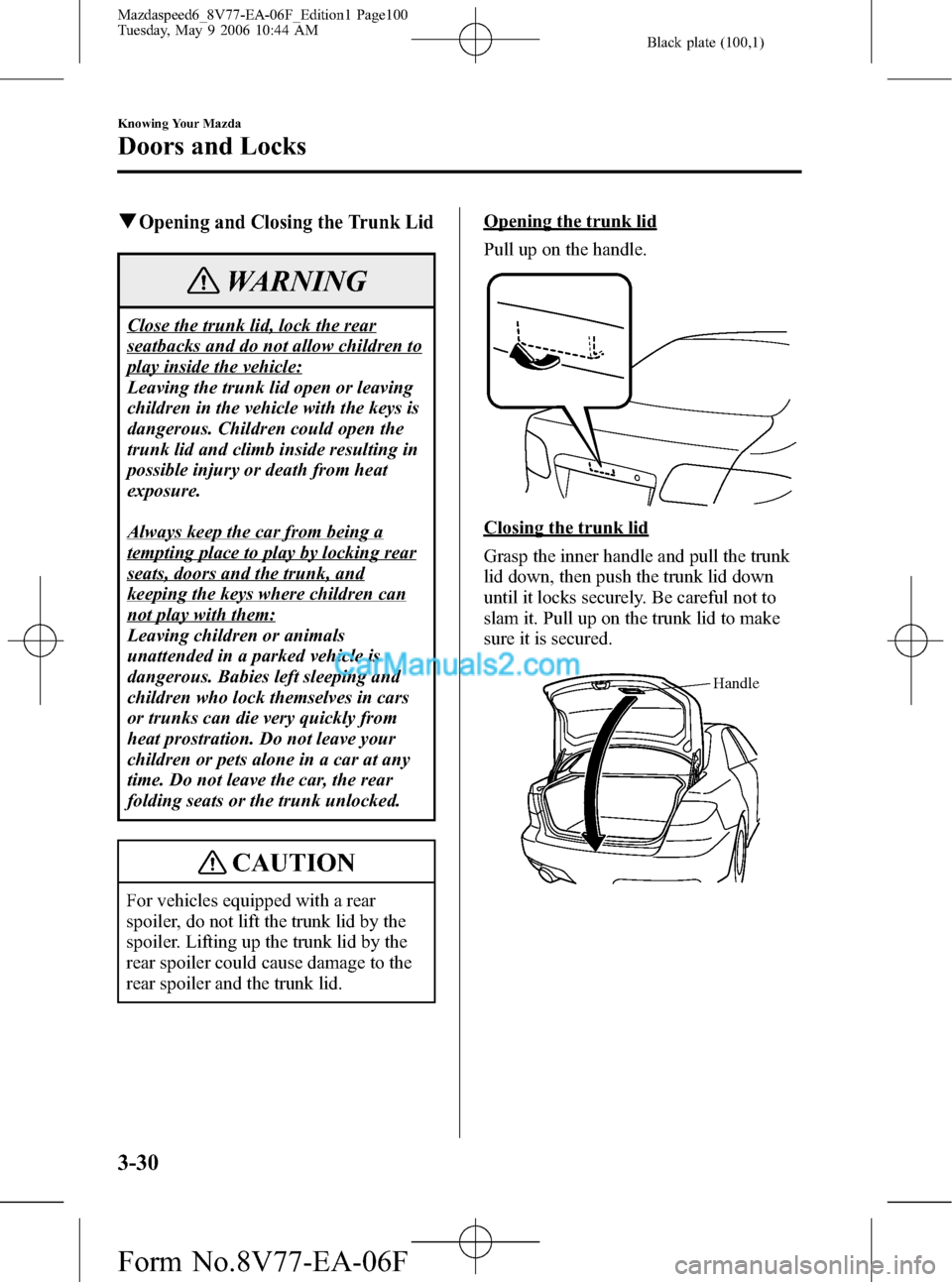

Black plate (100,1)
qOpening and Closing the Trunk Lid
WARNING
Close the trunk lid, lock the rear
seatbacks and do not allow children to
play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking rear
seats, doors and the trunk, and
keeping the keys where children can
not play with them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
CAUTION
For vehicles equipped with a rear
spoiler, do not lift the trunk lid by the
spoiler. Lifting up the trunk lid by the
rear spoiler could cause damage to the
rear spoiler and the trunk lid.
Opening the trunk lid
Pull up on the handle.
Closing the trunk lid
Grasp the inner handle and pull the trunk
lid down, then push the trunk lid down
until it locks securely. Be careful not to
slam it. Pull up on the trunk lid to make
sure it is secured.
Handle
3-30
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8V77-EA-06F_Edition1 Page100
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (101,1)
qTrunk Security
In some situations you may want to
prevent the trunk from being unlocked
when the doors are unlocked with the key.
If you must leave your Mazda with
another person, such as a parking
attendant, protect valuables in the trunk
by locking the trunk with the master key,
or the request switch (with advanced key)
on the trunk lid and giving the other
person only the valet key, which does not
open the trunk.
With master key
To secure the trunk lid, close the trunk,
insert the master key and turn it
counterclockwise. Remove the key.
To cancel the security feature, insert the
master key into the lock, turn the key
clockwise to the center position and
remove it.
With request switch (with advanced
key)
NOTE
The trunk lid cannot be secured when
any door or the trunk lid is open.
To secure the trunk lid, press the request
switch on the trunk lid for about 3
seconds. This will lock only the trunk lid.
Request switch
To cancel the security feature, press the
request switch on the trunk lid for about 3
seconds again.
Knowing Your Mazda
Doors and Locks
3-31
Mazdaspeed6_8V77-EA-06F_Edition1 Page101
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (102,1)
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles don't have such levers.
3-32
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8V77-EA-06F_Edition1 Page102
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (103,1)
WARNING
Close the trunk lid and do not allow
children to play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking
doors and the trunk, and keeping the
keys where children can not play with
them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car or the trunk
unlocked.
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk lid.
Open
Knowing Your Mazda
Doors and Locks
3-33
Mazdaspeed6_8V77-EA-06F_Edition1 Page103
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (108,1)
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
NOTE
When the power window lock switch is
in the locked position, the light on each
power window switch, except for the
driver's power window switch, turns
off. The light may be difficult to see
depending on the surrounding
brightness.
qOpening/Closing the Power
Windows from Outside
All power windows can be opened or
closed from outside the vehicle after the
doors and the trunk lid are closed.
The power windows may be operated
when the power window lock switch on
the driver's door is in the lock or unlocked
position.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children.
NOTE
lThe power windows cannot be
opened or closed from outside the
vehicle under the following
condition:
lA door or the trunk lid is opened.lThe key is inserted into the
ignition switch.
l(With advanced key)
The start knob is pushed into the
ignition switch.
lThe power windows may not close
completely under the following
conditions:
lThe vehicle battery is weak
(starter motor is too weak to start
the engine).
lExtreme cold conditions.
If the power windows cannot be
closed completely, operate each
power window switch from inside
the vehicle. After closing the
windows from outside the vehicle,
verify that they are completely
closed.
3-38
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8V77-EA-06F_Edition1 Page108
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (109,1)
Auto-Opening
Because nobody likes getting into a very
hot car, we have introduced a way to get a
head start on cooling it, even before you
put your seat belts on and insert your key
in the ignition. If you see the vehicle is in
a secure area, you can open the all
windows as you approach the vehicle to
get the air moving before you even step
into the hot vehicle.
WARNING
Use the auto-window function only
when you can see the vehicle and it is
in a secure area:
Do not let children play with your
keys. If they open the window without
your knowing, the open windows are
an even bigger invitation to a thief
than leaving the doors unlocked.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
With unlock button (Keyless entry
system)
Press and hold the unlock button on the
transmitter. After the doors and the trunk
lid are unlocked, the windows fully open
automatically.Advanced key
Panic button
Unlock buttonLock button
Retractable type key
Lock button
Unlock button
Panic button
To stop this operation, press the unlock
button.
NOTE
lThe window opening operation also
can be stopped by pressing the lock
button or panic button. However,
pressing these buttons will operate
their functions.
lThe lock button cannot be used to
close the power windows.
With key
1. Insert the key in the driver's door key
cylinder.
Knowing Your Mazda
Doors and Locks
3-39
Mazdaspeed6_8V77-EA-06F_Edition1 Page109
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (110,1)
2. Turn the key toward the front and hold
it. After the doors and the trunk lid are
unlocked, the windows fully open
automatically.
Open
To stop this operation, turn the key to the
center position, then turn it toward the
front again.
NOTE
The window opening operation also can
be stopped by turning the key toward
the back. However, the doors and the
trunk lid will lock.
Closing
The windows can be closed in case they
are left open after getting out of the
vehicle.
NOTE
(With advanced key)
If the auto-lock function (page 3-8) has
been activated, the doors and the trunk
lid automatically lock as you walk away
from the vehicle, however, the power
windows cannot be closed. When
leaving the vehicle, close the windows
using the power window switch inside
the vehicle, the key, or a request switch.With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key toward the back and hold
it. After the doors and the trunk lid are
locked, the windows close while the
key is turned.
Close
With request switch on the driver's
door (Advanced key)
1. If the doors and the trunk lid are
locked, unlock them.
2. Press and hold the request switch on
the driver's door. After the doors and
the trunk lid are locked, the windows
close while the request switch is
pressed.
Request switch
3-40
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8V77-EA-06F_Edition1 Page110
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (116,1)
Immobilizer System (with
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
CAUTION
lRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
lTo avoid damage to the key, do not:
lDrop the key.lGet the key wet.lExpose the key to any kind of
magnetic field.
lExpose the key to high
temperatures on places such as the
dashboard or hood, under direct
sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction. Otherwise
the signal from the auxiliary key will
not be received correctly and the engine
may not start.
lMetal parts of other keys or metal
objects touch the key grip.
lSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
lEquipment containing electronic
components or cards with magnetic
strips such as credit cards come near
the auxiliary key.
NOTE
l(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
3-46
Knowing Your Mazda
Security System
Mazdaspeed6_8V77-EA-06F_Edition1 Page116
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (117,1)
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON position to
the ACC or LOCK position. The security
indicator light in the instrument cluster
flashes every 2 seconds until the system is
disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the registered advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
NOTE
lThe engine may not start and the
security indicator light may
illuminate or flash if the advanced
key is placed in an area where it is
difficult for the system to detect the
signal, such as on the dashboard, or
in the glove box. Move the advanced
key to another place, turn the
ignition switch to the LOCK
position, and then restart the engine.
lSignals from a TV or radio station, or
from a transceiver or a mobile
telephone could interfere with your
immobilizer system. If you are using
the proper advanced key and the
engine fails to start, check the
security indicator light. If the
indicator light is flashing, turn the
ignition switch to the ACC or LOCK
position and wait for a while, then
restart the engine. If it doesn't start
after 3 or more tries, contact an
Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving,
don't shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If the engine is shut off
while the indicator light is flashing,
you won't be able to restart it.
lSince the electronic codes are reset
when repairing the immobilizer
system, the advanced key (including
auxiliary key) are needed. Bring all
the advanced keys (including
auxiliary keys) to an Authorized
Mazda Dealer.
Knowing Your Mazda
Security System
3-47
Mazdaspeed6_8V77-EA-06F_Edition1 Page117
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F
