Black plate (283,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement is
necessary.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
qReplacing Exterior Light Bulbs
Replacing the headlight, fog light and
parking light bulbs
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Front turn signal lights
1. Turn the socket and bulb assembly
counterclockwise and remove it.
2. Remove the bulb by pushing it in
slightly and turning it
counterclockwise.
3. Install the new bulb in the reverse order
of removal.
Side-marker lights
1. If you are changing the left side-maker
light, start the engine, turn the steering
wheel all the way to the right, and turn
off the engine. If you are changing the
right side-maker light, turn the steering
wheel to the left.
2. Turn the screws counterclockwise and
remove them.
Maintenance and Care
Owner Maintenance
8-29
Mazdaspeed6_8V77-EA-06F_Edition1 Page283
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (288,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's side
kick-panel
If the electrical system doesn't work, first
inspect fuses on the driver's side kick-
panel.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover by sliding
the cover straight back toward you.
CAUTION
Pulling the cover off sideways may
break the retaining tabs off.3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it's
blown.
NormalBlown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an expert
repairer install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
8-34
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page288
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (290,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 SPARE 20A―
2 SPARE 15A―
3 SPARE 10A―
4 M DEF 7.5A Mirror defroster
í
5―― ―
6 INJ 15A PCM
7 ENG BAR 15A O
2Sensor, EGR control valve
8 ENG BB 5A Waste gate solenoid, Cooling fan
9 HEAD LR 15A Headlight-low beam (Right)
10 HEAD LL 15A Headlight-low beam (Left)
11 HEAD HL 10A Headlight-high beam (Left)
12 HEAD HR 10A Headlight-high beam (Right)
13 DRL 15A DRL
í(Headlight high beams)
14 HAZARD 10A Turn signal lights
15 STOP 20A Brake lights, Horn
16 ENG+B 10A PCM, AWD
17 ETC 10A Electronic throttle
8-36
Maintenance and Care
íSome models.
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page290
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (291,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
18―― ―
19 IG KEY 1 30A Engine control, SAS, Instrument cluster, Lighter
20 P.WIND 30A Power windows
21 FUEL PUMP 30A Fuel pump
22 INJ DRIVE 30A Injector
23―― ―
24 BLOWER 40A Blower motor
25 BTN 40A Overhead light, Power door lock
26 IG KEY 2 40A Wiper and washer, Climate control unit
27 DEFOG 40A Rear window defroster
28 ABS 60A DSC
29 FAN2 30A Cooling fan
30 FAN1 30A Cooling fan
31 TAIL 10A Taillights, License plate lights
32 ILLUMI 10A Dashboard illumination
33 MAG 10A Magnet clutch
34 AUDIO 15A Audio system
35 P.SEAT 30A Power seat
í
36―― ―
37―― ―
38 H/CLEAN 20A―
39 FOG 15A Fog lights
40 MAIN 120A For protection of all circuits
Maintenance and Care
Owner Maintenance
8-37íSome models. Mazdaspeed6_8V77-EA-06F_Edition1 Page291
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (292,1)
Fuse block (Driver's side kick-panel)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 P.WIND IG――
2 P.WIND――
3 D.LOCK 30A Power door lock
4 CIGAR 15A Lighter
5 MIRROR 5A Power control mirror, Audio system
6 METER ACC 5A Auto light off unit
7 R.CIGAR 15A Accessory socket
8 SPARE 10A―
9 ENGINE IG 15A Engine control system
10 SAS 10A DSC unit, SAS unit
11 METER IG 15A Instrument cluster, Reverse lights
12 WIPER 20A Windshield wiper and washer
13 SPARE 15A―
14 A/C 10A Heater
15 SEAT 15A Seat warmer
í, Rear window defroster
16 R.WIP――
17 ROOM 15A Overhead light
18 SPARE 20A―
8-38
Maintenance and Care
íSome models.
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page292
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (310,1)

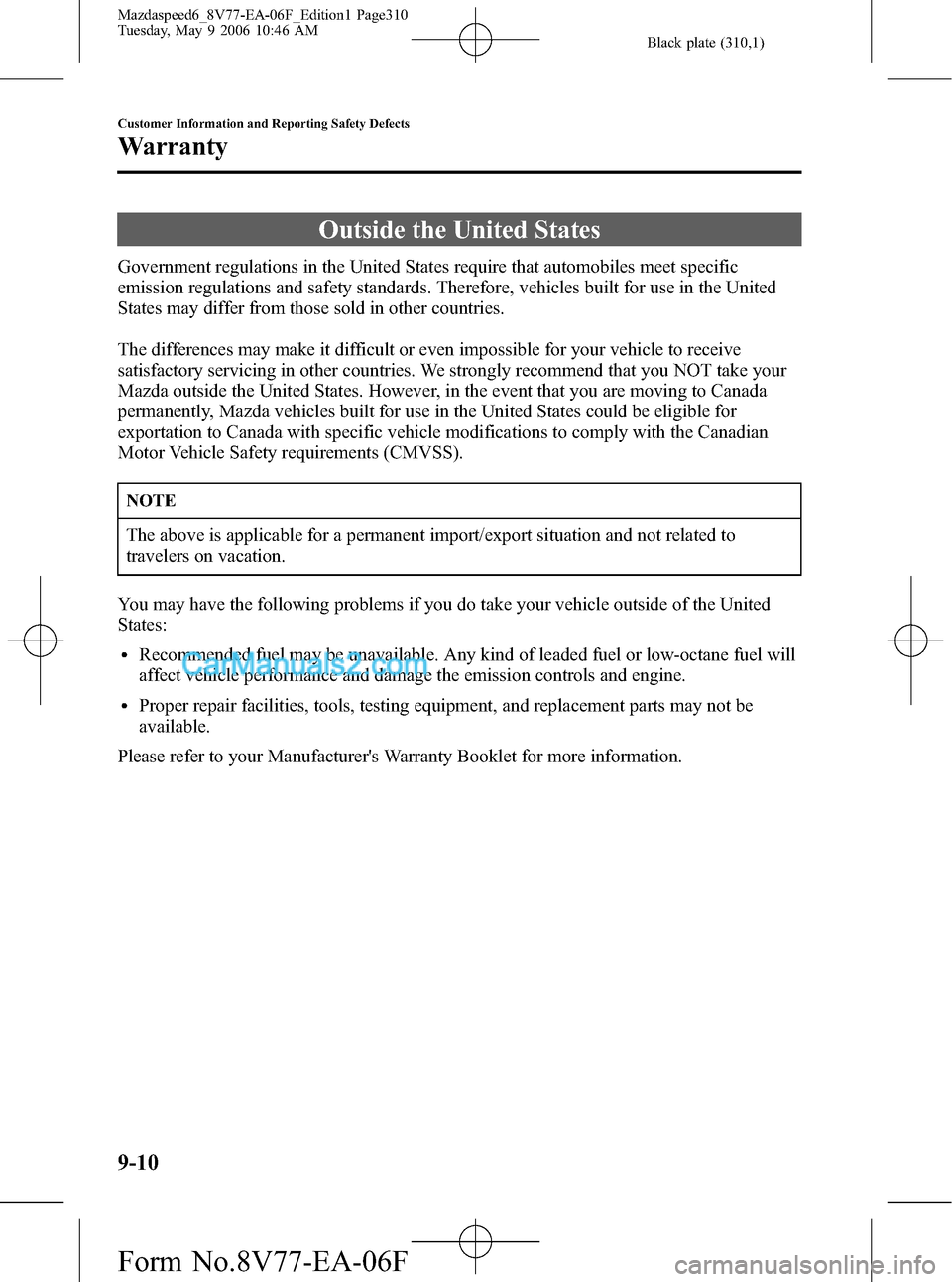

Outside the United States
Government regulations in the United States require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States. However, in the event that you are moving to Canada
permanently, Mazda vehicles built for use in the United States could be eligible for
exportation to Canada with specific vehicle modifications to comply with the Canadian
Motor Vehicle Safety requirements (CMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to
travelers on vacation.
You may have the following problems if you do take your vehicle outside of the United
States:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
9-10
Customer Information and Reporting Safety Defects
Warranty
Mazdaspeed6_8V77-EA-06F_Edition1 Page310
Tuesday, May 9 2006 10:46 AM
Form No.8V77-EA-06F

Black plate (311,1)
Outside Canada
Government regulations in Canada require that automobiles meet specific emission
regulations and safety regulations. Therefore, vehicles built for use in Canada may differ
from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside Canada. However, in the event that you are moving to the United States
permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the
United States with specific vehicle modifications to comply with the United States Federal
Motor Vehicle Safety Standards (FMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to
travelers on vacation.
You may have the following problems if you do take your vehicle outside of Canada:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
Customer Information and Reporting Safety Defects
Warranty
9-11
Mazdaspeed6_8V77-EA-06F_Edition1 Page311
Tuesday, May 9 2006 10:46 AM
Form No.8V77-EA-06F

Black plate (313,1)
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety systems; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Installation of Non-Genuine Parts or Accessories:
Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety
systems. This could cause you to have an accident or increase your chances of injuries
in an accident. Always consult an Authorized Mazda Dealer before you install non-
genuine parts or accessories.
Add-On Electrical and Electronic Equipment:
Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS inactivation, or a fire in the vehicle.
Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Customer Information and Reporting Safety Defects
Warranty
9-13
Mazdaspeed6_8V77-EA-06F_Edition1 Page313
Tuesday, May 9 2006 10:46 AM
Form No.8V77-EA-06F

Black plate (334,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not taw a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to tow
a trailer and doing so will affect the drive system which could result in vehicle
damage.
9-34
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazdaspeed6_8V77-EA-06F_Edition1 Page334
Tuesday, May 9 2006 10:46 AM
Form No.8V77-EA-06F

Black plate (343,1)
qTire Pressure Label
qEngine Number
Forward
Identification Numbers
10-3
Mazdaspeed6_8V77-EA-06F_Edition1 Page343
Tuesday, May 9 2006 10:46 AM
Form No.8V77-EA-06F
