Owner Maintenance Precautions
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you're unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
WARNING
Maintenance Procedures:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the work,
have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan which may turn on unexpectedly.
Electrical Fan and Engine Inspection:
Working near the electrical cooling fan when it is running is dangerous. You could be
hit by the fan and seriously injured. Turn off the ignition switch and make sure the
fan is not running before attempting to work near the electrical cooling fan.
8-10
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page264
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (265,1)
NOTE
Once the engine coolant exceeds a preset temperature, an electrical cooling fan turns on.
It will continue running for about 10 minutes after the ignition switch is turned to off.
Maintenance and Care
Owner Maintenance
8-11
Mazdaspeed6_8V77-EA-06F_Edition1 Page265
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (266,1)
Engine Compartment Overview
Cooling system cap Power steering
fluid reservoirWindshield washer
fluid reservoir
Engine oil dipstickEngine oil-filler cap
Battery
Fuse block
Air filter Brake/Clutch fluid reservoir
Engine coolant
reservoir
8-12
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page266
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (267,1)
Engine Oil
NOTE
Changing the engine oil should be done
by an Authorized Mazda Dealer.
qRecommended Oil
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.
U.S.A. and CANADA
(ILSAC)
Only use oils“Certified For Gasoline
Engines”by the American Petroleum
Institute (API). An oil with this trademark
symbol conforms to the current engine
and emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.
–30 –20 –10 0 10 20 30 40 50
–20 0 20 40 60 80 100 120
5W-30
Except U.S.A. and CANADA
(ILSAC)
Maintenance and Care
Owner Maintenance
8-13
Mazdaspeed6_8V77-EA-06F_Edition1 Page267
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (268,1)
The quality designation SL, or ILSAC
must be on the label.
–30 –20 –10 0 10 20 30 40 50
–20 0 20 40 60 80 100 120
5W-30

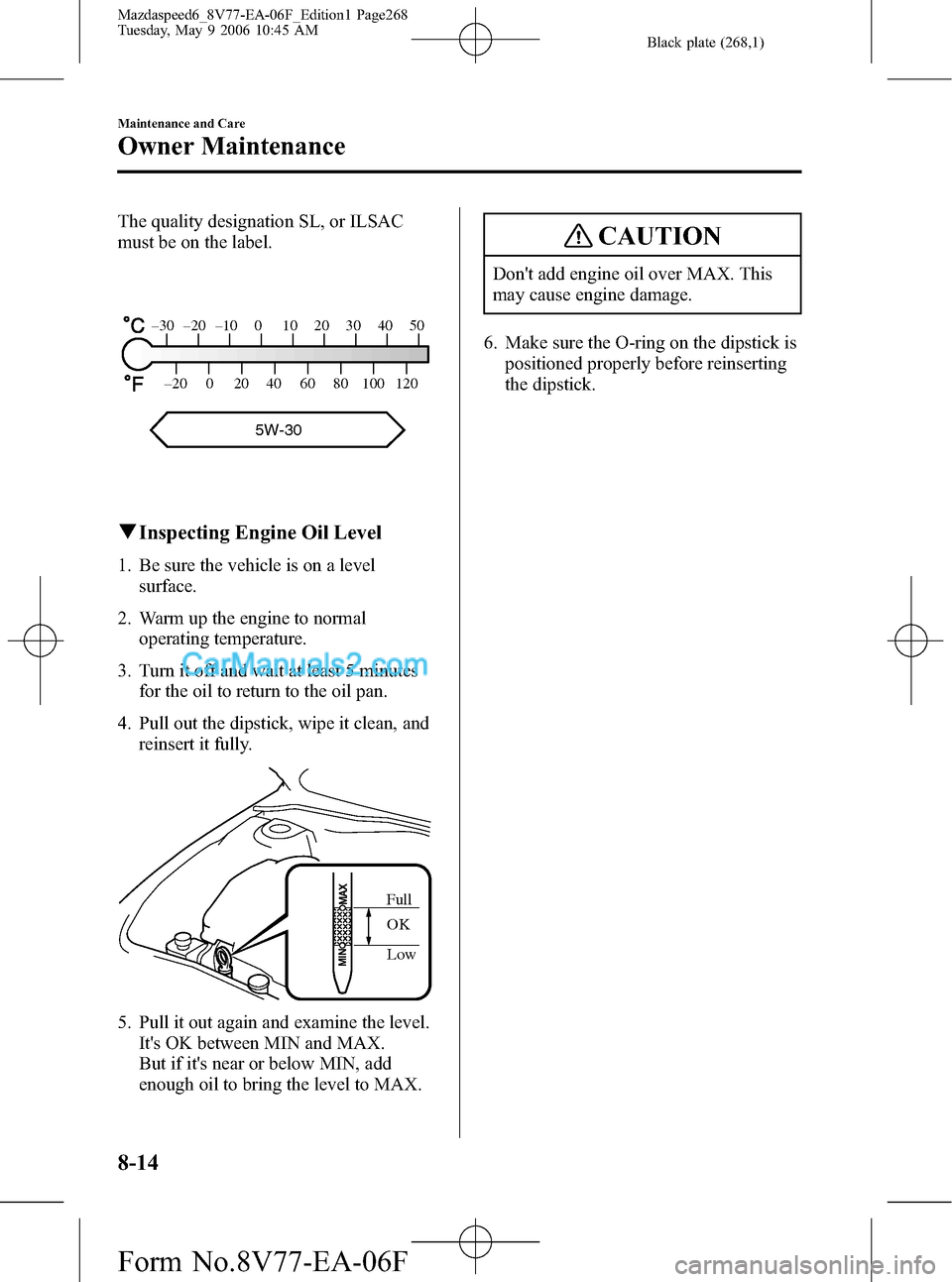

qInspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes
for the oil to return to the oil pan.
4. Pull out the dipstick, wipe it clean, and
reinsert it fully.
OK Full
Low
5. Pull it out again and examine the level.
It's OK between MIN and MAX.
But if it's near or below MIN, add
enough oil to bring the level to MAX.
CAUTION
Don't add engine oil over MAX. This
may cause engine damage.
6. Make sure the O-ring on the dipstick is
positioned properly before reinserting
the dipstick.
8-14
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page268
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (269,1)
Engine Coolant
qInspecting Coolant Level
WARNING
Hot Engine:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS
HOT.
Electrical Fan and Engine
Inspection:
Working near the electrical cooling
fan when it is running is dangerous.
You could be hit by the fan and
seriously injured. Turn off the ignition
switch and make sure the fan is not
running before attempting to work
near the electrical cooling fan.
Cooling System Caps:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury. Don't remove either cooling
system cap when the engine and
radiator are hot.
NOTE
Once the engine coolant exceeds a
preset temperature, an electrical cooling
fan turns on. It will continue running
for about 10 minutes after the ignition
switch is turned to off.
NOTE
Changing the coolant should be done
by an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season―and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the FULL and LOW
marks on the coolant reservoir when the
engine is cool.
Maintenance and Care
Owner Maintenance
8-15
Mazdaspeed6_8V77-EA-06F_Edition1 Page269
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (270,1)
If it's at or near LOW, add enough coolant
to the coolant reservoir to provide
freezing and corrosion protection and to
bring the level to FULL.
CAUTION
lRadiator coolant will damage paint.
Rinse it off quickly if spilled.
lUse only soft (demineralized) water
in the coolant mixture. Water that
contains minerals will cut down on
the coolant's effectiveness.
lDon't add only water. Always add a
proper coolant mixture.
lThe engine has aluminum parts and
must be protected by an ethylene-
glycol-based coolant to prevent
corrosion and freezing.
lDO NOT USE coolants Containing
Alcohol, methanol, Borate or
Silicate.
These coolants could damage the
cooling system.
lDO NOT MIX alcohol or methanol
with the coolant. This could damage
the cooling system.
lDon't use a solution that contains
more than 60% antifreeze.
This would reduce effectiveness.
NOTE
If the“FL22”mark is shown on or near
the cooling system cap, use FL22 type
engine coolant. If engine coolant other
than FL22 type is used, the engine
coolant must be replaced earlier than
the specified replacement interval
indicated in the scheduled maintenance
(page 8-3).
If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
8-16
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page270
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (271,1)
Brake/Clutch Fluid
qInspecting Brake/Clutch Fluid Level
The brakes and clutch draw fluid from the
same reservoir.
Inspect the fluid level in the reservoir
regularly. It should be kept at MAX.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and clutch
linings. If it is excessively low, have the
brake/clutch system inspected by an
Authorized Mazda Dealer.
qAdding Brake/Clutch Fluid
WARNING
Spilled Brake Fluid:
Spilled brake fluid is dangerous. If it
gets in your eyes, they could be
seriously injured. If this happens,
immediately flush your eyes with water
and get medical attention. Brake fluid
spilled on a hot engine could cause a
fire. Be careful not to spill brake fluid
on yourself or on the engine.
Low Brake/Clutch Fluid Levels:
Low brake/clutch fluid levels are
dangerous. Low levels could signal
brake lining wear or a brake system
leak. Your brakes could fail and cause
an accident. If you find a low fluid
level, have the brakes and clutch
inspected.
If the fluid level is low, add fluid until it
reaches MAX.
Before adding fluid, thoroughly clean the
area around the cap.
CAUTION
lBrake and clutch fluid will damage
painted surfaces. If brake or clutch
fluid does get on a painted surface,
wash it off with water immediately.
lUsing nonspecified brake and clutch
fluids (page 10-4) will damage the
systems. Mixing different fluids will
also damage them.
If the brake/clutch system frequently
requires new fluid, consult an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-17
Mazdaspeed6_8V77-EA-06F_Edition1 Page271
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (272,1)
Power Steering Fluid
qInspecting Power Steering Fluid
Level
CAUTION
To avoid damage to the power steering
pump, don't operate the vehicle for long
periods when the power steering fluid
level is low.
NOTE
Use specified power steering fluid
(page 10-4).
Inspect the fluid level in the reservoir at
each engine oil change with the engine off
and cold. Add fluid if necessary; it does
not require periodic changing.
The level must be kept between MIN and
MAX.
Visually examine the lines and hoses for
leaks and damage.
If new fluid is required frequently, consult
an Authorized Mazda Dealer.
Washer Fluid
qInspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result
in an accident.
Using Washer Fluid Without Anti-
freeze Protection in Cold Weather:
Operating your vehicle in
temperatures below 4 degrees C (40
degrees F) using washer fluid without
anti-freeze protection is dangerous as
it could cause impaired windshield
vision and result in an accident. In
cold weather, always use washer fluid
with anti-freeze protection.
NOTE
State or local regulations may restrict
the use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides
adequate freeze resistance for all
regions and climates in which the
vehicle will be operated.
8-18
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page272
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (273,1)
Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.
To inspect the washer fluid level in the
front reservoir, pull off the cap. Then,
holding your thumb over the hole in the
center of the cap, lift it straight up. The
fluid level can be seen from the fluid
column in the pipe. Add fluid if necessary.
Use plain water if washer fluid is
unavailable. But use only washer fluid in
cold weather to prevent it from freezing.
Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
Maintenance and Care
Owner Maintenance
8-19
Mazdaspeed6_8V77-EA-06F_Edition1 Page273
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F
