emergency towing MAZDA MODEL MILLENIA 2002 Owners Manual (in English)

7-1
Form No. 8Q47-EA-01F
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency
........................................................... 7- 2
Parking in an Emergency ......................................................... 7- 2
Flat Tire
........................................................................................ 7- 3
Spare Tire and Tool Storage .................................................... 7- 3
Changing a Flat Tire ................................................................ 7- 5
Overheating
................................................................................. 7-10
Overheating ............................................................................. 7-10
Emergency Starting
.................................................................... 7-12
Starting a Flooded Engine ....................................................... 7-12
Jump-Starting .......................................................................... 7-12
Push-Starting ........................................................................... 7-14
Emergency Towing
...................................................................... 7-15
Towing Description ................................................................. 7-15
Towing/Tiedown Hooks ........................................................... 7-16
Recreational Towing ................................................................ 7-17
J76Y.book Page 1 Wednesday, March 27, 2002 5:04 PM

7-15
In Case of an Emergency
Form No. 8Q47-EA-01F
Emergency Towing
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
front wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
When towing with the rear wheels on the
ground, release the parking brake.
Towing Description
Wheel dollies
Don’t tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
Don’t tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
CAUTION
CAUTION
J76Y.book Page 15 Wednesday, March 27, 2002 5:04 PM

7-16
In Case of an Emergency
Emergency Starting
Form No. 8Q47-EA-01F
If all four wheels are on the ground, the
vehicle may be towed only forward.
Don’t exceed 56 km/h (35 mph) and a
distance of 80 km (50 miles) ; you could
damage the transaxle.
If speed must exceed 56 km/h (35 mph) or
a towing distance of 80 km (50 miles), use
one of these methods:
•Place the front wheels on dollies.
•Tow with the front wheels off the
ground.
•Transport the vehicle on a flat bed
truck.

Towing Hook-Front
Follow these instructions when towing
the vehicle with all wheels on the
ground.
1. Shift to neutral.
2. Turn the ignition switch to the ACC
position.
3. Release the parking brake.
Remember that power assist for the
brakes and steering will not be
available when the engine is not
running.
CAUTION
Towing/Tiedown Hooks
•The towing hook should be used
only in an emergency (to get the
vehicle out of a ditch or a snow
bank, for example).
•When using the towing hook,
always pull the cable or chain in a
straight direction with respect to the
hook. Apply no sideways force.
•Don’t use the tiedown hooks under
the front for towing.
They are designed ONLY for tying
down the vehicle when it’s being
transported. Using them for towing
will damage the bumper.
CAUTION
J76Y.book Page 16 Wednesday, March 27, 2002 5:04 PM

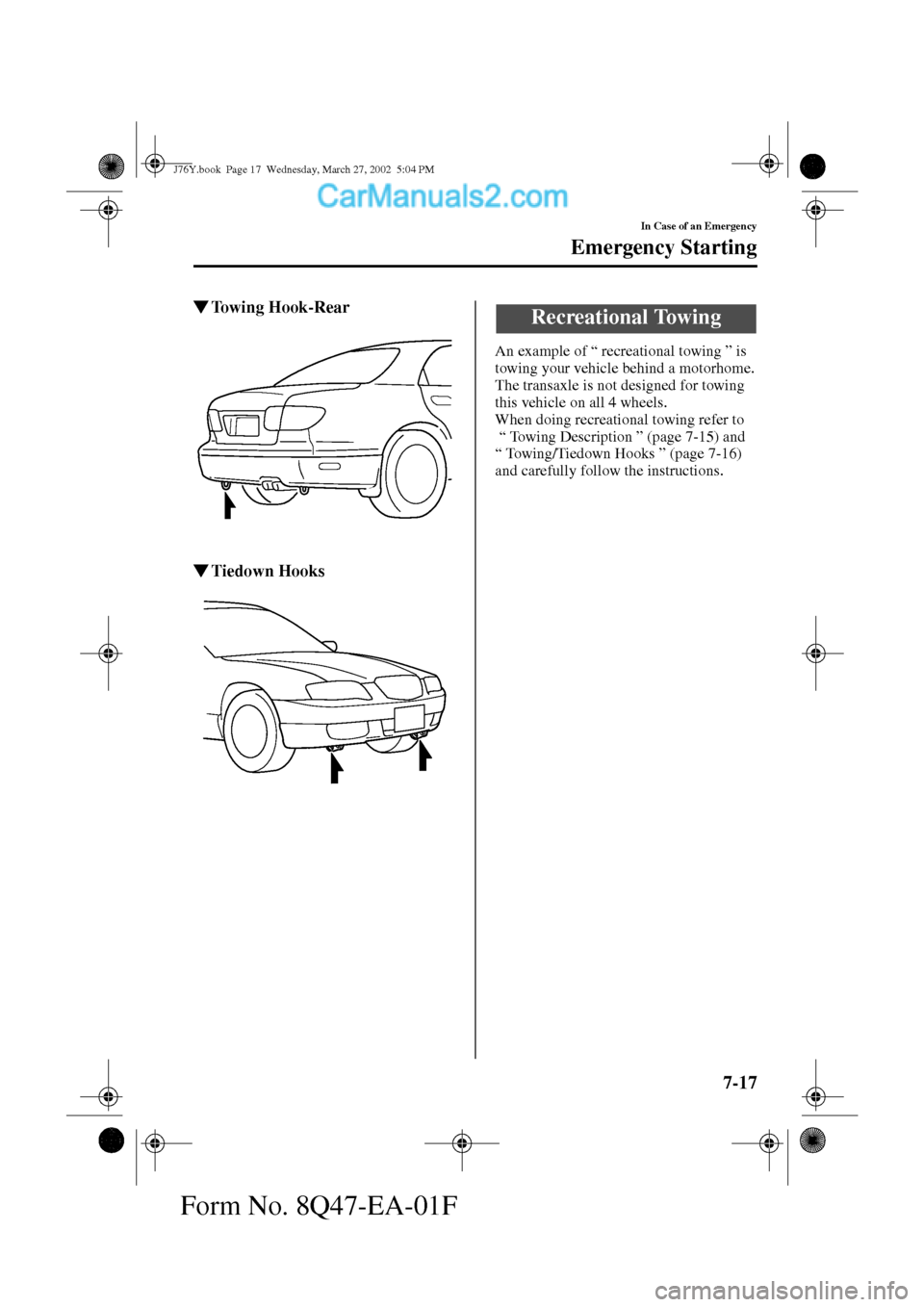

7-17
In Case of an Emergency
Emergency Starting
Form No. 8Q47-EA-01F

To w i n g H o o k - R e a r

Tiedown Hooks
An example of “ recreational towing ” is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ” (page 7-15) and
“ Towing/Tiedown Hooks ” (page 7-16)
and carefully follow the instructions.
Recreational Towing
J76Y.book Page 17 Wednesday, March 27, 2002 5:04 PM

11-3
Index
Form No. 8Q47-EA-01F
D
Dashboard Illumination ................... 5-21
Daytime Running Lights
.................. 5-33
Defroster
Rear window
............................. 5-36
Dimensions
...................................... 10-5
Door Locks
......................................... 3-7
Driving In Flooded Area
.................... 4-9
Driving Tips
....................................... 4-6
Automatic transaxle
.................. 5-11
Break-in period
........................... 4-6
Driving in flooded area
............... 4-9
Hazardous driving
....................... 4-7
Money-saving suggestions
.......... 4-6
Rocking the vehicle
.................... 4-7
Trailer towing
........................... 4-10
Winter driving
............................. 4-8
E
Emergency Starting .......................... 7-12
Flooded engine
.......................... 7-12
Jump-starting
............................ 7-12
Push-starting
............................. 7-14
Emergency Towing
.......................... 7-15
Emission Control System
................... 4-3
Engine
Coolant
...................................... 8-12
Exhaust gas
................................. 4-4
Hood release
............................. 3-17
Oil
............................................. 8-10
Overheating
............................... 7-10
Starting
........................................ 5-3
Engine Compartment Overview
........ 8-9
Engine Coolant
Overheating
............................... 7-10
Engine Coolant Temperature
Gauge
............................................... 5-20
Exhaust Gas
....................................... 4-4
E
Exterior Care ....................................8-40
F
Flasher
Hazard warning
.........................5-37
Headlights
.................................5-31
Flat Tire
..............................................7-3
Changing
.....................................7-5
Spare tire and tool storage
...........7-3
Fluids
Classification
.............................10-4
Owner maintenance
.....................8-7
Fog Lights
........................................5-32
Foot Brake
..........................................5-4
Front seats
..........................................2-2
Front-Door Storage
Compartments
..................................6-39
Fuel
Filler lid and cap
.......................3-15
Gauge
........................................5-20
Requirements
..............................4-2
Tank capacity
............................10-5
Fuses
.................................................8-34
Panel description
.......................8-36
Replacement
..............................8-34
G
Gauges ..............................................5-18
Glove Box
........................................6-39
H
Hazard Warning Flasher ...................5-37
Hazardous Driving
.............................4-7
J76Y.book Page 3 Wednesday, March 27, 2002 5:04 PM

11-5
Index
Form No. 8Q47-EA-01F
P
Power Steering ................................. 5-12
Fluid
.......................................... 8-16
Power Windows
............................... 3-13
Push-Starting
.................................... 7-14
R
Rear Door Child Safety Locks ........... 3-9
Rear Seat
............................................ 2-5
Rear Window Defroster
................... 5-36
Rear-Armrest Opening
..................... 6-40
Rearview Mirror
............................... 3-24
Recreational Towing
........................ 7-17
Rocking the Vehicle
........................... 4-7
S
Safety Defects, Reporting ................ 9-15
Seat Belt System
2-point type
............................... 2-12
3-point type
............................... 2-10
Automatic locking
...................... 2-9
Emergency locking
..................... 2-9
Extender
.................................... 2-13
Pregnant women
......................... 2-8
Seat belt precautions
................... 2-7
Warning beep
............................ 2-15
Warning light
............................ 2-14
Seats
Front seat
.................................... 2-2
Rear seat
...................................... 2-5
Security System
Theft-deterrent system
.............. 3-20
Service Publications
......................... 9-16
Spare Tire and Tool Storage
.............. 7-3
Specifications
................................... 10-4
Speedometer
..................................... 5-19
S
SRS Air Bags
Air bag system description
........2-27
Supplemental restraint systems
precautions
................................2-23
Warning light
............................2-31
Starting the Engine
.............................5-3
Steering Wheel
.................................3-22
Horn
..........................................5-36
Storage Compartments
.....................6-38
Sunroof
.............................................3-18
Sunshade
...........................................3-18
Sunvisors
..........................................6-34
T
Tachometer .......................................5-20
Temporary Spare Tire
......................8-27
Theft-Deterrent System
....................3-20
Tiedown
Hook
..........................................7-16
Tires
Flat tire
........................................7-3
Inflation pressure
.......................8-25
Replacement
..............................8-26
Rotation
.....................................8-26
Snow tires
....................................4-8
Spare tire and tool storage
...........7-3
Specifications
............................10-6
Tire chains
...................................4-9
Uniform tire quality grading
system (UTQGS)
.......................9-12
Tool
....................................................7-3
Towing
Description
................................7-15
Emergency towing
....................7-15
Hook
..........................................7-16
Recreational towing
..................7-17
Trailer towing
............................4-10
J76Y.book Page 5 Wednesday, March 27, 2002 5:04 PM
