set clock MAZDA MODEL MILLENIA 2002 Owners Manual (in English)

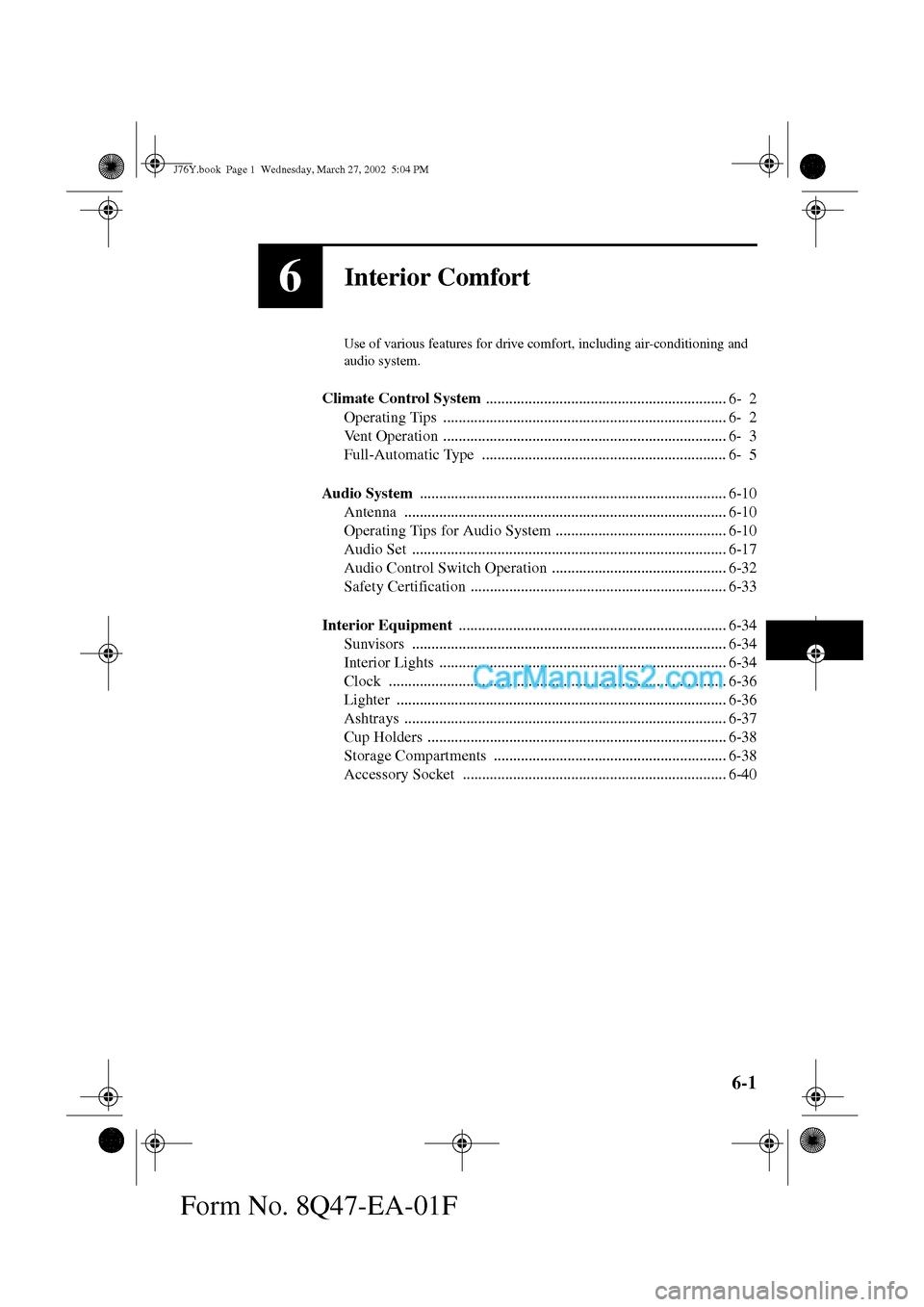

6-1
Form No. 8Q47-EA-01F
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and
audio system.
Climate Control System
.............................................................. 6- 2
Operating Tips ......................................................................... 6- 2
Vent Operation ......................................................................... 6- 3
Full-Automatic Type ............................................................... 6- 5
Audio System
............................................................................... 6-10
Antenna ................................................................................... 6-10
Operating Tips for Audio System ............................................ 6-10
Audio Set ................................................................................. 6-17
Audio Control Switch Operation ............................................. 6-32
Safety Certification .................................................................. 6-33
Interior Equipment
..................................................................... 6-34
Sunvisors ................................................................................. 6-34
Interior Lights .......................................................................... 6-34
Clock ....................................................................................... 6-36
Lighter ..................................................................................... 6-36
Ashtrays ................................................................................... 6-37
Cup Holders ............................................................................. 6-38
Storage Compartments ............................................................ 6-38
Accessory Socket .................................................................... 6-40
J76Y.book Page 1 Wednesday, March 27, 2002 5:04 PM

6-6
Interior Comfort
Climate Control System
Form No. 8Q47-EA-01F
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan switch
The fan has four speeds. The selected
speed will be displayed.Mode selector switch
The desired airflow mode can be selected
(page 6-4).
A/C switch
With the AUTO or fan switch ON, press
the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off. Successively pressing
the switch will display the following:
A/C
→A/C ECON
→off (not displayed)
AUTO
ColdHot
NOTE
With the airflow mode set to
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and a
comparably lower air temperature will
flow through the central, left and right
vents.
J76Y.book Page 6 Wednesday, March 27, 2002 5:04 PM

6-36
Interior Comfort
Interior Equipment
Form No. 8Q47-EA-01F
The ignition switch must be in the ACC or
ON position.
To set the hour
Press the H (hour) button to change the
hour.
To set the minutes
Press the M (minute) button to change the
minutes.
Press the RESET button to clear minutes.
The clock will be set on the hour.
If the RESET button is pressed from
12:01 to 12:29, for example, the time will
be reset to 12:00. If pressed from
12:30 to 12:59, the time will be reset to
1:00.
(Example)
12:01—12:29
→12:00
12:30—12:59
→1:00The ignition switch must be in the ACC or
ON position.
Press the lighter in and release it. When
ready for use, it automatically pops out.
Clock
NOTE
When the power is disconnected, the
time is automatically set at 1:00.
Lighter
•Don’t touch the metal part of the
lighter, you may burn yourself.
•Don’t hold the lighter in because it
will overheat.
•Don’t use the lighter socket for
plug-in accessories such as shavers
and coffee pots. They may damage
it or cause electrical failure. Use
only a genuine Mazda lighter or the
equivalent.
•If the lighter doesn’t pop out within
30 seconds, remove it to prevent
overheating.
CAUTION
J76Y.book Page 36 Wednesday, March 27, 2002 5:04 PM

7-6
In Case of an Emergency
Flat Tire
Form No. 8Q47-EA-01F
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Shift into Park (P) and turn off the
engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire
(page 7-3).
6. Block the wheel diagonally opposite
the flat tire. When blocking a front
wheel, place the block in front of the
tire. When blocking a rear wheel, place
the block behind the tire.

Removing a Flat Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don’t remove any until the tire has been
raised off the ground.
2. Place the jack under the jacking
position closest to the tire being
changed.
NOTE
Make sure the jack is well lubricated
before using it.
Jacking position
J76Y.book Page 6 Wednesday, March 27, 2002 5:04 PM

11-2
Form No. 8Q47-EA-01F
Index
A
Accessory Socket ............................. 6-40
Add-On Non-Genuine Parts and
Accessories
...................................... 9-10
Air Bag Systems
.............................. 2-23
Air Filter
.......................................... 8-20
Antenna
............................................ 6-10
Anti-Lock Brake System (ABS)
........ 5-6
Warning light
.............................. 5-7
Appearance Care
.............................. 8-38
Ashtrays
........................................... 6-37
Audio System
Audio set
................................... 6-17
Operating tips for
audio system
............................. 6-10
Safety certification
.................... 6-33
Automatic Transaxle
Driving tips
............................... 5-11
Fluid
.......................................... 8-17
Hold mode
................................ 5-10
Shift-lock override
.................... 5-10
Shift-lock system
........................ 5-9
Transaxle ranges
......................... 5-8
B
Battery
Emergency starting
................... 7-12
Maintenance
............................. 8-23
Specifications
........................... 10-4
Beeps
Ignition key reminder
............... 5-30
Lights-on reminder
................... 5-30
Seat belt warning beep
.............. 5-30
Before Starting the Engine
................. 4-5
After getting in
........................... 4-5
Before getting in
......................... 4-5
B
Body Lubrication ............................. 8-19
Brake
Fluid
.......................................... 8-15
Brakes
Anti-lock brake system (ABS)
....5-6
Foot brake
................................... 5-4
Pad wear indicator
...................... 5-7
Parking brake
.............................. 5-4
Warning light
.............................. 5-5
Break-In Period
.................................. 4-6
Bulb Replacement
............................ 8-28
C
Capacities ......................................... 10-5
Carbon Monoxide
.............................. 4-4
Catalytic Converter
............................ 4-3
Cell Phones
...................................... 9-11
Center Console
................................. 6-39
Child Restraint
Child restraint precautions
........ 2-16
Installing child-restraint
systems
...................................... 2-18
Child Safety Locks for Rear Door
..... 3-9
Cigarette Lighter
.............................. 6-36
Climate Control System
.....................6-2
Gas specifications
..................... 10-6
Clock
................................................ 6-36
Coin Box
.......................................... 6-38
Courtesy Lights
................................ 6-35
Cruise Control
.................................. 5-12
Cup Holders
..................................... 6-38
Customer Assistance
.......................... 9-2
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM
