belt MAZDA MODEL MPV 2002 (in English) User Guide

2-17
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K

Seat Recline
To change seatback angle, lean forward
slightly while pulling the flat-folding
strap. Then lean back to the desired
position and release the strap. Make sure
the seat is securely latched.

Head Restraint
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top
parallels the top of the passenger’s ears,
never the passenger’s neck.
NOTE
When returning a third-row seat to its
original position, also replace the seat
belt to its normal position. Verify that
the seat belt pulls and retracts.
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
WARNING
Flat-folding strap
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
WARNING
Stop-catch release
J16L_EA.book Page 17 Friday, February 22, 2002 11:34 AM

2-18
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.

Folding the Third-Row Seat
1. Remove the head restraints from the
third-row seat (page 2-17).2. Pull the third-row seat’s flat-folding
strap and push the seatback down until
it locks.

Stowing the Third-Row Seat
More storage space can be created by
folding away the third-row seat into the
rear seat well. With the second-row seats
removed and the third-row seat stowed,
even more space is available.
Riding on Folded Flat Third-Row
Seat:
Riding on the third-row seat when it’s
folded is dangerous. During sudden
braking or a collision, passenger’s
could be thrown around inside the
vehicle and seriously injured. Always
ride with the third-row seat in the
forward-facing, upright position and
seat belt securely fastened.
Stop-catch release
WARNING
Flat-folding strap
J16L_EA.book Page 18 Friday, February 22, 2002 11:34 AM

2-19
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
Stowing the third-row seat
1. Insert the seat belts in the retainers.
2. Remove the head restraint and set them
aside temporarily (page 2-17).
3. Pull strap A and ease the seatback
toward the front of the vehicle with
your other hand and be sure it locks
with a click.
Riding in the Seat Well:
Riding in the seat well for the third-
row seat is dangerous. Sudden
braking or a collision could cause
serious injury. Do not sit on lie in the
seat well while the vehicle is moving.
Never ride in a vehicle where you
can’t sit in the seat and wear the seat
belt.
Pinching Fingers or Hands:
Placing your hands around the seat
stowage well when stowing the third-
row seat is dangerous. You could
pinch your hands or fingers between
the seat and the well. Hold the handle
when lowering the seat into place.
Never place your hands between the
seat and the seat well.
Unlocked Seatback:
An unlocked seatback is dangerous.
While stowing the seat, the seatback
could suddenly move causing serious
injury. Push the seatback forward and
backward to make sure it is locked in
place.
NOTE
Remove any items from the seat well
for the third-row seat before stowing
the seat. Anything in the baggage area
when the seat is set into the well can
damage the seatback material and
prevent a flat cargo area.
WARNING
Retainer
Strap A
J16L_EA.book Page 19 Friday, February 22, 2002 11:34 AM

2-21
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
5. Pull strap A and raise the seatback
upright. Attempt to move the seatback
forward and backward to make sure it
is locked.
6. Insert the head restraints.
7. Place the seat belt buckles face up.
Third-Row Seat and Open
Liftgate Position
Strap A
Support Bar:
Sitting in the rear-facing, third-row
seat position without installing the
support bar is dangerous. Without the
support of the bar, the seatback could
collapse resulting in injury.
Always install the support bar before
sitting in the rear-facing, third-row
seat position.
Rear Facing Third-Row Seat and a
Moving Vehicle:
Driving with the third-row seat facing
rearward is dangerous because the
liftgate cannot be securely closed.
During sudden braking or a collision,
passengers could be thrown out of the
vehicle resulting in serious injury or
death. Place the third-row seat in the
forward-facing position with the
seatback upright before driving the
vehicle.
Third-Row Seat and the Flat-Folding
Strap:
Pulling the flat-folding strap with the
third-row seat facing rearward is
dangerous. The seatback will collapse
into the seat bottom and could result
in injury. Do not pull the flat-folding
strap with the third-row seat facing
rearward.
WARNING
J16L_EA.book Page 21 Friday, February 22, 2002 11:34 AM

2-23
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
8. Pull the seatback towards the front of
the vehicle until the opposite end of the
support bar hooks onto the anchor loop
in the side trim. Attempt to push the
seatback towards the rear (liftgate) to
make sure the support bar is securely
latched.
To return the third-row seat to the road
position (forward facing)
1. Detach the support bar by following
the reverse procedure for installation.
2. From inside the vehicle, carefully
lower the seat towards the front until it
locks in place. Attempt to move the
seat forward and backward to make
sure it’s securely locked in place.
3. Reinsert the head restraints.4. Place the seat belt buckles face up.
J16L_EA.book Page 23 Friday, February 22, 2002 11:34 AM

2-25
Essential Safety Equipment
Form No. 8Q44-EA-01K
Seat Belt Systems
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the outboard seat belt retractors are designed to keep the lap/shoulder belts out of the
way when not in use.
The driver’s seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger’s seat and rear outboard lap/shoulder belt retractors operate in
two modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
The third-row center seat positions have a lap belt with manual adjustment.
Seat Belt Precautions
Not Wearing Seat Belts:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer. Always wear your seat
belt and make sure all occupants are properly restrained.
Seat Belt Damaged During an Accident:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during
an accident before they are used again.
Twisted Seat Belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt isn’t available
to absorb the impact. This puts more force on the bones beneath the belt, which could
break them or cause other serious injury or death. Don’t wear twisted seat belts.
One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can’t spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time.
WARNING
J16L_EA.book Page 25 Friday, February 22, 2002 11:34 AM

2-26
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q44-EA-01K

Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should wear seat belts. Ask your doctor for specific recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.

Emergency Locking Mode
If the belt has fully retracted, it will always be in the emergency locking mode until you
move it into automatic locking mode by pulling the belt all the way out to its full length. In
the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt feels tight and hinders comfortable movement while the vehicle is stopped or in
motion, you may be in the automatic locking mode because you have pulled the belt too far
out. To return to the more comfortable emergency locking mode, wait until you can stop
the vehicle in a safe area, retract the belt fully to convert it back to emergency locking
mode and then again extend it around you.

Automatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To get the seat belt into the automatic
locking mode, pull it all the way out and connect it as instructed on the child-restraint
system. It will retract down to the child-restraint system and stay locked on it. See the
section on child restraint (page 2-35).Belt retraction may become difficult if the belts and rings are soiled, so try to keep them
clean.
CAUTION
Ring
J16L_EA.book Page 26 Friday, February 22, 2002 11:34 AM

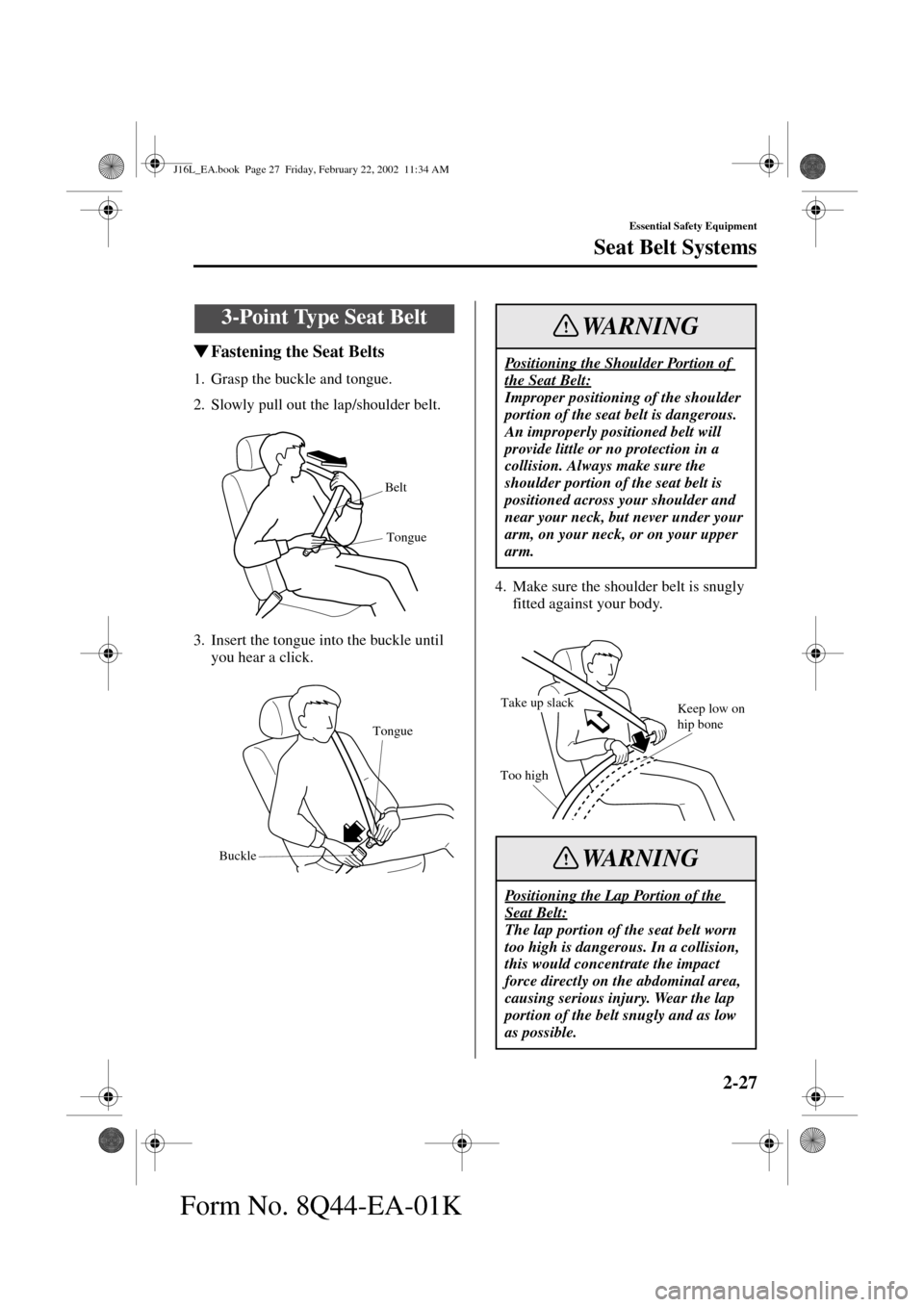

2-27
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q44-EA-01K

Fastening the Seat Belts
1. Grasp the buckle and tongue.
2. Slowly pull out the lap/shoulder belt.
3. Insert the tongue into the buckle until
you hear a click.4. Make sure the shoulder belt is snugly
fitted against your body.
3-Point Type Seat Belt
Belt
Tongue
Tongue
Buckle
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
An improperly positioned belt will
provide little or no protection in a
collision. Always make sure the
shoulder portion of the seat belt is
positioned across your shoulder and
near your neck, but never under your
arm, on your neck, or on your upper
arm.
Positioning the Lap Portion of the
Seat Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
WARNING
Keep low on
hip bone Take up slack
Too high
WARNING
J16L_EA.book Page 27 Friday, February 22, 2002 11:34 AM

2-28
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q44-EA-01K

Unfastening the Seat Belts
Depress the button on the buckle.
To secure the outboard-rear seat belts
when not in use, insert the belts in their
seat belt retainers.

Shoulder Belt Adjuster
Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
To raise the shoulder belt adjuster, push
the adjuster up. To lower the shoulder belt
adjuster, push the button and slide it
down. Make sure the adjuster is locked.
NOTE
If a belt does not fully retract, inspect it
for kinks and twists.
Retainer
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
An improperly positioned belt will
provide little or no protection in a
collision. Always make sure the
shoulder portion of the seat belt is
positioned across your shoulder and
near your neck, but never under your
arm, on your neck, or on your upper
arm.
Sholder belt
adjuster
WARNING
J16L_EA.book Page 28 Friday, February 22, 2002 11:34 AM

2-29
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q44-EA-01K
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems.
In moderate or greater frontal or near-
frontal accidents, the front air bag and
pretensioner systems deploy
simultaneously. The pretensioners take up
slack in the front seat belts as the air bags
are expanding. The load limiting system
releases belt webbing in a controlled
manner to reduce belt force on the
occupant’s chest.
Front Seat Belt
Pretensioner and Load
Limiting Systems
Incorrect Positioning of the Driver
and Front Passenger Seat Belts:
Incorrect positioning of the driver
and passenger seat belts is dangerous.
Without proper positioning, the
pretensioner and load limiting
systems cannot provide adequate
protection in an accident and this
could result in serious injury. Wear
seat belts only as recommended in
this owner’s manual.
Expended Seat Belt Pretensioners:
Use of front seat belts with the
pretensioner system expended is
dangerous.
The seat belt pretensioners will only
function once. After they are
expended, they will not work again
and must be replaced immediately,
even if there was no front seat
occupant seated at the time.
If the seat belt pretensioners are not
replaced, the risk of injury in a
collision will increase.
Always have an Authorized Mazda
Dealer inspect and replace the seat
belt pretensioners after a collision.
WARNING
J16L_EA.book Page 29 Friday, February 22, 2002 11:34 AM
