MAZDA MODEL MPV 2002 Owners Manual (in English)

7-11
In Case of an Emergency
Flat Tire
Form No. 8Q44-EA-01K
4. Insert the jack lever and attach the jack
handle to tire jack.
5. Turn the jack handle clockwise and
raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
6. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel.
Locking Lug Nuts
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it in
the accompanying envelope. If you lose
your key, consult an Authorized Mazda
Dealer or use the lock manufacturer’s
order form, which is with the registration
card.
To remove an antitheft lug nut
1. Get the key for the locking lug nut.
2. Place it on top of the nut, and be sure to
hold the key square to it. If you hold
the key at an angle, you may damage
both key and nut. Don’t use a power
impact wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
Jack handle
Jack lever
Antitheft lug nutSpecial key
J16L_EA.book Page 11 Friday, February 22, 2002 11:34 AM

7-12
In Case of an Emergency
Flat Tire
Form No. 8Q44-EA-01K
To replace the nut
1. Place the key on top of the nut.
2. Place the lug wrench on top of the key,
apply pressure, and turn it clockwise.

Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
2. Mount the spare tire.3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
Removing Dirt and Grime from
Wheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
WARNING
Applying Oil and Grease to Lug Nuts,
Bolts:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the
tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary. Do not apply oil
or grease to lug nuts and bolts and do
not tighten the lug nuts beyond the
recommended tightening torque.
WARNING
J16L_EA.book Page 12 Friday, February 22, 2002 11:34 AM

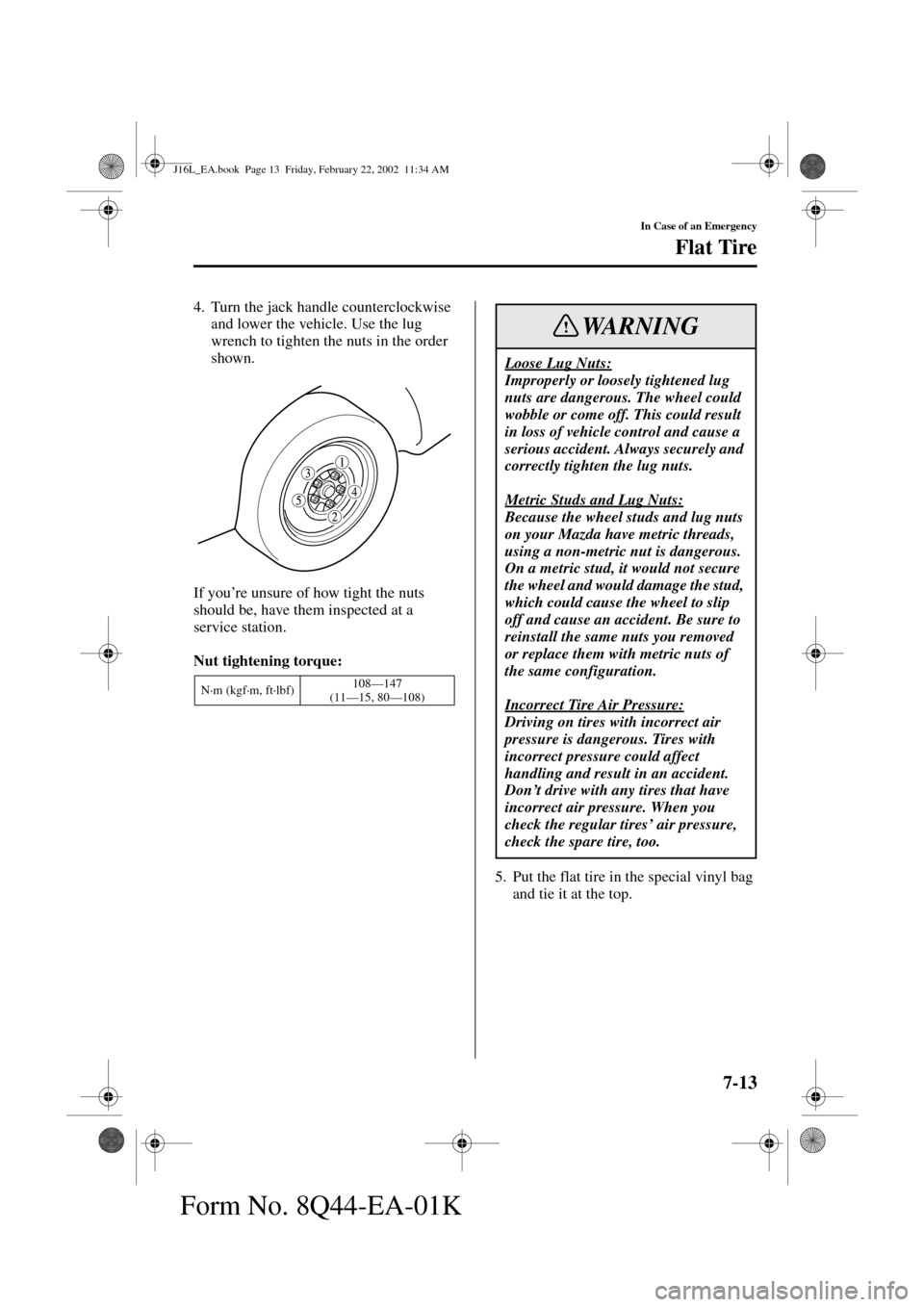

7-13
In Case of an Emergency
Flat Tire
Form No. 8Q44-EA-01K
4. Turn the jack handle counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you’re unsure of how tight the nuts
should be, have them inspected at a
service station.
Nut tightening torque:
5. Put the flat tire in the special vinyl bag
and tie it at the top.
N·m (kgf·m, ft·lbf)108—147
(11—15, 80—108)
Loose Lug Nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident. Always securely and
correctly tighten the lug nuts.
Metric Studs and Lug Nuts:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip
off and cause an accident. Be sure to
reinstall the same nuts you removed
or replace them with metric nuts of
the same configuration.
Incorrect Tire Air Pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
Don’t drive with any tires that have
incorrect air pressure. When you
check the regular tires’ air pressure,
check the spare tire, too.
WARNING
J16L_EA.book Page 13 Friday, February 22, 2002 11:34 AM

7-14
In Case of an Emergency
Flat Tire
Form No. 8Q44-EA-01K
6. With the tire facing outward, punch a
hole through the vinyl bag and the
center hole, using the flat tire securing
bolt.
7. Lift the anchor clip on the back of
third-row seat.8. Install the flat tire with the tire securing
bolt hooked in the anchor clip as shown
below.
9. Secure the flat tire with the tire clamp
and wing nut as shown below.
Have the damaged tire repaired as soon
as possible.
Flat tire securing bolt
NOTE
•If the tire rattles even through the
wing nut is tightened, reverse the
tire clamp and retighten the wing
nut.
•To prevent the jack and tool from
rattling, store them properly.
Tire clamp
Wing nut
J16L_EA.book Page 14 Friday, February 22, 2002 11:34 AM

7-15
In Case of an Emergency
Form No. 8Q44-EA-01K
Overheating
If the temperature gauge indicates
overheating, you experience power loss,
or you hear a loud knocking or pinging
noise, the engine is probably too hot.
If this happens:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Shift into park (P).
Apply the parking brake.
3. Turn off the air conditioner.4. Check whether coolant or steam is
escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Don’t go near the front of the vehicle.
Stop the engine. Then turn the ignition
switch to the ON position without
starting the engine.
The radiator cooling fans will start to
cool the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools. If this doesn’t lower the
temperature, stop the engine and let it
cool.
5. Check the coolant level.
If it’s low, look for leaks in the radiator
hoses and connections, heater hoses
and connections, radiator, and water
pump.
If you find a leak or other damage, or if
coolant is still leaking, stop the engine
and call an Authorized Mazda Dealer.
If you find no problems, the engine is
cool, and no leaks are obvious, carefully
add coolant as required (page 8-11).
Overheating
Steam from Overheated Engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine.
WARNING
F
L
Cooling
system cap
Coolant reservoir
J16L_EA.book Page 15 Friday, February 22, 2002 11:34 AM

7-16
In Case of an Emergency
Overheating
Form No. 8Q44-EA-01K
Cooling System Cap:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don’t remove the
cooling system cap when the engine
and radiator are hot.
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made.
WARNING
CAUTION
J16L_EA.book Page 16 Friday, February 22, 2002 11:34 AM

7-17
In Case of an Emergency
Form No. 8Q44-EA-01K
Emergency Starting
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. Depress the accelerator all the way and
hold it there.
2. Turn the ignition switch to the START
position and hold it there—for up to 10
seconds. If the engine starts, release the
key and accelerator immediately
because the engine will suddenly rev
up.
3. If the engine fails to start, crank it
without using the accelerator—for up
to 10 seconds.Jump-starting is dangerous if done
incorrectly. So follow the procedure
carefully. If you feel unsure about jump-
starting, we strongly recommend that you
have a competent service technician do
the work.
1. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
Starting a Flooded EngineJump-Starting
Battery-Related Explosion:
Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames, including
cigarettes, and sparks away from
open battery cells.
Low Fluid Level or Frozen Battery:
Jump-starting a frozen battery or one
with a low fluid level is dangerous. It
may rupture or explode, causing
serious injury.
Don’t jump-start a frozen battery or
one with a low fluid level.
Use only a 12 V booster system. You
can damage a 12 V starter, ignition
system, and other electrical parts
beyond repair with a 24 V power
supply (two 12 V batteries in series or
a 24 V motor generator set).
WARNING
CAUTION
J16L_EA.book Page 17 Friday, February 22, 2002 11:34 AM

7-18
In Case of an Emergency
Emergency Starting
Form No. 8Q44-EA-01K
2. If the booster battery is in another
vehicle, don’t allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
3. Connect the jumper cables in the exact
sequence as in the illustration.
•Connect one end of a cable to the
positive terminal on the discharged
battery (1).
•Attach the other end to the positive
terminal on the booster battery (2).
•Connect one end of the other cable
to the negative terminal of the
booster battery (3).
•Connect the other end to a solid,
stationary, exposed metallic point
(for example, the engine hanger)
away from the discharged battery
(4).
4. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
5. When finished, carefully disconnect
the cables in the reverse order
described in Step 3.
Jumper
cables
Discharged
battery
Connect cables in
numerical order and
disconnect in reverse
order.Booster battery
Connecting to Negative Terminal:
Connecting the end of the second
cable to the negative ( ) terminal of
the discharged battery is dangerous.
A spark could cause the gas around
the battery to explode and injure
someone. Connect the cable to a point
away from the battery.
Connecting Jumper Cable to a
Moving Part:
Connecting a jumper cable near or to
a moving parts (cooling fans, belts) is
dangerous. The cable could get
caught when the engine starts and
cause serious injury. Never connect a
jumper cable to or near any part that
moves.
WARNING
J16L_EA.book Page 18 Friday, February 22, 2002 11:34 AM

7-19
In Case of an Emergency
Emergency Starting
Form No. 8Q44-EA-01K
You can’t start a vehicle with an automatic
transaxle by pushing it.
Push-Starting
J16L_EA.book Page 19 Friday, February 22, 2002 11:34 AM

7-20
In Case of an Emergency
Form No. 8Q44-EA-01K
Emergency Towing
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
front wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
When towing with the rear wheels on the
ground, release the parking brake.
Towing Description
Wheel dollies
Don’t tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
Don’t tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
CAUTION
CAUTION
J16L_EA.book Page 20 Friday, February 22, 2002 11:34 AM
