MAZDA MODEL MPV 2002 Owners Manual (in English)

6-43
Interior Comfort
Interior Equipment
Form No. 8Q44-EA-01K

Map Lights
The map lights are switched on or off by
pressing the switches.

Luggage Compartment Light
DOOR
OFF
Map light
Without sunroof
(with overhead console)
Map light
Map light
Without sunroof
(without overhead console)
Map light
Map light
With sunroof
OFF Light off
ON•
Light on when any door or the
liftgate is open
•
Light on or off when the
illuminated entry system is on.
OFFON
J16L_EA.book Page 43 Friday, February 22, 2002 11:34 AM

6-44
Interior Comfort
Interior Equipment
Form No. 8Q44-EA-01K
The ignition switch must be in the ACC or
ON position.
Press the lighter in and release it. When
ready for use, it automatically pops out.

Front
To open, pull the tray out and open the
cover.
To remove, open and pull up the ashtray.
Lighter
•Don’t touch the metal part of the
lighter, you may burn yourself.
•Don’t hold the lighter in because it
will overheat.
•Don’t use the lighter socket for
plug-in accessories such as shavers
and coffee pots. They may damage
it or cause electrical failure. Use
only a genuine Mazda lighter or the
equivalent.
•If the lighter doesn’t pop out within
30 seconds, remove it to prevent
overheating.
CAUTION
Ashtrays
Don’t use ashtrays for trash. You might
start a fire.
CAUTION
J16L_EA.book Page 44 Friday, February 22, 2002 11:34 AM

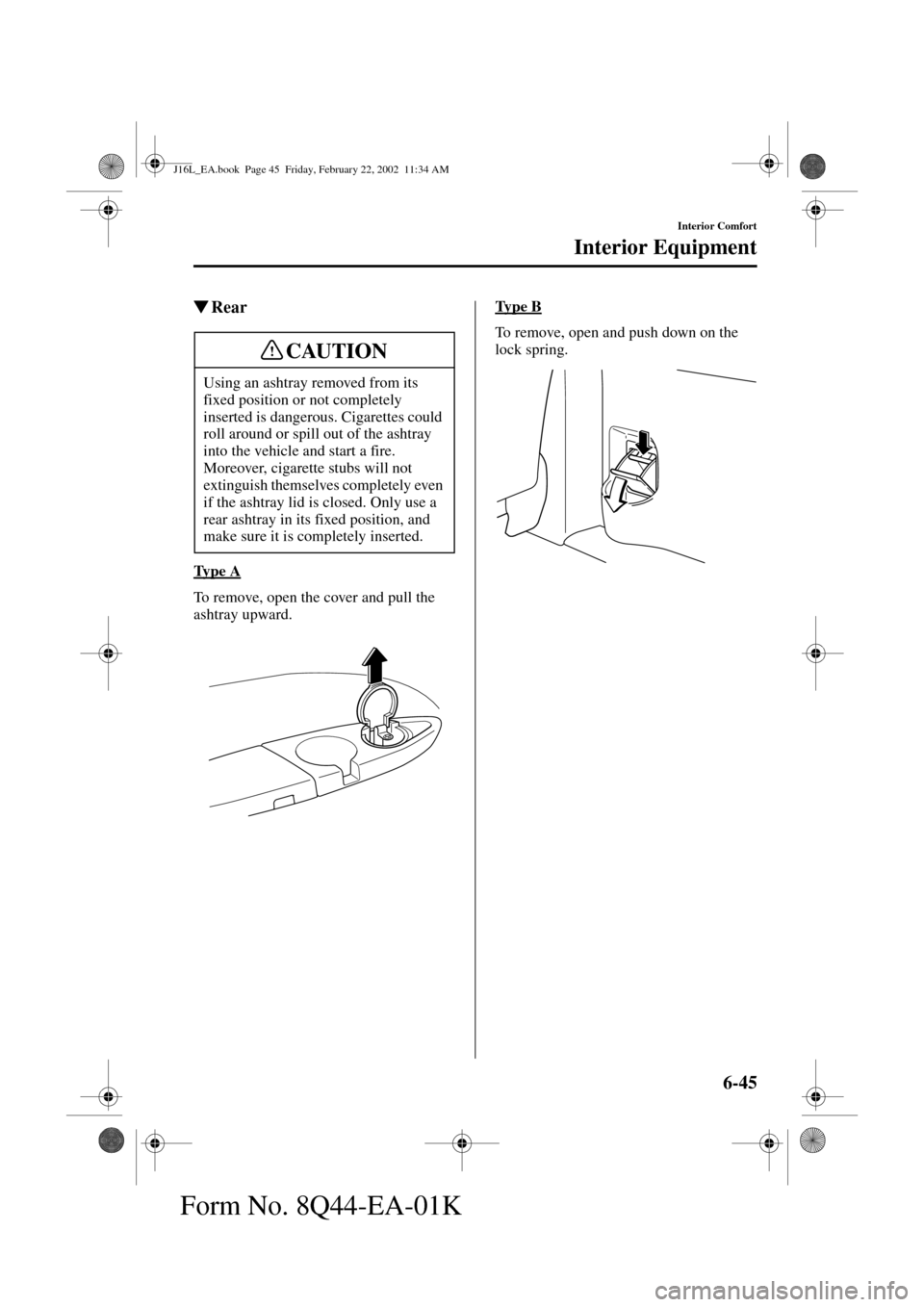

6-45
Interior Comfort
Interior Equipment
Form No. 8Q44-EA-01K

Rear
Ty p e A
To remove, open the cover and pull the
ashtray upward.Ty p e B
To remove, open and push down on the
lock spring.
Using an ashtray removed from its
fixed position or not completely
inserted is dangerous. Cigarettes could
roll around or spill out of the ashtray
into the vehicle and start a fire.
Moreover, cigarette stubs will not
extinguish themselves completely even
if the ashtray lid is closed. Only use a
rear ashtray in its fixed position, and
make sure it is completely inserted.
CAUTION
J16L_EA.book Page 45 Friday, February 22, 2002 11:34 AM

6-46
Interior Comfort
Interior Equipment
Form No. 8Q44-EA-01K

Front
To use, pull the tray out.

Rear
Second seat (Passenger seat only)
The rear cup holders are on the right of
the second-row seat. To use the cup
holder, pull it out.
Seat side table
To use the cup holder
1. Raise the table.
2. Pull the cup holder end to extend it
rearwards.
Cup Holders
Using the Cup Holder:
Using the cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded. Never use the cup
holder to hold hot liquids while the
vehicle is moving.
WARNING
J16L_EA.book Page 46 Friday, February 22, 2002 11:34 AM

6-47
Interior Comfort
Interior Equipment
Form No. 8Q44-EA-01K
To collapse the table
1. Push the cup holder back into the table.
2. Pull the lever under the table, then
lower it. After the table is collapsed,
press the table surface to lock it in
place.
Third seat
If an ashtray is equipped, pull it out and
use the hole for an additional cup holder.

Bottle Holders
Bottle holders are on the inside of the
sliding doors.
Ashtray
Don’t use the bottle holders for
containers without caps. The contents
may spill when a sliding door is
opened.
CAUTION
J16L_EA.book Page 47 Friday, February 22, 2002 11:34 AM

6-48
Interior Comfort
Interior Equipment
Form No. 8Q44-EA-01K

Overhead Console
This console box is designed to store a
garage door opener or other accessories.
Push and release to open.
To store the garage door opener:
1. Open the console box.2. Take out the two pieces of urethane
spacer.
3. Open the cap by pushing it from inside
the box.
4. Store the garage door opener by
adjusting the thickness with the
urethane spacers.

Eyeglass Holder
Push the lid to open.
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
In hot weather, don’t leave
combustible materials or objects which
will deform in extreme heat such as
lighters and glasses in the vehicle.
WARNING
CAUTIONCap
J16L_EA.book Page 48 Friday, February 22, 2002 11:34 AM

6-49
Interior Comfort
Interior Equipment
Form No. 8Q44-EA-01K

Glove Box
To open the glove box, pull the latch
toward you.
The door has a lock, insert the key and
turn it clockwise to lock,
counterclockwise to unlock.

Front Console
Pull the latch to open.

Under Seat Tray
(Front Passenger Seat Only)
Lift the latch and pull the tray forward.

Storage Box (In Seat Side Table)
To use the storage box
1. Raise the table.
2. Push the button to open.
Unlock
Lock
Button
J16L_EA.book Page 49 Friday, February 22, 2002 11:34 AM

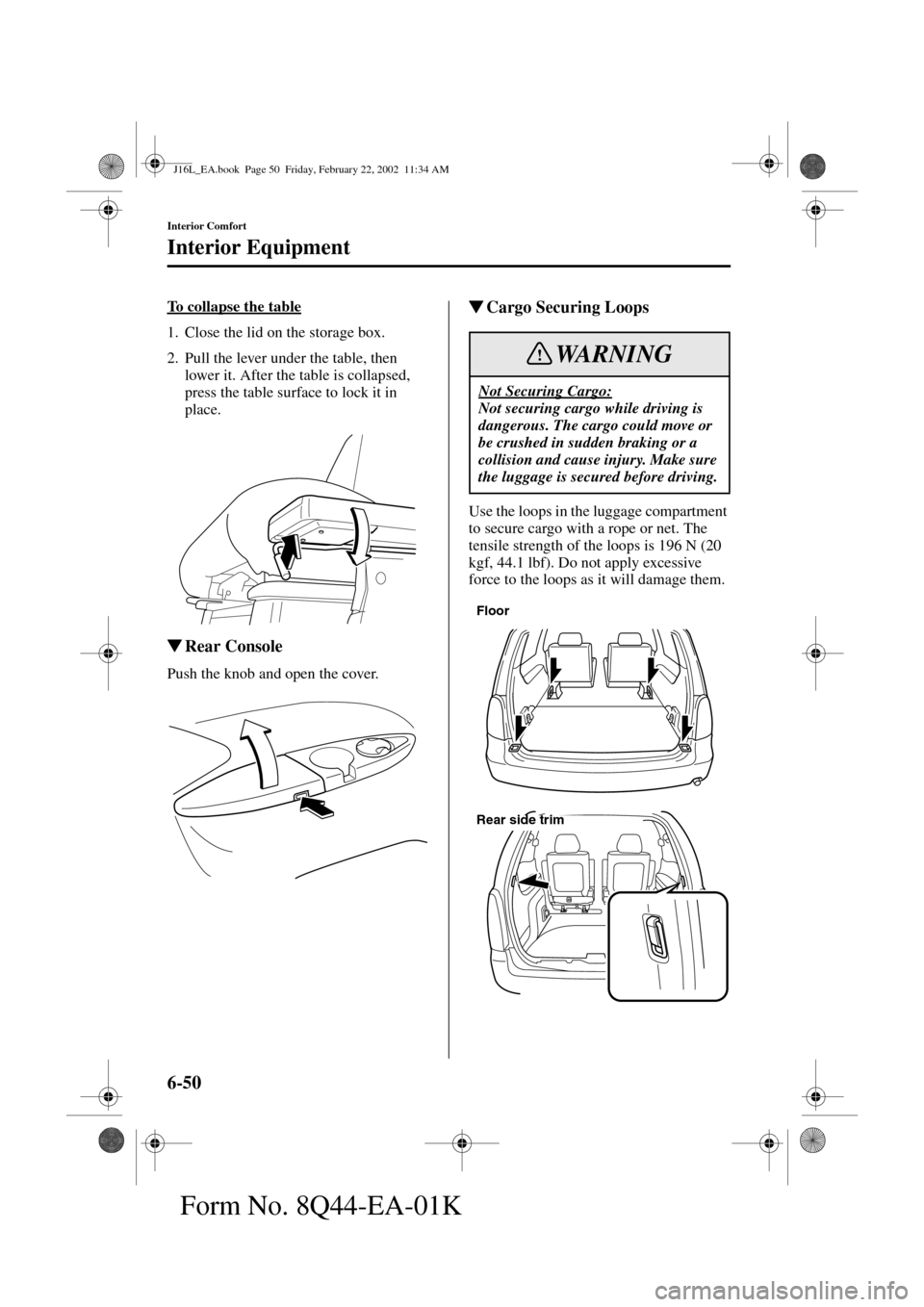

6-50
Interior Comfort
Interior Equipment
Form No. 8Q44-EA-01K
To collapse the table
1. Close the lid on the storage box.
2. Pull the lever under the table, then
lower it. After the table is collapsed,
press the table surface to lock it in
place.

Rear Console
Push the knob and open the cover.

Cargo Securing Loops
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44.1 lbf). Do not apply excessive
force to the loops as it will damage them.
Not Securing Cargo:
Not securing cargo while driving is
dangerous. The cargo could move or
be crushed in sudden braking or a
collision and cause injury. Make sure
the luggage is secured before driving.
WARNING
Floor
Rear side trim
J16L_EA.book Page 50 Friday, February 22, 2002 11:34 AM

6-51
Interior Comfort
Interior Equipment
Form No. 8Q44-EA-01K

Shopping Bag Hooks
The shopping bag hooks can be used for
hanging shopping bags.
The tensile strength of the hooks is 29 N
(3 kgf, 7 lbf).
Do not hang excessive weight to the
hooks as they will be damaged.The ignition switch must be in the ACC or
ON position.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
12V—10A.
Accessory Sockets
Cap
Front
Rear
J16L_EA.book Page 51 Friday, February 22, 2002 11:34 AM

6-52
Interior Comfort
Interior Equipment
Form No. 8Q44-EA-01K
To prevent accessory socket damage or
electrical failure, pay attention to the
following;
•Don’t use accessories that require
more than 12V—10A.
•Don’t use accessories that are not
genuine Mazda accessories or the
equivalent.
•Close the cover when the accessory
socket is not in use.
•Correctly insert the plug into the
accessory socket.
NOTE
To prevent discharging the battery,
don’t use the socket for long periods
with the engine off or idling.
CAUTION
J16L_EA.book Page 52 Friday, February 22, 2002 11:34 AM
