Reporting Safety Defects
If you believe that your vehicle has a defect which could cause a crash or could cause
injury or death, you should immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Mazda Motor Corporation (Your Mazda
Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your
dealer, or Mazda Motor Corporation (Your Mazda Importer/Distributor).
To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1 (800) 424-
9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of
Transportation. Washington, D.C. 20590. You can also obtain other information about
motor vehicle safety from the Hotline.
Reporting Safety Defects
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:
Mazda North American Operations
7755, Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-7) in this booklet.
J16L_EA.book Page 15 Friday, February 22, 2002 11:34 AM

9-16
Customer Information
Form No. 8Q44-EA-01K
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they don’t have what you need in stock, they can order it for you.

WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.

WIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.

OW N E R’S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician’s manual.
Service Publications
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999 95 038B 02 2002 WORKSHOP MANUAL (English)
9999 95 024G 02 2002 WIRING DIAGRAM (English)
9999 95 029C 02 (U.S.A. only) 2002 OWNER’S MANUAL
9999 EC 029C 02 (Canada only) 2002 OWNER’S MANUAL
J16L_EA.book Page 16 Friday, February 22, 2002 11:34 AM

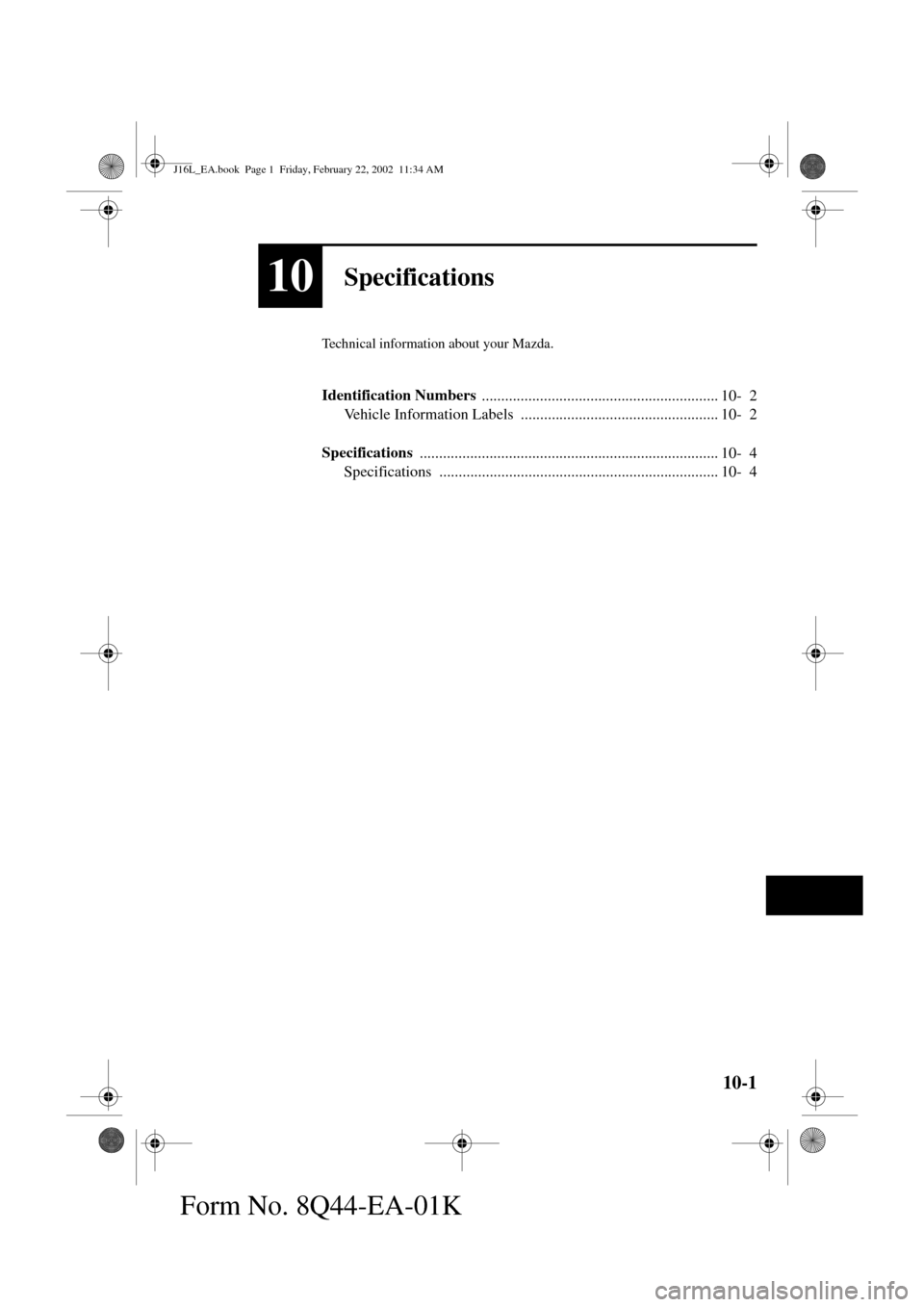

10-1
Form No. 8Q44-EA-01K
10Specifications
Technical information about your Mazda.
Identification Numbers
............................................................. 10- 2
Vehicle Information Labels ................................................... 10- 2
Specifications
............................................................................. 10- 4
Specifications ........................................................................ 10- 4
J16L_EA.book Page 1 Friday, February 22, 2002 11:34 AM

10-2
Form No. 8Q44-EA-01K
Identification Numbers

Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.

Motor Vehicle Safety Standard
Label
Chassis Number

Vehicle Emission Control
Information Label

Tire Pressure Label
Vehicle Information Labels
J16L_EA.book Page 2 Friday, February 22, 2002 11:34 AM

10-3
Identification Numbers
Form No. 8Q44-EA-01K

Engine Number
Front
J16L_EA.book Page 3 Friday, February 22, 2002 11:34 AM

10-4
Form No. 8Q44-EA-01K
Specifications

Engine

Electrical System

Lubricant Quality
* Refer to the recommended SAE viscosity numbers on page 8-9.
Specifications
Item Classification
Type DOHC-24V 60°
V, 6-cylinder
Bore × Stroke 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 10.0
Item Classification
Battery12V-48AH/5HR MF
12V-55AH/5HR MF
Alternator 12 V - 110 A
Starter 12 V - 1.4 kW
Spark-plug numberAGSF 32W
AGSF 32WM
Spark-plug gap 1.3—1.4 mm (0.051—0.057 in)
LubricantClassification
API Service ILSAC
Engine oil* SL GF-III
Lubricant Classification
Automatic transaxle fluid ATF M-III or equivalent (e.g. Dexron® III)
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
J16L_EA.book Page 4 Friday, February 22, 2002 11:34 AM

10-5
Specifications
Form No. 8Q44-EA-01K

Capacities
(Approximate Quantities)
Check oil and fluid levels with dipsticks or reservoir gauges.

Dimensions
*With license plate holder

We i g h t s

Air Conditioner
ItemUnit
L US qt Imp qt
Engine oilWith oil filter replacement 5.2 5.5 4.6
Without oil filter replacement 4.7 5.0 4.1
CoolantWith rear heater 12.4 13.1 11.0
Without rear heater 10.6 11.2 9.3
Automatic transaxle fluid 9.7 10.3 8.5
Washer fluidWith 4-Seasons package 5.5 5.8 4.8
Without 4-Seasons package 2.2 2.3 1.9
Fuel tank 75 19.8 (US gal) 16.5 (Imp gal)
Item mm (in)
Overall lengthWithout GFX Package 4,769 (187.8), 4,794 (188.7)*
With GFX Package 4,786 (188.4), 4,810 (189.4)*
Overall width 1,830 (72.1)
Overall height 1,745 (68.7)
Front tread 1,540 (60.6)
Rear tread 1,545 (60.8)
Wheelbase 2,840 (111.8)
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,372 kg (5,229 lb)
GAWR (Gross Axle Weight Rating)Front 1,180 kg (2,601 lb)
Rear 1,214 kg (2,676 lb)
Refrigerant complies with SAE J639 Maximum operating charge
R-134aFront air-conditioner 0.65 kg (22.9 oz)
Front and rear air-conditioner 0.85 kg (30.0 oz)
J16L_EA.book Page 5 Friday, February 22, 2002 11:34 AM

10-6
Specifications
Form No. 8Q44-EA-01K

Light Bulbs

Tires
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-23.
Standard tire
Temporary spare tire

Fuses
Refer to the fuse rating on page 8-33.
Light bulb Wattage
Headlights60/55
Front turn signal lights/Side-marker lights 21/5
Fog lights55
Parking lights5
Rear turn signal lights21
Brake lights/Taillights21/5
Taillights5
High-mount brake light5
Reverse lights18
License plate lights5
Overhead lights/Map lights 5
Overhead light8
Liftgate light8
Courtesy lights5
Tire sizeInflation pressure
Front Rear
205/65R15 94S
240 kPa (35 psi or lb/po2) 240 kPa (35 psi or lb/po2) 215/60R16 95H
P215/60R17 95H
Tire size Inflation pressure
T135/90D15 420 kPa (60 psi)
J16L_EA.book Page 6 Friday, February 22, 2002 11:34 AM
