set clock MAZDA MODEL MPV 2002 Owners Manual (in English)

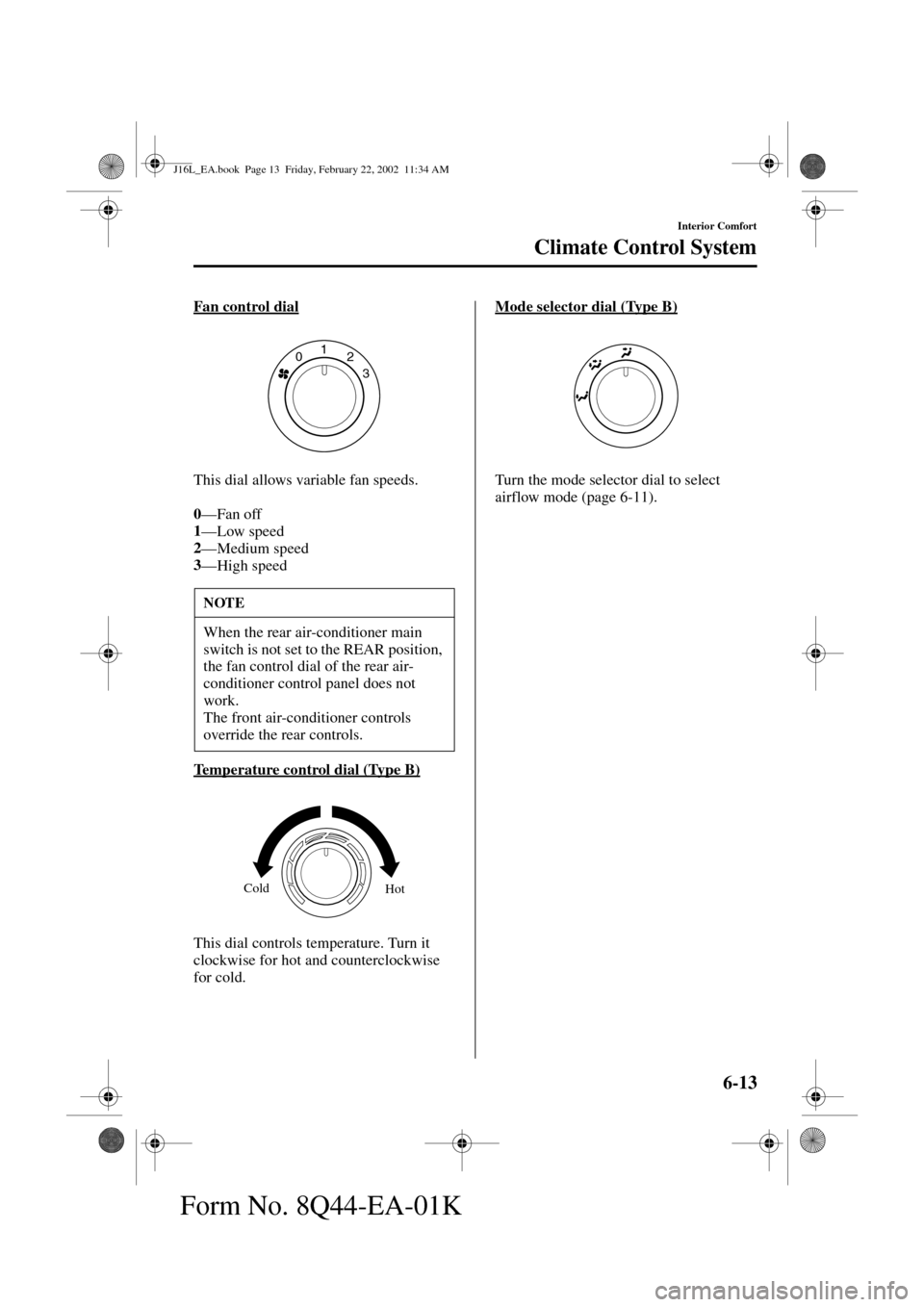

6-13
Interior Comfort
Climate Control System
Form No. 8Q44-EA-01K
Fan control dial
This dial allows variable fan speeds.
0
—Fan off
1
—Low speed
2
—Medium speed
3
—High speed
Temperature control dial (Type B)
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.Mode selector dial (Type B)
Turn the mode selector dial to select
airflow mode (page 6-11).
NOTE
When the rear air-conditioner main
switch is not set to the REAR position,
the fan control dial of the rear air-
conditioner control panel does not
work.
The front air-conditioner controls
override the rear controls.
021
3
Hot Cold
J16L_EA.book Page 13 Friday, February 22, 2002 11:34 AM

6-21
Interior Comfort
Au di o S ys t em
Form No. 8Q44-EA-01K
Power/Volume/Sound Controls ............................................................................................. 6-22
Clock ..................................................................................................................................... 6-24
Operating the Radio ............................................................................................................... 6-26
Operating the Cassette Tape Player ....................................................................................... 6-28
Operating the Mini Disc (MD) Player ................................................................................... 6-30
Operating the Compact Disc (CD) Player ............................................................................. 6-32
Operating the In-Dash CD Changer ...................................................................................... 6-34
Error Indications .................................................................................................................... 6-37
Audio Set
CD Player In-dash CD Changer
Cassette Tape Player Mini Disc (MD) PlayerIllustration is of a representative audio unit.
J16L_EA.book Page 21 Friday, February 22, 2002 11:34 AM

6-24
Interior Comfort
Au di o S ys t em
Form No. 8Q44-EA-01K

Clock
Setting the time
The clock can be set at any time when the
ignition switch is in the ACC or ON
position.
1. To adjust the time, press the clock
button ( ) for about 2 seconds
until a beep is heard.
The clock’s current time will flash.
2. To advance the hours, press the hour
set button ( ). To advance the
minutes, press the minute set button
( ) while the time is flashing.
3. Press the clock button ( ) again
to start the clock.Exact hour adjustment 1. To set the exact hour, press the clock
button ( ) for about 2 seconds
until a beep is heard.
The clock’s current time will flash.
2. Press the clock button ( ) again
and the time will be adjusted as
follows:
(Example)
12:01—12:29
→12:00
12:30—12:59
→1:00
Display
Clock button
Hour set
button
Minute set
button
NOTE
If the power supply to the unit is
interrupted (if the fuse blows or the
vehicle’s battery is disconnected), the
clock will need to be reset.
J16L_EA.book Page 24 Friday, February 22, 2002 11:34 AM
