5-34
Driving Your Mazda
Switches and Controls
Form No. 8Q44-EA-01K
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn on the fog lights, first turn on the
headlight switch. Then press the fog light
switch.
To turn the fog lights off, press the fog
light switch again or turn the headlight
switch off.The ignition switch must be in the ON
position.
Fog LightsWindshield Wipers and
Washer
Frozen Washer Fluid:
Using windshield washer fluid in
freezing temperatures is dangerous.
The washer fluid could freeze on the
windshield and block your vision.
You could have an accident. Don’t use
the washer without first warming the
windshield.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected by a circuit breaker. This
mechanism will automatically stop
operation of the blades, but only for
about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don’t resume functioning, consult
an Authorized Mazda Dealer as soon
as possible.
WARNING
J16L_EA.book Page 34 Friday, February 22, 2002 11:34 AM

5-35
Driving Your Mazda
Switches and Controls
Form No. 8Q44-EA-01K

Windshield Wipers
Turn the wipers on by pulling the lever
down.
INT
— Intermittent
1
— Normal
2
— Fast
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.One-touch wipers
For a single wiping cycle, push the lever
up to MIST.

Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
If the washer doesn’t work, inspect the
fluid level (page 8-16). If it’s OK, consult
an Authorized Mazda Dealer.
OFF
INT
1
2
OFF
INT
INT ring
NOTE
In the OFF or INT position, the wipers
will be activated until the lever is
released.
OFF MIST
J16L_EA.book Page 35 Friday, February 22, 2002 11:34 AM

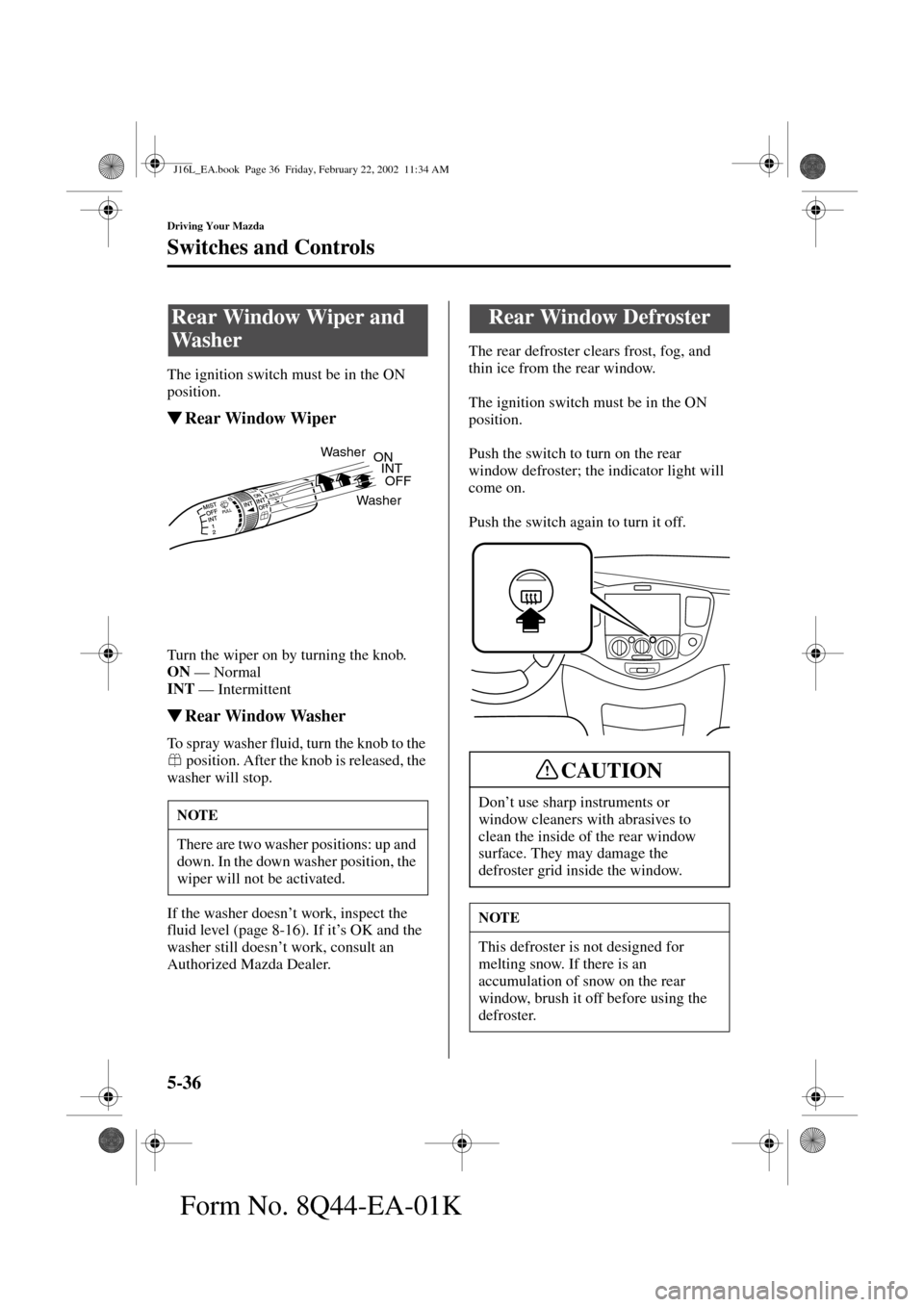

5-36
Driving Your Mazda
Switches and Controls
Form No. 8Q44-EA-01K
The ignition switch must be in the ON
position.

Rear Window Wiper
Turn the wiper on by turning the knob.
ON
— Normal
INT
— Intermittent

Rear Window Washer
To spray washer fluid, turn the knob to the
position. After the knob is released, the
washer will stop.
If the washer doesn’t work, inspect the
fluid level (page 8-16). If it’s OK and the
washer still doesn’t work, consult an
Authorized Mazda Dealer.The rear defroster clears frost, fog, and
thin ice from the rear window.
The ignition switch must be in the ON
position.
Push the switch to turn on the rear
window defroster; the indicator light will
come on.
Push the switch again to turn it off.
Rear Window Wiper and
Washer
NOTE
There are two washer positions: up and
down. In the down washer position, the
wiper will not be activated.
ON
INT
OFF
Washer Washer
Rear Window Defroster
Don’t use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, brush it off before using the
defroster.
CAUTION
J16L_EA.book Page 36 Friday, February 22, 2002 11:34 AM

8-1
Form No. 8Q44-EA-01K
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................. 8- 2
Introduction ............................................................................. 8- 2
Scheduled Maintenance
.............................................................. 8- 3
Scheduled Maintenance ........................................................... 8- 3
Owner Maintenance
.................................................................... 8- 6
Owner Maintenance Schedule ................................................. 8- 6
Owner Maintenance Precautions ............................................. 8- 7
Engine Compartment Overview .............................................. 8- 8
Engine Oil ................................................................................ 8- 9
Engine Coolant ........................................................................ 8-11
Brake Fluid .............................................................................. 8-13
Power Steering Fluid ............................................................... 8-14
Automatic Transaxle Fluid (ATF) ........................................... 8-15
Washer Fluid ............................................................................ 8-16
Body Lubrication ..................................................................... 8-17
Air Filter .................................................................................. 8-17
Wiper Blades ........................................................................... 8-18
Battery ..................................................................................... 8-22
Tires ......................................................................................... 8-23
Light Bulbs .............................................................................. 8-27
Fuses ........................................................................................ 8-33
Appearance Care
......................................................................... 8-38
How to Minimize Environmental Paint Damage ..................... 8-38
Exterior Care ........................................................................... 8-40
Interior Care ............................................................................ 8-43
J16L_EA.book Page 1 Friday, February 22, 2002 11:34 AM

11-5
Index
Form No. 8Q44-EA-01K
P
Paint Damage ................................... 8-38
Parking Brake
..................................... 5-5
Parking in an Emergency
................... 7-2
Power Door Locks
........................... 3-10
Power Sliding Doors
........................ 3-12
Power Steering
................................. 5-12
Fluid
.......................................... 8-14
Power Windows
............................... 3-19
Push-Starting
.................................... 7-19
R
Rear Console .................................... 6-50
Rear Door Child Safety Locks
......... 3-11
Rear Quarter Windows
.................... 3-22
Rear Window Defroster
................... 5-36
Rear Window Washer
...................... 5-36
Rear Window Wiper
........................ 5-36
Rearview Mirror
............................... 3-32
Recreational Towing
........................ 7-21
Registering Your Vehicle in A
Foreign Country
............................... 9-10
Rocking the Vehicle
........................... 4-8
S
Safety Defects, Reporting ................ 9-15
Seat Belt System
2-point type
............................... 2-31
3-point type
............................... 2-27
Automatic locking
.................... 2-26
Emergency locking
................... 2-26
Extender
.................................... 2-33
Pregnant women
....................... 2-26
Pretensioner and load limiting
.. 2-29
Seat belt precautions
................. 2-25
Warning beep
............................ 2-34
Warning light
............................ 2-34
S
Seats
Flat folding
................................2-24
Front seat
.....................................2-3
Second-row seats
.........................2-9
Third-Row Seat
.........................2-16
Second-row seats
................................2-9
Security System
Immobilizer system
...................3-27
Theft-deterrent system
..............3-29
Service Publications
.........................9-16
Shopping Bag Hooks
........................6-51
Spare Tire and Tool Storage
...............7-3
Specifications
...................................10-4
Speedometer
.....................................5-20
SRS Air Bags
Air bag system description
........2-51
Supplemental restraint systems
precautions
................................2-47
Warning light
............................2-56
Starting the Engine
.............................5-3
Steering Wheel
.................................3-31
Horn
..........................................5-37
Storage Box
......................................6-49
Storage Compartments
.....................6-48
Sunroof
.............................................3-25
Sunshade
...........................................3-26
Sunvisors
..........................................6-41
T
Tachometer .......................................5-21
Temporary Spare Tire
......................8-25
Theft-Deterrent System
....................3-29
Third-row seat
..................................2-16
Tiedown
............................................7-21
Hook
..........................................7-21
Tires
Flat tire
........................................7-3
J16L_EA.book Page 5 Friday, February 22, 2002 11:34 AM

11-6
Index
Form No. 8Q44-EA-01K
T
Inflation pressure ...................... 8-23
Replacement
............................. 8-25
Rotation
.................................... 8-24
Snow tires
................................... 4-9
Spare tire and tool storage
.......... 7-3
Specifications
........................... 10-6
Tire chains
................................ 4-10
Uniform tire quality grading
system (UTQGS)
...................... 9-13
Tool
.................................................... 7-3
Towing
Description
............................... 7-20
Emergency towing
.................... 7-20
Recreational towing
.................. 7-21
Trailer towing
........................... 4-12
Traction Control System (TCS)
....... 5-16
Indicator light
........................... 5-17
Switch
....................................... 5-17
Warning light
............................ 5-17
Trailer Towing
................................. 4-12
Trip Meter
........................................ 5-20
Turn and Lane-Change Signals
....... 5-33
U
Under Seat Tray ............................... 6-49
V
Vanity Mirrors ................................. 6-41
Vehicle Information Labels
............. 10-2
W
Warning Lights ................................ 5-23
ABS
.......................................... 5-27
Air bag system
.......................... 5-28
Brake system
............................ 5-25
W
Charging system ....................... 5-26
Check engine
............................. 5-27
Door-ajar
................................... 5-29
Engine oil pressure
.................... 5-26
Front seat belt pretensioner
system
....................................... 5-28
Immobilizer system
................... 5-29
Low fuel
.................................... 5-28
Seat belt
..................................... 5-28
TCS
........................................... 5-29
Warranty
............................................. 9-8
Washer Fluid
.................................... 8-16
Weights
............................................ 10-5
Wheel Replacement
......................... 8-26
Windows
Power windows
......................... 3-19
Rear quarter windows
............... 3-22
Windshield Washer
.......................... 5-35
Windshield Wipers
........................... 5-35
Blades replacement
................... 8-18
Winter Driving
................................... 4-9
J16L_EA.book Page 6 Friday, February 22, 2002 11:34 AM
