7-18
In Case of an Emergency
Emergency Starting
Form No. 8R21-EA-02G
2. If the booster battery is in another
vehicle, don’t allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
3. Connect the jumper cables in the exact
sequence as in the illustration.
•Connect one end of a cable to the
positive terminal on the discharged
battery (1).
•Attach the other end to the positive
terminal on the booster battery (2).
•Connect one end of the other cable
to the negative terminal of the
booster battery (3).
•Connect the other end to a solid,
stationary, exposed metallic point
(for example, the engine hanger)
away from the discharged battery
(4).
4. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
5. When finished, carefully disconnect
the cables in the reverse order
described in Step 3.
Jumper
cables
Discharged
battery
Connect cables in
numerical order and
disconnect in reverse
order.Booster battery
Connecting to Negative Terminal:
Connecting the end of the second
cable to the negative ( ) terminal of
the discharged battery is dangerous.
A spark could cause the gas around
the battery to explode and injure
someone. Connect the cable to a point
away from the battery.
Connecting Jumper Cable to a
Moving Part:
Connecting a jumper cable near or to
a moving parts (cooling fans, belts) is
dangerous. The cable could get
caught when the engine starts and
cause serious injury. Never connect a
jumper cable to or near any part that
moves.
WARNING
J16L_8R21-EA-02G.book Page 18 Saturday, June 8, 2002 11:16 AM

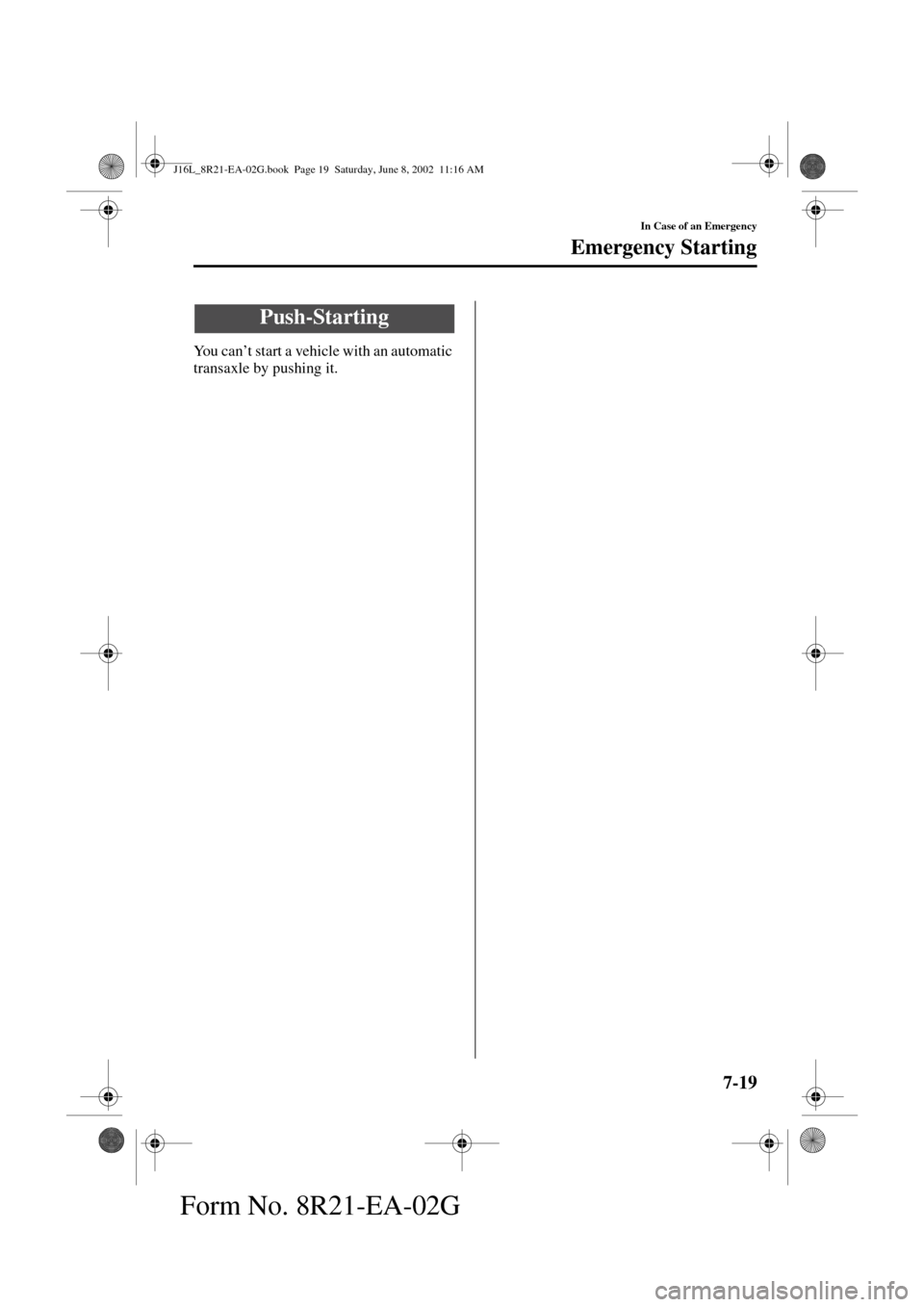

7-19
In Case of an Emergency
Emergency Starting
Form No. 8R21-EA-02G
You can’t start a vehicle with an automatic
transaxle by pushing it.
Push-Starting
J16L_8R21-EA-02G.book Page 19 Saturday, June 8, 2002 11:16 AM

7-20
In Case of an Emergency
Form No. 8R21-EA-02G
Emergency Towing
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
front wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
When towing with the rear wheels on the
ground, release the parking brake.
Towing Description
Wheel dollies
Don’t tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
Don’t tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
CAUTION
CAUTION
J16L_8R21-EA-02G.book Page 20 Saturday, June 8, 2002 11:16 AM

7-21
In Case of an Emergency
Emergency Towing
Form No. 8R21-EA-02G

Tiedown Hooks-Front

Tiedown Hook-Rear
An example of “ recreational towing ” is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ” (page 7-20) and
“ Tiedown Hooks ” (page 7-21) and
carefully follow the instructions.
Tiedown Hooks
Don’t use the tiedown hooks under the
front and rear for towing.
They are designed ONLY for tying
down the vehicle when it’s being
transported. Using them for towing
will damage the bumper.
CAUTION
Recreational Towing
J16L_8R21-EA-02G.book Page 21 Saturday, June 8, 2002 11:16 AM

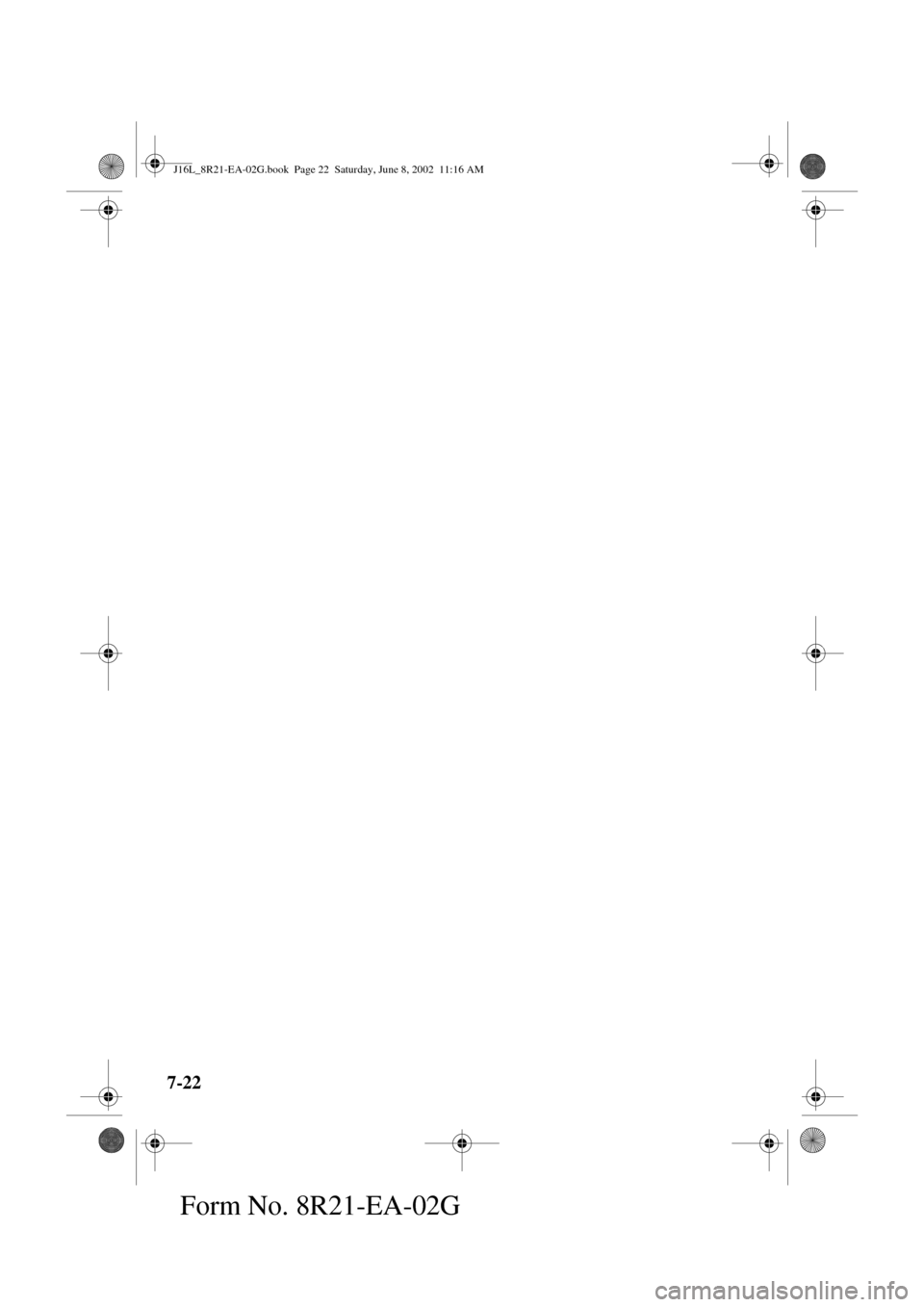

7-22
Form No. 8R21-EA-02G
J16L_8R21-EA-02G.book Page 22 Saturday, June 8, 2002 11:16 AM

8-1
Form No. 8R21-EA-02G
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................. 8- 2
Introduction ............................................................................. 8- 2
Scheduled Maintenance
.............................................................. 8- 3
Scheduled Maintenance ........................................................... 8- 3
Owner Maintenance
.................................................................... 8- 6
Owner Maintenance Schedule ................................................. 8- 6
Owner Maintenance Precautions ............................................. 8- 7
Engine Compartment Overview .............................................. 8- 8
Engine Oil ................................................................................ 8- 9
Engine Coolant ........................................................................ 8-11
Brake Fluid .............................................................................. 8-13
Power Steering Fluid ............................................................... 8-14
Automatic Transaxle Fluid (ATF) ........................................... 8-15
Washer Fluid ............................................................................ 8-16
Body Lubrication ..................................................................... 8-17
Air Filter .................................................................................. 8-17
Wiper Blades ........................................................................... 8-18
Battery ..................................................................................... 8-22
Tires ......................................................................................... 8-23
Light Bulbs .............................................................................. 8-27
Fuses ........................................................................................ 8-33
Appearance Care
......................................................................... 8-38
How to Minimize Environmental Paint Damage ..................... 8-38
Exterior Care ........................................................................... 8-40
Interior Care ............................................................................ 8-43
J16L_8R21-EA-02G.book Page 1 Saturday, June 8, 2002 11:16 AM

8-2
Maintenance and Care
Form No. 8R21-EA-02G
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you’re unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda’s original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Introduction
J16L_8R21-EA-02G.book Page 2 Saturday, June 8, 2002 11:16 AM

8-3
Maintenance and Care
Form No. 8R21-EA-02G
Scheduled Maintenance
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
•Repeated short-distance driving
•Driving in dusty conditions
•Driving with extended use of brakes
•Driving in areas where salt or other corrosive materials are being used
•Driving on rough or muddy roads
•Extended periods of idling or low-speed operation
•Driving for long periods in cold temperatures or extremely humid climates
•Towing a trailer
Scheduled Maintenance
NOTE
After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
J16L_8R21-EA-02G.book Page 3 Saturday, June 8, 2002 11:16 AM

8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8R21-EA-02G

Schedule 1
I:
Inspect and repair, clean, adjust, or replace if necessary.
R:
Replace
L:
Lubricate
C:
Clean
ENGINE
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if equipped)
*
1According to state and federal regulations, failure to perform maintenance on these items will not void your
emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometrage (mileage) period to ensure long-term reliability. Maintenance Interval
(Number of months
or kilometers (miles),
whichever comes first)Months 6 12182430364248
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
Drive belts II
PCV valve
*1I
Spark plugs (Platinum tipped type)Replace every 160,000 km (100,000 miles)
Air filterCR C
Fuel lines and hoses
*1II
Cooling systemII
Engine coolantReplace at first 72,000 km (45,000 miles) or 36 months ;
after that, every 48,000 km (30,000 miles) or 24 months
Brake lines, hoses and connectionsII
Brake fluidRR
Disc brakesII
Drum brakesII
Steering operation and linkagesII
Front suspension ball jointsII
Driveshaft dust bootsII
Bolts and nuts on chassis and bodyII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLL
Refrigerant amountIIII
Compressor operationIIII
Cabin air filter (if equipped)Replace once a year or every 20,000 km (12,000 miles)
J16L_8R21-EA-02G.book Page 4 Saturday, June 8, 2002 11:16 AM

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8R21-EA-02G

Schedule 2
I:
Inspect and repair, clean, adjust, or replace if necessary.
R:
Replace L :
Lubricate C :
Clean
ENGINE
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
ELECTRICAL SYSTEM
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if equipped)
*
1According to state and federal regulations, failure to perform maintenance on these items will not void your emissions
warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometrage
(mileage) period to ensure long-term reliability.
*
2If the vehicle is operated under any of the following conditions, change the spark plugs every 96,000 km(60,000 miles) or
shorter.
a)Repeated short-distance driving
b)Extended periods of idling or low-speed operation
c)Driving for long periods in cold temperatures or extremely humid climates
d)Towing a trailerMaintenance Interval
(Number of months or
kilometers (miles),
whichever comes first)Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine oilPuerto RicoReplace every 5,000 km (3,000 miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
Drive belts II
PCV valve
*1I
Hoses and tubes for emission(Puerto Rico)I
Spark plugs (Platinum
tipped type)USAReplace every 96,000 km (60,000 miles)
Others
*2Replace every 160,000 km (100,000 miles)
Air filterPuerto RicoCRCR
OthersCR C
Fuel lines and hoses
*1I I
Cooling systemII
Engine coolantReplace at first 72,000 km (45,000 miles) or 36 months ;
after that, every 48,000 km (30,000 miles) or 24 months
Engine coolant levelIIIIIIIIIIII
Function of all lightsIIIIIIIIIIII
Brake lines, hoses and connectionsII
Brake fluidRR
Brake fluid level IIIIIIIIIIII
Disc brakesIIII
Drum brakes I I
Tire inflation pressure and tire wearIIIIIIIIIIII
Steering operation and linkagesII
Power steering fluid levelIIIIIIIIIIII
Front suspension ball jointsII
Driveshaft dust bootsII
Bolts and nuts on chassis and bodyIIII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
Refrigerant amountIIII
Compressor operationIIII
Cabin air filter (if equipped)Replace once a year or every 20,000 km (12,000 miles)
J16L_8R21-EA-02G.book Page 5 Saturday, June 8, 2002 11:16 AM
