wiper blades MAZDA MODEL MPV 2003 Owners Manual (in English)

1-4
Your Vehicle at a Glance
Form No. 8R21-EA-02G
Exterior Overview
Windshield wiper blades
Power windows
Hood
Front fog lights
Front turn signal lights/Side-marker light
Headlights
Fuel-filler lid
Doors and keys
Rear windshield
wiper blades
Liftgate
License plate
lights
Reverse lights
Rear turn signal lights
Tires
Rear window defrosterChild safety lock
Outside mirrors Brake lights/Taillights
Parking lights
Sunroof
High-mount brake light
Power sliding doors
(page 8-32)
(page 8-32)
(page 5-36)
(page 3-11)
(page 8-20)
(page 3-18)
(page 8-32)
(page 8-32)
(page 8-32)
(page 8-18)
(page 3-24)
(page 8-30)
(page 8-30)(page 3-31)
(page 8-23)
(page 3-25)
(page 3-22) (page 3-19)
(page 3-12)
(page 3-2)
(page 8-30)
(page 8-28)
J16L_8R21-EA-02G.book Page 4 Saturday, June 8, 2002 11:16 AM

5-34
Driving Your Mazda
Switches and Controls
Form No. 8R21-EA-02G
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn on the fog lights, first turn on the
headlight switch. Then press the fog light
switch.
To turn the fog lights off, press the fog
light switch again or turn the headlight
switch off.The ignition switch must be in the ON
position.
Fog LightsWindshield Wipers and
Washer
Frozen Washer Fluid:
Using windshield washer fluid in
freezing temperatures is dangerous.
The washer fluid could freeze on the
windshield and block your vision.
You could have an accident. Don’t use
the washer without first warming the
windshield.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected by a circuit breaker. This
mechanism will automatically stop
operation of the blades, but only for
about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don’t resume functioning, consult
an Authorized Mazda Dealer as soon
as possible.
WARNING
J16L_8R21-EA-02G.book Page 34 Saturday, June 8, 2002 11:16 AM

8-1
Form No. 8R21-EA-02G
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................. 8- 2
Introduction ............................................................................. 8- 2
Scheduled Maintenance
.............................................................. 8- 3
Scheduled Maintenance ........................................................... 8- 3
Owner Maintenance
.................................................................... 8- 6
Owner Maintenance Schedule ................................................. 8- 6
Owner Maintenance Precautions ............................................. 8- 7
Engine Compartment Overview .............................................. 8- 8
Engine Oil ................................................................................ 8- 9
Engine Coolant ........................................................................ 8-11
Brake Fluid .............................................................................. 8-13
Power Steering Fluid ............................................................... 8-14
Automatic Transaxle Fluid (ATF) ........................................... 8-15
Washer Fluid ............................................................................ 8-16
Body Lubrication ..................................................................... 8-17
Air Filter .................................................................................. 8-17
Wiper Blades ........................................................................... 8-18
Battery ..................................................................................... 8-22
Tires ......................................................................................... 8-23
Light Bulbs .............................................................................. 8-27
Fuses ........................................................................................ 8-33
Appearance Care
......................................................................... 8-38
How to Minimize Environmental Paint Damage ..................... 8-38
Exterior Care ........................................................................... 8-40
Interior Care ............................................................................ 8-43
J16L_8R21-EA-02G.book Page 1 Saturday, June 8, 2002 11:16 AM

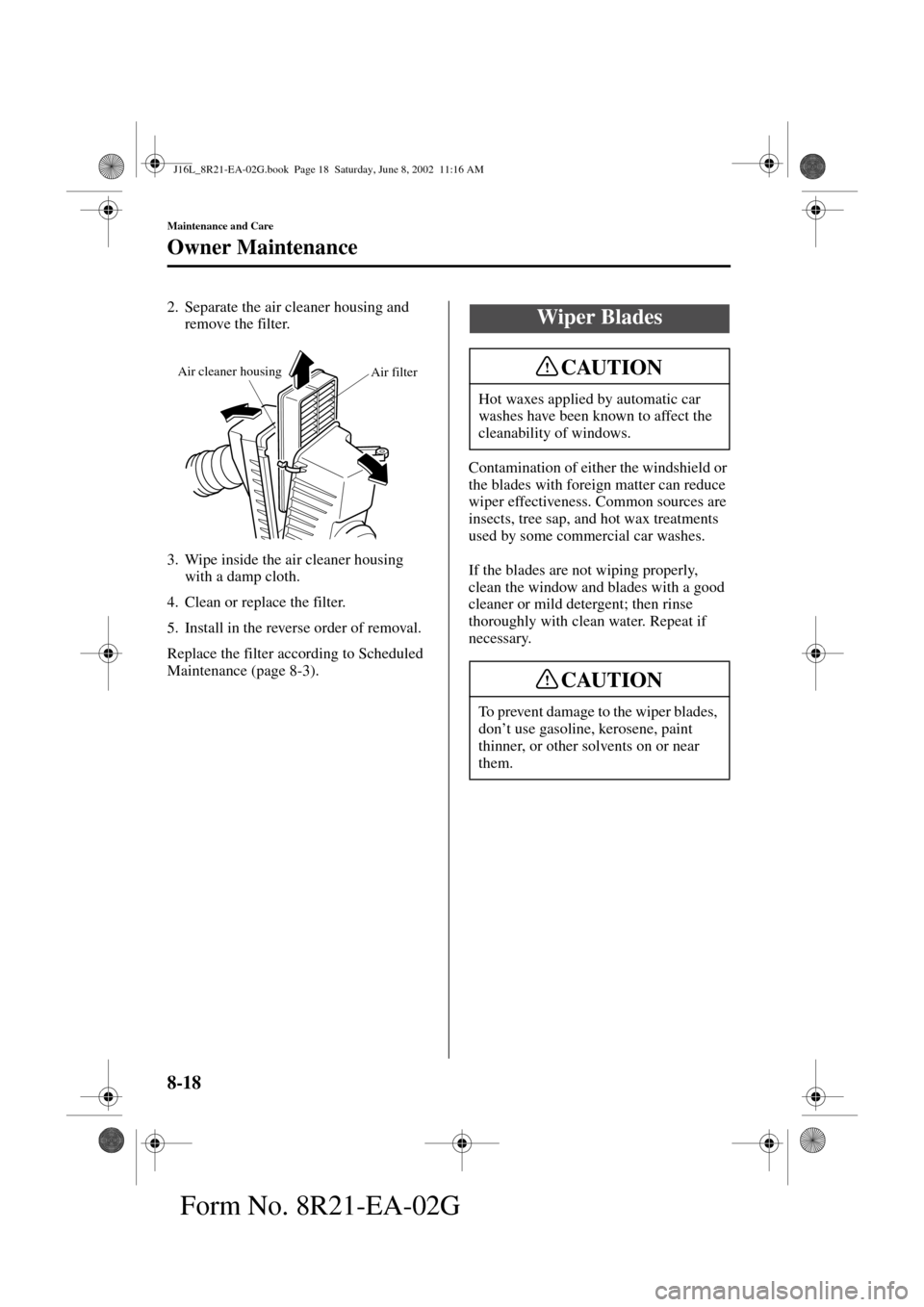

8-18
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G
2. Separate the air cleaner housing and
remove the filter.
3. Wipe inside the air cleaner housing
with a damp cloth.
4. Clean or replace the filter.
5. Install in the reverse order of removal.
Replace the filter according to Scheduled
Maintenance (page 8-3).Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
Air filterAir cleaner housing
Wiper Blades
Hot waxes applied by automatic car
washes have been known to affect the
cleanability of windows.
To prevent damage to the wiper blades,
don’t use gasoline, kerosene, paint
thinner, or other solvents on or near
them.
CAUTION
CAUTION
J16L_8R21-EA-02G.book Page 18 Saturday, June 8, 2002 11:16 AM

8-19
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G

Replacing Windshield Wiper
Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
1. Raise the wiper arm and turn the blade
assembly to expose the plastic locking
clip.
Compress the clip and slide the
assembly downward; then lift it off the
arm.2. Hold the end of the rubber and pull
until the tabs are free of the metal
support.
3. Remove the metal stiffeners from the
blade rubber and install them in new
blades. To prevent damage to the wiper arms
and other components, don’t move the
wipers by hand.
To prevent damage to the windshield,
don’t let the wiper arm fall on it.
CAUTION
Push
Plastic locking clip
CAUTION
Pull out Ta bMetal support
Stiffeners
J16L_8R21-EA-02G.book Page 19 Saturday, June 8, 2002 11:16 AM

11-6
Index
Form No. 8R21-EA-02G
T
Tachometer ...................................... 5-21
Temporary Spare Tire
...................... 8-25
Theft-Deterrent System
................... 3-29
Third-row seat
.................................. 2-17
Tiedown
Hook
......................................... 7-21
Tires
Flat tire
........................................ 7-3
Inflation pressure
...................... 8-23
Replacement
............................. 8-25
Rotation
.................................... 8-24
Snow tires
................................... 4-9
Spare tire and tool storage
.......... 7-3
Specifications
........................... 10-6
Tire chains
................................ 4-10
Uniform tire quality grading
system (UTQGS)
...................... 9-13
Tool
.................................................... 7-3
Towing
Description
............................... 7-20
Emergency towing
.................... 7-20
Recreational towing
.................. 7-21
Trailer towing
........................... 4-12
Traction Control System (TCS)
....... 5-16
TCS indicator light
................... 5-17
TCS OFF indicator light
........... 5-17
TCS OFF switch
....................... 5-17
Trailer Towing
................................. 4-12
Trip Meter
........................................ 5-20
Turn and Lane-Change Signals
....... 5-33
U
Under Seat Tray ............................... 6-49
V
Vanity Mirrors .................................. 6-41
Vehicle Information Labels
............. 10-2
W
Warning Lights ................................ 5-23
ABS
........................................... 5-27
Air bag system
.......................... 5-28
Brake system
............................. 5-25
Charging system
....................... 5-26
Check engine
............................. 5-27
Door-ajar
................................... 5-29
Engine oil pressure
.................... 5-26
Front seat belt pretensioner
system
....................................... 5-28
Immobilizer system
................... 5-29
Low fuel
.................................... 5-28
Seat belt
..................................... 5-28
Warranty
............................................. 9-8
Washer Fluid
.................................... 8-16
Weights
............................................ 10-5
Wheel Replacement
......................... 8-26
Windows
Power windows
......................... 3-19
Rear quarter windows
............... 3-22
Windshield Washer
.......................... 5-35
Windshield Wipers
........................... 5-35
Blades replacement
................... 8-18
Winter Driving
................................... 4-9
