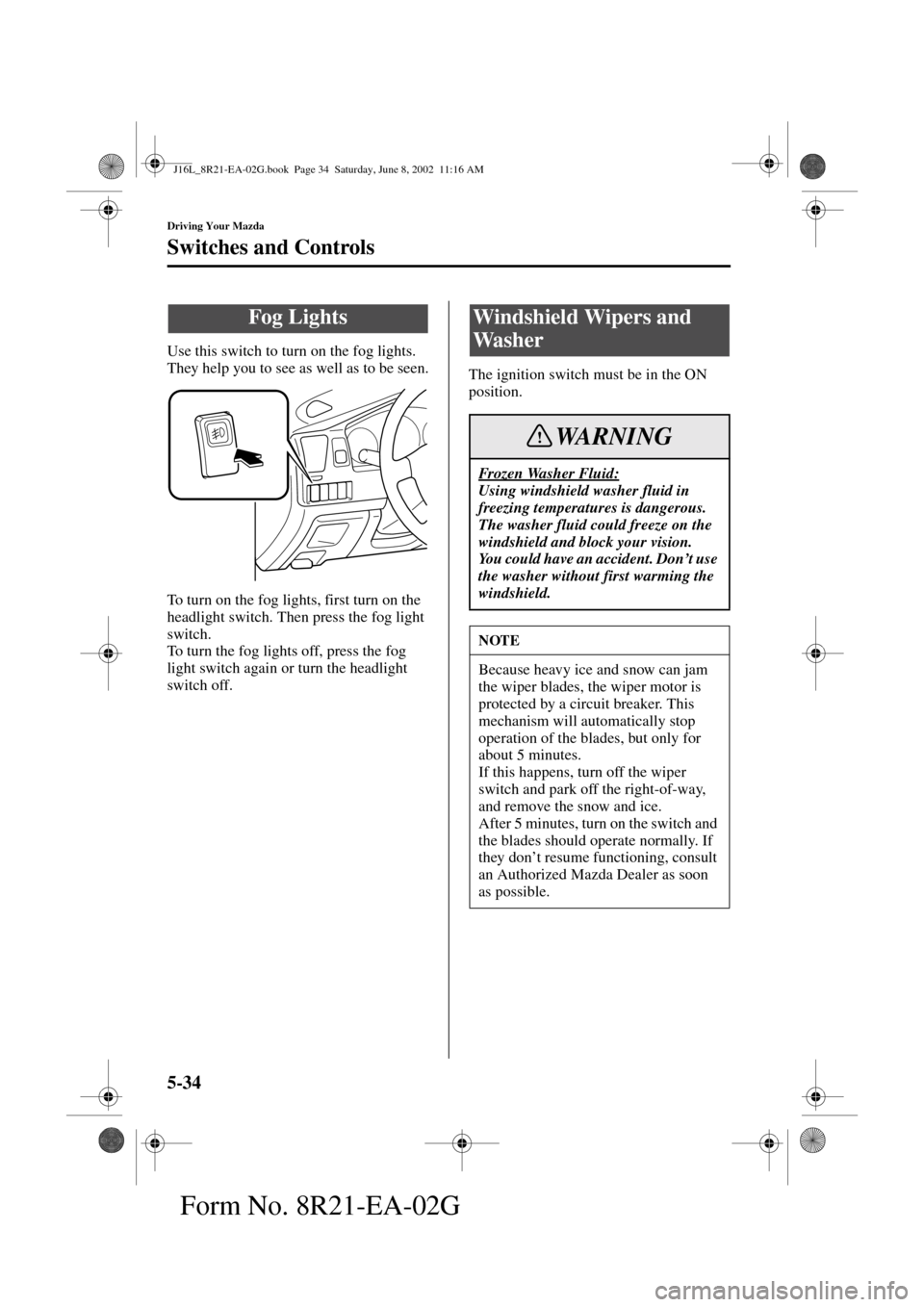

5-34
Driving Your Mazda
Switches and Controls
Form No. 8R21-EA-02G
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn on the fog lights, first turn on the
headlight switch. Then press the fog light
switch.
To turn the fog lights off, press the fog
light switch again or turn the headlight
switch off.The ignition switch must be in the ON
position.
Fog LightsWindshield Wipers and
Washer
Frozen Washer Fluid:
Using windshield washer fluid in
freezing temperatures is dangerous.
The washer fluid could freeze on the
windshield and block your vision.
You could have an accident. Don’t use
the washer without first warming the
windshield.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected by a circuit breaker. This
mechanism will automatically stop
operation of the blades, but only for
about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don’t resume functioning, consult
an Authorized Mazda Dealer as soon
as possible.
WARNING
J16L_8R21-EA-02G.book Page 34 Saturday, June 8, 2002 11:16 AM

5-35
Driving Your Mazda
Switches and Controls
Form No. 8R21-EA-02G

Windshield Wipers
Turn the wipers on by pulling the lever
down.
INT
— Intermittent
1
— Normal
2
— Fast
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.One-touch wipers
For a single wiping cycle, push the lever
up to MIST.

Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
If the washer doesn’t work, inspect the
fluid level (page 8-16). If it’s OK, consult
an Authorized Mazda Dealer.
OFF
INT
1
2
OFF
INT
INT ring
NOTE
In the OFF or INT position, the wipers
will be activated until the lever is
released.
OFF MIST
J16L_8R21-EA-02G.book Page 35 Saturday, June 8, 2002 11:16 AM

8-19
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G

Replacing Windshield Wiper
Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
1. Raise the wiper arm and turn the blade
assembly to expose the plastic locking
clip.
Compress the clip and slide the
assembly downward; then lift it off the
arm.2. Hold the end of the rubber and pull
until the tabs are free of the metal
support.
3. Remove the metal stiffeners from the
blade rubber and install them in new
blades. To prevent damage to the wiper arms
and other components, don’t move the
wipers by hand.
To prevent damage to the windshield,
don’t let the wiper arm fall on it.
CAUTION
Push
Plastic locking clip
CAUTION
Pull out Ta bMetal support
Stiffeners
