warning lights MAZDA MODEL MPV 2003 Owners Manual (in English)

2-36
Essential Safety Equipment
Seat Belt Systems
Form No. 8R21-EA-02G
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep will sound for about
6 seconds.
Seat Belt Warning LightSeat Belt Warning Beep
J16L_8R21-EA-02G.book Page 36 Saturday, June 8, 2002 11:16 AM

3-4
Knowing Your Mazda
Doors and Locks
Form No. 8R21-EA-02G

TransmitterLock button
To lock the doors and the liftgate, press
the LOCK button and the hazard warning
lights will flash once.
To confirm that all the doors and the
liftgate have been locked, press the LOCK
button again within 5 seconds. If they are
closed and locked, the horn will sound
and the hazard warning lights will flash
once.
Unlock button
To unlock the driver’s door, press the
UNLOCK button and the hazard warning
lights will flash twice.
To unlock all the doors and the liftgate,
press the UNLOCK button again within 5
seconds and the hazard warning lights
will flash twice.
NOTE
This device complies with part 15 of
the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation. (Outside
transmissions may momentarily
interfere with the device’s operation.)
Lock button
Right sliding door button
Left sliding door buttonUnlock button
Panic button
With power sliding doors
Lock button
Unlock button
Panic button
Without power sliding doors
NOTE
Confirm that all the doors and the
liftgate are locked visually or aurally
by use of the double click.
NOTE
After unlocking with the transmitter,
all doors and the liftgate will
automatically lock if one of the doors
or the liftgate is not opened within
about 30 seconds.
J16L_8R21-EA-02G.book Page 4 Saturday, June 8, 2002 11:16 AM

3-5
Knowing Your Mazda
Doors and Locks
Form No. 8R21-EA-02G

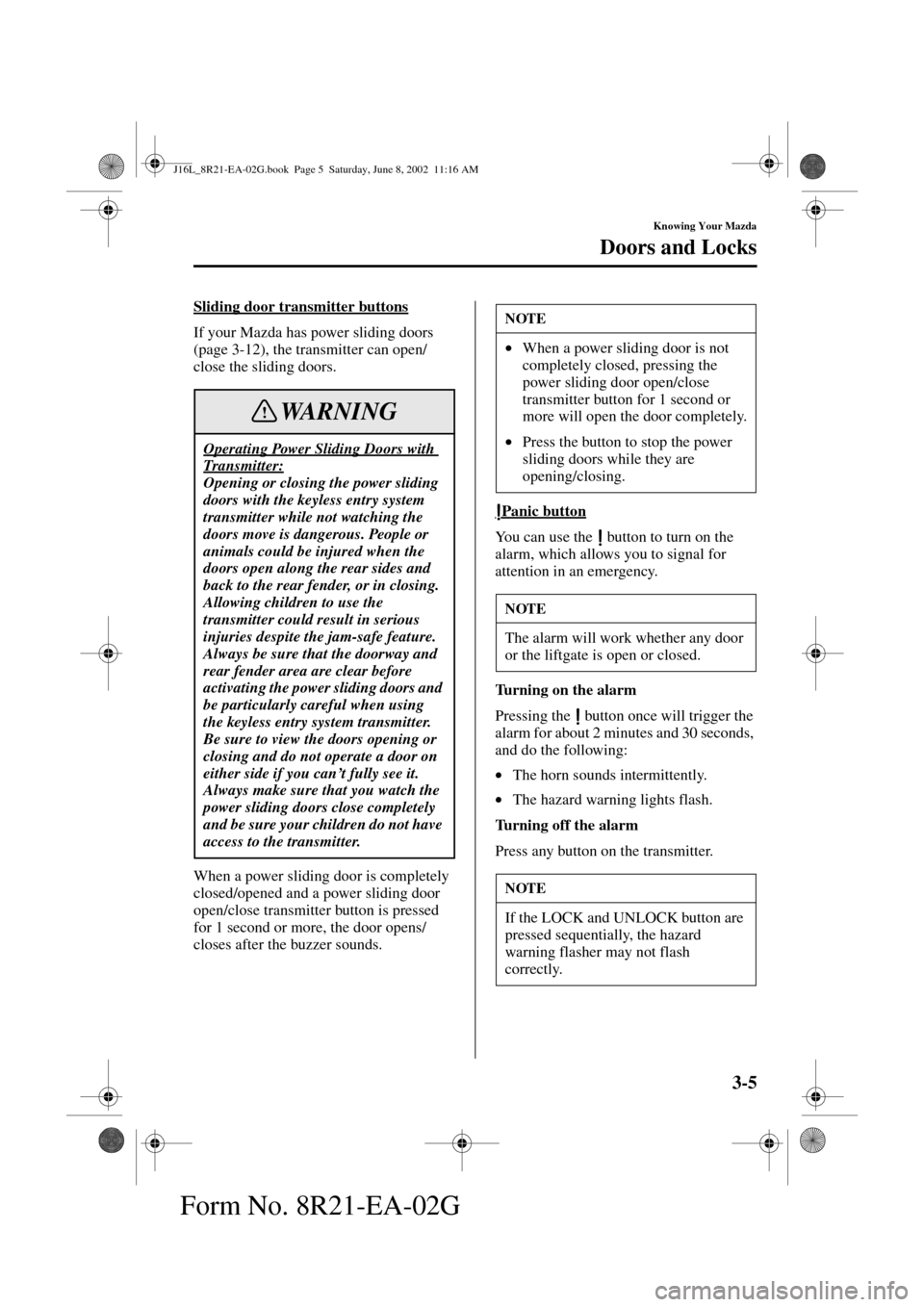

Sliding door transmitter buttons
If your Mazda has power sliding doors
(page 3-12), the transmitter can open/
close the sliding doors.
When a power sliding door is completely
closed/opened and a power sliding door
open/close transmitter button is pressed
for 1 second or more, the door opens/
closes after the buzzer sounds.Panic button
You can use the button to turn on the
alarm, which allows you to signal for
attention in an emergency.
Turning on the alarm
Pressing the button once will trigger the
alarm for about 2 minutes and 30 seconds,
and do the following:
•The horn sounds intermittently.
•The hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
Operating Power Sliding Doors with
Transmitter:
Opening or closing the power sliding
doors with the keyless entry system
transmitter while not watching the
doors move is dangerous. People or
animals could be injured when the
doors open along the rear sides and
back to the rear fender, or in closing.
Allowing children to use the
transmitter could result in serious
injuries despite the jam-safe feature.
Always be sure that the doorway and
rear fender area are clear before
activating the power sliding doors and
be particularly careful when using
the keyless entry system transmitter.
Be sure to view the doors opening or
closing and do not operate a door on
either side if you can’t fully see it.
Always make sure that you watch the
power sliding doors close completely
and be sure your children do not have
access to the transmitter.
WARNING
NOTE
•When a power sliding door is not
completely closed, pressing the
power sliding door open/close
transmitter button for 1 second or
more will open the door completely.
•Press the button to stop the power
sliding doors while they are
opening/closing.
NOTE
The alarm will work whether any door
or the liftgate is open or closed.
NOTE
If the LOCK and UNLOCK button are
pressed sequentially, the hazard
warning flasher may not flash
correctly.
J16L_8R21-EA-02G.book Page 5 Saturday, June 8, 2002 11:16 AM

3-29
Knowing Your Mazda
Security System
Form No. 8R21-EA-02G
The optional theft-deterrent system is
designed to prevent your vehicle or its
contents from being stolen when all the
doors, hood, and liftgate are locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.
The system won’t function unless it’s
properly armed. So when you leave the
vehicle, lock all the doors and the liftgate,
close all the windows, take your key, your
transmitter, and make sure the security
indicator light is flashing.

Operation
What turns it on:
•Forcing open a door, the hood or the
liftgate.
•Opening a door or the hood by
operating an inside door-lock button or
the hood release handle.
What it does:
•The horn sounds intermittently and the
hazard warning lights flash.
•The alarm continues for about 3
minutes, then stops.
If the system is triggered again, the lights
and horn will activate until a door or the
liftgate is unlocked with the key or with
the transmitter.

How to Arm the System
1. Remove the key from the ignition
switch.
2. Close the hood. Then close all doors
and the liftgate and lock them from the
outside using the key in the door. If you
have the keyless entry system, press the
LOCK button on the transmitter. The
hazard warning lights will flash one
time to indicate that the system is
armed.
The following method will also arm the
theft-deterrent system:
Close the hood. Press the area on the
door-lock switch marked "DOOR
LOCK" once. Close all doors and the
liftgate.
3. The indicator light flashes once every 3
seconds to indicate that the system is
fully armed. It continues to flash until
the theft-deterrent system is turned off.
Theft-Deterrent System
NOTE
The theft-deterrent system operates
without the keyless entry system
transmitter, as well.
NOTE
Locking the doors with the inside
door-lock button will not arm the
system.
J16L_8R21-EA-02G.book Page 29 Saturday, June 8, 2002 11:16 AM

3-30
Knowing Your Mazda
Security System
Form No. 8R21-EA-02G

To Tu r n o f f a n A r m e d S y s t e m
An armed system can be turned off by any
one of the following methods:
•Unlock a door or the liftgate with the
key.
•Press the UNLOCK button on the
keyless entry system transmitter.
•Insert the key into the ignition switch
and turn it to the ON position.
The hazard warning lights will flash twice
to indicate that the system is turned off.

To Stop an Alarm
A triggered alarm can be turned off by any
one of the following methods:
•Unlock a door or the liftgate with the
key.
•Press the UNLOCK button on the
keyless entry system transmitter.

Theft-Deterrent Labels
Labels indicating that your vehicle is
equipped with a Theft-Deterrent System
are in the glove box.
Mazda recommends that you affix them to
the lower rear corner of the front door
windows.
NOTE
If you have any problem with the theft-
deterrent system, consult an
Authorized Mazda Dealer.
J16L_8R21-EA-02G.book Page 30 Saturday, June 8, 2002 11:16 AM

3-32
Knowing Your Mazda
Steering Wheel and Mirrors
Form No. 8R21-EA-02G
2. Depress the perimeter switch in the
appropriate direction.
After adjusting the mirror, lock the
control by moving the selector switch to
the middle position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.Mirror defroster
To turn on the mirror defrosters, turn the
ignition on and push the rear window
defroster switch (page 5-36).

Rearview Mirror (With Day/
Night Function)
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Do this with the day/night lever in the day
position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Perimeter switch Selector switch
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the
outside mirrors to the driving position
before you start driving.
WARNING
Day/Night lever
Day
Night
J16L_8R21-EA-02G.book Page 32 Saturday, June 8, 2002 11:16 AM

4-6
Before Driving Your Mazda
Form No. 8R21-EA-02G
Before Starting the Engine
•Be sure the windows, outside mirror(s),
and outside lights are clean.
•Inspect inflation pressures and
condition of tires.
•Look under the vehicle for any sign of
a leak.
•If you plan to back up, make sure
nothing is in your way.•Are all doors closed and locked?
•Are the inside and outside mirrors
adjusted?
•Is everyone’s seat belt fastened?
•Do all the lights work?
•Check all gauges.
•Check all warning lights when the
ignition switch is turned to the ON
position.
•Release the parking brake and make
sure the parking brake warning light
goes off.
Always be thoroughly familiar with your
Mazda.
Before Getting In
NOTE
Engine oil, engine coolant, brake fluid,
washer fluid, and other fluid levels
should be inspected daily, weekly, or at
refueling, depending on the fluid. See
Maintenance, Section 8.
After Getting In
J16L_8R21-EA-02G.book Page 6 Saturday, June 8, 2002 11:16 AM

4-16
Before Driving Your Mazda
To w i n g
Form No. 8R21-EA-02G

Safety Chains
Safety chains must be used as a precautionary measure should the trailer become
unintentionally unhitched. They should cross under the trailer tongue and attach to the
hitch. Leave enough slack to allow full turns. Consult literature published by your trailer or
hitch manufacturer for more details.

Trailer Lights
Trailer lights must comply with all federal, state, and local regulations. Equip your trailer
as required before towing it day or night.

Trailer Brakes
If the total trailer weight exceeds 450 kg (1,000 lb), trailer brakes are required. If your
trailer has brakes, make sure they comply with all federal, state, and local regulations.
Towing Without Safety Chain:
Towing a trailer without using a safety chain securely attached to both the trailer and
the vehicle is dangerous. If damage occurs to the coupling unit or hitch ball, the
trailer could wander into another lane and cause a collision. Make sure the safety
chain is securely attached to both the trailer and the vehicle prior to departure.
Don’t connect a trailer lighting system directly to the lighting system of your Mazda.
This may damage your vehicle’s electrical system and lighting systems. Have a
recreational vehicle dealer or trailer rental agency connect the system, and inspect the
brake lights and turn signals each time before driving.
Hydraulic Trailer-Brake System:
Connecting a hydraulic trailer-brake system directly to the vehicle brake system is
dangerous and will result in inadequate braking and possible injury. Don’t connect a
hydraulic trailer-brake system to your vehicle’s brake system.
WARNING
CAUTION
WARNING
J16L_8R21-EA-02G.book Page 16 Saturday, June 8, 2002 11:16 AM

5-1
Form No. 8R21-EA-02G
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving
................................................................... 5- 2
Ignition Switch ........................................................................ 5- 2
Starting the Engine .................................................................. 5- 3
Brake System ........................................................................... 5- 4
Automatic Transaxle Controls ................................................. 5- 8
Power Steering ......................................................................... 5-12
Cruise Control ......................................................................... 5-13
Traction Control System (TCS) ............................................... 5-16
Instrument Cluster and Indicators
............................................ 5-19
Meters and Gauges .................................................................. 5-19
Warning/Indicator Lights and Beeps
........................................ 5-23
Warning/Indicator Lights ......................................................... 5-23
Beeps ....................................................................................... 5-31
Switches and Controls
................................................................. 5-32
Lighting Control ...................................................................... 5-32
Turn and Lane-Change Signals ............................................... 5-33
Fog Lights ................................................................................ 5-34
Windshield Wipers and Washer ............................................... 5-34
Rear Window Wiper and Washer ............................................ 5-36
Rear Window Defroster ........................................................... 5-36
Horn ......................................................................................... 5-37
Hazard Warning Flasher .......................................................... 5-37
J16L_8R21-EA-02G.book Page 1 Saturday, June 8, 2002 11:16 AM

5-2
Driving Your Mazda
Form No. 8R21-EA-02G
Starting and Driving

Ignition Switch Positions
LOCK
The steering wheel locks to protect
against theft. Only in this position can the
key be removed.ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-23).
START
The engine is started in this position. It
will crank until you release the key; then
it returns to the ON position. The brake
warning light can be checked after the
engine is started (page 5-23).

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep will sound when the
driver’s door is opened.
Ignition Switch
Removing the Key:
It’s dangerous to remove the key from
the ignition switch while the vehicle is
moving. Removing the key allows the
steering wheel to lock. You will lose
steering control and a serious
accident could occur.
Remove the key only when the vehicle
is parked.
Not Setting the Parking Brake:
Leaving the driver’s seat without
setting the parking brake is
dangerous. Unexpected vehicle
movement could occur if the parking
brake is not set. This could cause an
accident. Before leaving the driver’s
seat, always set the parking brake and
make sure the shift lever is in P.
WARNING
NOTE
If turning the key is difficult, jiggle the
steering wheel from side to side.
J16L_8R21-EA-02G.book Page 2 Saturday, June 8, 2002 11:16 AM
