6-5
Interior Comfort
Climate Control System
Form No. 8S06-EA-03H

Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.Fan control dial
This dial allows variable fan speeds.
0—Fan off
1—Low speed
2—Medium low speed
3—Medium high speed
4—High speed
Control Panel (Front)
A/C0123
4
0123REAR
Temperature control dialA/C switch Rear window defroster switchFan control dial
Air intake selector switch
Rear air-conditioner main switchMode selector dial
(page 5-38)
(page 6-12)
ColdHot
J16R_8S06-EA-03H_Edition1.book Page 5 Wednesday, July 9, 2003 4:19 PM

6-6
Interior Comfort
Climate Control System
Form No. 8S06-EA-03H
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 6-4).
A/C switch
Push the switch to turn the air conditioner
on. The indicator light on the switch will
illuminate when the fan control dial is set
at position 1, 2, 3, or 4.
Push the switch once again to turn the air
conditioner off.Air intake selector
This switch controls the source of air
entering the vehicle.
Press the switch to alternate between the
and positions. The indicator
light for the selected mode will
illuminate.
It is recommended that under normal
conditions the switch be kept in the
outside air position.
Outside air position ( )
Outside air is taken into the vehicle. Use
this position for normal ventilation and
heating.
Recirculated air position ( )
Outside air is shut off. Air within the
vehicle is recirculated.
This position can be used when driving on
a dusty road or in similar conditions. It
also helps to provide quicker cooling of
the interior.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).
J16R_8S06-EA-03H_Edition1.book Page 6 Wednesday, July 9, 2003 4:19 PM

6-7
Interior Comfort
Climate Control System
Form No. 8S06-EA-03H

Heating
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the
hot position.
4. Set the fan control dial to the desired
speed.
5. If dehumidified heating is desired, turn
on the air conditioner.

Cooling (With Air Conditioner)
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
desired position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner.
5. Adjust the fan control dial and
temperature control dial to maintain
maximum comfort.
The Recirculated Air Position:
Using the position in cold or
rainy weather will cause the glass to
fog up. Your vision will be hampered,
which could lead to a serious
accident. Do not use the
position in cold or rainy weather.
NOTE
•If the windshield fogs up easily, set
the mode selector dial to the
position.
•If cooler air is desired at face level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.
•The air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
WARNING
When using the air conditioner while
driving up long hills or in heavy traffic,
closely monitor the temperature gauge
(page 5-22).
The air conditioner may cause engine
overheating. If the gauge indicates
overheating, turn the air conditioner
off.
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 7 Wednesday, July 9, 2003 4:19 PM

6-8
Interior Comfort
Climate Control System
Form No. 8S06-EA-03H

Ventilation
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.

Windshield Defrosting and
Defogging
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
desired position.
3. Set the fan control dial to the desired
speed.
NOTE
•When maximum cooling is desired,
set the temperature control dial to
the extreme cold position and set
the air intake selector to the
position, then set the fan control dial
to position 4.
•If warmer air is desired at floor
level, set the mode selector dial at
the position and adjust the
temperature control dial to maintain
maximum comfort.
•The air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
Foggy Windshield:
Using the position with the
temperature control set to the cold
position will cause the outside of the
glass to fog up. Your vision will be
hampered, which could lead to a
serious accident. Set the temperature
control to the hot or warm position
when using the position.
NOTE
•For maximum defrosting, set the
temperature control dial to the
extreme hot position and the fan
control dial to position 4.
•If warm air is desired at the floor,
set the mode selector dial to the
position.
•In the or position, air
conditioning is automatically turned
on to defrost the windshield quickly
(however, the indicator light does
not illuminate) and the
position is automatically selected.
The air intake selector switch
cannot be changed to the
position.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 8 Wednesday, July 9, 2003 4:19 PM

6-9
Interior Comfort
Climate Control System
Form No. 8S06-EA-03H

Dehumidifying (With Air
Conditioner)
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the
desired position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
5. Turn on the air conditioner.
J16R_8S06-EA-03H_Edition1.book Page 9 Wednesday, July 9, 2003 4:19 PM

6-10
Interior Comfort
Climate Control System
Form No. 8S06-EA-03H

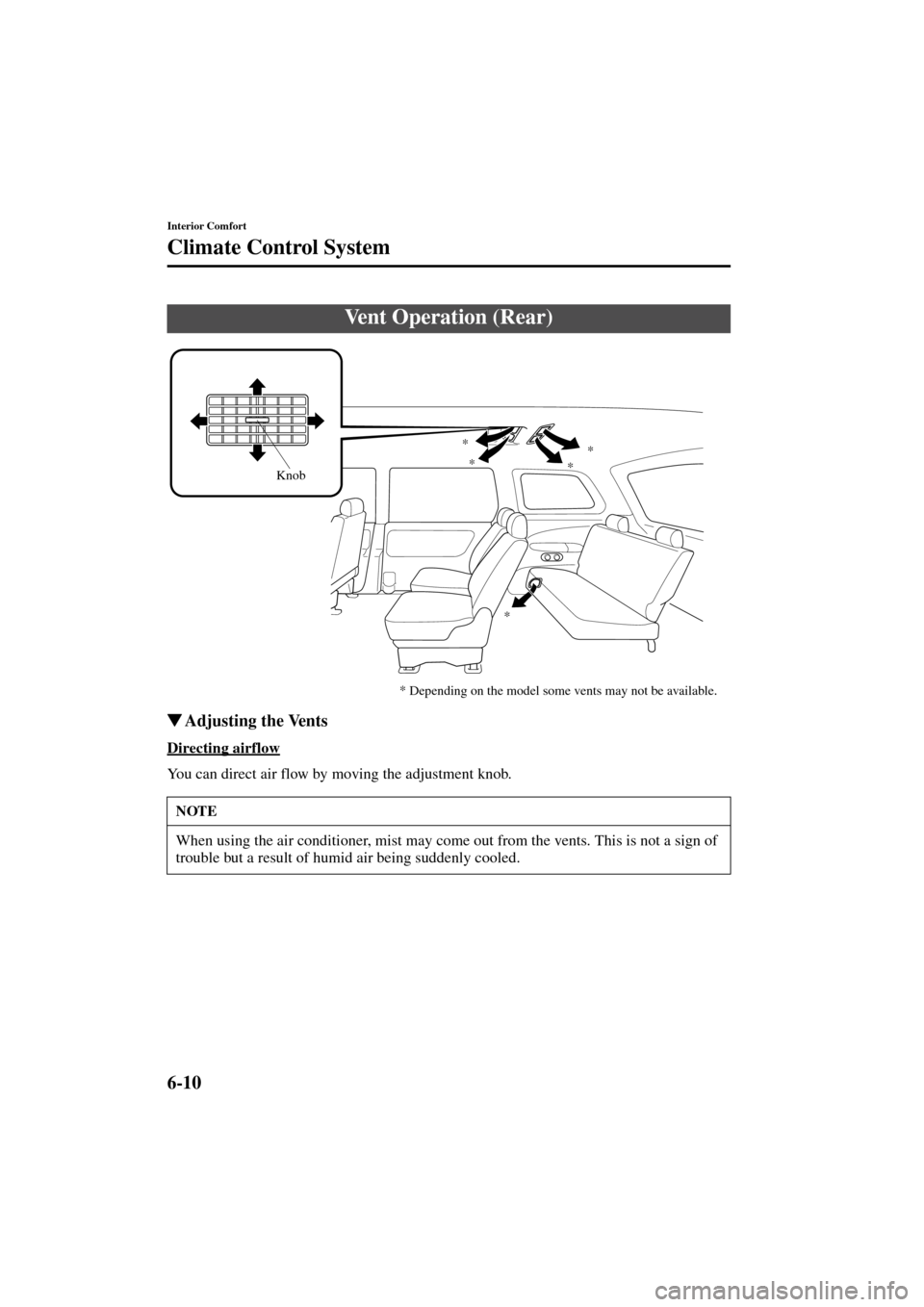

Adjusting the Vents
Directing airflow
You can direct air flow by moving the adjustment knob.
Vent Operation (Rear)
NOTE
When using the air conditioner, mist may come out from the vents. This is not a sign of
trouble but a result of humid air being suddenly cooled.
*
**
*
*
* Depending on the model some vents may not be available.
Knob
J16R_8S06-EA-03H_Edition1.book Page 10 Wednesday, July 9, 2003 4:19 PM

6-12
Interior Comfort
Climate Control System
Form No. 8S06-EA-03H

Control Switches
Rear air conditioner main switch
The air conditioner has front and rear
controls. The front air conditioner
controls override the rear controls.
The rear air conditioner main switch is
under the front air conditioner control
panel.This switch allows variable fan speeds for
the rear air conditioner.
0
—Fan off
REAR
—Select the desired fan speed
with rear air conditioner control panel.
1
—Low speed
2
—Medium speed
3
—High speed
Control Panel (Rear)*
Fan control dial
Fan control dial Mode selector dial
Type A
NOTE:
(Rear heater type)
(Rear cooler type)
Type BSupplies only hot air
out of floor outlets.
NOTE:
Supplies cold or hot
air out of roof vents
or floor outlets. Supplies only cold air
out of roof vents.
0123REAR
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 12 Wednesday, July 9, 2003 4:19 PM

6-13
Interior Comfort
Climate Control System
Form No. 8S06-EA-03H
Fan control dial
This dial allows variable fan speeds.
0
—Fan off
1
—Low speed
2
—Medium speed
3
—High speedMode selector dial (Type B)Turn the dial to select the cooler mode or
the heater mode.
—cooler mode
—heater mode
NOTE
When the rear air conditioner main
switch is not set to the REAR position,
the fan control dial of the rear air
conditioner control panel does not
work.
The front air conditioner controls
override the rear controls.
021
3
J16R_8S06-EA-03H_Edition1.book Page 13 Wednesday, July 9, 2003 4:19 PM

6-40
Interior Comfort
Au di o S ys t em
Form No. 8S06-EA-03H
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
Safety Certification
•This CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
•Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
•Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1)This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 40 Wednesday, July 9, 2003 4:19 PM

7-15
In Case of an Emergency
Form No. 8S06-EA-03H
Overheating
If the temperature gauge indicates
overheating, the vehicle loses power, or
you hear a loud knocking or pinging
noise, the engine is probably too hot.If the temperature gauge indicates
overheating:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Shift into park (P).
Apply the parking brake.
3. Turn off the air conditioner.
4. Check whether coolant or steam is
escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Don’t go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
5. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
Overheating
Cooling Fan and Engine
Inspection:
Inspecting the engine with the
ignition switch in the ON position is
dangerous. The cooling fan could
turn on unexpectedly even when the
engine isn’t running. You could be
seriously injured by the fan. Turn the
ignition switch off and remove the key
from the ignition switch when you
inspect the engine.
Cooling System Cap:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don’t remove the
cooling system cap when the engine
and radiator are hot.
Steam from Overheated Engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine.
WARNING
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 15 Wednesday, July 9, 2003 4:19 PM
